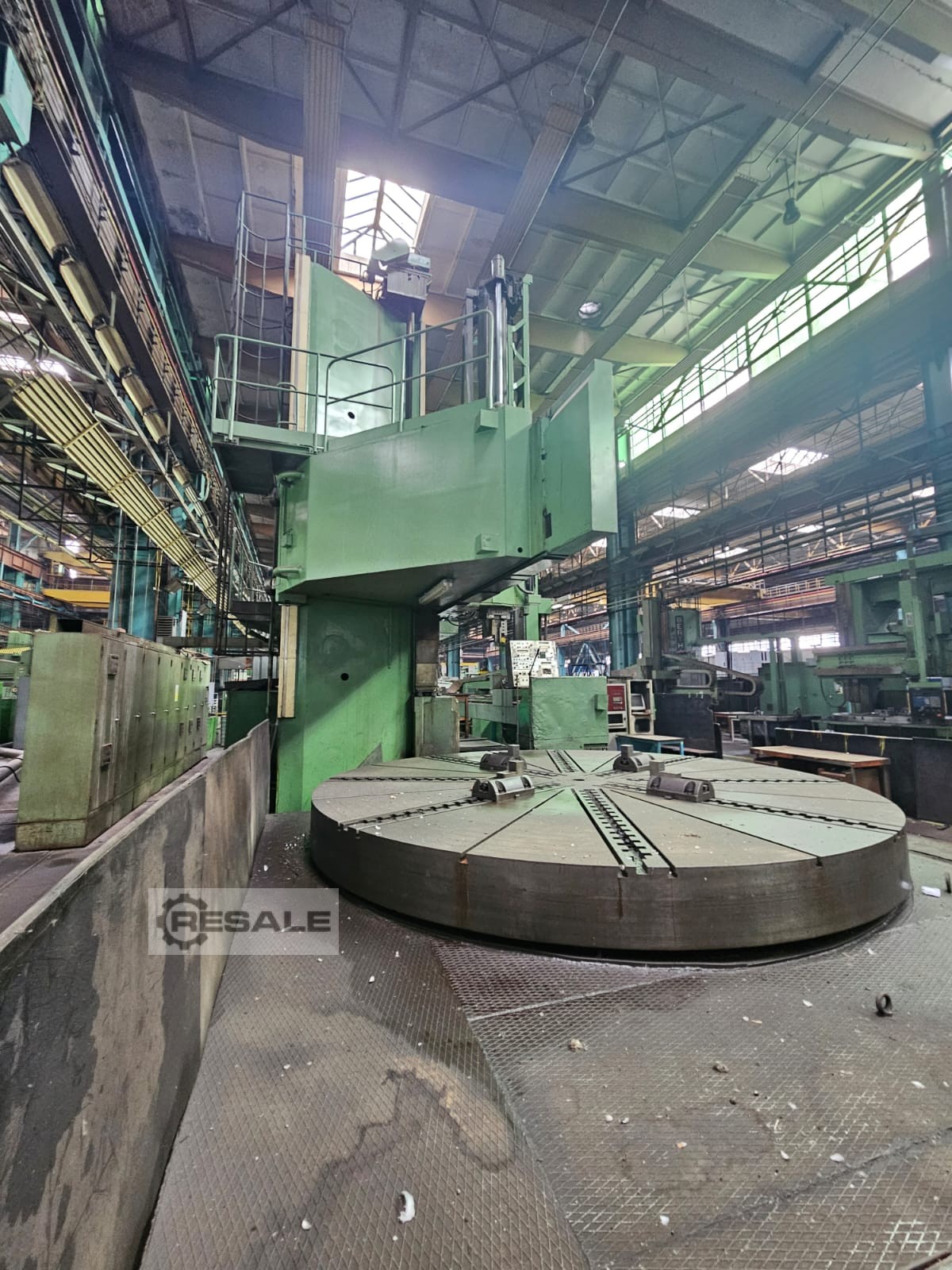

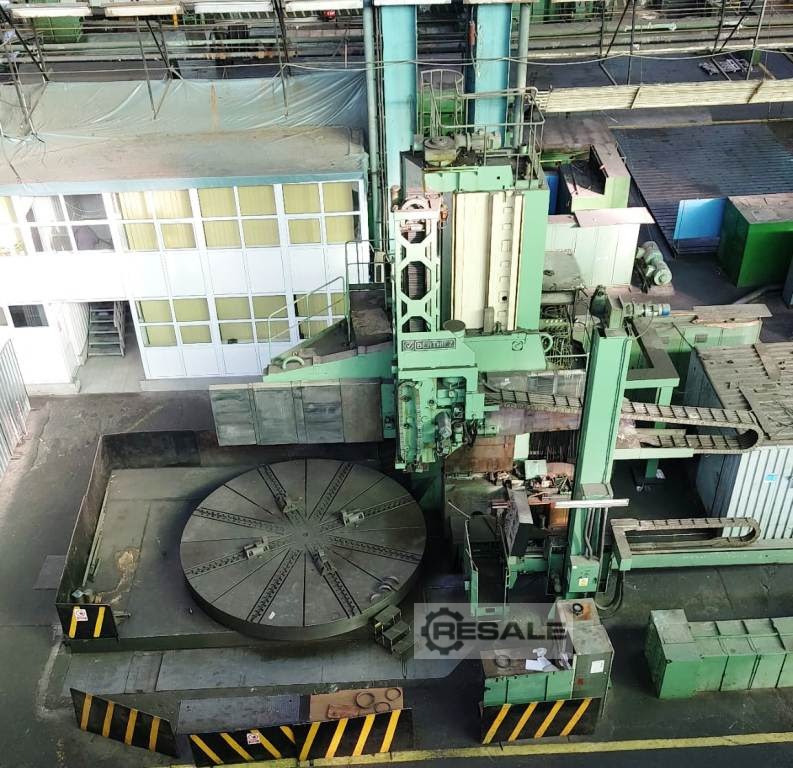

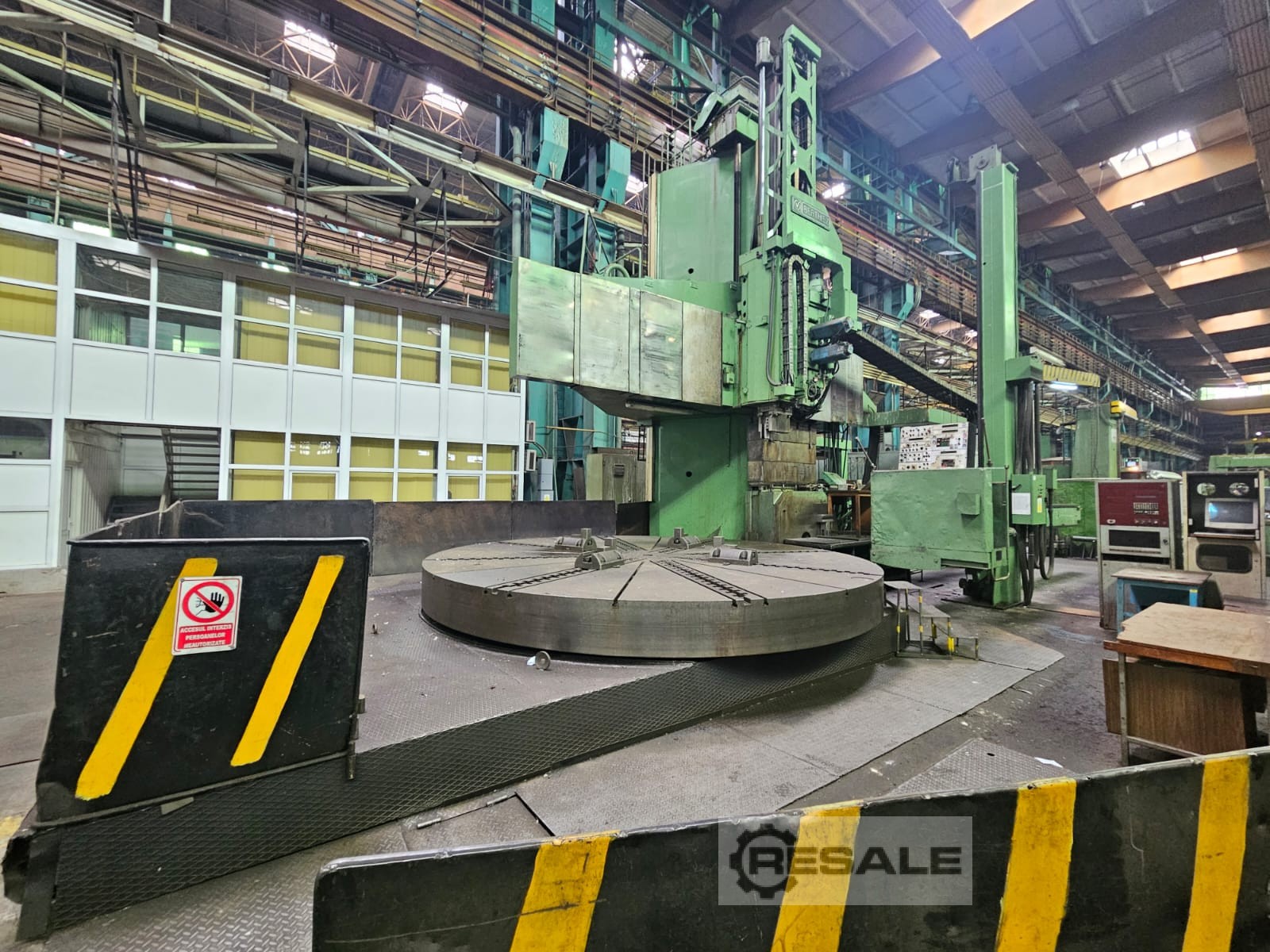

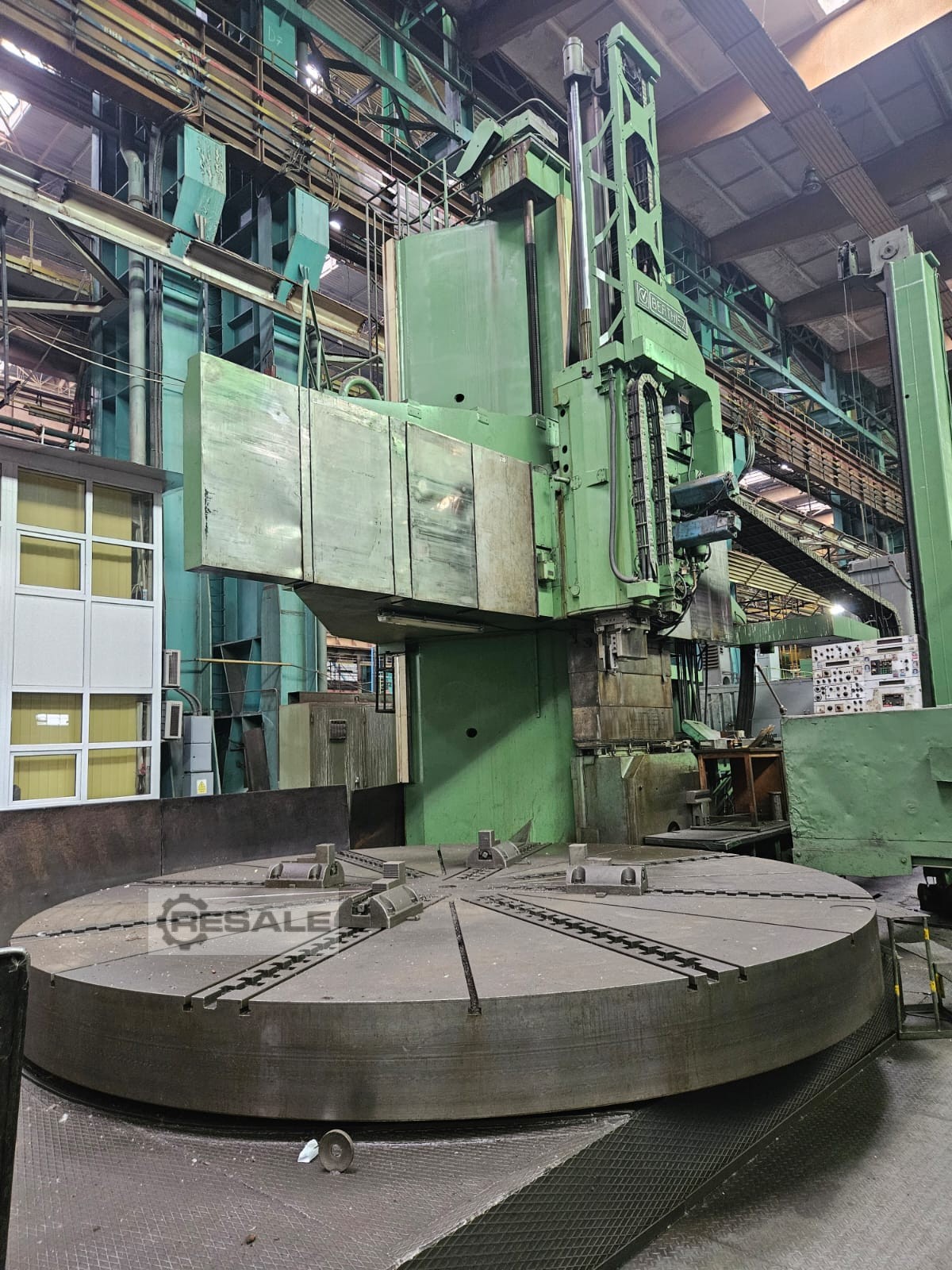

Tronos vertical BERTHIEZ 8000mm CNC

Faceplate diameter: 5000 mm Swing diameter: 8000 mm Turning height: 4000 mm Berthiez Vertical Turning Lathe
• Year of manufacture: 1982
• CNC type: older system (CNC axes)

Dimensions and Working Parameters
• Table diameter: 5000 mm
• Maximum turning diameter: 8000 mm
• Maximum turning diameter at center: 5000 mm
• Maximum workpiece height: 4000 mm
• Ram travel (T): 3600 mm
• Saddle travel (TA): 650 mm

Speed and Power
• Table rotation range: 0.6 – 60 rpm
• Table motor power: 140 kW
• Maximum load on hydraulic support: 160 t
• Ram feed speed: 400 mm/min
• Saddle feed speed: 2500 mm/min
• Spindle rotation for milling: 0.01 – 0.50 rpm
• Positioning speed: 0.001 – 0.50 rpm

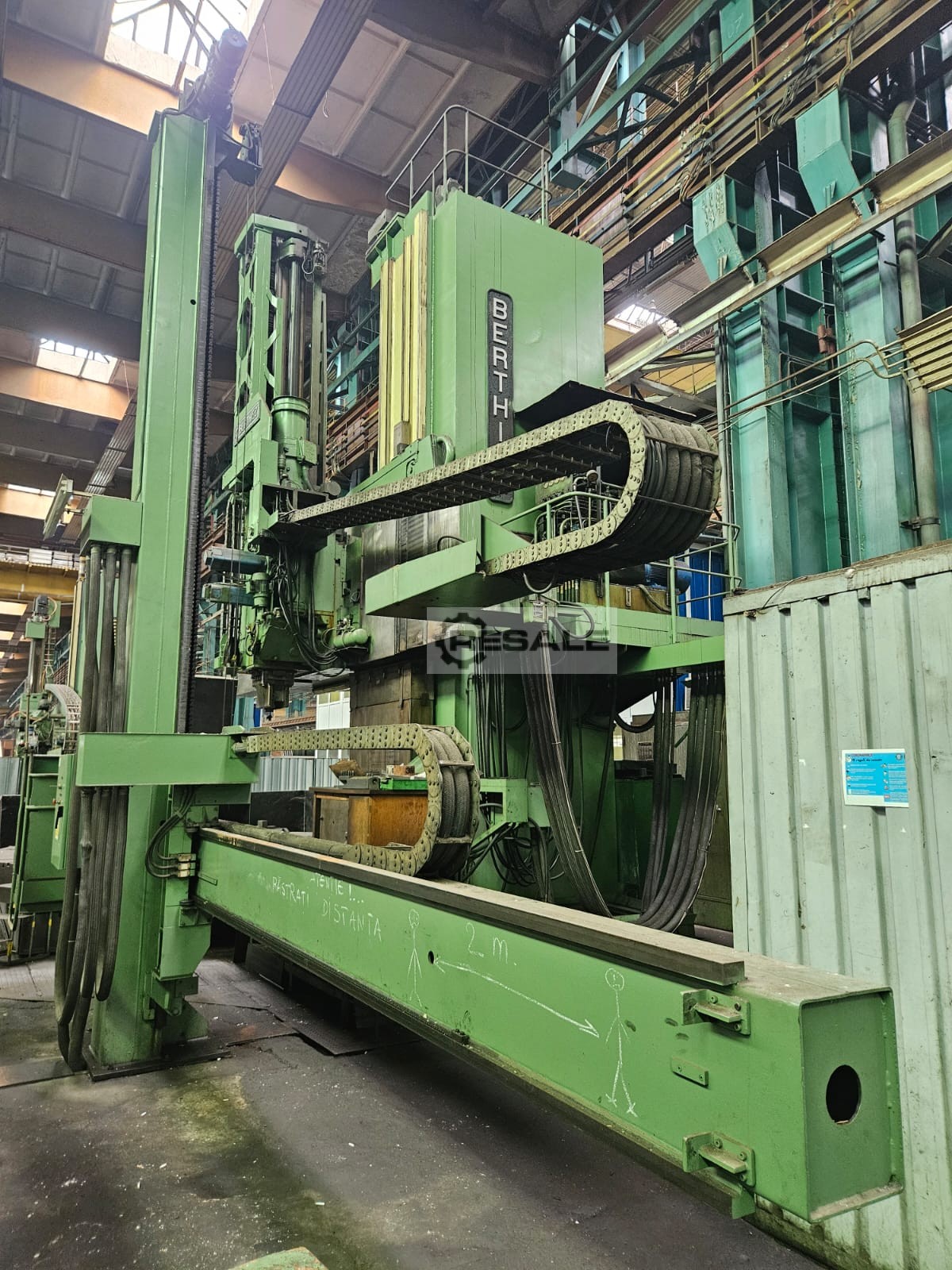

Tool Carriages

1. Hand-Operated (Primary) Carriage
• Kulannum section size: 360 × 360 mm
• Axial travel (CA): 2500 mm
• Horizontal travel (CB): 3400 mm
• Tilt range (E-F): 15° – 45°

2. Side Tool Carriage
• Kulannum section size: 360 × 360 mm
• Axial travel (BA): 1600 mm
• Vertical travel (BB): 3450 mm

Feed and Positioning Speeds (Both Carriages)
• Continuous feed:
• Manual: 0.05 – 25 mm/rev
• Digital/CNC: 0.2 – 360 mm/rev
• Positioning speed: 1 – 3600 mm/min
• Note: Use the first feed range when feed is below 800 mm/min
seller offer No. resale 168817919
