POSMILL machine à vendre

Key data: 1050 mm, 530 mm, 630 mm

Moulin à poseaux C 1050 Année de construction : 2014 Contrôle : Heidenhain iTNC 530 Centre d’usinage vertical Axe X : 1050 mm Axe Y : 530 mm Axe Z : 630 mm Dimensions de la table : 1150 x 560 mm Vitesse de rotation de la broche : 10 000 tr/min Changeur d’outils : 30 fois Porte-outil : SK 40 Heures machine env. : 27 000 h Heures de broche env. : 9 800 h IKZ 20 bar avec système de filtration à bande Robot Yaskawa Motoman, contrôle MH 12/DX 200 Système de mesure de pièces 25.10-HDR Volant électronique

Key data: 800 mm, 510 mm, 630 mm

Année de construction 2011 Contrôle Fanuc A100 Vitesse [tr/min] 10000 Course X/Y/Z [mm] 800/510/630 Outils et outils. SK 40 Fuseau: Technologie de broche à courroie Vitesse 10 000 tr/min Porte-outil SK40 Généralités: Magasin d’outils 24 stations Surface de serrage 950 x 510 mm Poids de la pièce (max.) 500 kg Déplacement rapide en X/Y/Z 30 m/min Équipement/Accessoires : Gestion des copeaux Vis de copeaux Système de gestion du liquide de refroidissement IKZ avec filtre Sonde de mesure de pièce, m&h IRP 25.12 Réglage électronique du volant Autres équipements Refroidisseur de broche

This POSMILL E 2050 L HSCI Vertical Machining center machine was manufactured in the year 2015 in Germany and has 2750 spindle hours (since spindle renewal in April 2021). It is equipped with a HEIDENHAIN iTNC 530 control unit and HSK 63. The machine has new inline spindle, new spindle motor and new rotary union (April 2021). It comes with inner cooling through spindle 20Bar with belt filter, tool changer 60 compartment, 3D probe Blum, tool measurement Blum laser, Heidenhain handwheel, blowing air spindle center and operation mode 4. Upon request and for additional cost approx. 250 HSK holders and drill chucks are available (partly new / partly used).

This POS H800U Universal Machining Centre was manufactured in 2018 in Germany. It has 5 axis (X = 670, Y = 600 mm, Z = 820 mm / Swivel range -100 to +120 degrees, Rotary table 360 degrees endless) and comes with a HSK-A63 spindle with 18,000 rpm. The machine is operated by a iTNC530 HEIDENHAIN control and is equipped with a Heidenhain rotary and linear measuring system X,Y,Z. As extras it features air through spindle, internal coolant supply 20 bar with belt filter unit, a KESSLER table with diameter 800 mm, tool measurement with BLUM laser and operation mode 4. See tech specs overview as PDF (DE) attached.

This POSmill E1100 Vertical machining center was manufactured in the year 2013 in Germany and has 7181 spindle hours. It is equipped with a HEIDENHAIN iTNC530 control unit. It comes with a 3-D measuring probe.

This POSmill H 800 U Universal Machining center was manufactured in the year 2019. It is equipped with a HEIDENHAIN TNC i 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. This High-performance machining center is ideal for both demanding tool and mold making and high-volume production. Standard torque drives on all rotary axes enable full simultaneous 5-axis machining (swivel range: +/-120 degrees, rotary table: 360 degrees endless). See attached the full tech specs of the original order confirmation.

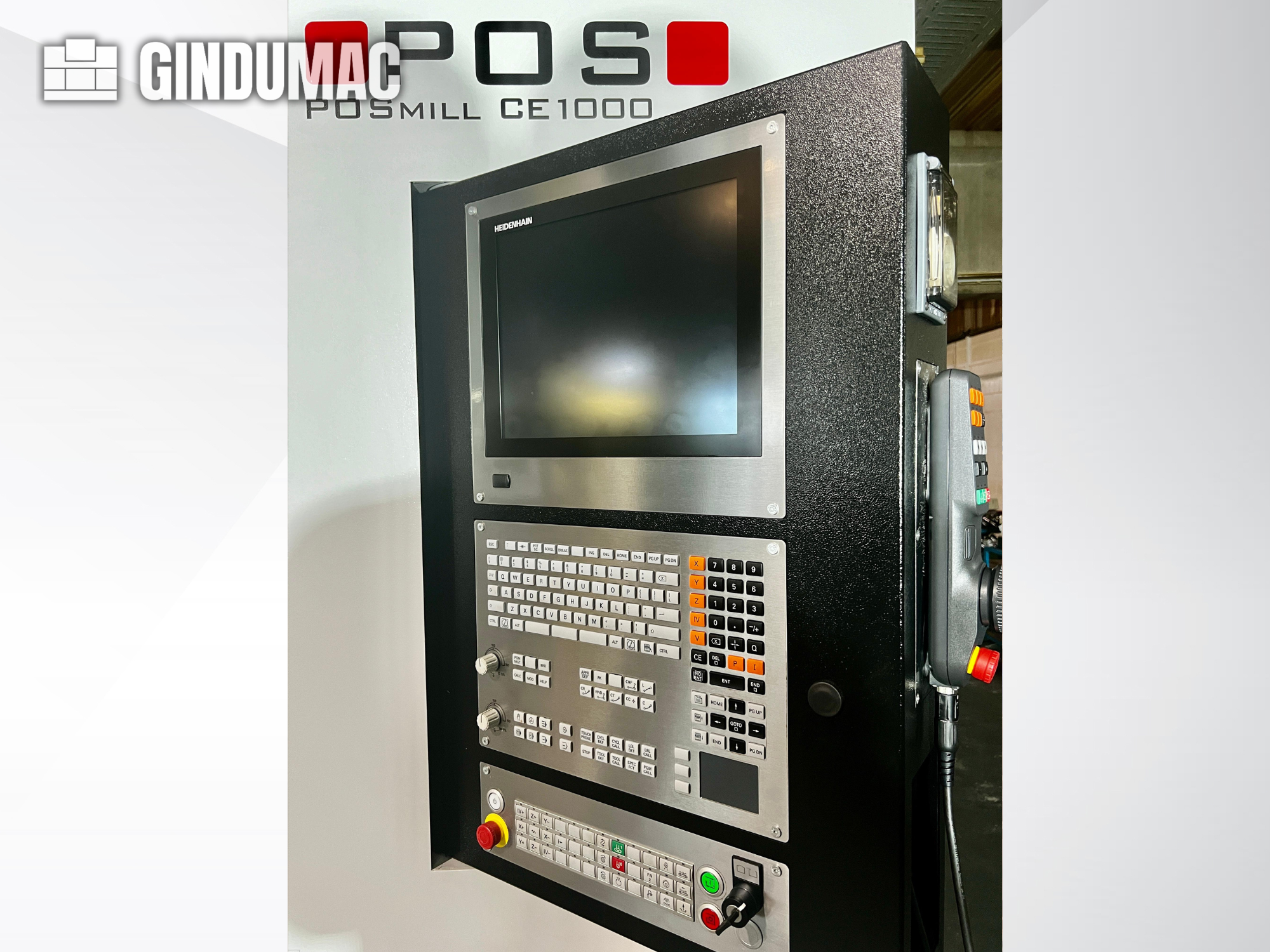

This POSmill CE 1000 Milling machine was manufactured in the year 2021 and has around 400 spindle hours. It is equipped with a HEIDENHAIN TNC640 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
