VORONEZH K8544 Prasa do kucia na gorąco ROK : 1980 / 2008 REMONT I INSTALACJA SIŁA: 2500ton SKOK SUWAKA: 350 mm ROZMIAR RAM: 1120X1070 mm WYMIARY CAŁKOWITE STOŁU: 1400X1200 mm LICZBA CYKLI W TRYBIE CIĄGŁYM: 60 LICZBA CYKLI W TRYBIE RĘCZNYM : 26 WYSOKOŚĆ ZAMKNIĘCIA : 890 mm SKOK GÓRNEGO WYBICIA: 60 mm ODLEGŁOŚĆ OD DOLNEGO WYBICIA: 70 mm SILNIK GŁÓWNY: 132 KW (ZMIENIONY NA HYUDAI HEAVY Y2012) WYMIARY CAŁKOWITE PRASY: 5380X4680X6400 mm PODPARCIE HYDRAULICZNE NOWOŚĆ W 2007 ROKU STAN : BARDZO DOBRE WARUNKI PRACY Dostępna prasa do przycinania
2000 Ton Sumitomo Hot Forging Press linia Rok 2006 Skok tłoka 350 mm (13,78 cala) Uderzenia na minutę 75 Wysokość zamknięcia 850 mm (33,47 cala) SlideAdj. 7 mm (.27inch) Rozmiar suwaka 1200 mm LR X 1300 mm FB Rozmiar łóżka: 1320 mm LR X 1300 mm FB 4-stopniowy system transferu Nokaut wślizgowy Nokaut dolny System złomu Podwójny zmieniacz matryc Buty Extra Die Dostępna również nagrzewnica kęsowa i piła kęsowa Ta linia została wykorzystana przez HONDĘ do produkcji przekładni, Bierze kęs, tnie go na wymiar, ogrzewa do 1300 C, a następnie prasa uderza w niego 4 razy. Może odróżnić dobre części od złych, złe części są wysyłane do zbiornika hartowniczego, dobre części są wysyłane do przenośnika chłodzącego, który można odebrać ręcznie na końcu. Cały system był obsługiwany przez jednego operatora.
(2) Pozioma prasa kuźnicza Asahi THP500-6 (maszyna do główkowania) Rok: 2008 Pierwszy skok: 24 mm Drugi skok: 50 mm Moc wyrzutu: 150 kN Wysokość otwarta: 625 mm Wysokość zabudowy: 425 mm Matryca (szer. x dł.): 500x490 mm Stempel (szer. x dł.): 250x350 mm Skok suwaka: 200 mm Siła kucia: 5000 kN Czas jazdy na rowerze: 6,5 s Prędkość korby: 60 RPM Masa maszyny: 28 t
pressure:500 tdistance between columns:2400 mmstroke:400 fix mmno. of strokes:13 - 23 /minDistance table/ram, max. stroke up, adjustment up:1600 mmtable surface area:2300 x 1800 mmcolumn travel -side:1600 mmram surface:2170 x 1800 mmram adjustment:300 mmtotal power requirement:110,0 kWWeight:135,0 tDimensions (WxDxH):3,35 x 4,85 x 7,0 mclutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric
pressure:300 tdistance between columns:2500 mmstroke:350 mmdistance table/ram, max. stroke up, adjustment up:1280 mmtable surface area:2500 x 1500 mmtable height over floor:850 mmside window:900 mmram surface:2500 x 1500 mmspeed down:300 mm/sspeed up:240 - 450 mm/sworking speed:23 - 44 mm/soil volume:3000 lpower requirement:132,0 kWweight:54,0 tDimensions (WxDxH):3,25 x 3,2 x 4,8 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 ram interlocking:SITEMA
nominal force:100 tstroke:320 mmno. of strokes:35 /mindistance between columns:360 / 250 mmDistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:320 x 450 mmtable height over floor:660 mmram surface:250 x 280 mmspindle diameter:125 mmpower capacity:3,0 kWweight:4,5 tDimensions (WxDxH):2,0 x 1,6 x 3,1 m
Pressure:100 tdistance between columns:910 mmstroke:600 mmdistance table/ram, stroke up:1000 mmtable surface area:1340x680 / 910x1085 mmhole in the table:700 x 510 mmtable height over floor:800 mmside window:680 mmram surface:1230x680 / 910x1000 mmcapacity of ejector:7,5 tejector stroke:150 mmpower requirement:15,0 kWweight:9,5 tDimensions (WxDxH):2,3 x 1,9 x 3,6 mlight guard:Sick blank holder / ejector in ram:hydraulisch
pressure:150 tthroat:450 mmstroke:115 fix mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:2250 x 1090 mmtable height over floor:900 mmpassage to the back:1900 mmram surface:1900 x 900 mmram adjustment:100 mmpower requirement:16,0 kWweight:19,5 tDimensions (WxDxH):3,0 x 2,3 x 3,9 m
pressure:200 tdistance between columns:1800 mmstroke:710 mmDistance table/ram, max. stroke up, adjustment up:1100 mmtable surface area:1600 x 1300 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:250 mmdie cushion area:1400 x 1080 mmtable height over floor:800 mmside window:1300 mmram surface:1660 x 1300 mmspeed down:400 mm/sspeed up:410 mm/sworking speed:14,3 - 49,7 mm/spower requirement:46,0 kWweight:25,0 tDimensions (WxDxH):3,65 x 3,3 x 5,4 mheight over floor:5,05 mheight beneath floor:0,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard at front and back:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic depth stop:mechanical
pressure:50 tdistance between columns:1750 mmstroke:500 mmDistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:1700 x 750 mmtable height over floor:800 mmside window:650 x 750 mmram surface:1700 x 750 mmpower requirement:11,0 kWweight:11,0 tDimensions (WxDxH):2,1 x 1,15 x 3,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary
pressure:015 tthroat:200 mmstroke:4 - 70 mmno. of strokes:140 /mindistance table/ram, max. stroke up, adjustment up:310 mmtable surface area:430 x 395 mmhole in the table:165 x 160 mmtable height over floor:560 - 735 mmtable adjustable:175 mmram surface:160 x 130 mmram adjustment:80 mmpower requirement:1,2 kWweight:0,9 tDimensions (WxDxH):1,0 x 1,25 x 1,8 mclutch:Drehkeil overload protection in ram:mechanical
pressure:030 tstroke:8 - 40 mmno. of strokes:100 - 600 /mindistance between columns:325 mmdistance table/ram, max. stroke up, adjustment up:250 mmtable surface area:540 x 300 / 325 x 395 mmhole in the table:315 x 110 mmtable height over floor:1000 mmcolumn travel -side:290 mmram surface:250 mmmaterial width of feeder:120 mmmaterial thickness of feeder:3,0 mmfeed length:60 mmpower requirement:5,5 kWweight:2,6 tDimensions (WxDxH):1,5 x 1,2 x 2,2 mclutch:pneumatic roll feed:mechanical, Bruderer BBV 120/60
pressure:100 tthroat:350 mmstroke:6 - 100 mmno. of strokes:60 /mindistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:850 x 700 mmhole in the table:470 x 150 mmtable height over floor:855 mmram surface:450 x 300 mmram adjustment:80 mmpower requirement:7,5 kWweight:5,0 tdimensions (WxDxH):1,5 x 2,3 x 2,6 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical
pressure:500 tdistance between columns:2240 mmstroke:1180 mmdistance table/ram, max. stroke up, adjustment up:1800 mmtable surface area:2050 x 1800 mmpressure of drawing cushion in table:250 tstroke of drawing cushion in table:380 mmdrawing cushion surface in table:1800 x 1200 mmpressure of drawing cushion in ram:122 tstroke of drawing cushion in ram:200 mmdrawing cushion area in ram:1800 x 1200 mmram surface:2215 x 1800 mmtable height over floor:500 mmspeed down:400 mm/sspeed up:10 - 400 mm/sworking speed:10 - 100 mm/sdepth of the foundation:3,0 mpower requirement:122 + 75 + 64,5 kWweight:110,0 tDimensions (WxDxH):3,6 x 2,2 x 8,5 mheight over floor:6,8 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table and ram:hydraulic
pressure:500 tdistance between columns:3200 mmstroke:1250 mmdistance table/ram, max. stroke up, adjustment up:1810 mmtable surface area:3000 x 1900 mmpressure of drawing cushion in ram:150 tstroke of drawing cushion in ram:200 mmdrawing cushion area in ram:2400 x 1200 mmram surface:3160 x 1900 mmspeed down:400 mm/sspeed up:250 mm/sworking speed:18 - 58 mm/sheight over floor:6,5 mpower requirement:90,0 + 36,5 kWweight:110 tGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in ram:hydraulic
pressure:6 tstroke:1020 mmtotal power requirement:3,5 kWCan only adjust between tips Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.
pressure:800 tdistance between columns:3010 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:1350 mmtable surface area:3000 x 1800 mmtable height over floor:500 mmside window:1500 x 1400 mmram surface:3000 x 1800 mmspeed down:300 mm/soil volume:900 lheight over floor:5,4 mheight beneath floor:2,1 mpower requirement:200,0 kWweight:80,0 tDimensions (WxDxH):5,2 x 2,6 x 7,5 mram interlocking:in TDC depth stop:mechanical
nominal force:315 tstroke:300 mmno. of strokes:36 /mindistance between columns:540 mmdistance table/ram, max. stroke up, adjustment up:750 mmtable surface area:530 x 630 mmblow die to die:630 tAllowed max. force:500 tram surface:450 x 560 mmspindle diameter:180 mmpower capacity:18,0 kWweight:13,0 tDimensions (WxDxH):2,5 x 2,0 x 4,0 m
pressure:100 tdistance between columns:1060 mmstroke:700 mmdistance table/ram, max. stroke up, adjustment up:1250 mmtable surface area:1000 x 700 mmpressure of drawing cushion in table:40 tstroke of drawing cushion in table:200 mmdie cushion area:Ø 250 mmtable height over floor:950 mmside window:580 x 750 mmram surface:1000 x 700 mmoil volume:700 lpower requirement:47,0 kWweight:13,0 tDimensions (WxDxH):2,2 x 1,8 x 5,0 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical; motoric adjustable ram interlocking:SITEMA
pressure:160 tdistance between columns:2050/1900 mmstroke:15 - 170 mmno. of strokes:15 - 40 /mindistance table/ram, max. stroke up, adjustment up:690 mmtable surface area:1600 x 800 mmside window:800 mmram surface:1620 x 700 mmram adjustment:140 mmpower requirement:15,0 kWweight:24,0 tDimensions (WxDxH):3,3 x 2,3 x 5,3 mheight over floor:4,8 mheight beneath floor:0,5 mclutch:pneumatic ram adjustment:motoric ram counterbalance:pneumatic
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmheight beneath floor:0,3 mpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mclutch-/ brake combination:pneumatic; Desch overload protection in ram:mechanical ram counterbalance:pneumatic ram adjustment:motoric drawing cushion in table:pneumatic Mechanical pincer ...
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor:0,3 mpneumatic clutch-brake combination:Desch Mechanical pincers feed:Obru, BVK 3.10.3
pressure:10 tdistance between columns:450 mm:1500 mmtable-size:450 x 400 mmweight of the machine ca.:470 kgdimensions of the machine ca.:1400 x 750 x 1600 mm
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mpneumatic clutch-brake combination:Desch drawing cushion in table:pneumatic Mechanical pincers feed:Obru, BVK 3.10.3
pressure:40 tthroat:220 mmstroke:8 / 88 mmtable pass:ø- abgesetzt 225/200 mmram head dimension:400 x 250 mmdistance table/ram:228 mmstroke adjustable from - to:30 - 140 mmram adjustment:63 mmthickness of bolster:80 mmno. of strokes:70 Hub/mintotal power requirement:5,5 kWweight of the machine ca.:2600 kgdimensions of the machine ca.:1100 x 1300 x 2300 mmDocuments:vorhanden
pressure:6,3 tthroat:300 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:450 x 400 mmhole in the table:80 mmtable height over floor:700 mmram surface:50 mmoil volume:90 lpower requirement:5,5 kWweight:1,35 tdimensions (WxDxH):1,8 x 2,0 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical

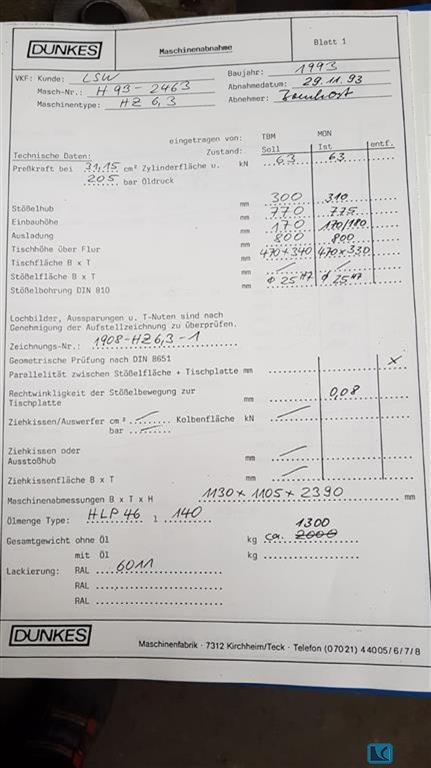

pressure:6,3 tthroat:170/180 mmstroke:310 mmpower capacity:3 kWdayligth:775 mmweight of the machine ca.:1,5 tclamping table:470 x 330 mmtable height over floor:800 mmC-Type1 Station

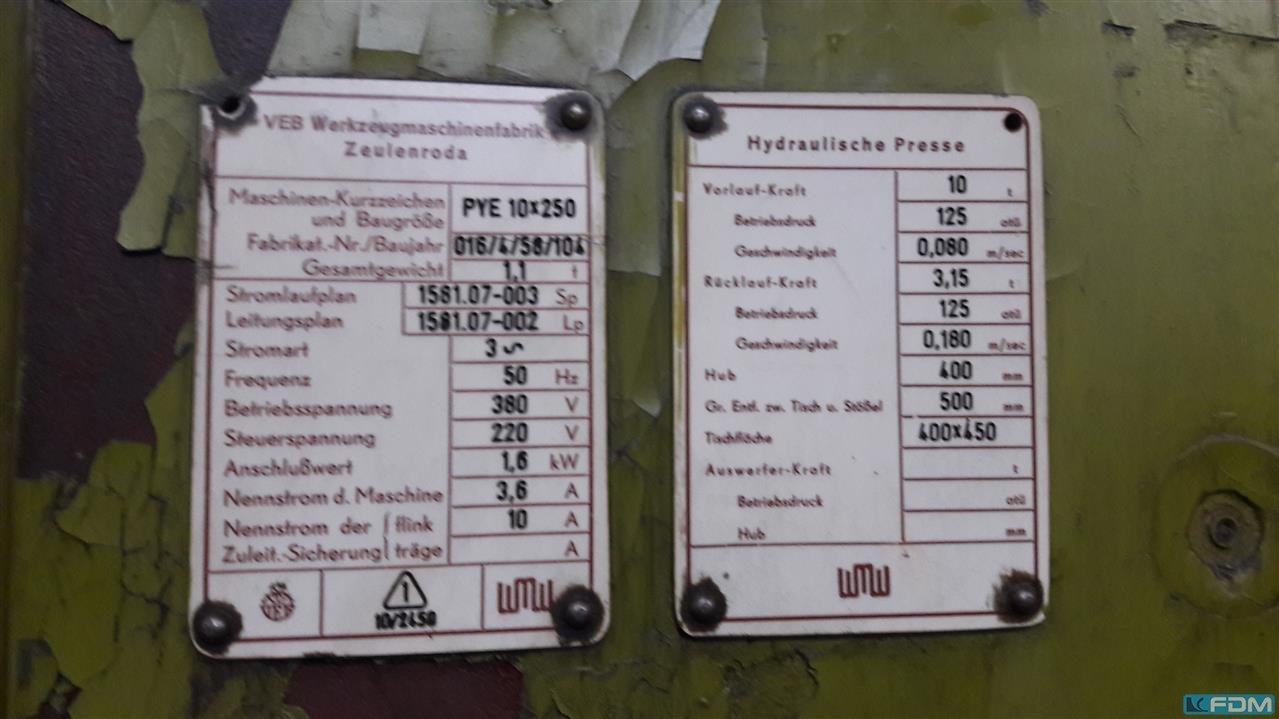

pressure:10 tstroke:400 mmtotal power requirement:1,6 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:1100 x650 x 2050 mmdayligth:500 mmtable-size:400 x 450 mmDocuments:vorhanden

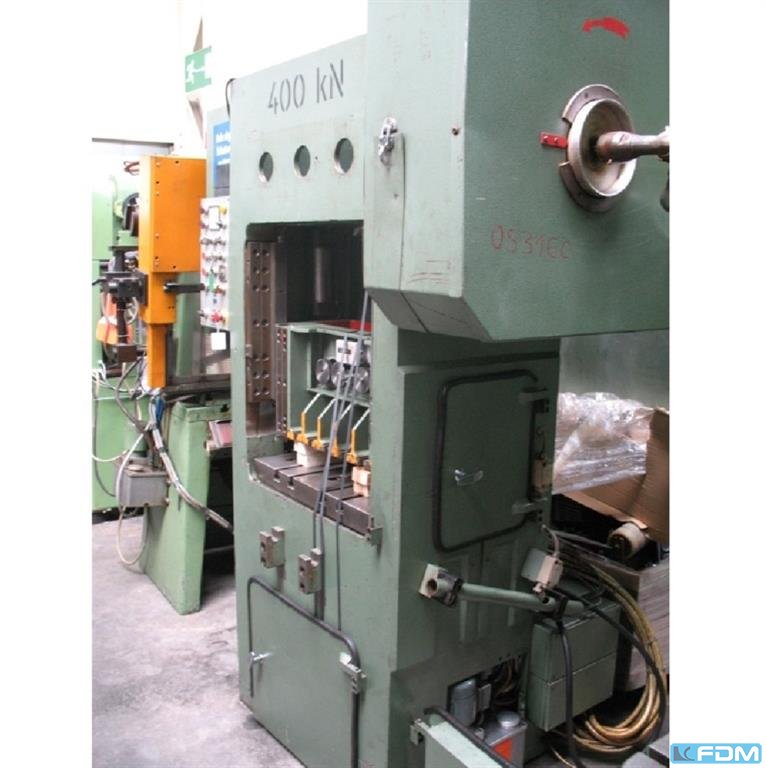

pressure:040 tstroke:8 - 50 mmno. of strokes:50 - 300 /mindistance between columns:600 mmdistance table/ram, max. stroke up, adjustment up:285 mmtable surface area:590 x 500 mmhole in the table:590 x 40 - 100 mmtable height over floor:860 mmcolumn travel -side:280 mmram surface:590 x 380 mmram adjustment:80 mmmaterial width of feeder:150 mmpower requirement:7,5 kWclutch:pneumatic ram adjustment:motoric pincer feed:mechanical
