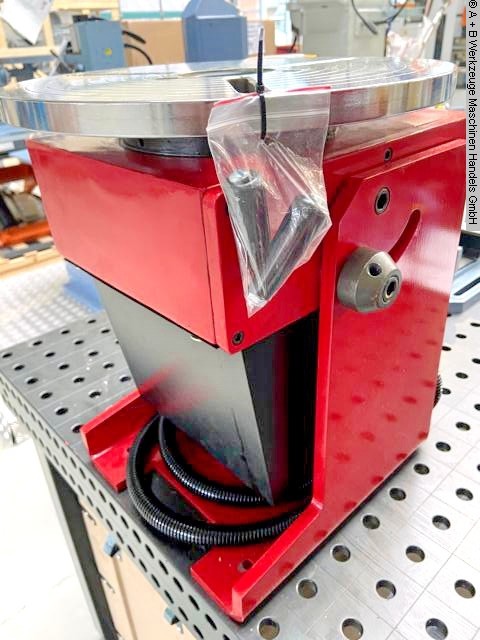

MB PRO 3 COM 1000

table diameter: 340 mm
table load: 290 horizontal kg
table load capacity: 190 vertikal kg
turning speeds: 0.6 - 6.0 U/min
spindle bore: 60.0 mm
swivelling range: 0 - 90.0 Grad
weight of the machine ca.: 62.0 kg
dimensions of the machine ca.: 380 x 340 x 425 mm
Furnishing:
- The table can be tilted and clamped at an angle of 0 to 90
- Start / stop via a location-independent foot switch.
- Direction of rotation can be selected right / left.
- Adjustable rotation time.
- The turntable has a 60 mm hollow shaft.

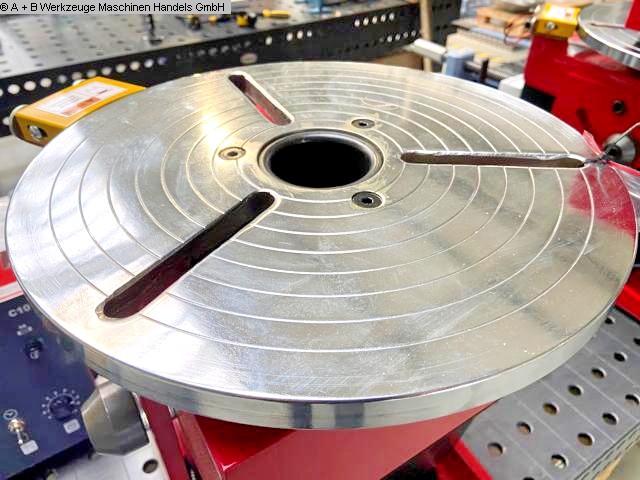

- The turntable has a diameter of
340 mm. The surface is chrome-plated for
Protection against welding spatter.
- The table speed is adjustable from 0.6 - 6 rpm.
- The control of the welding machine via
the turntable control is possible.
- The ground contact transmits 300 A / 100%.
- The turntable and the control are separate.
- HF protected.
- Operating instructions in German

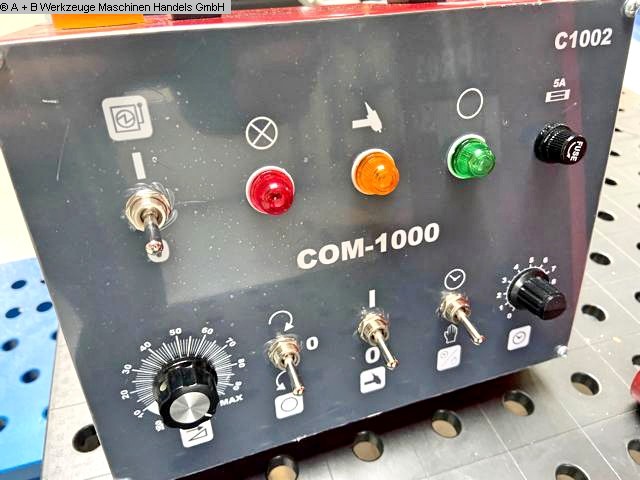

Functions of the COM 1000 control:
- Right / left rotation
- stepless speed control
- welding torch on / off
- Control for turning time
