Flow M3 4020bYear of manuf. : 2016 Base axis (X) : mmOutrigger
(Y) : mm____________Description:Technical SpecificationsWorking area
X/Y:4,000 × 2,000 mmMaterial support area X/Y:approx. 4,100 × 2,100
mmZ-axis travel:approx. 150 mmMax. traverse speed:12,700 mm/minMax.
contour cutting speed:7,620 mm/minX/Y positioning accuracy:± 0.04
mm/mX/Y repeatability:± 0.05 mmHigh-Pressure PumpManufacturer /
Model:Flow HyPlex Prime 30Motor power:22 kW (30 HP)Max. design
pressure:4,150 barContinuous operating pressure:3,800 barMax. flow
rate:3.1 l/minPower supply:400 V / 50 Hz / 3-phaseStandard

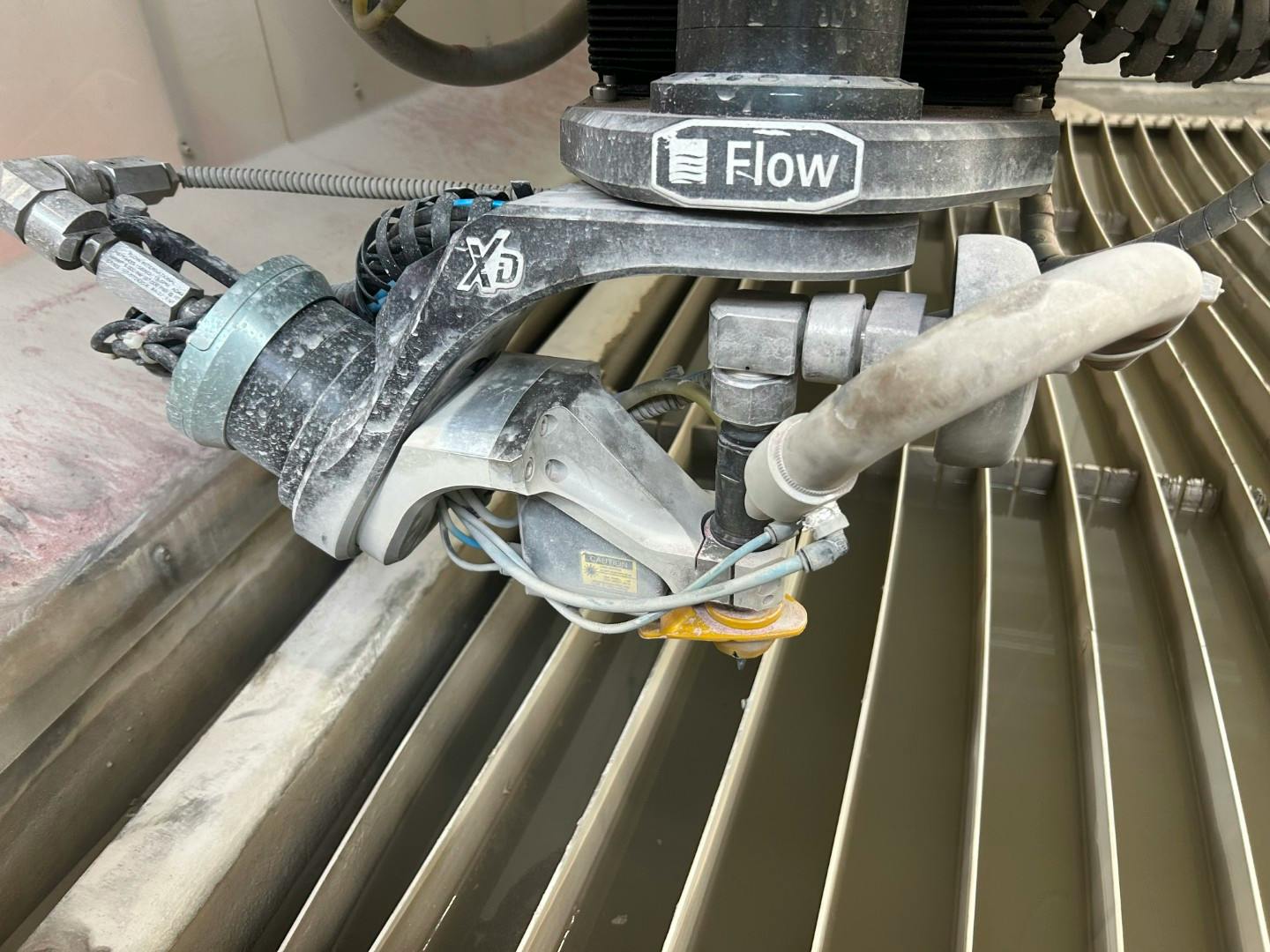

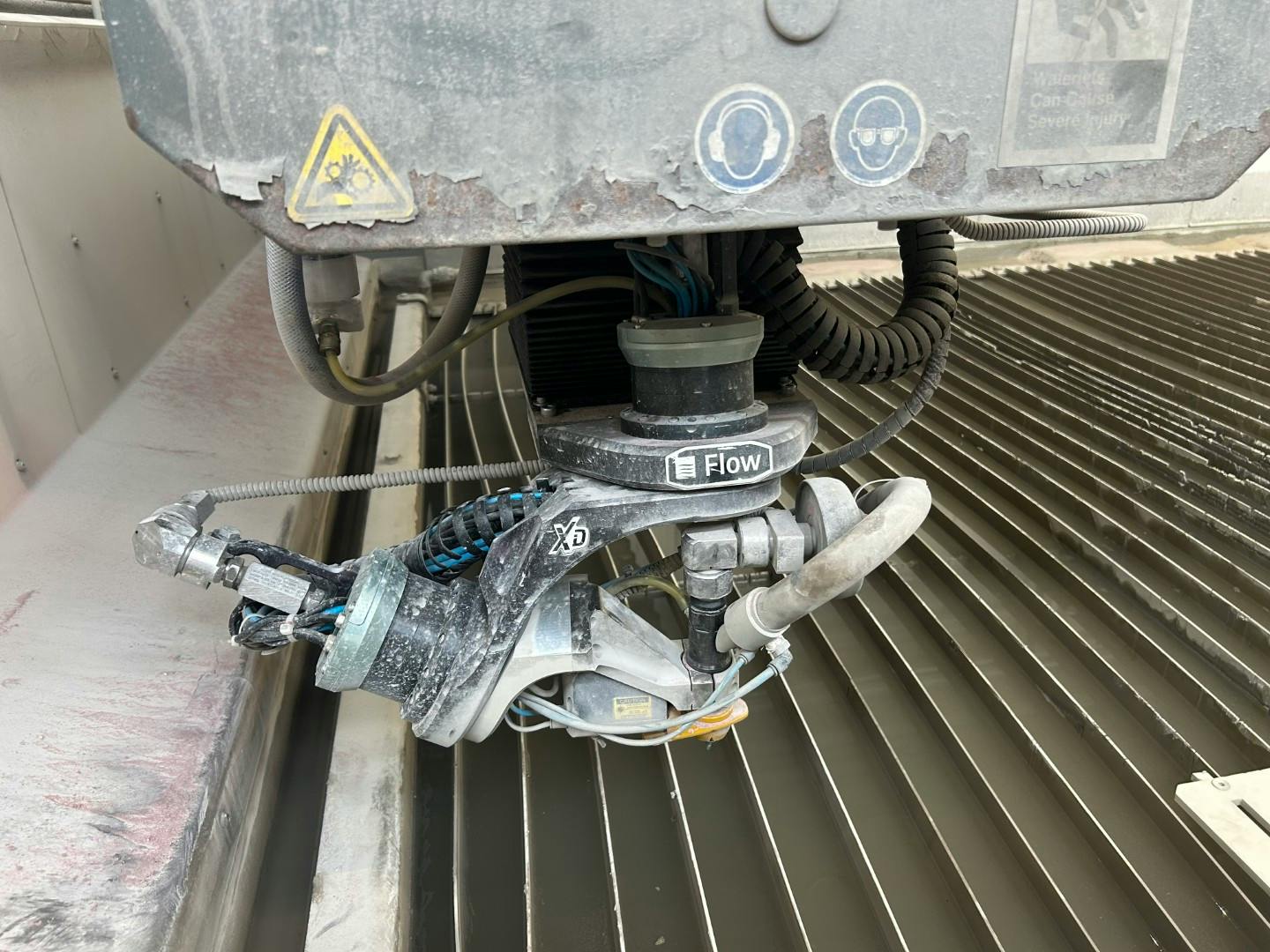

Equipment:-Dynamic Waterjet XD 3D cutting technology, up to 60° head

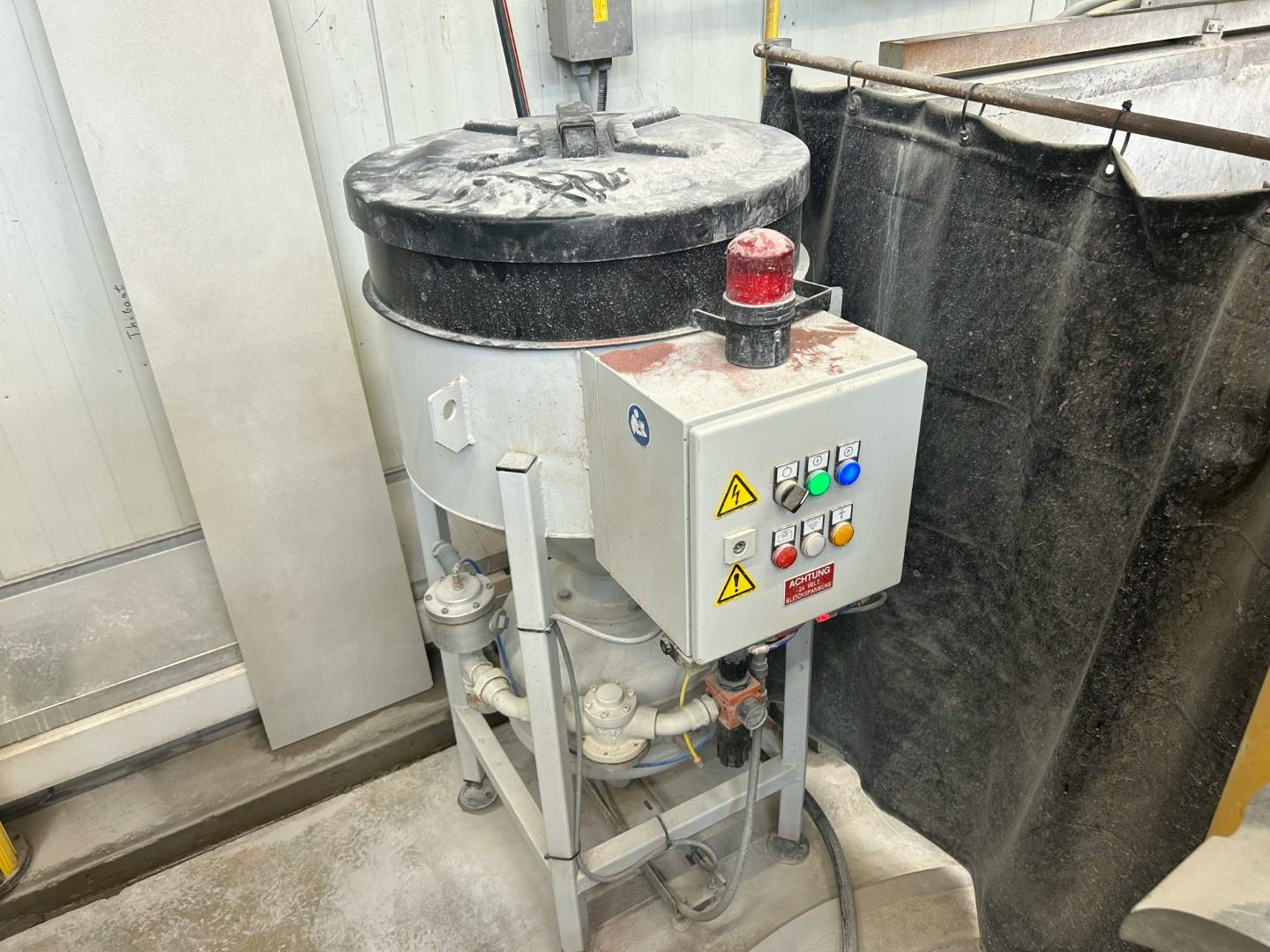

movement:-PASER 4 abrasive cutting system:-Abrasive storage hopper,

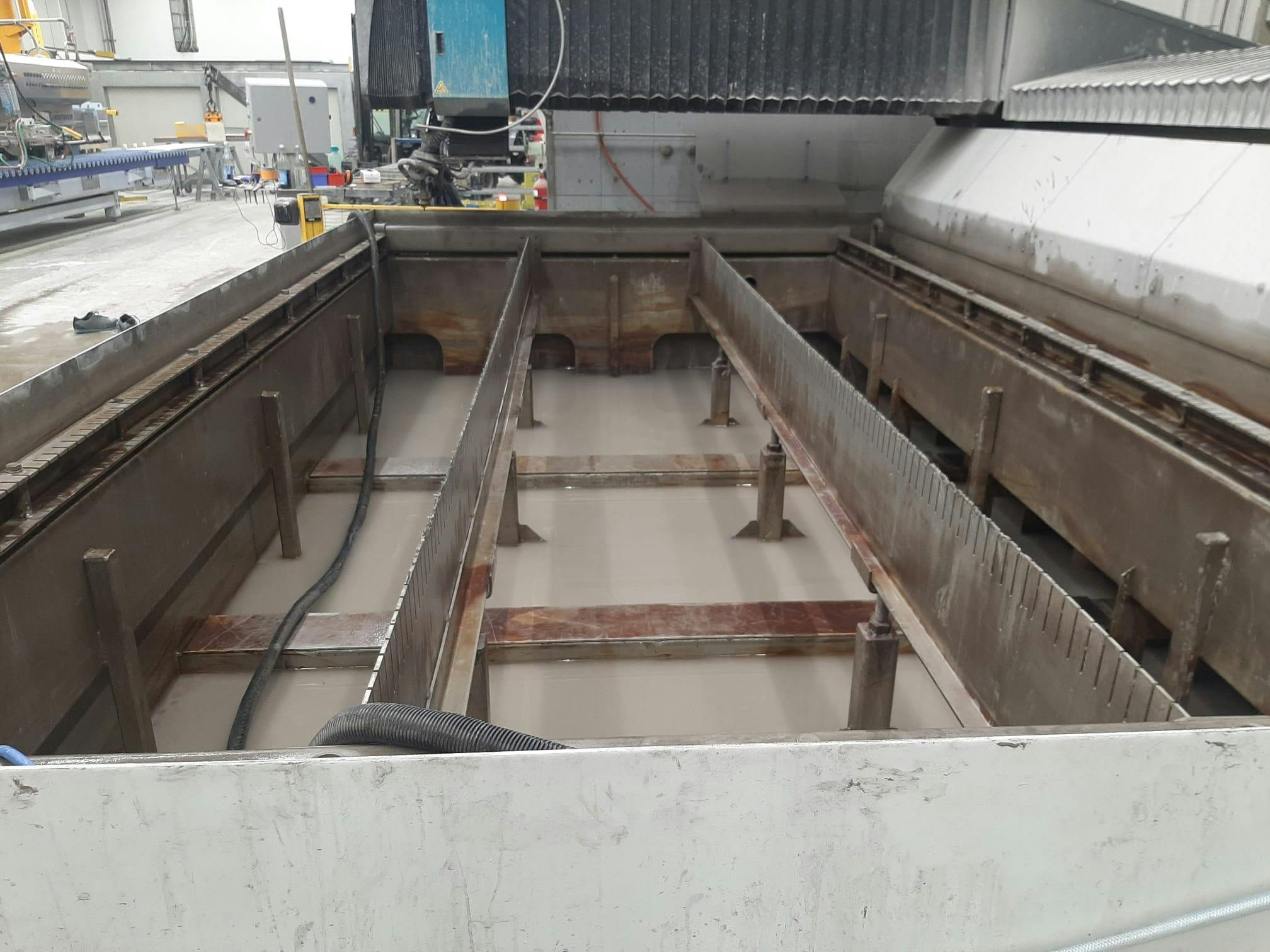

capacity approx. 285 kg:-Premium stainless steel catcher tank with
water level control:-CleanCut material support system:-Flow Shields
splash protection:-Safety light curtain:-FlowMaster PC control
systemAdditional Equipment:-Flow UltraPierce piercing assistance
system:-DynaBeam laser height sensor:-LaserPointer:-Pure water
conversion kit
