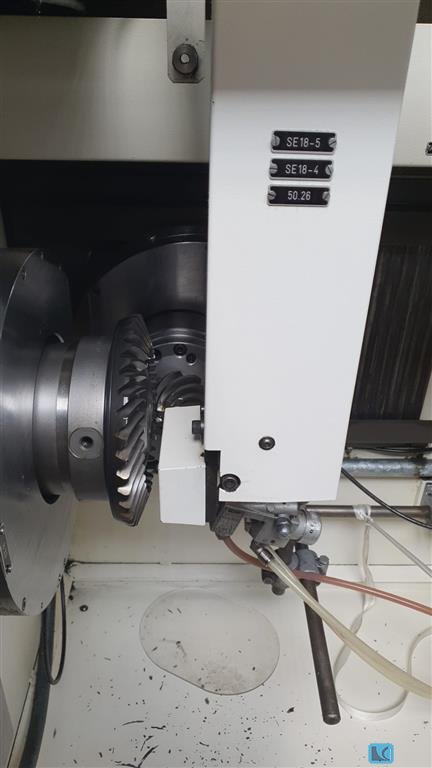

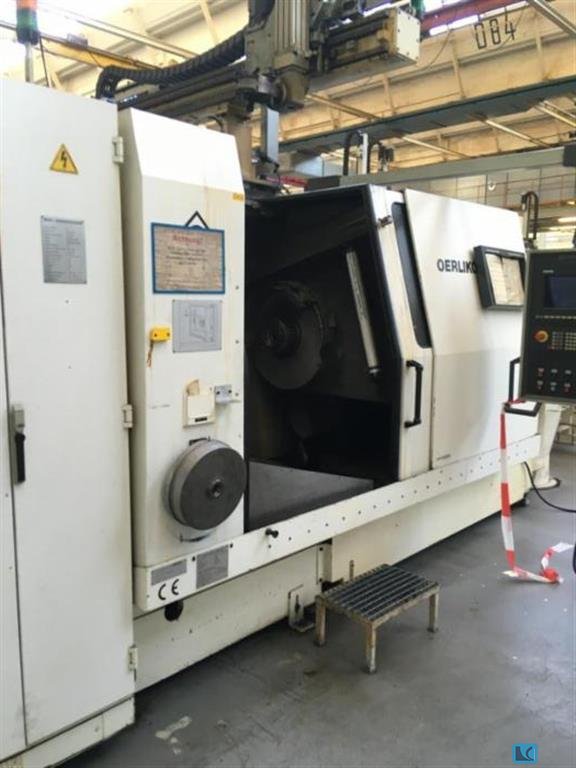

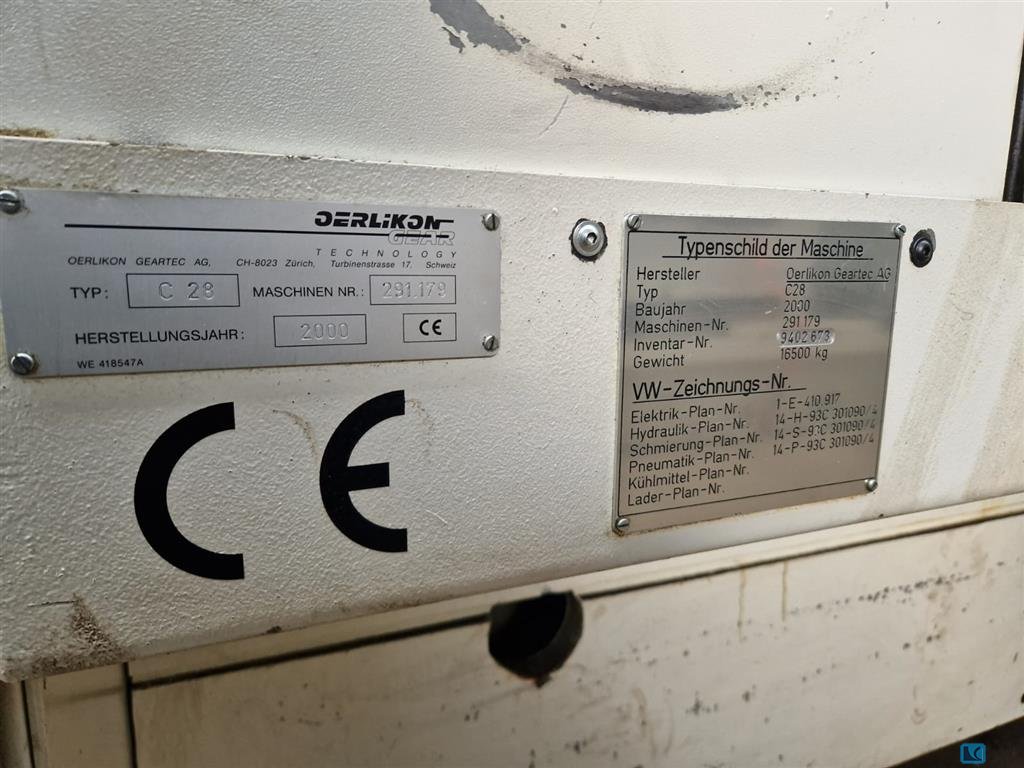

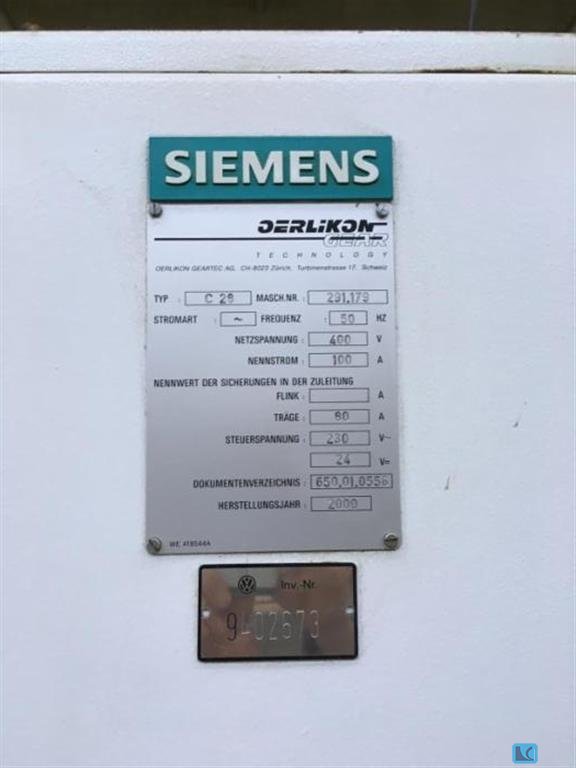

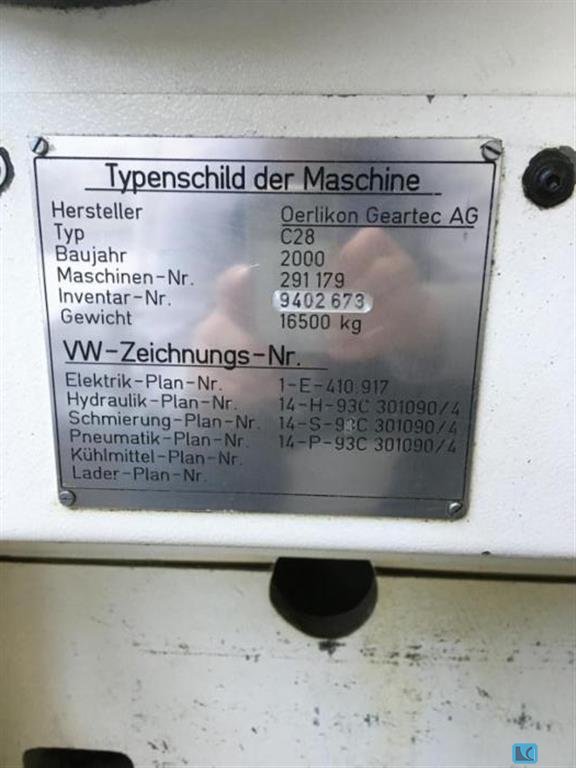

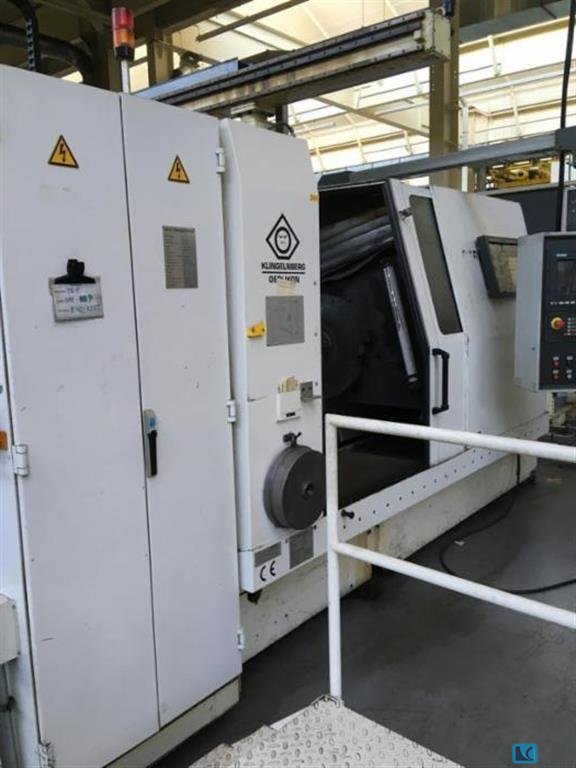

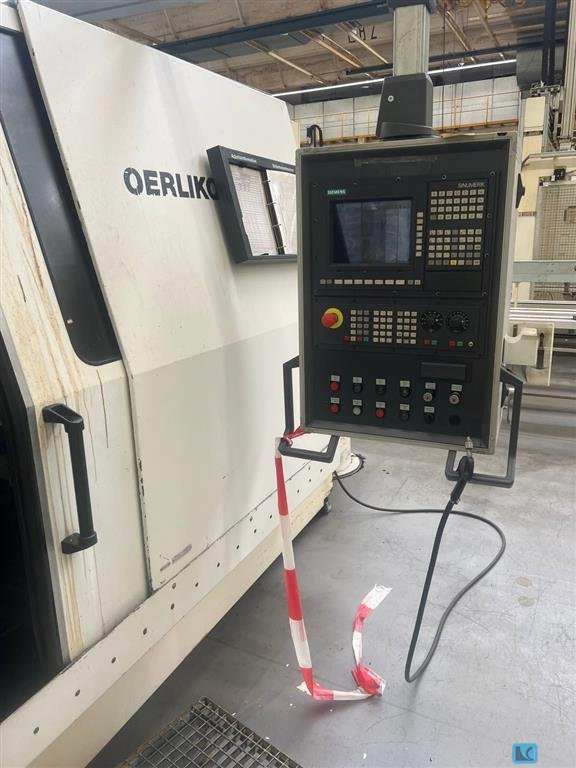

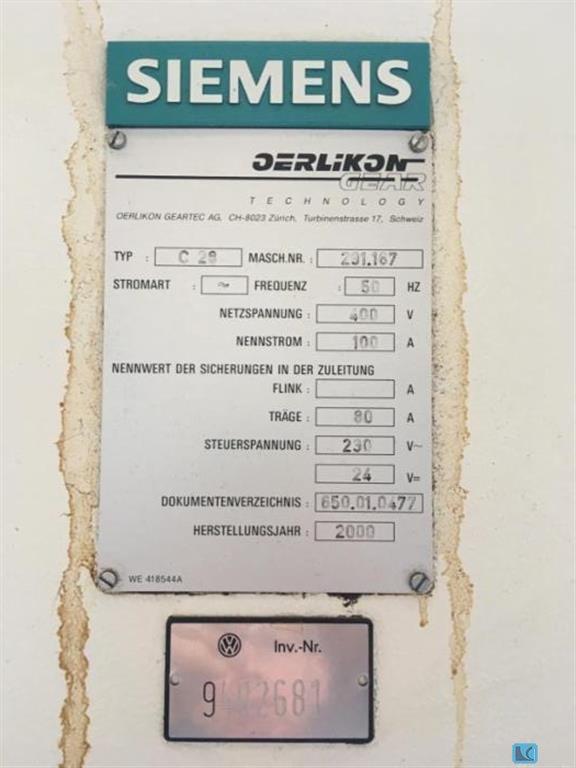

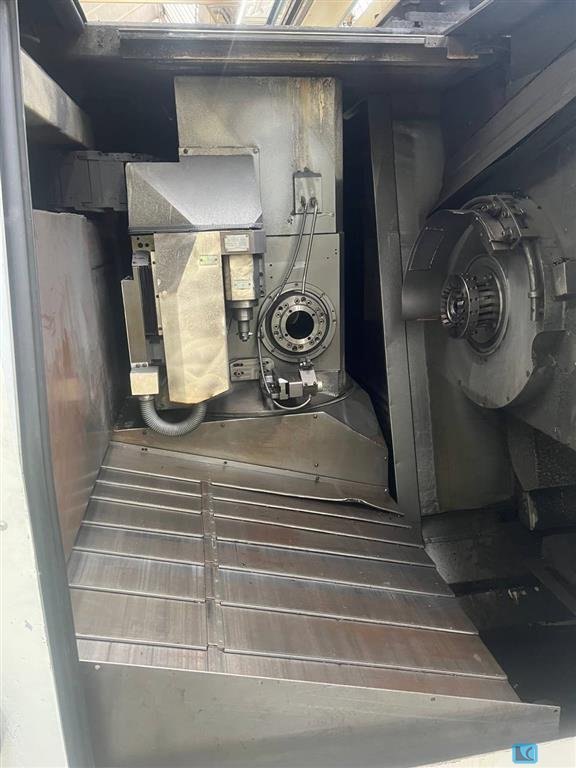

max. wheel diameter:275 mm gear width:55 mm max. module:6,5 min. module:1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface C28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, w ...
max. wheel diameter:275 mm gear width:55 mm max. module:6,5 min. module:1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface C28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, w ...
Manufacturer: Oerlikon Model: Plasmatome 20 HPC ( without cutting table ) Year of Manufacture: 2012 Cutting Range: 2,000 mm x 6,000 mm (2 x 6 meters) Material Thickness Capacity: Up to 35 mm Cutting Method: Plasma Cutting Find more here - / Contact us at -
electric motor, three-phase motor -Power: 0.75 kW -Speed: 910 rpm -Shaft diameter: 24 mm -Design: B3 -Protection rating: -Dimensions: 365/255/H215 mm -Weight: 33 kg
wire electrode, welding wire, welding wire -Cored wire: Carbofil 1 -Diameter: 1.6mm -Price: per roll - Quantity: 2 pieces -Dimensions: O 300/100 mm -Weight per roll: 15 kg
Wire feed case for inert gas welding machine, inert gas device, wire feed case, wire feed device -Manufacturer: Oerlikon wire feeder, gas-cooled -Type: unfortunately without type designation -Dimensions: 640/280/H400 mm -Total weight: 19.6 kg
Stick electrodes 4.0 x 350 -Type: Overcord -Price: per package -Number: 5 packages available -Weight per package: 5 kg
Stick electrodes 5.0 x 450 -Type: Supercito E51 55 B 10 -Price: per package -Number: 13 packages available -Weight per package: 5.5 kg
Submerged arc welding device, welding accessories, forming gas welding device, longitudinal carriage, chassis, welding carriage, longitudinal carriage, welding machine, welding carriage, inert gas welding device, longitudinal seam welding system, longitudinal seam welding machine, longitudinal seam welding device, rail runner -Submerged arc welding machine without: power source -Submerged arc welding machine type: Minisaf 02 -Control box SUBARC 3 -Intermediate hose package -Equipment -Dimensions: 1200/800/H500 mm -Weight: 215 kg
Stick electrodes 4.0 x 450 -Type: Special -Weight per package: 5.3 kg
Stick electrodes 5.0 x 450 -Type: Fincord Price: per package -Number: 4 packages available -Weight per package: 5.5 kg
Welding rectifier, electrode welding machine, electrode welding rectifier -Welding current: max. 220 A -Dimensions: 1200/700/H720 mm -Weight: 280 kg
Stick electrodes 2.0 x 250 -Type: Fincord -Price: per package -Number: 2 packages available -Weight per package: 1.7 kg
Stick electrodes 4.0 x 450 -Type: Extra EY 42 53 Mn B -Price: per package -Number: 29 packages available -Weight per package: 5.4 kg
Welding rectifier, electrode welding device, electrode welding machine, electrode welding rectifier, power sources -Three-phase rectifiers for: MMA DC welding -Welding power: max. 350 A -Welding cable with: electrode clamp -Ground cable -Number: 2x welding machines available -Price: per piece -Dimensions: 500/620/H835 mm -Weight: 126 kg
Stick electrodes 4.0 x 350 -Type: Fincord S -Price: per package -Number: 6 packages available -Weight per package: 4.4 kg
Line defrosting transformer, defrosting device, pipe defrosting device -Type: LA125 -Primary: 220 V/13 A -Secondary: 56 V/60-125 A -Dimensions: 430/200/H400 mm -Weight: 40 kg
Stick electrodes 2.0 x 350 -Type: Special -Weight per package: 3.9 kg
Stack electrode 4.0 x 350 -Type: Cromocord Kb -Weight per package: 4.8 kg
Stick electrodes 3.2 x 300 -Type: CITOCHROMAX N -Price: per package -Number: 13 packages available -Weight per package: 2.9 kg
Stick electrodes 4.0 x 350 -Type: Overcord -Price: per package -Number: 6 packages available -Weight per package: 4.8 kg
Stick electrodes 4.0 x 350 -Type: Fincord -Price: per package -Number: 4 packages available -Weight per package: 4.3 kg
TIG welding machine, inverter welding machine, TIG welding machine, inverter welding machine -Manufacturer: Oerlikon, Inverter welding machine type CITISTICK 160 -Welding current range: 5-160A -Mains connection: 230V -Accessories: Welding cable with electrode clamp, ground cable -Dimensions: 430/300/H340 mm -Weight: 11 kg
Stick electrodes 2.5 x 350 -Type: Overcord -Price: per package -Number: 5 packages available -Weight per package: 4.8 kg
wire electrode, welding wire, welding wire -Cored wire: Fluxofil 31 -Diameter: 1.6mm -Dimensions: O 300/100 mm -Weight complete: 15 kg
wire electrode, welding wire, welding wire -Cored wire: Fluxofil: 36 -Diameter: 1.6mm -Dimensions: O 300/100 mm -Weight complete: 15.6 kg
Machine de soudure TIG pour les soudures TIG DC Marque : Oerlikon Citotig DTW 256 ; Fabr.Nr. 91762 État de l’article Peu utilisé, très bien conservé, Caractéristiques spéciales gaz inerte, Champ d’application Acier, acier inoxydable, métaux non ferreux Pour les usines, machines et construction sidérurgique, pipelines et construction industrielle, Modes de contrôle et de fonctionnement robustes et polyvalents Avec un ensemble de tuyaux intermédiaire, un ensemble de tuyaux de soudure ; Torches de soudure, câbles de terre, tuyau de gaz avec réducteur de pression Équipements industriels pour le soudage de précision Connexion secteur : 3 x 400 V /50 - 60 Hz ; IP 23 Plage de tension d’application : environ 10,1 – 20 V CC Plage de soudure : 2 - 250 A Avec un châssis mobile pour accueillir la machine avec bouteille de gaz (hors ...
