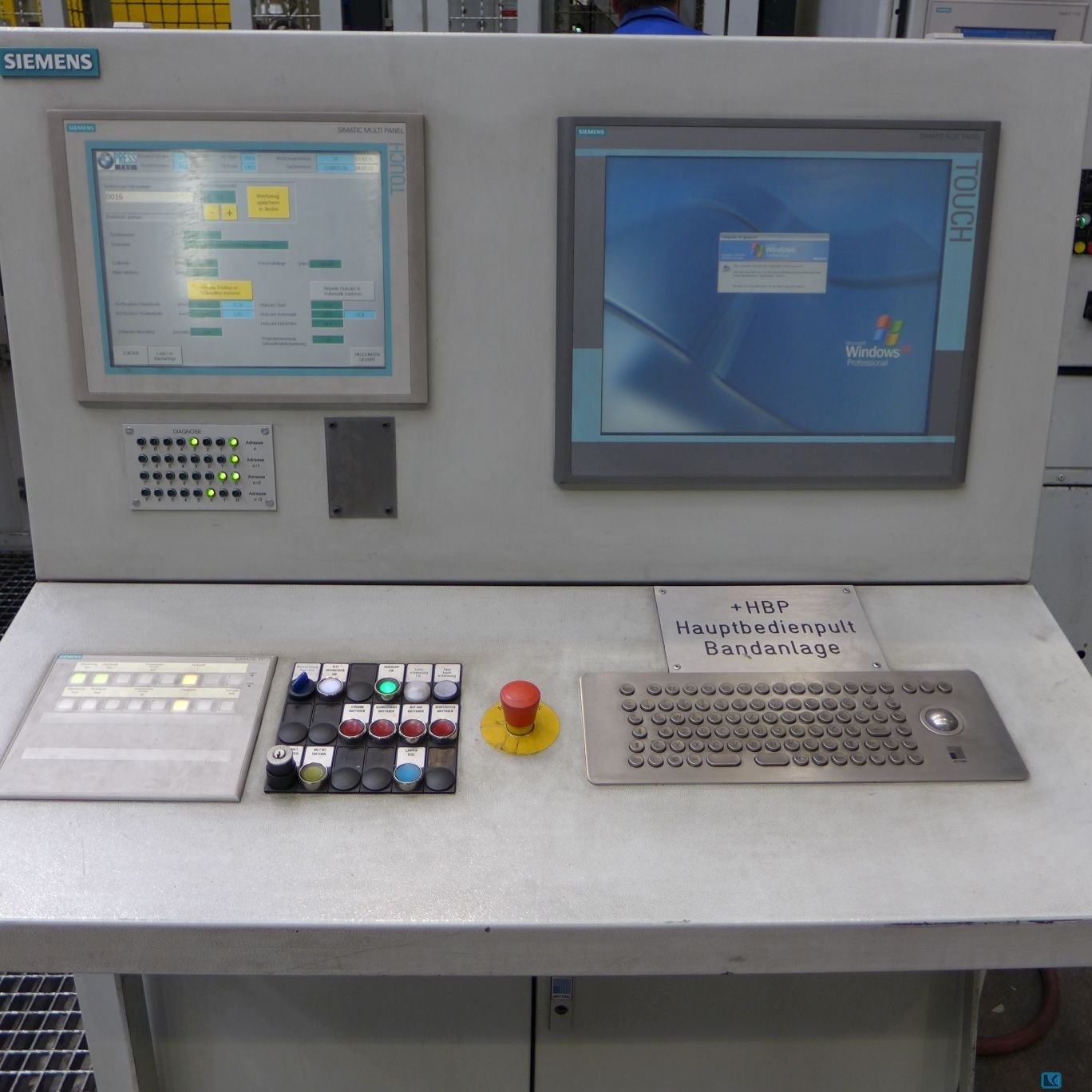

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...

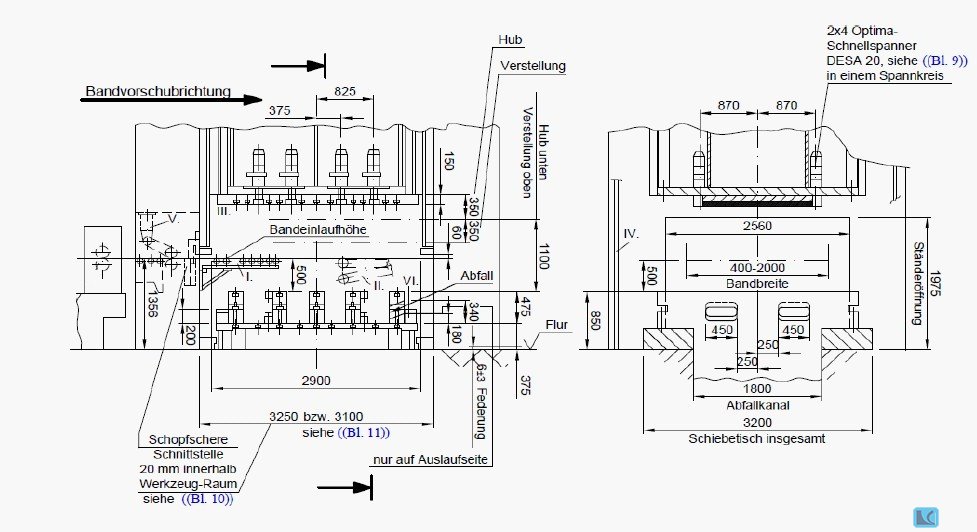

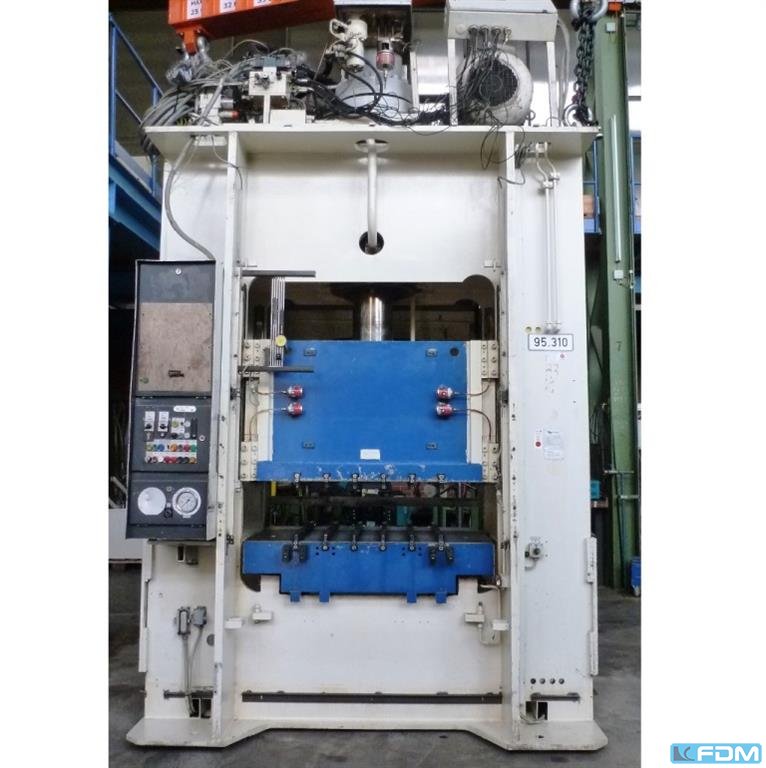

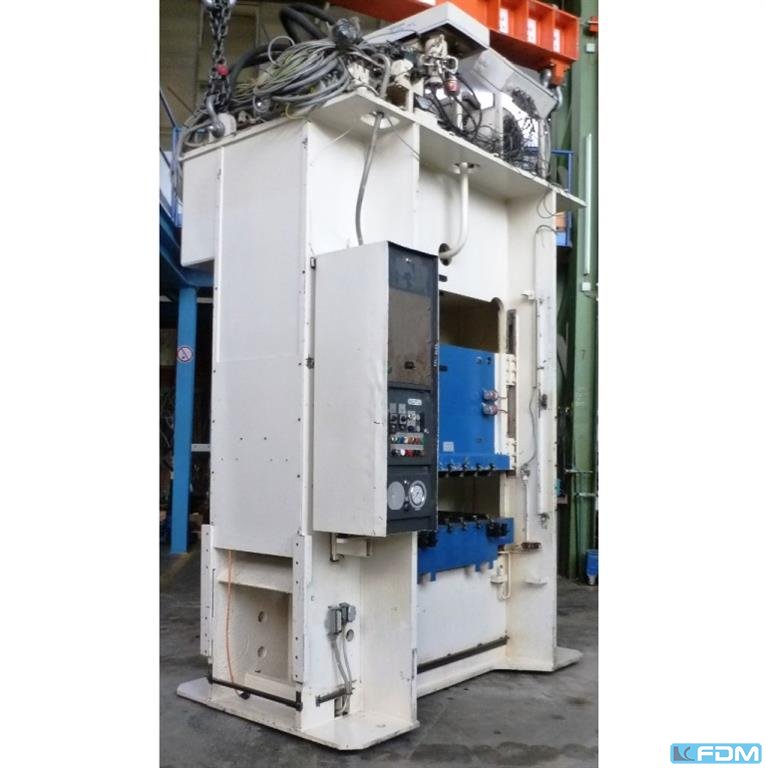

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...
pressure:160 t distance between columns:1360 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:950 mm side window:640 mm ram surface:1300 x 900 mm power requirement:45,0 kW weight:16,0 t Dimensions (WxDxH):2,5 x 2,1 x 4,1 m cutting impact cushioning:hydraulic

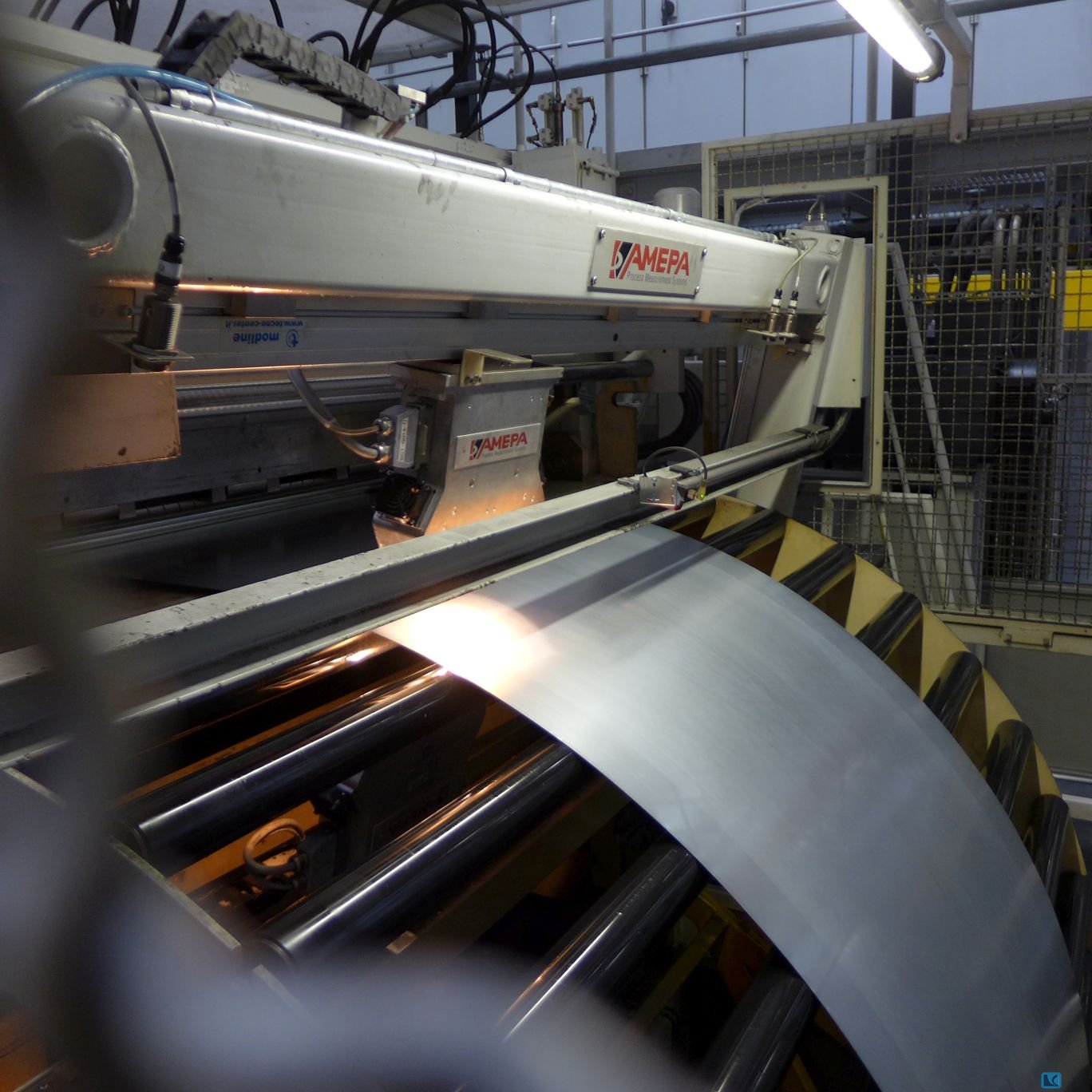

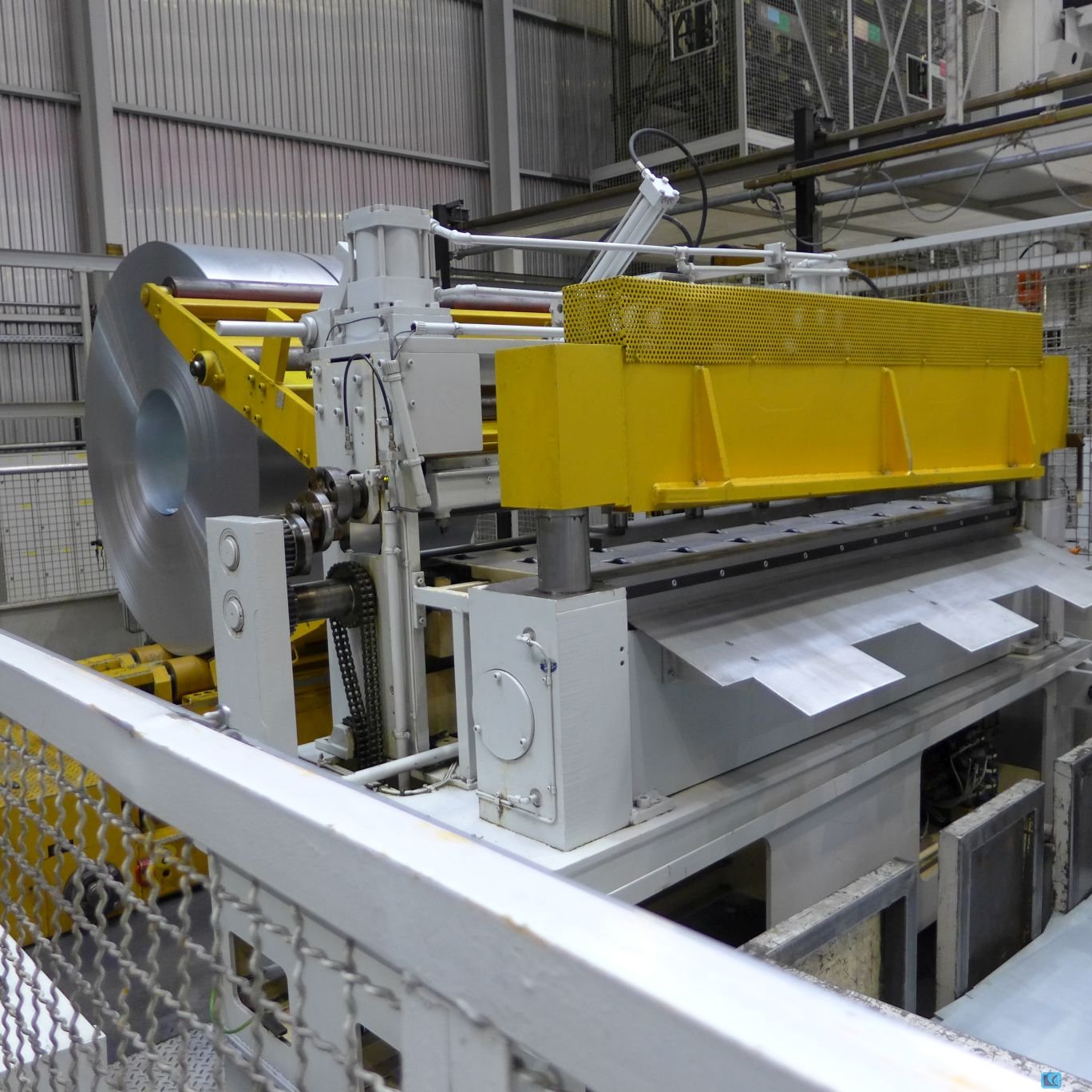

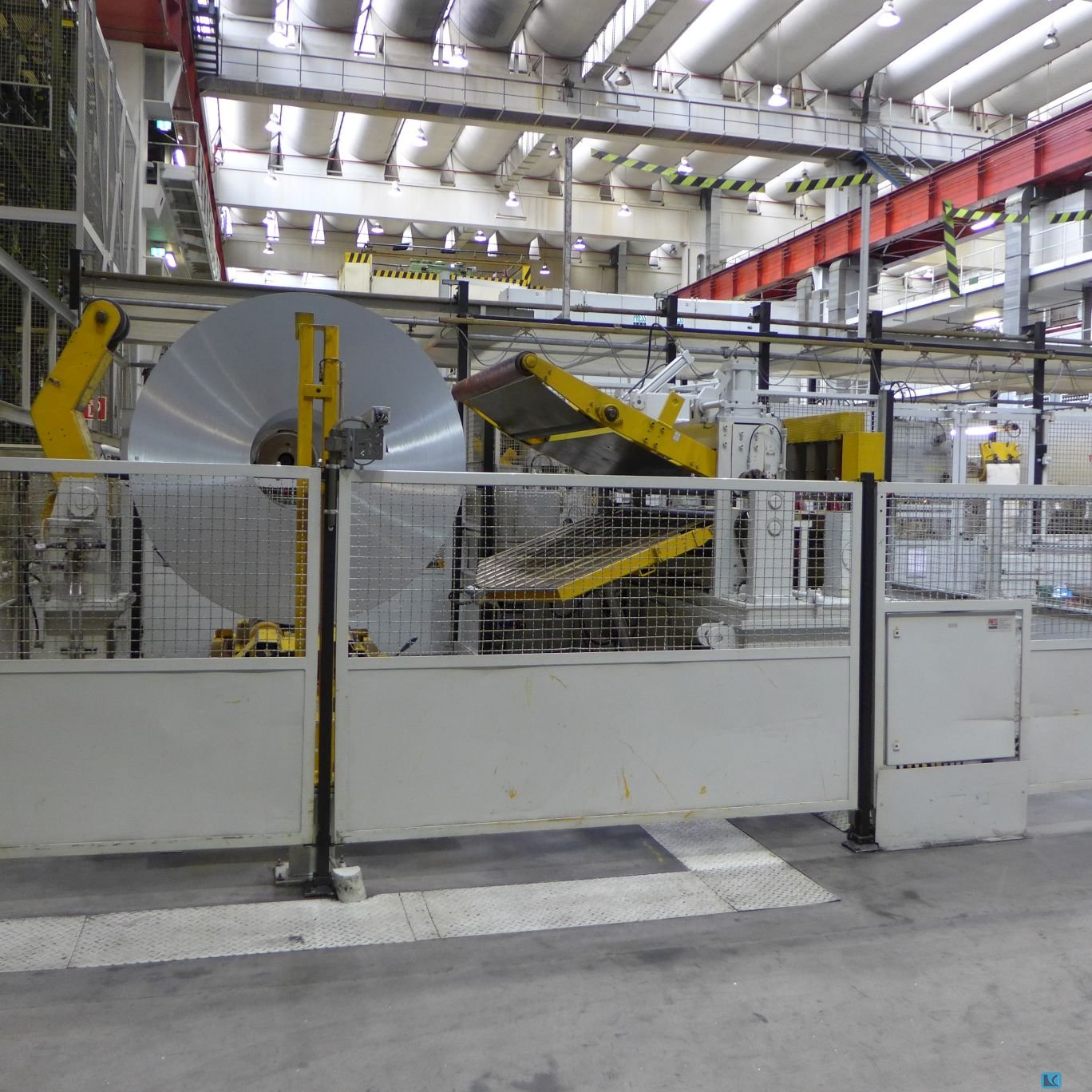

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
pressure:160 t distance between columns:1340 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:930 mm side window:600 mm ram surface:1300 x 900 mm speed down:367 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:15,0 t Dimensions (WxDxH):2,5 x 2,2 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

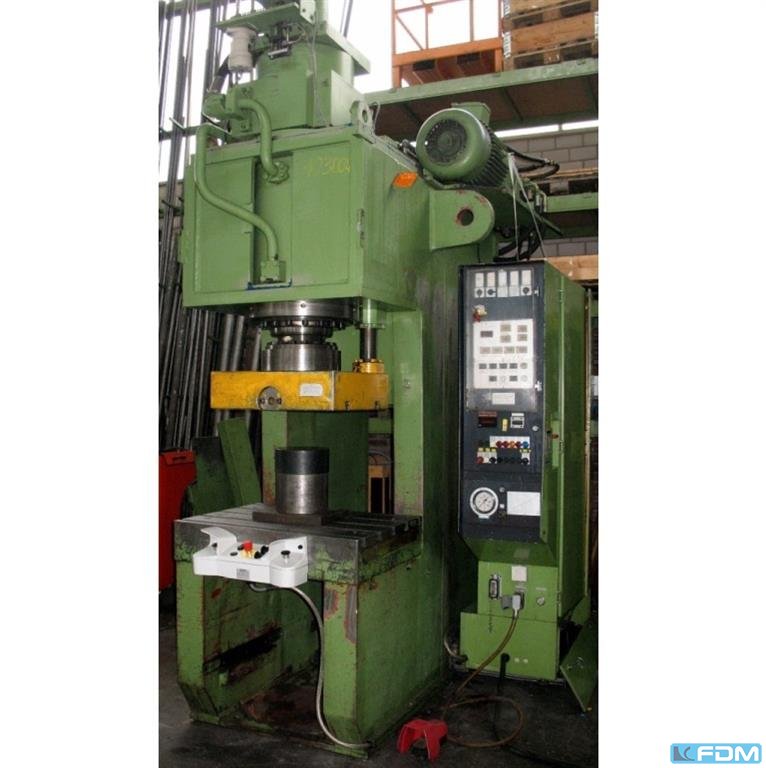

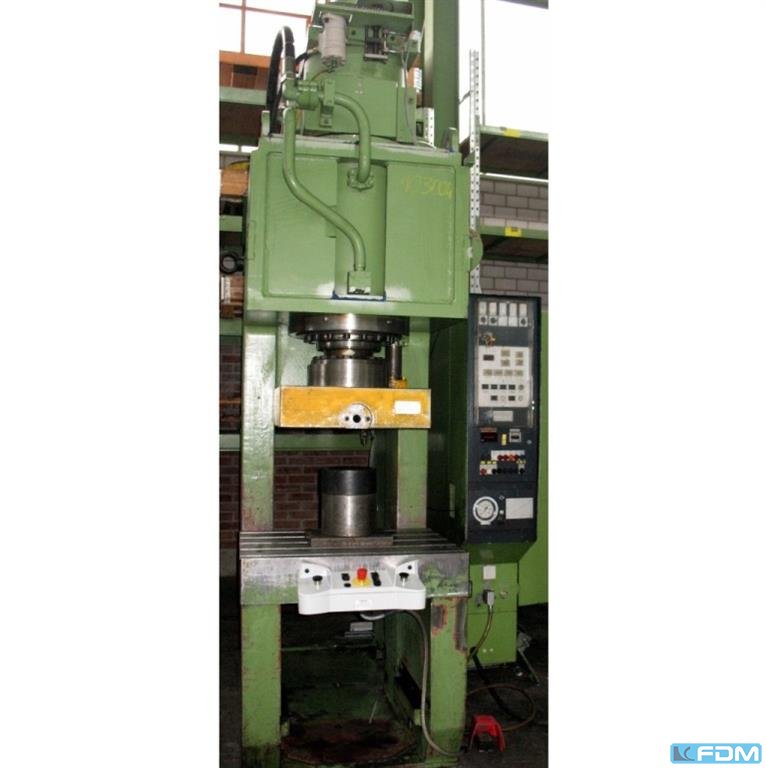

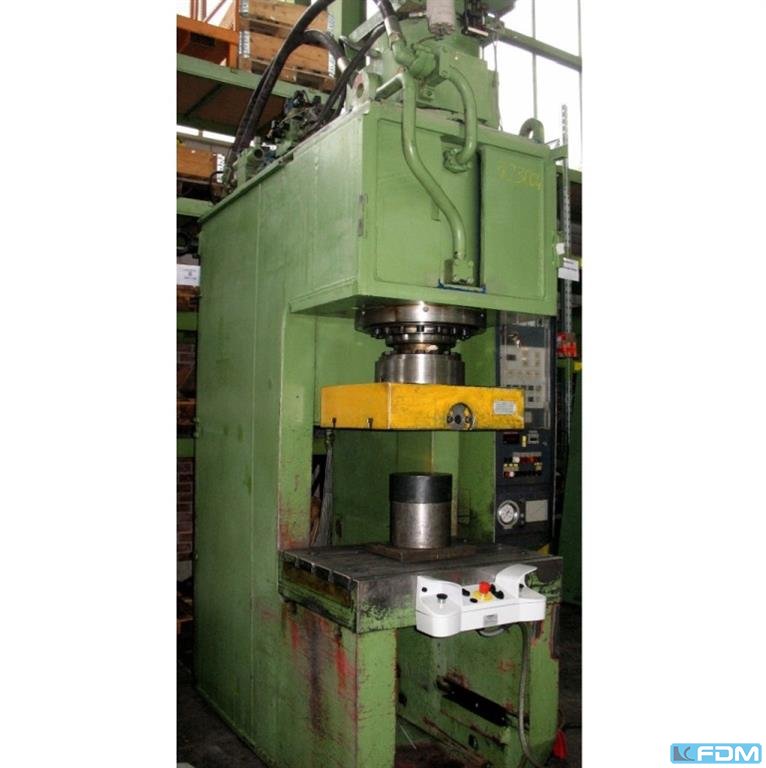

pressure:160 t throat:360 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:920 x 700 mm Hole in the table:150 mm table height over floor:960 mm passage to the back:590 mm ram surface:620 x 560 mm speed down:390 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:16,0 t dimensions (WxDxH):1,6 x 2,5 x 3,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanisch
Bloc de verrouillage pour machine de moulage sous pression GDK2500 de Frech, PADS1117.400, Parker, révisé - comme neuf Prix spécial Si vous avez un numéro de TVA, nous serons heureux de vous émettre une facture sans TVA. Rénové! Le bloc de verrouillage a été révisé par Parker, est dans son emballage d’origine et est dans un état optimal immédiatement utilisable. Le bloc de verrouillage peut être consulté, vérifié et récupéré à tout moment. Nous serons également heureux de vous envoyer un croquis de l’exécution ou de livrer la marchandise à votre adresse. Bloc de verrouillage, Parker, PADS1117.400, Convient pour les machines GDK 2500 de Frech/Müller Weingarten Le bloc était toujours livré aux machines de Müller Weingarten et disposait de connexions SAE. 937009 Poids 650kg Attention: Nous proposons différentes colonnes, écrous de régl ...
CONTRÔLES PLC SIEMENS SIMATIC PRESS DESIGN coussin de table : oui FORCE DE PRESSION FORCE TOTALE (NOMINALE) : 630 SURFACE DE TABLE À PRESSE (GAUCHE-DROITE) : 2500 mm surface de table (avant-arrière) : 1300 mm COUSSIN DE DÉPRESSION (COUSSIN DE TABLE) FORCE DE COUSSIN : 250 à la course : 400 mm surface de la plaque de coussin (gauche-droite) : Surface de plaque de 2450 mm (avant-arrière) : 1250 mm
pressure: 1000 t distance between columns: 5000 mm stroke: 500 mm Height of centres: 400 mm Motor output: kW reus: U/min Overall size: 6000 x 2500 mm Weight: 1000 kg Distance between centres: 3500 mm total power requirement: kW weight of the machine ca.: 220 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pression: 63 t distance entre les colonnes: 0 mm cstrait: 160 mm distancetable: 630 x 500 mm jour: 400 mm poéité totale requise: kW poids de la machine ca.: 5 t dimensions de la machine ca.: m
