x-travel: 800 mm y-travel: 530 mm z-travel: 510 mm Control: MSC 504 Mori Seiki Main spindle:: turning speeds: max. 10.000 min/-1 power capacity - main spindel: 15 / 11 kW tool taper: SK 40 spindle bearing diameter: 70 mm distance spindle /table: 150 - 660 mm work table:: table surface area: 1.100 x 600 mm max. table load: 800 kg T-slots: 6x 18 mm table height over floor: 900 mm turret:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8,0 kg change-time tool to tool: 1,3 sec change-time chip to chip: 4,1 - max. 9,2 sec feeds:: rapid traverse ( X / Y / Z ): 36 / 36 / 20 m/min feed speeds: max. 6.000 mm/min Tipp feed: 1 - 5.000 mm/min total power requirement: 27 kVA weight of the machine ca.: 6,1 t dimensions of the machine ca.: 3,5 x 3,0 x 2,8 m Documents: Chip conveyor: Co ...
x-travel: 560 mm y-travel: 560 mm z-travel: 630 mm Control: MSX 701 III MAPPS Main spindle:: Max. rpm: 14.000 min/-1 power capacity - main spindel: 18,5 / 11 kW max. Torque: 120 Nm tool taper: MAS BT 40 distance spindle center to table: 80 - 640 mm distance Spindlenose and center of table: 100 - 730 mm pallet changer:: numbers of pallets: 2 size of pallet: 400 x 400 mm max. workpiece weight: 400 kg max. workpiecediameter: 630 mm max. workpiece height: 900 mm change time of pallets: 6,0 sec b - axis: 0,001 ° Tool-Presetter:: number of toolpositions: 60 pos. tool taper: MAS BT 40 max. tool diameter: 70 / (140) mm max. tool length: 400 mm max. tool weight: 8,0 kg feeds:: rapid traverse ( X / Y / Z ): 50 m/min feed speeds: 0 - 50.000 mm/min Tipp feed: 0 - 1.260 mm/min total power requirement: 35 kVA weight of the machine ca.: 9,8 t dimensions of the machine ca.: 5,5 x 3,5 x 2,8 m Docume ...
turning diameter: 390 mm turning length: 507 mm control: MSG 805 MAPPS max. turning diameter: 390 mm greates pass round over bed: 680 mm Swing dia. over traverse guideway: 510 mm centre distance: 618 mm Main spindle:: turning speed range - main spindle: 45 - 4.500 min/-1 power capacity - main spindel: 11 / 7,5 kW spindle bearing diameter: 110 mm spindle bore: 73 mm max. bar capacity: 51 mm spindle nose: JIS A2-6 chucking diameter: 210 mm C-Axis: 0,001 ° axis stroke:: x-axis: 235 (195+40) mm z-axis: 520 mm turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tool stations: max. 3.000 min -1 power capacity driven tool-stations: 5,9 / 4,5 kW Shank height for square tool: 25 mm Drill shank diameter: max. 50 mm turret change time: 0,2 sec. Tailstock:: tailstock adjustment: 490 mm dia. of quill: 85 mm taper of center: MT 4 quill stroke: ...
turning diameter: 370 mm turning length: 424 mm control: MSX-711-IV Mori Seiki swing diameter: 370 mm X1- Axis: 380 mm X2- Axis: 155 mm Z1- Axis: 460+155 mm Z2- Axis: 610 mm y-axis: +/- 105 mm B - axis: +/- 120 ° bar material dia.: 65 mm speed spindle max.: S1 5.000 / S2 6.000 U/min. spindle bore: S1/S2 65/38 mm : 12000 1/min tool taper: Capto C5 toolpiece magazine: chain magazine: 76 Stück tool turret with 10 work positions: total power requirement: 45 kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: 2,71 x 2,43 x 2,40 m MAPPS control system Renishaw HPRA (manual tool presetter) Blum Laser Control Direct measuring system X,Y,Z,B Collet chuck SMW Autoblok KSZ-MB-040-Z140 Workpiece conveyor belt Bar feeder Breuning Irco ILS-RBK-10012 Knoll band filter KF10/500 / IKZ with milling spindle 7 stages up to 70 bar Chip conveyor ConSep 2000 The data for this ad was create ...
turning diameter: max. 320 mm turning length: 810 mm control: MSX 701 MAPPS III standard turning dia.: 200 mm Main spindle:: Number of revolutions: max. 6.000 min/-1 power capacity - main spindel: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Subspindel:: Number of revolutions: max. 6.000 min/-1 power capacity - Sub spindle: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Turret 1 + 3:: number of toolpositions: je 16 pos. Number of driven toolspositions: je 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+65 / -45) mm Turret 2:: number of toolpositions: 16 pos. Number of driven toolspositions: 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+45 / -65) mm axis stroke:: x-travel: 1-3: 210 mm y-travel: 1-3: ...
turning diameter: 176 mm turning length: 570 mm swing diameter: 510 mm working diameter: 420 mm travel -z axis: 570 mm travel -x axis: 245 mm spindle bore: 43 mm diameter of quill: 85 mm quill stroke: 120 mm Spindle Speed: 60-6.000 U/min. rapid power traverse in X-and Z direction: 24 m/min total power requirement: 5,5 kW control: MSG-805 V weight of the machine ca.: 3.400 kg dimensions of the machine ca.: 2000x1700x1800 mm Features/Accessories: - Integrated CNC control - Bed guides and cross-slide guides are induction-hardened and designed as flat guides - Continuously variable AC main spindle drive - Constant cutting speed programming - Cold light lamp integrated into the machine - Power meter for the main spindle drive (ammeter) - Control units for automatic and manual operation, as well as a CNC programming unit and control panel - Tailstock with hydraulically actuated MK 4 tailstock ...
x-travel: 510 mm y-travel: 510 mm z-travel: 510 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control MSC 803 25-fold automatic tool changer coolant device Technische Daten / technical details: Verfahrweg X / X-Travel 510 mm Verfahrweg Y / Y-Travel 510 mm Verfahrweg Z / Z-Travel 510 mm Tischgröße / table size 750x548 mm Drehzahlbereich / spindle speed 8000 UpM /rpm Anzahl der Werkzeugplätze / tool places in changer 25 fach Antriebsleistung Spindel / drive capacity spindle 11 kW Gewicht der Maschine ca. / weight 4500 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: ca. 570 mm turning length: ca. 530-610 mm control: FANUC : ohne Gewähr x-travel: ca 160-200 mm y-travel: ca. 560 mm weight of the machine ca.: 4,5 - 5 t : ca 10 oder 12 spindle bore: 52-76 mm total power requirement: - kW weight of the machine ca.: 4 t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 200 mm turning length: 393 mm control: MSX 853 weight of the machine ca.: 3,5 t total power requirement: kW dimensions of the machine ca.: m MSX 853 cnc control 3-jaw chuck diameter 210mm 12-fold revolver C-axis driven tools tail stock coolant device chip conveyor Technische Daten: / technical details Drehdurchmesser / turning diameter 200 mm Drehlänge / turning lenght 393 mm X-Weg / X-travel 160 mm Z-Weg / Z-travel 450 mm max. Drehzahl Spindel / max. spindle speed 50-3000 UpM /rpm Eilgang X/Z / rapid feed X/Z 24/30 Anzahl der Revolverplätze / number of tool places 12 max. Stangendurchmesser / max. bar diameter 51 mm Antriebsleistung Spindel / drive capacity spindle 13,5 kW Gewicht ca. / weight ca. 3500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are n ...
turning diameter: max. 356 mm turning length: 705 mm control: MSX 850 III MAPPS Mitsubishi greates pass round over bed: 923,8 mm Swing dia. over traverse guideway: 755 mm standard turning dia.: 275 mm Main spindle:: max. spindle speed: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bearing diameter: 140 mm spindle bore: 91 mm max. bar capacity: 80 mm chucking diameter: 305 mm C-Axis: 0,001 ° Subspindle:: Spindle speed range subspindle: max. 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle nose: JIS A2-5 spindle bearing diameter: 85 mm spindle bore: 43 mm chucking diameter: 210 mm C-Axis: 0,001 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Shank diameter: 26 mm Drill shank diameter: 50 mm Spindle speed - driven tool stations: max. 6.000 min -1 turret change time: 0,25 sec. axis stroke:: x-a ...
x-travel: 1.020 mm y-travel: 510 mm z-travel: 510 mm control: MSC 501 Fanuc table surface area: (APC) 1.200 x 480 mm max. table load: (APC) 550 kg Main spindle:: turning speed range - milling: 10.000 U/min power capacity - milling spindle: 22 / 18,5 kW tool taper: BT 40 Tool-Presetter:: number of toolpositions: 30 pos. tool taper: BT 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8 kg rapid traverse: 32 m/min feed: 1 ~ 16.000 mm/min Tipp feed: 0 ~ 1.260 mm/min spindle bearing diameter: 85 mm total power requirement: 59,5 kVA weight of the machine ca.: 6,9 t dimensions of the machine ca.: 3,9 x 2,7 x 2,9 m Documents: Chip conveyor: 2x Coolantsystem: high pressure coolant: through spindle coolant: Signal-Light: pallet changer: 2 pos. CNC - Machining Center - Vertical MORI SEIKI - SV 500 B/40 - Clamping devices are NOT ...
회전 직경: 370 mm 회전 길이: 424 mm 제어: Fanuc 총 전력 요구량: kW 기계 무게 약 : 기계 크기: m이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 작성되었습니다.
회전 직경: 190 mm, 회전 길이: 235 mm, 제어: FANUC/Mori MSX 501 회전 속도 범위: 50-5000 U/분터렛 헤드: 2x 16 기계 무게 약 7.5 tY- 및 B- 축 기타 부속품 자세한 내용은 www.marcels-maschinen.ch 이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 작성되었습니다.
회전 직경: 190 mm, 회전 길이: 235 mm, 제어: FANUC/Mori MSX 501 회전 속도 범위: 50-5000 U/분터렛 헤드: 2x 16 기계 무게 약 7.5 tY- 및 B- 축 기타 부속품 자세한 내용은 www.marcels-maschinen.ch 이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 작성되었습니다.
turning diameter: 460 mm turning length: 795 mm control: MORI SEIKI M730 BM Swing diameter face slide: 590/360 mm spindle passage: 80 mm Traverse X/Z:: 260/795 mm Number of working hours: 19.552 h Cutting time: 10.704 h spindle drive: 18,5 kW total power requirement: 40 kVA weight of the machine ca.: 6,4 t dimensions of the machine ca.: 3.994 x 3.056 x 2.187 m Chip chuck Ø250 mm. Chuck sub-spindle Ø170 mm. Holder HAINBUCH chip conveyor suction Bar feeder Hydrafeed Multiservo mod MSV max. bar length 1,600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
MORI SEIKI SV-503B/40 is a 4-Achsen Bearbeitungszenter, entwickelt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Tisch 1320×600 mm, max Werkstückgewicht 1200 kg; Wege X1050, Y510, Z510 mm; Magazin 30 Plätze, BT40. Spindel 0–10.000 min-¹, 22 kW; Anschluss 3x200V 50Hz; 58 kVA; Gewicht ~8030 kg; Abmessungen 2500×2350×2700 mm. Zubehör: Satz Werkzeughalter, Kühlmitteleinrichtung mit 30 bar IKZ, Späneförderer, Teilapparat NIKKEN, Lampe, Zustandsleuchte. Geeignet für präzise Fertigung in Automotive, Luftfahrt, Medizintechnik und Maschinenbau. Technische Daten ohne Gewähr

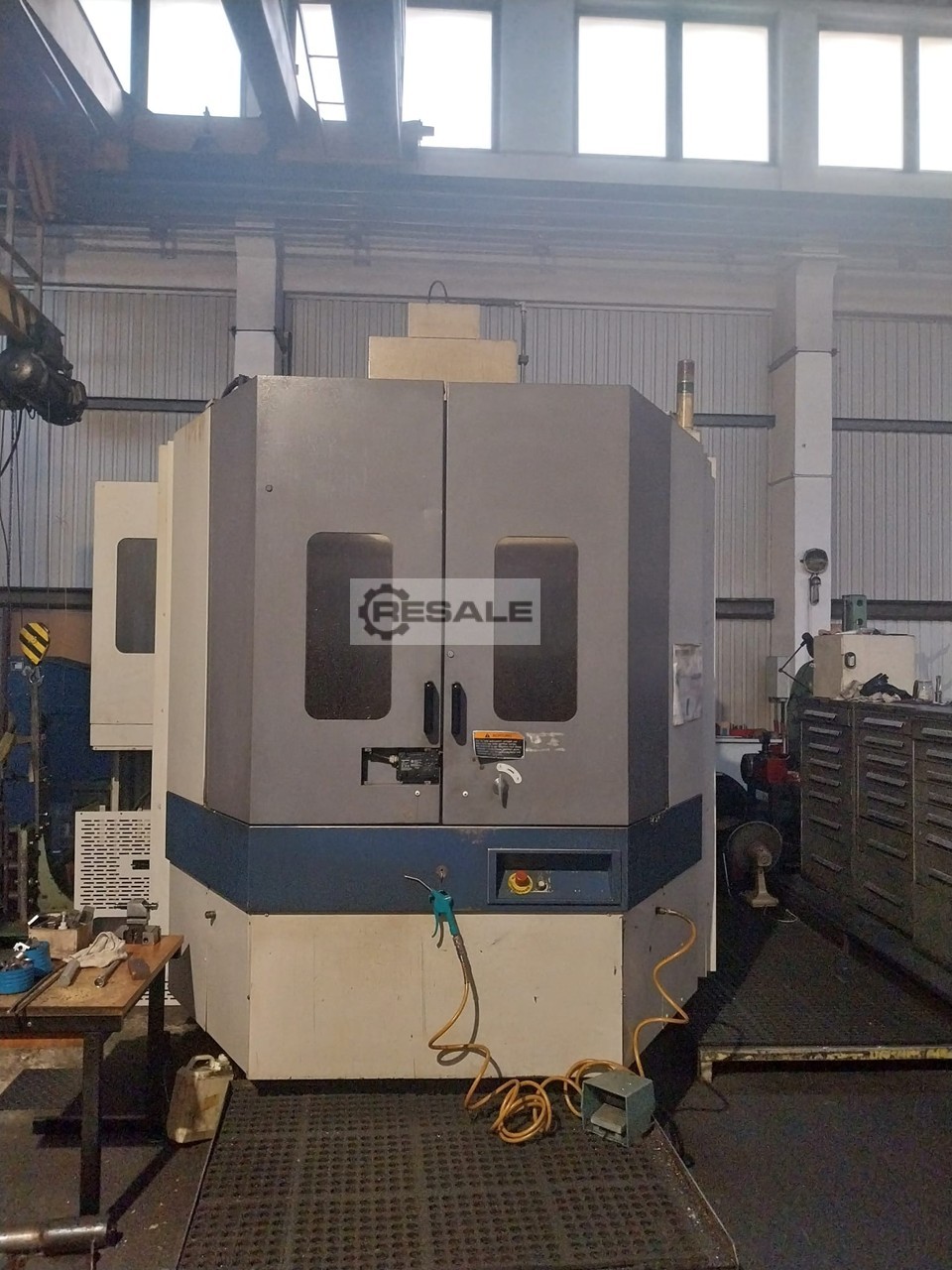

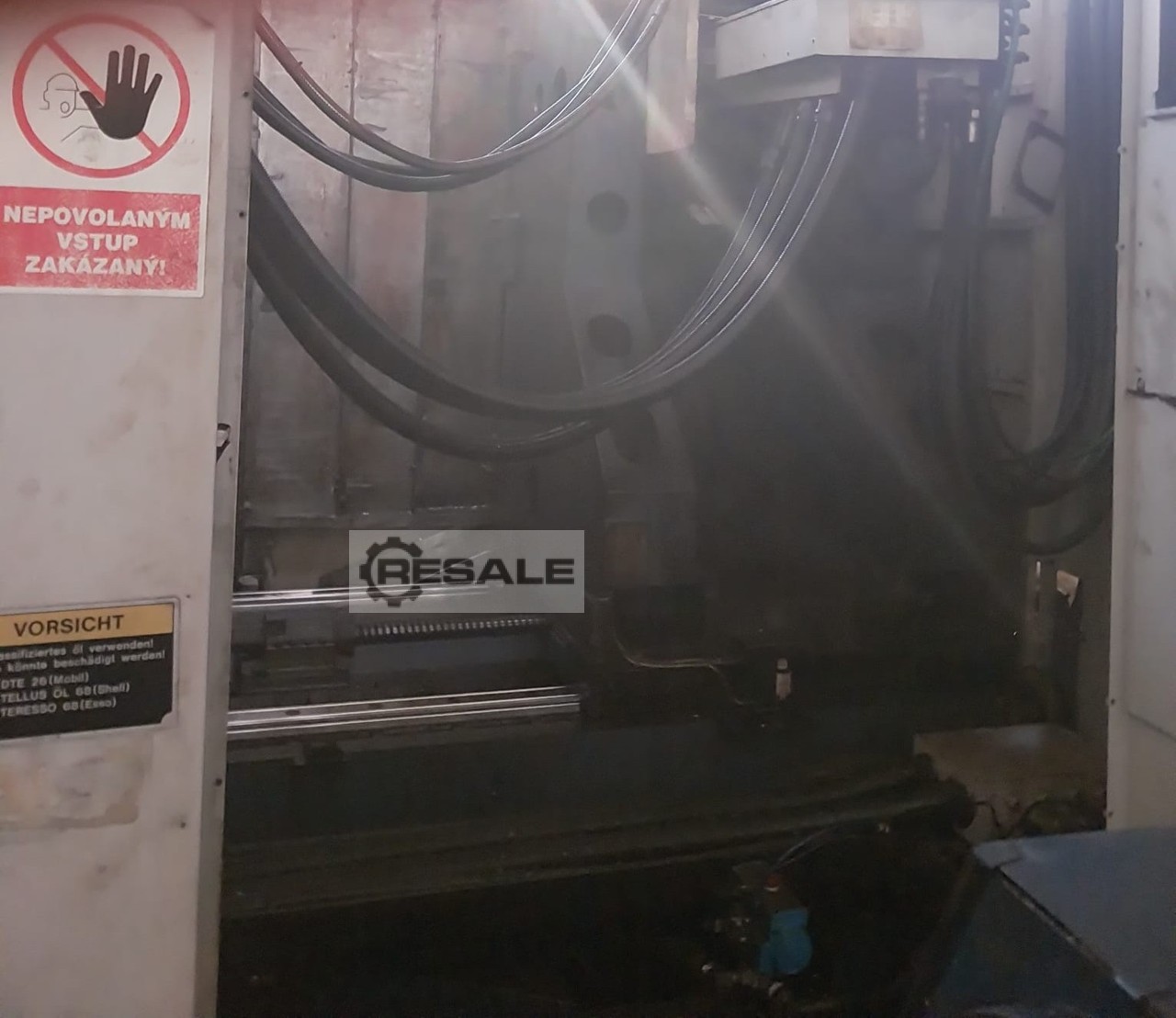

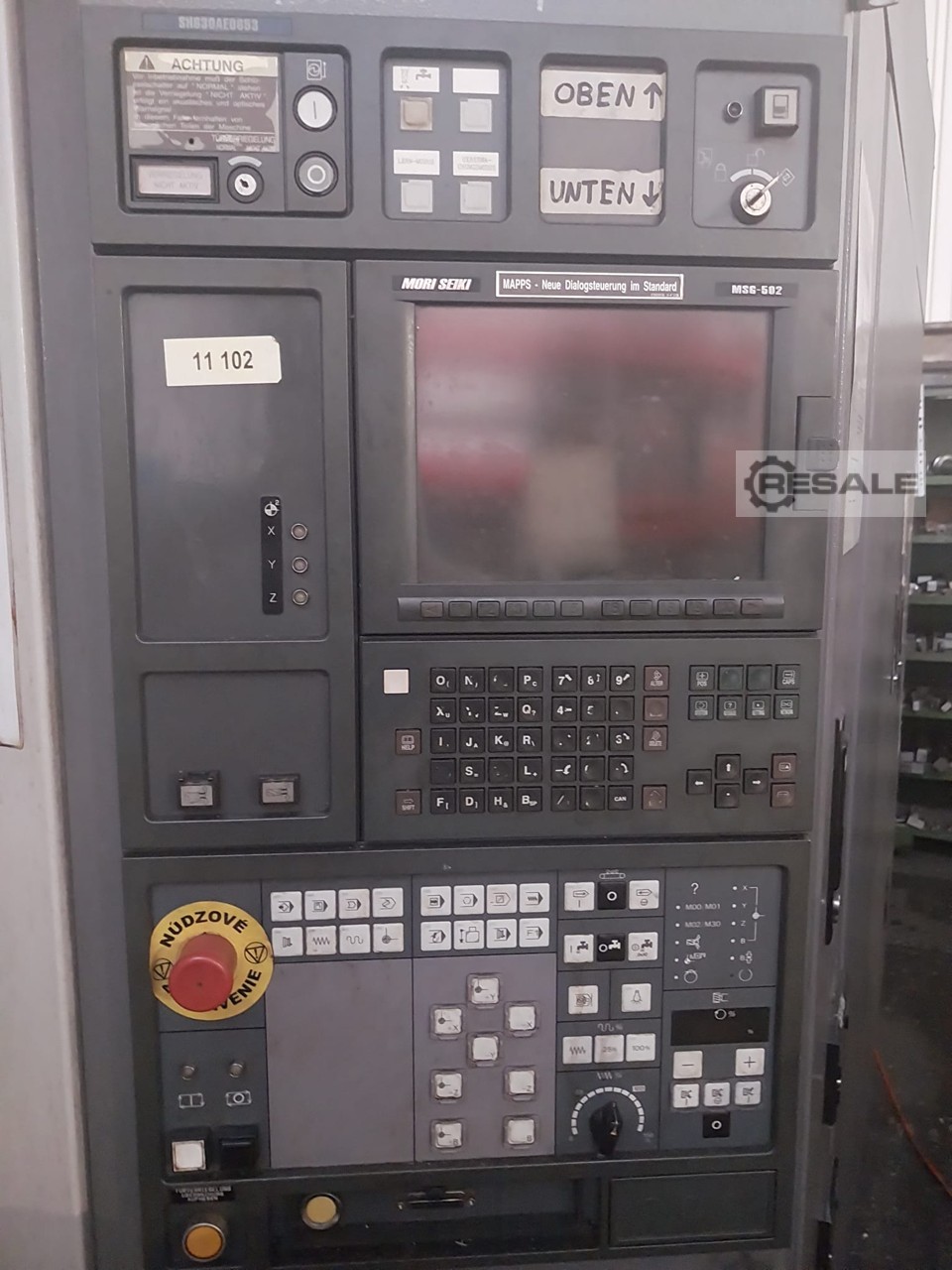

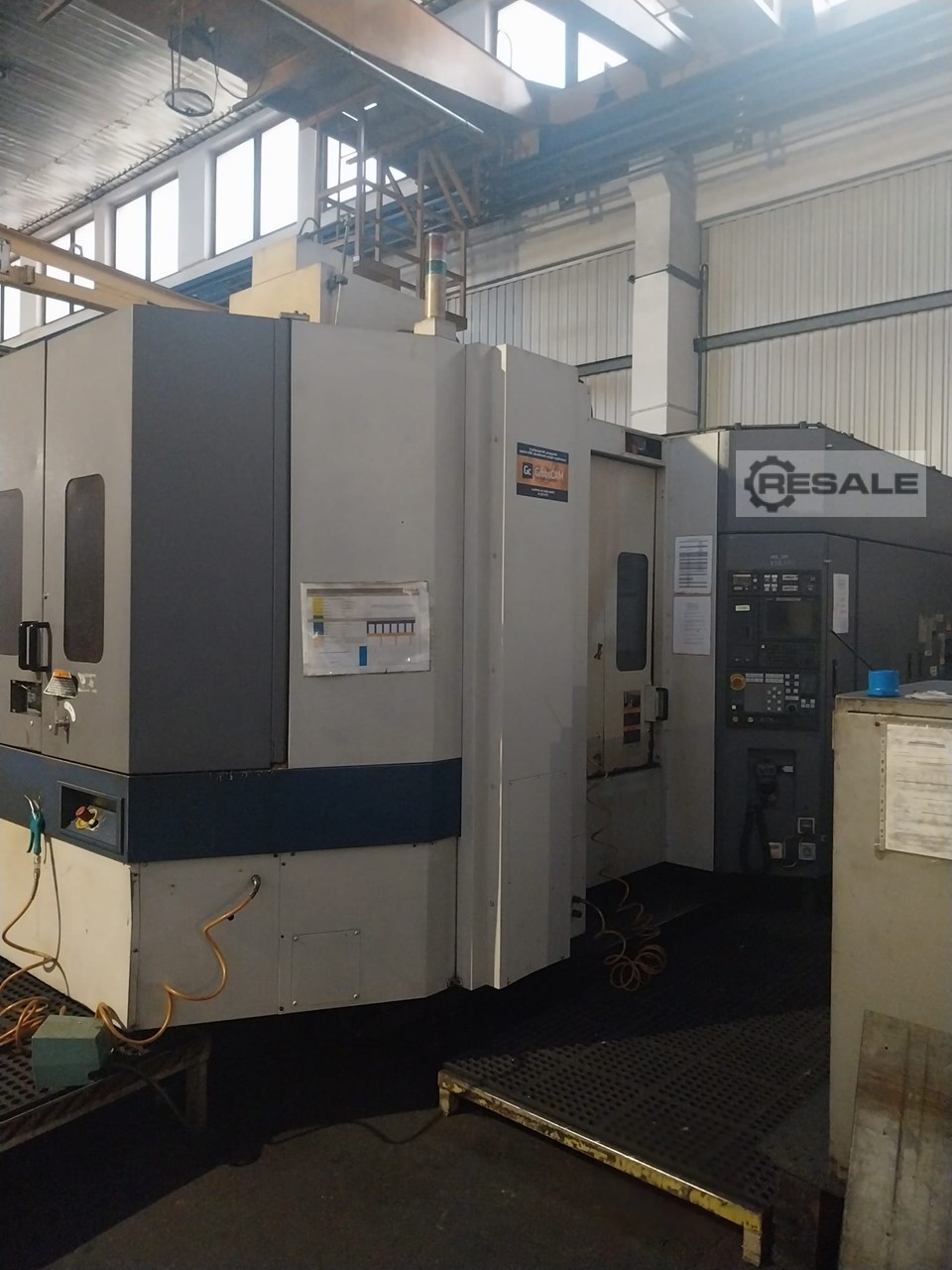

제조사: 모리 세이키 모델 번호: SH 633 연도: 1999년 상태: 중고 재고 번호: 9496 제어 시스템: 모리 세이키 MSG-502 작업대 길이: 700 mm 작업대 폭: 500 mm 최대 테이블 하중(유니폼): 1200 kg 최대 스핀들 속도: 10000 1/분 X축 이동: 840 mm Y축 이동: 760 mm 이동 거리 Z축: 840 mm 기계 중량: 18500 kg
제조사: 모리 세이키 모델: NL 2000 SY 연도: 2005 상태: 중고 재고 번호: 9458 제어 시스템: FANUC MSX-850 최대 회전 거리: 510 mm 최대 회전 직경: 356 mm 트래블 X: 260 mm 이동 Y: 100 mm 트래블 Z: 590 mm 무게: 5800 kg 장비: 바 피더 SPACESAVER SS 2101
Key data: 440 mm, 363 mm
제조사: 모리 세이키 모델 번호: CL2000B 연도: 2014 상태: 중고 재고 번호: 9456 제어 시스템: 모리 세이키 M65V 가동 시간: 61927시간 근무 시간: 25326시간 최대 회전 거리: 363 mm 최대 회전 직경: 440 mm 무게: 2800 kg
기계의 기술적 상태는 양호하며; 사전 예약에 따라 시험이 가능합니다. 스페이스사버 SS 2101. Fanuc MSX-850 시스템.
이 모리 세이키 CL2000B은 2008년에 제조되었습니다. 최대 회전 직경 440mm, 길이 363mm를 가진 견고한 수평 선반 기계입니다. 10개 스테이션 터렛과 8인치 척이 포함되어 있습니다. 조작 시스템은 모리 세이키 MSX-805II입니다. 이 모리 세이키 CL2000B 수평 선반 기계를 구매할 기회를 고려해 보세요. 자세한 정보는 저희에게 문의해 주세요.
Inv. 번호 : 7790 유형: SL-4T 프로듀서: 모리 세이키 제작 연도: 1984년 매개 변수: 제어 시스템 : FANUC 6T 베드 위의 최대 회전 직경: 490 mm 서포트 오버 최대 터닝 직경: 320 mm 최대 스핀들 속도: 3000 1/min 길이: 3100 mm 폭: 1900 mm 높이: 1900 mm 무게: 5500 kg 설비: 컨베이어
Inv. 번호 : 7736 유형: CL2000B 프로듀서: 모리 세이키 생성 연도: 2008년 매개 변수: 제어 시스템: Mitsubishi MAPPS III 켜짐 시간: 37200시간 최대 터닝 길이: 560 mm 최대 터닝 직경: 350 mm
turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...
CNC 컨트롤러: 미쓰비시 M-720BM (MAPPS 2) 수용 인원 X축 이동 거리 mm: 260 Z축 이동 거리 mm: 520 C축: 360º (0.001) 회전 길이 mm: 515 최대 회전 직경 mm: ø: 356 상부 포탑 공구 홀더: 12개 주 스핀들 스핀들 속도: 5000 구동 출력 스핀들 kW: 15/11 스핀들 보어 mm: 73 제조사: 기타가와 카운터 스핀들 카운터 스핀들 이동 거리 mm: 525 장비 칩 컨베이어 신호등 공구 측정 암 작업 공간 조명 바 피더용 인터페이스 근무 시간 출력 기준: 7.456 컷 타임: 5.423 기본 기계 치수 / 무게 길이 mm: 3.495 너비 mm: 2.050 높이 mm: 2.230 체중 kg: 5.800
This MORI SEIKI NL 1500 SY was manufactured in 2009. It features a control unit MSX-850III and has undergone recent servicing of guideways by DMG MORI. The machine includes a 3-jaw chuck for the main spindle and comes with all tooling and toolholders. If you are looking to get high-quality turning and milling capabilities, consider the MORI SEIKI NL 1500 SY turn-mill centre we have for sale. Contact us for further details.
Mori Seiki NT 5400 DCG - 1800 SZYear of manuf. : 2009 Control : Fanuc 30i (MSX-711) Turning diam. : 920 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:2009Control system:Fanuc 30i (MSX-711)Max. turning diameter:920 (470) mmTurning length:1,800 mmBar capacity:103 mmMilling spindle:8,000 rpm, HSK 100Main spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Sub spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Tool carrier I (X/Y/Z/B):Technology:Traveling column with milling spindleMilling spindle:8,000 rpmPower:30 kWTorque:302 NmTool holder:HSK 100X-axis:1,040 mmY-axis:510 (+/- 255 mm) mmZ-axis:1,940 mmB-axis:+/- 120°, index 1°Tool carrier II (X/Z):Technology:Cross slide with tool turretTool drive:6,000 rpm, 40 NmNumber of stations:10X-axis:267 mmZ-axis:1,8 ...
This 3-axis MORI SEIKI SL-250ASMC was manufactured in 1989. It features a Z-axis travel of 520 mm and a B-axis travel of 515 mm, providing versatile turning and milling capabilities. The machine is equipped with a chip conveyor and a bar feeder for enhanced productivity. If you are looking to get high-quality turning and milling capabilities, consider the MORI SEIKI SL-250ASMC turn-mill centre we have for sale. Contact us for further details.
기계 종류: CNC 선반-밀링 센터 모델 번호: NT4200S/1000 통제: FANUC F-31-IA5 MSX711 제작 연도: 2006 위치: 독일 기술적 특징 및 액세서리: - y축 - 완전 인덱서블 b축 - 칩 컨베이어, 우측 배출 - 냉각수 시스템 표준 - 고압 냉각수 시스템 70 바 인터페이스 - 유량 냉각이 있는 공구 스핀들 - 냉각수 분사 건 - 서브 스핀들을 통해 공기를 불어 넣는 것 - 주 스핀들에서 수동 공구 프리셋 - 신호등 3색 - 더블 풋스위치 - 동시 5축 가공 - 자동 전원 차단 - 5축 가공용 공구 오프셋 - 프로그래머블 데이터 입력 - 직경/반지름의 동적 교환 - 이동 전 리프팅 테스트 회전 거리: 1,000 mm 철창 통로: 최대 65 mm 주 스핀들: 최대 속도: 5,000 rpm 구동 출력: 22/15 kW 방추 통로: 73 mm 서브 스핀들: ...
