Modelo
(Fabricante: MÜLLER WEINGARTEN)

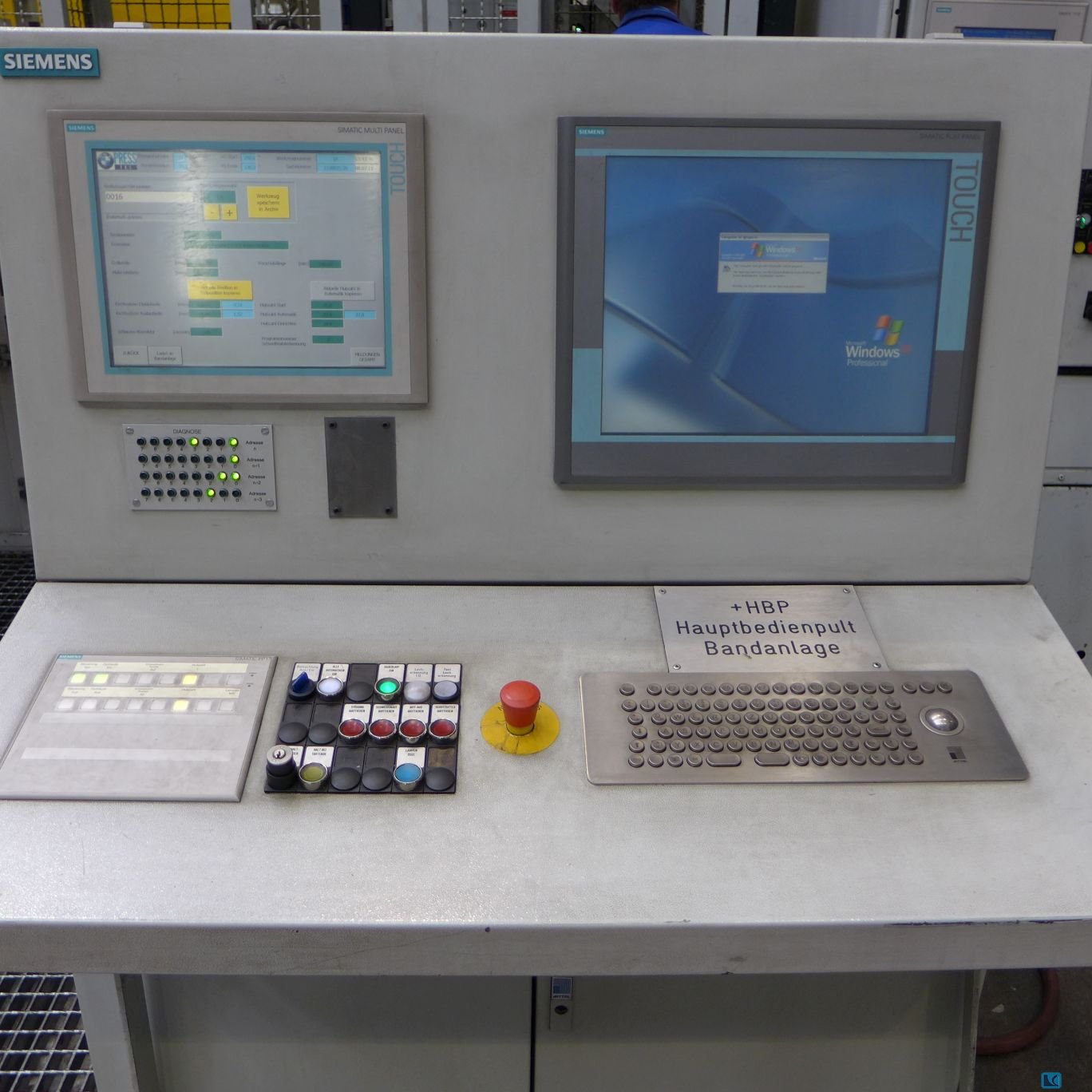

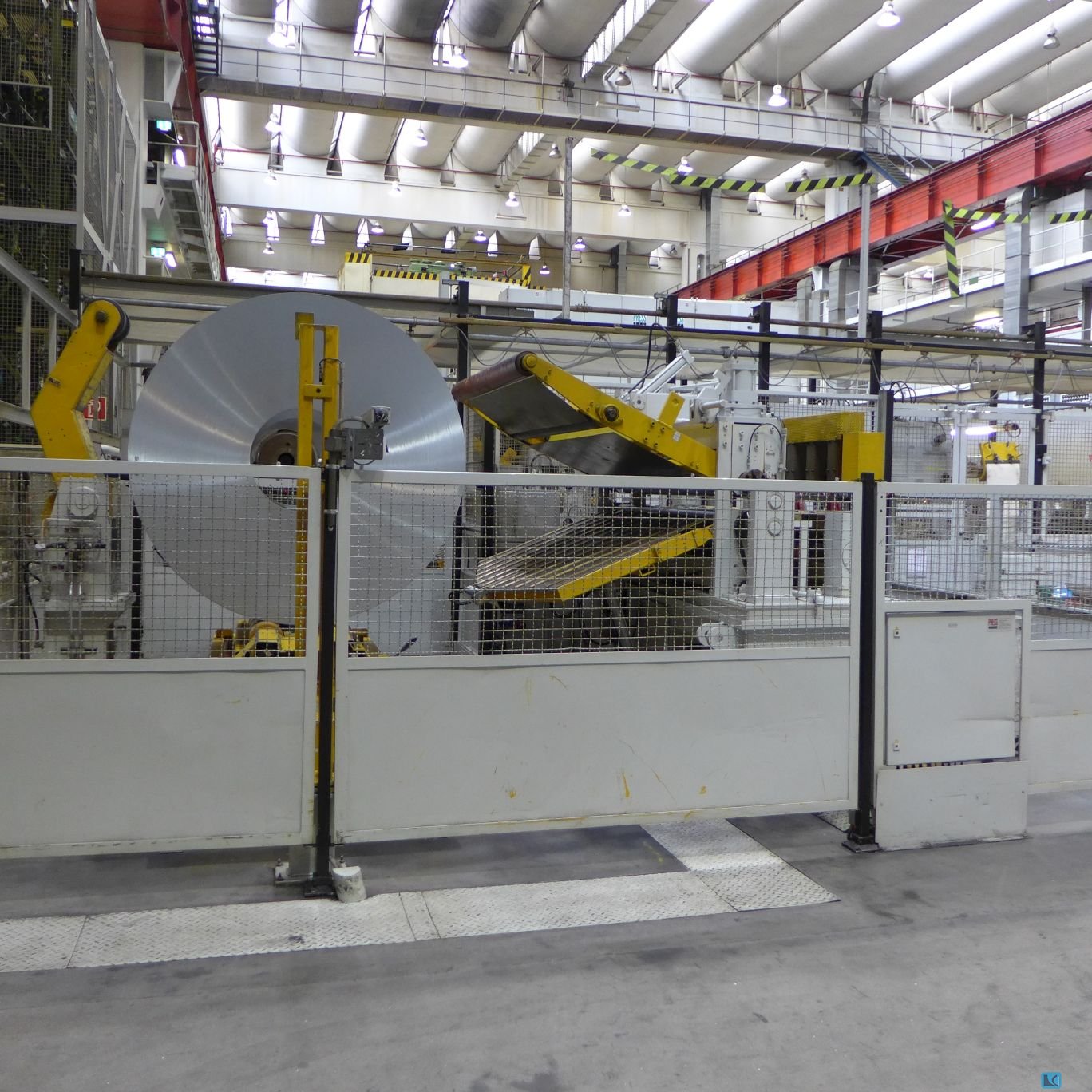

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...
pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

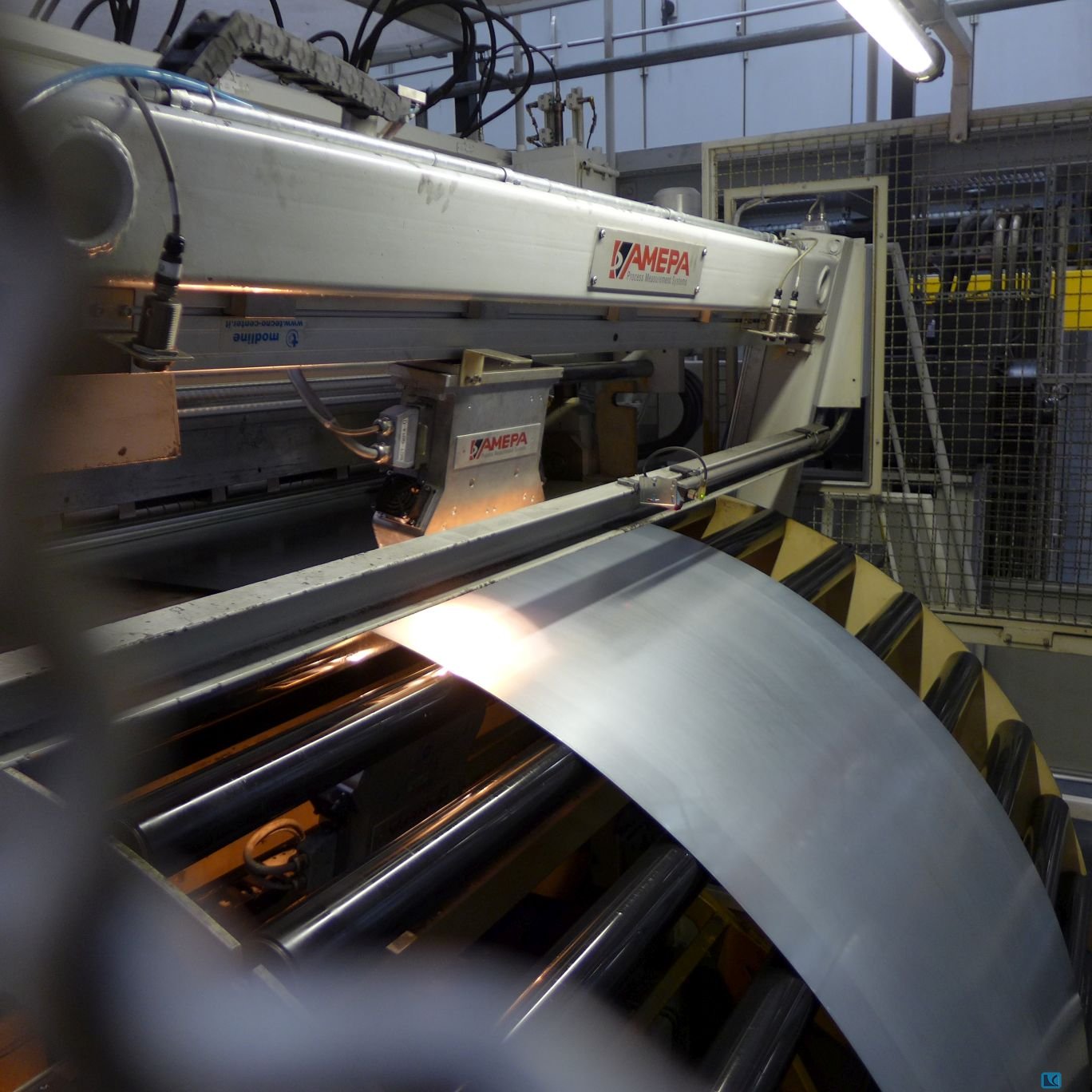

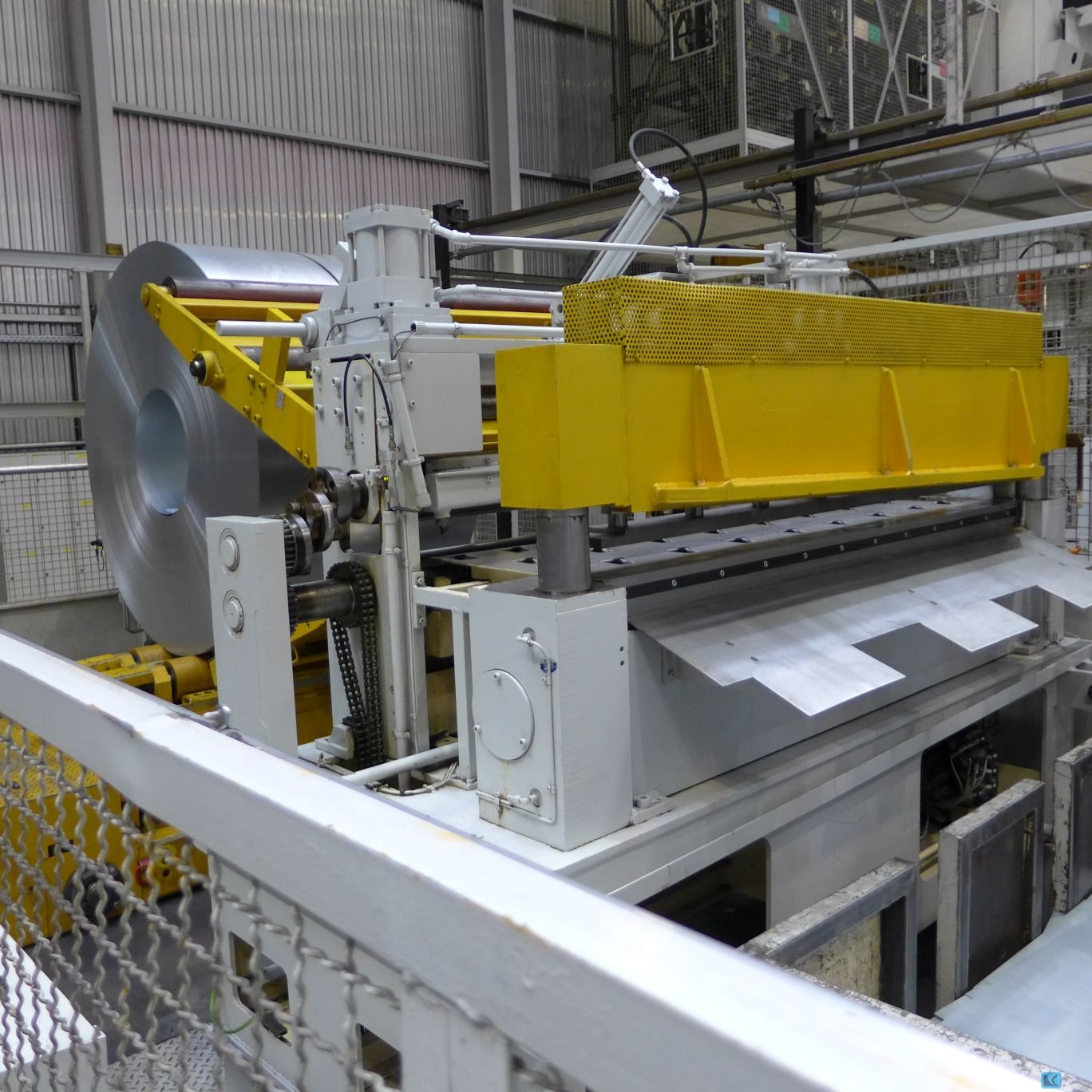

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
ram capacity: 2000 t return capacity: 150 t table-size: 1015 x 1050 mm ram head dimension: 975 x 1050 mm dist. between pillars (left to right): 975 mm dayligth: 1000 mm distance table/ram: 600 - 1000 mm ram stroke: 400 mm table height over floor: 800 mm height over floor: 3650 mm Table ejector: 63 KN Ram ejector: 650 KN Table ejector stroke: 100 mm Ram ejector stroke: 100 mm Lenght of ram slide guiding: 1400 mm : Idle speed downward: 235 mm/s working feed: max. 20 mm/sec Working speed at 10000 KN: 14 mm/s Working speed at 20000 KN: 5 mm/s Idle speed upward: 250 mm/s overtravel time: 220 ms safety distance: 352 mm total power requirement: 194 kW weight of the machine ca.: 105 t dimensions of the machine ca.: ca. 5,00 x 6,50 x 8,00 m Technical data without engagement: sizing press with oil-hydraulic drive, hydr. and electrical control depending on UVV, light barrier (Comp. Sick), ejector ...
pressure: 500 t distance between columns: 1220 mm max. ram stroke: 600 mm distance table/ram, max. stroke up, adjustment up: 1000 mm table surface area: 1600 x 1200 mm die-cushion pressure inside the table: 320 t stroke of drawing cushion in table: 150 mm drawing cushion surface in table: 750 x 812 mm die-cushion pressure in pusher: 180 t stroke of drawing cushion in pusher: 100 mm drawing cushion surface in pusher: 750 x 625 mm ram surface: 1600 x 1200 mm table height over floor: 800 mm feed down: 665 mm/sec feed up: 530 mm/sec working feed: 34 - 100 mm/sec quantity of oil: 2000 l power capacity: 180 kW weight: 40 t dimensions of the machine ca.: 3,2 x 2,4 x 7,5 m by using oil-hydraulic drive, hydraulic and electric control UVV, die cushion in bed and slide, adjustable drawing speed, punching limit with damping plunger lock, electric cabinet Our list price is WITHOUT starting the machin ...
pressure: 100 t passage width: . mm stroke: . mm tracking travel: 45 mm safety distance: 208 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Follow-up time 149 sec The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Bloque de bloqueo para máquina de fundición a presión GDK2500 por Frech, PADS1117.400, Parker, revisado, como nuevo ¡¡Precio especial Si tiene un número de IVA, estaremos encantados de emitirle una factura sin IVA. ¡Reformado! El bloque de bloqueo fue revisado por Parker, está en el embalaje original y está en condiciones óptimas de uso inmediato. El bloque de bloqueo se puede ver, comprobar y recoger en cualquier momento. También estaremos encantados de enviarle un boceto de la ejecución o entregar la mercancía en su dirección. Bloque de bloqueo, Parker, PADS1117.400, Adecuado para las máquinas GDK 2500 de Frech/Müller Weingarten El bloque se entregó a máquinas de Müller Weingarten y tiene conexiones SAE. Artículo 937009 Peso 650kg Atención: Ofrecemos varias columnas, tuercas de ajuste, tuercas de expansión de barra de unión y tuercas de 2 pieza ...

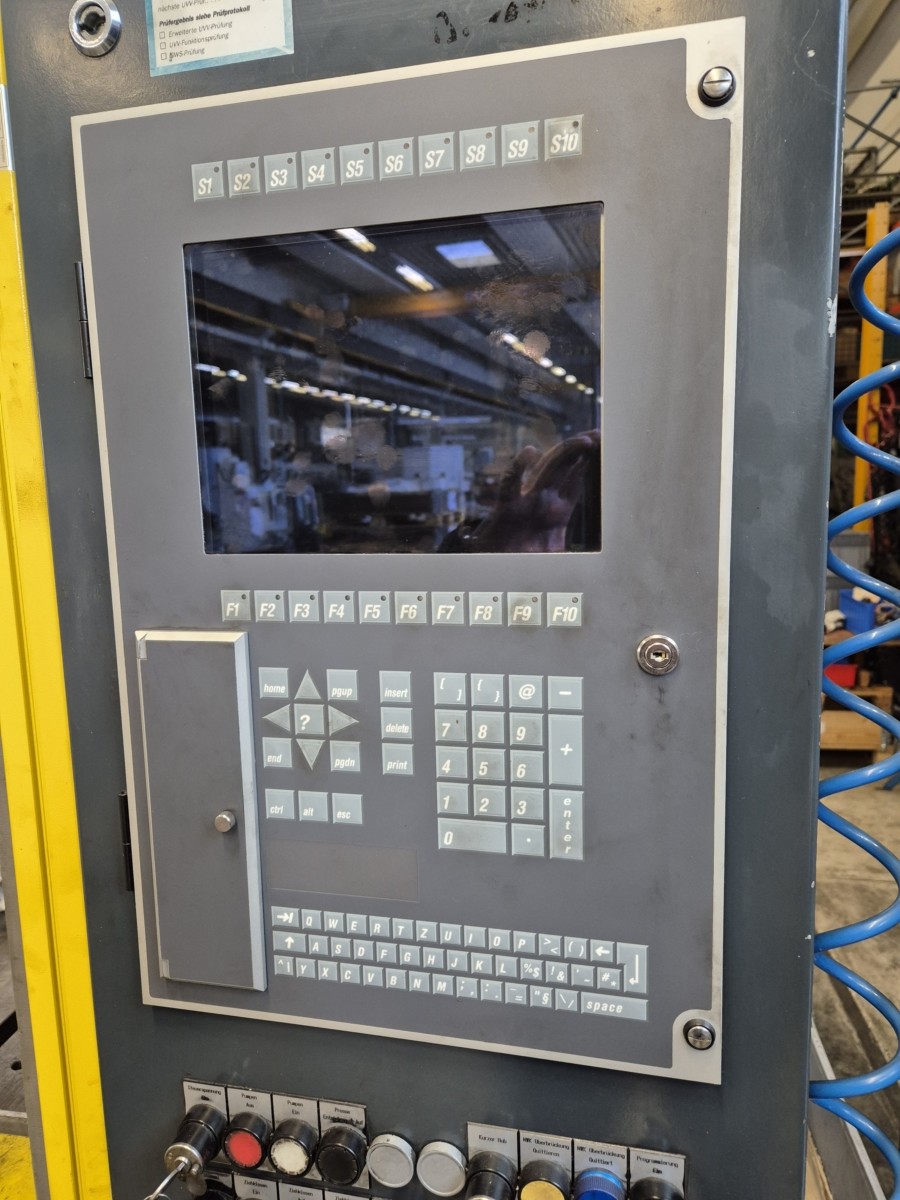

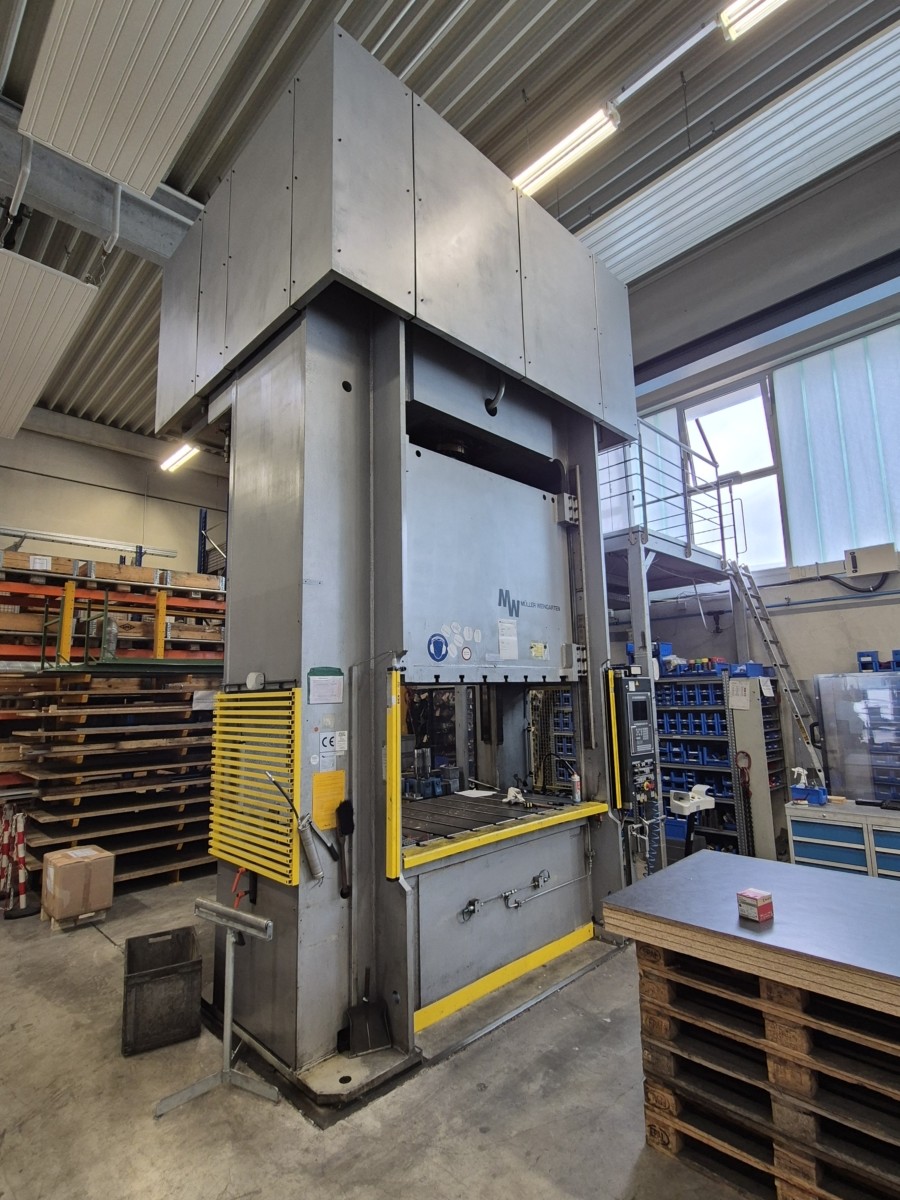

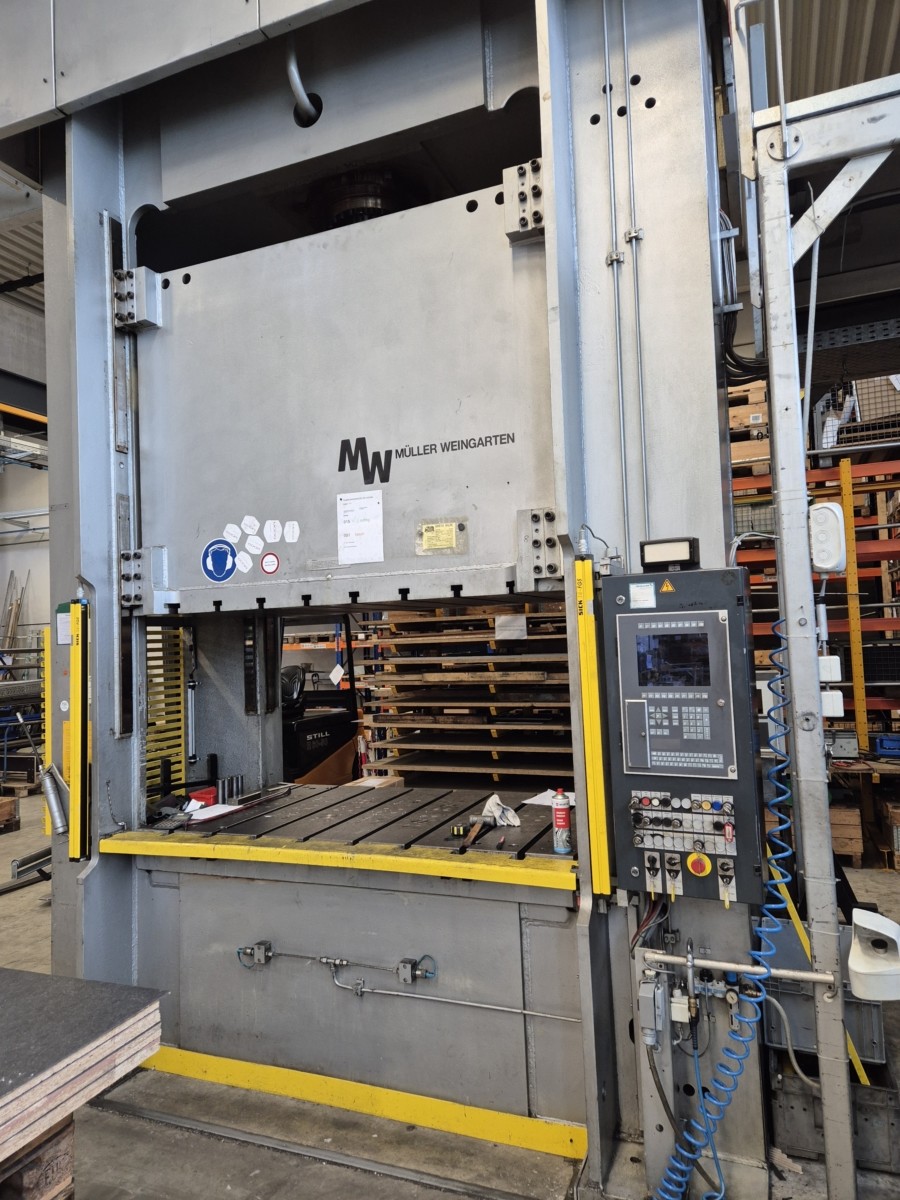

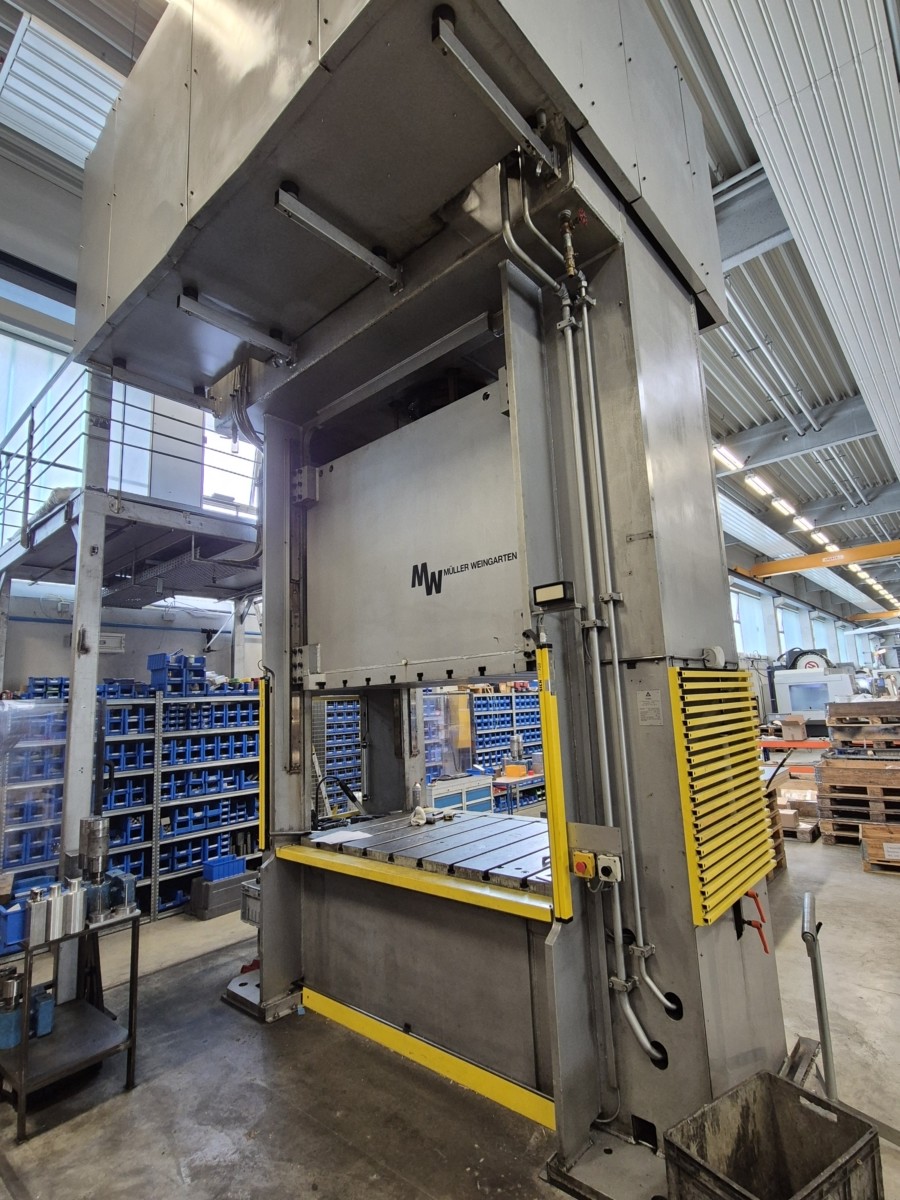

CONTROLES PLC DISEÑO DE PRENSA DE PANEL SIMATIC SIEMENS amortiguador de mesa: sí FUERZAS DE PRESIÓN FUERZA TOTAL (NOMINAL): 400 toSUPERFICIE de mesa de prensa (izquierda-derecha): 2000 mm superficie de mesa (delantero-detrás): 1300 mm Carrera deslizante: 700 mm AMORTIGUADOR DE LA MATRIZ (AMORTIGUADO DE MESA) carrera: 200 mm DIMENSIONES DEL CONJUNTO DE LA HERRAMIENTA altura de cierre (carrera hacia abajo, ajuste hacia arriba), BDC: 1100 mm Horas de máquina: 14060
A la venta hay una prensa de 800 a escalones. Datos técnicos, ver fotos. Prensa que vendemos desde la ubicación.
pressure: 1000 t distance between columns: 5000 mm stroke: 500 mm Height of centres: 400 mm Motor output: kW reus: U/min Overall size: 6000 x 2500 mm Weight: 1000 kg Distance between centres: 3500 mm total power requirement: kW weight of the machine ca.: 220 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
presión: 63 t distancia entre columnas: 0 mm carrera: 160 mm fuera superficie tabla: 630 x 500 mm día: 400 mm refuerza total de potencia: kW peso de la máquina ca.: 5 t dimensiones de la máquina ca.: m
