판금 가공 사용 판매를 위해 (3,306)

material width:300 mmcoil weight:0,5 tcoil internal diameter:420 - 520 mmcoil external diameter:1400 mmweight:0,6 tdimensions (WxDxH):0,8 x 1,2 x 1,7 mexpansion:pneumatic

material width:250 mmmaterial thickness:0,25 - 3,0 mmno. of straightening rolls:11 straightening roll diameter:30 mmspeed:6 - 60 m/minpower requirement:15,0 kWweight:1,1 tdimensions (WxDxH):1,1 x 1,7 x 1,5 mstriaghtening pressure automatic:hydraulic coil loof control:ultrasonic

material width coil line:600 mmcoil weight:2 x 3,5 tcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmno. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mmfeed length:0 - 500 mmpower requirement:10,0 kWweight:10,0 tdimensions of the coil line:8,8 x 4,0 x 2,55 mstraightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed

material width:800 mmcoil weight:12,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1500 mmmaterial thickness:0,4 - 2,5 mmno. of straightening rolls:8 straightening roll diameter:53 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmspeed:35 m/minmaterial thickness at 150 mm material width:2,5 mmmaterial thickness at 650 mm material width:1,5 mmmaterial thickness at 800 mm material width:1,0 mmstraightening machine:RM 8-53/160-800 decoiler:HE 200-1000

table-size: mmvertical movement: mm

material width:250 mmcoil weight:2,5 tcoil internal diameter:430 - 520 mmcoil external diameter:1650 mmmaterial thickness:0,5-6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 weight straightener:1,2 tweight decoiler:1,4 tdimensions straightener (WxDxH):1,2 x 1,2 x 2,0 mdimensions decoiler (WxDxH):1,8 x 1,8 x 2,3 mexpansion:hydraulic

material width:203 mmmaterial thickness:0,1 - 1,9 mmfeed length:101 mmweight:0,1 tdimensions (WxDxH):0,5 x 0,8 x 0,5 m

Incl. accessories, consisting of: a.o. Control unit, dimensions (LxWxH) approx: 650x760x1850 mm Control cabinet, dimensions (LxWxH) approx: 3000x700x2450 mm Dispenser, swivelling, dimensions (LxWxH) approx: 1600x2400x2000 mm, diameter approx: 1500 mm Feeder, dimensions (LxWxH) approx: 1600x1100x1500 mm Soundproof cabin, dimensions (LxWxH) approx: 6600x3260x4400 mm, internal dimensions (LxWxH) approx: 4650x3080x4200 mm 2 magnetic belt conveyors 2-hand control Protective fence Auction-ID: A1-51211-9

material width:450 mmmaterial thickness:1,0 - 14,0 mmcoil weight:10,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1100 - 2000 mmno. of straightening rolls:12 straightening roll diameter:2x70 / 2x96 / 8x127 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmmin. material width:100 mmspeed:15 m/minpower requirement:75,0 kWweight of decoiler:6,4 tweight of straightening machine:12,8 tdimensions decoiler (WxDxH):3,1 x 1,4 x 3,7 mmdimensions straightener (WxDxH):2,5 x 3,4 x 2,7 mmstraightening machine:RMS-Vario-12-70/96/127-0450 infinitely variable drive:insert drive upper straightening part:hydraulic liftable loop bridge:hydraulic driven threading wedge:hydraulic decoiler:HES 12-650 infinitely variable drive:insert drive lag brake:pneumatic snubber roll:hydraulic; motoric driven expansion:hydraulic coil lifting device:hydraulic cropping shears:HS-150-0450

material width coil line:600 mmcoil weight in kg:2 x 3000 kgcoil internal diameter:460 - 630 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmNumber of Straightening rolls:9 roll diameter:30 mmmaterial cross-cut:1200 mm²weight:9,5 tDimensions (WxDxH):4,3 x 2,6 x 2,6 mstraightening machine:30.600/9 double decoiler:Kohler, 3000.2 ausiliary drive:hydraulic lag brake:pneumatic expansion:hydraulic snubber roll:hydraulic; motoric driven

material width:250 mmmaterial thickness:0,5 - 4,0 mmno. of straightening rolls:9 straightening roll diameter:60 mmnumber of draw-in rolls:2 power requirement:3,8 kWWeight:0,8 tDimensions (WxDxH):1,6 x 0,8 x 1,5 m

sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting

material width:500 mmcoil weight:3,0 tmaterial thickness:0,2 - 2,5 mmcoil internal diameter:470 - 530 mmcoil external diameter:1400 mmno. of straightening rolls:9 straightening roll diameter:40 mmnumber of inlet and outlet rolls:4 material cross-cut:1200 mm²speed:1,5 - 30 m/mindimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 mweight decoiler:1,1 tdimensions straightener (WxDxH):3,3 x 1,3 x 2,7 mweight straightener:3,0 tstraightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic

material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m

sheet width:2000 mmplate thickness:1.8 mmControls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mmRAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mmDECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. di ...

band width:1050 mmplate thickness:8 mmnumber of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mmFEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mmLEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/minELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 HzTechnical description :Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of:- LAWECO COIL LO ...

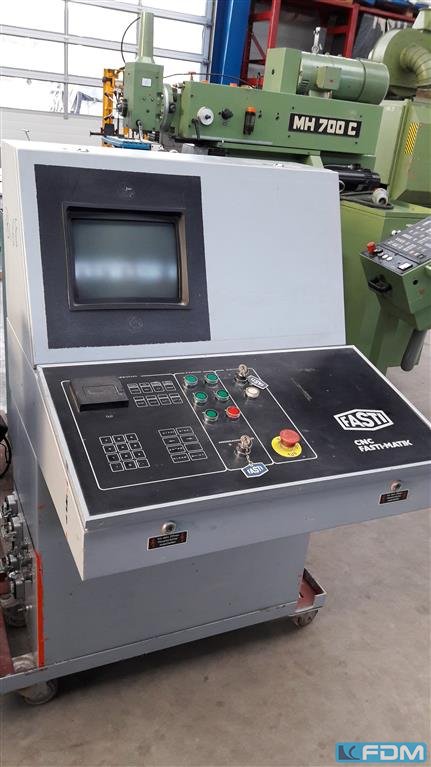

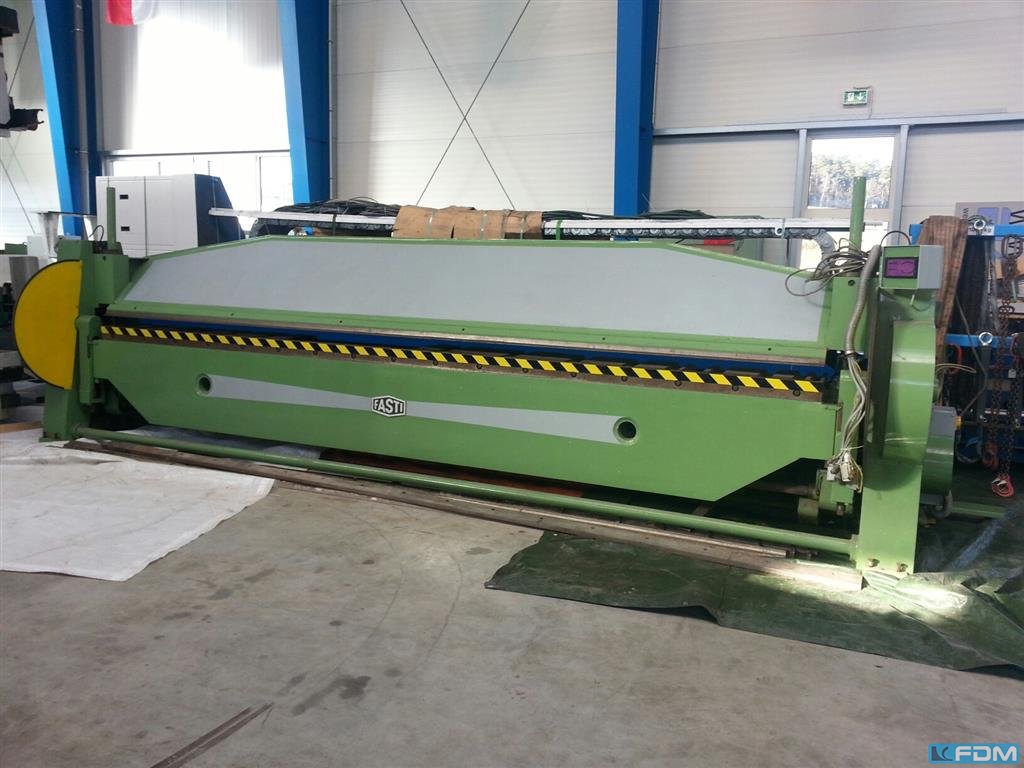

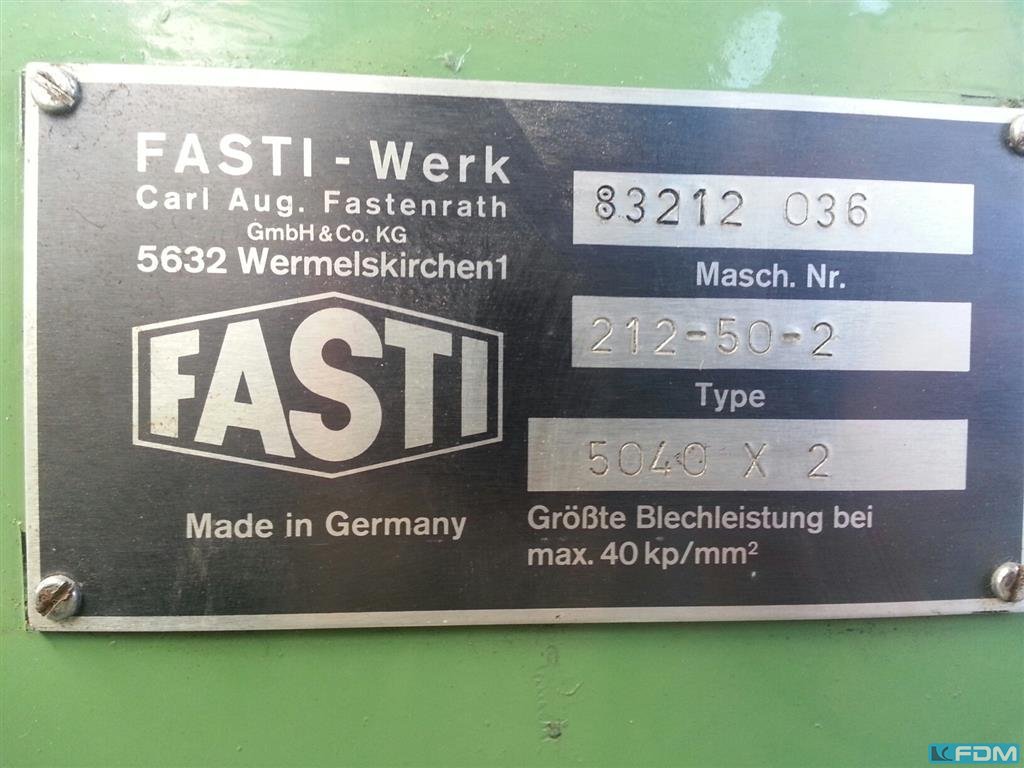

sheet width:5040 mmplate thickness:2 mmtotal power requirement:12 kWweight of the machine ca.:9,4 tdimensions of the machine ca.:6200× 1300 ×1900 mmworking width:5000 mmcontrol:Fasti Matik stroke of upper beam:500 mmadjustment of lower beam:u.Biegewange 80 mmcontrol cabinet:1000 x 850 x1450 mmDocuments:vorhanden

material width:180 mmcoil weight:0,75 tmaterial thickness:2,0 - 6,0 mmcoil external diameter:400 - 1250 mmno. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/minpower requirement:4,0 kWweight:2,8 tdimensions (WxDxH):1,4 x 2,45 x 1,85 msnubber roll:pneumatic

material width:150 mmmaterial thickness:1,5 mmpower requirement:3,0 kWno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:4 weight:0,67 tDimensions (WxDxH):1,3 x 1,1 x 1,6 m

material width:150 mmmaterial thickness:2,5 mmfeed length:100 mmcompressed air:6 barclamping force of fastening pincer:2000 Nclamping force of moving pincer:2000 Nfeeding force:1200 Nweight:0,1 tDimensions (WxDxH):0,35 x 0,85 x 0,5 m

Renewal of the control system of BEISELE 2012 Incl. accessories, consisting of: a.o. Control unit, dimensions (LxWxH) approx: 850x700x2000 mm Control cabinet, dimensions (LxWxH) approx: 2400x600x2700 mm KOHLER - 2000.2 - Dispenser, swivel, dimensions (LxWxH) approx: 1600x2400x2000 mm, diameter approx: 1500 mm Soundproof booth, dimensions (LxWxH) approx: 4680x3300x4100 mm, interior dimensions (LxWxH) approx: 4500x3000x3990 mm 2 magnetic belt conveyors 2-hand control Protective fence Auction-ID: A1-51211-11

band width:2000 mmplate thickness:1.8 mmnumber of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mmFEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mmLEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:2,8 tDimensions (WxDxH):1,6 x 2,2 x 2,3 m

material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:3,1 tDimensions (WxDxH):2,2 x 1,5 x 2,8 m

material width:300 mmmaterial thickness:- 3,0 mmno. of straightening rolls:7 Stückstraightening roll diameter:60 mmweight:0,8 tDimensions (WxDxH):0,9 x 1,5 x 1,4 m

table length:2000 mmtable width:600 mmtable height:300 mmmounting surface:700 x 600 mmcentre distance:1200 mmcentre height:160 mmDimensions (WxDxH):2,0 x 0,6 x 0,3 m

material width:380 mmcoil weight:1,0 tmaterial thickness:2,5 mmcoil external diameter:1000 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:90 mmweight:0,8 tDimensions (WxDxH):0,8 x 1,3 x 1,7 m

material width:500 mmmaterial thickness:0,6 - 1,6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 inlet roll diameter:60 mmmax. material thickness:2,0 mmmaterial thickness at 150 mm material width:2,0 mmmaterial thickness at 500 mm material width:1,6 mmweight:0,5 tdimensions (WxDxH):0,8 x 1,0 x 1,2 m

material width:400 mmcoil weight:3,0 tmaterial thickness:0,5 - 4,0 mmcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:50 mmno. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mmmaterial cross-cut:1600 mm²speed of coil line:0 - 20 m/minpower requirement:35,0 kWweight:10,5 tdimensions (WxDxH):10,0 x 2,5 x 2,9 mstraightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic
