Center height: 150 mmMax. turning diameter: 300 mmMax. turning diameter over support: 178 mmMax. turning diameter without bridge: 430 mmCenter width: 810 mmSpindle bore: 38 mmSpindle cone: MK 5Spindle speeds: 60 to 1500 rpmfor more data see pictureswith plenty of accessories - including two steady rests, inner diameter: max. approx. 70 mm, one face plate, diameter: approx. 250 mm and other accessoriesReference: Wup - Lot 13 Auction-ID: A7-49056-68
Technical data Manufacturer: Yamazaki Mazak Model: Quick Turn 28N/QT-28N-U Serial Number: 85751 Control: MAZATROL T32-2 Weight: 5,200 kg Chuck: hydraulic 3-jaw chuck, marking B-210A08 Clamping cylinder: S-1875 Max. pressure clamping system: 370 PSI / 26 kgf/cm² Max. permissible speed chuck: 4,200 rpm Configuration CNC lathe with tool turret, tailstock and enclosed work area. Chip conveyor available. Connected suction/filter unit visible. MAZATROL T32-2 control with color screen. Remarks Used condition with clear signs of wear and dirt due to age and operation. Control on the recordings turned on. Functional test or machining sample not documented. Note No technical documentation available. information researched to the best of my knowledge and belief. No guarantee is given for completeness and correctness. Auction-ID: A7-49302-168

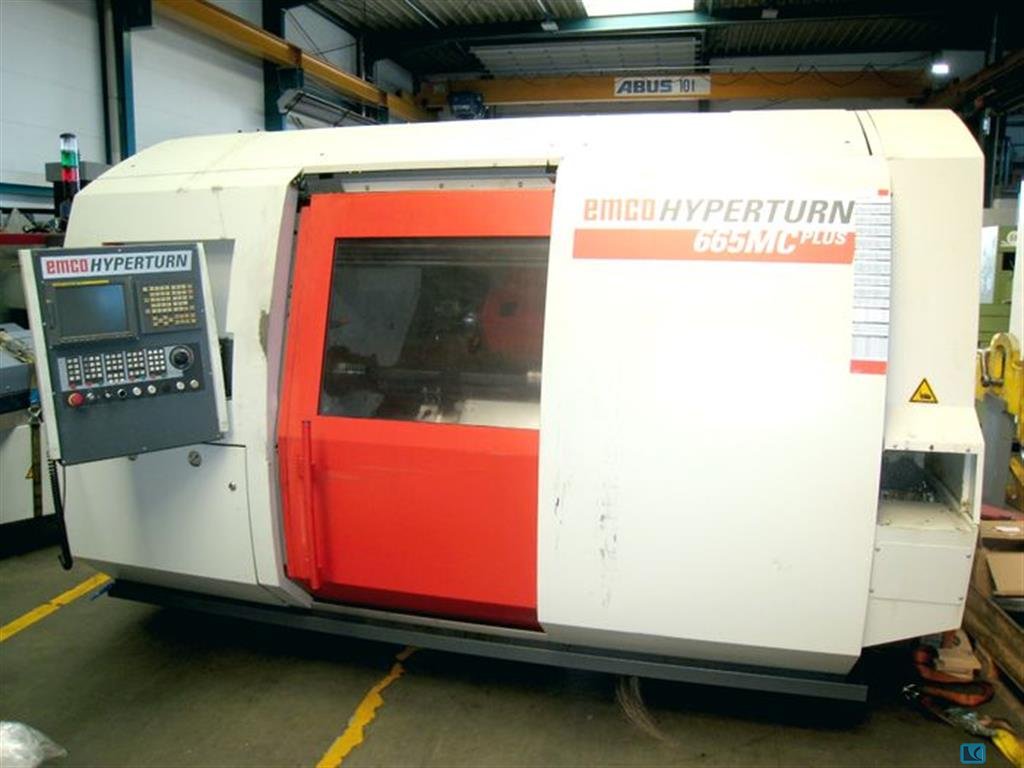

Sub spindle Driven tools Y-axis Technical Details Drehdurchmesser max. 246 mm Drehlänge max. 445 mm Supporting Fanuc 32 iS Distance between Spitzen 665 mm Spitzenhöhe 365 mm Length diameters over bed 500 mm Length diameters over shelf sections 375 mm Standard diameter 170 - 210 mm Main spindle: Max. Drehzahl Main Spindle 6,000 min/-1 Antriebsleistung - Main spindle 12 kW Max. torque 115 Nm Spindle bearing diameter: 100 mm Spindle drilling 73 mm max. Useless rod diameters 50 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 - 210 mm Futterdurchmesser ( - ) mm Gegenspindle: Max. Drehzahl Gegenspindle 6.000 min/-1 Antriebsleistung - Gegenspindle 7.5 kW Max. torque 48 Nm Spindle bearing diameter: 90 mm Spindle drilling 44.5 mm max. Useless rod diameters 37 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 mm Futterdurchmesser ( - ) mm Transport: ...

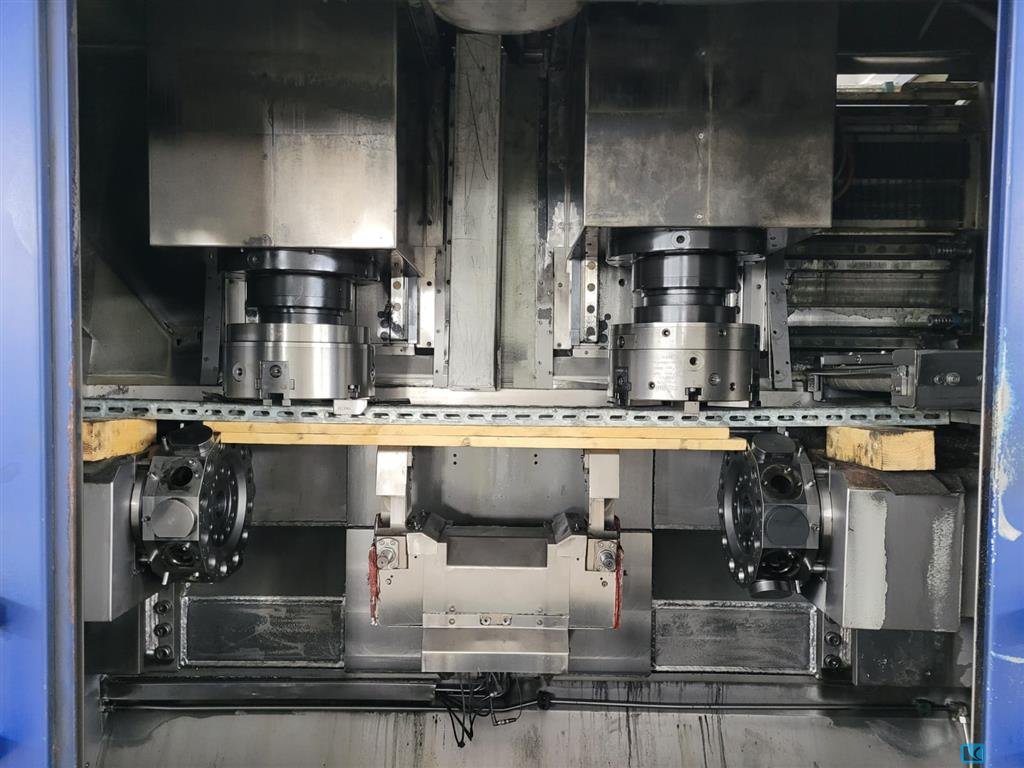

Machine number: 0307-1866Operating voltage: 400 VFrequency: 50 HzRated current: 315 AOperating hours: 9316Control: SIEMENS SINUMERIK 840 DslWorking height: approx. 1300 mmWorkpiece length: min. 780 mm/max. 3000 mmWorkpiece diameter: min. 20 mm/max. 200 mmmax. workpiece weight: 250 kgWorkpiece drive/voltage: 2 x hydraulically operated front end chuck, manufacturer SAVmax. chuck passage: diameter 210 mmSpindle power: 2 x 37 kWSpeed: 2200 rpmCarriage PathsCross Slide NC1 - left:X1 axis: 450 mmZ1 axis: 1980 mmCross slide NC2 - right:X2 axis: 450 mmZ2 axis: 1980 mmM - head - slide - left Q1 - axle: 1980 mmM - head - carriage - right - Q2 - axle: 1980 mmtailstock carriage + steady rest - left W1 - axle: 1980 mmtailstock carriage + steady rest - right W2 - axle: 1980 mmmax. rapid traverse speed: 20 m/minincl. PROMAT gantry loading systemwith two loading unitsas well as chip conveyor and coola ...

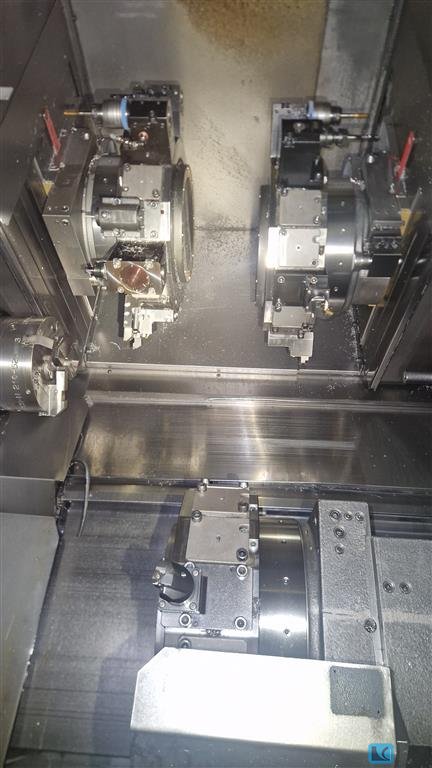

NAKAMURA-TOME WT-300 CNC turning center equipped with LNS automatic bar feeder, designed for industrial mass production with high productivity. This configuration allows: Simultaneous machining thanks to double spindle and double turret Automatic bar feeding Continuous production without operator intervention Reduced cycle times The WT-300 + LNS bar feeder combination is an ideal complete solution for: Bar turning Mass production Industrial subcontracting Precision mechanics Automotive industry, watchmaking, general mechanics LNS bar feeders are a world reference in the automation of CNC lathes, which are highly sought after on the second-hand market. Auction-ID: A1-48554-5
Technical data Manufacturer: EMCO Model: Maximat Super 11 Speeds: 55 / 110 / 200 / 300 / 410 / 600 / 1100 / 2200 rpm 8 speed levels Digital display: ELESTA VISULESTA II E Hardened machine bed Configuration 3-jaw chuck available Additional 3-jaw chuck Collet holder with collet set Quick-change steel holder Tailstock available Accessories with tool holders and tips Machine in used condition Auction-ID: A7-49302-3061
Technical data Manufacturer: WEILER Type: UD 24 CNC Control: Siemens SINUMERIK RÖHM chuck, max. operating pressure 50 bar Configuration CNC Lathe Tool turret RÖHM Chuck Closed workspace Remarks The article comes from a company liquidation and was actively used in the training workshop until the company closed. Auction-ID: A7-49302-142
Serial number: 07400003691operating hours read: 88,040Spindle hours read: 43,558Spindle speed range: 3200/5000 rpmRotation diameter: 270 mmTurning diameter: 120 mmSpindle distance: 900 mmTravel X1: 290 mm TravelZ1: 650 mmTravel X2: 180 mmTravel Z2: 650 mmTravel Y1: +- 40 mmTravel Z3: 670 mm TravelX3: 175 mmMax. rod diameter: 100/104 mmSpindle bore diameter: 118 mmRapid traverse speed X- and Z-axis: 30 m/minRapid traverse speed Y-axis: 15 m/minNumber of driven tools per tool carrier: 12Control: SIEMENS SINUMERIK 840 D POWERLINEincl. chip conveyorwith 2 tool turrets - each with 12 tool positionsmain and counter spindles, as well as foot switchesAttention, the machine has the following defects:-the B-axis is defective (sits on turret 1)-the guides and drives are worn according to their age-X2 axle (guide rails) runs a bit crookedin the range of 0.03 mm (would have to be remeasured), sporad ...
new controler from 2021,turning length - 1100mm,turning diameter over the bed - 400mmturning diameter over slide - 225mm,lift of the claws over the bed guide - 260mm,bed width - 320mm,support length - 520mmOffer not include other machines and parts which are visible on the photos but not belong to the machine. Auction-ID: A7-49398-17
Lead and pull spindle lathe VEB DLZ 450 / 2000 Center width: 2,000 mm Tip height above bed: 250 mm Tip height above support: 150 mm Speed: 16 - 2240 rpm (18 steps) Spindle bore: Ø 45 mm 380V 3AC 50Hz 21A 10.3kW Dimensions: 3,600 x 1,000 x 1,400 mm Auction-ID: A7-49701-10
Lathes with: - 4-fold steel holder - 3-jaw chuck 315mm - Centering tip Turning diameter over bed 500 mm Turning diameter over support 320 mm Turning length 2100 mm Center height 250 mm Spindle bore 60 mm Spindle speeds 11 - 2000 rpm Total power requirement 7.0 kW Machine weight approx. 2.9 t Dimensions approx. 4.3 x 1.2 x 1.3 mm Auction-ID: A7-49782-438
Guide and tension spindle lathe machine - With photocopying device - 3-jaw chuck 200mm - 2 Mutifix quick-change steel holders - Moving center punch - Machine light - Chip tray Turning diameter over bed 410 mm Turning diameter over support 260 mm Turning length 1000 mm Turning diameter in the offset mm Speed 40 - 2000 rpm Center height 205 mm Spindle bore 50 mm Total power requirement 4.5 KW Machine weight approx. 1.6 t Dimensions approx. 2.4 x 1.3 x 1.5 m Auction-ID: A7-49782-510
4 GUIDEWAYS LIVE TOOLS C AXIS CNC Siemens Sinumerik Center height mm 450 Max. swing diameter mm 800 Max. turning diameter mm 600 Center distance mm 8.290 TRAVELS X-axis travel mm Z-axis travel mm 8,400 Y-axis travel mm +/-15 mm SPINDLE Spindle nose mount ASA 11'' 4-jaw independent chuck diameter mm 700 Bar passage mm TURRET 12 positions Model Baruffaldi VDI 60 Live tools 6 positions MOTORIZED TAILSTOCK Quill diameter mm DIMENSIONS: Overall size mm 12.740x3.080xH 1.725 Weight COMPLETE WITH: Heidenhain optical scale Z axis n.1 steady rest diameter mm 320 n.1 steady rest diameter mm 600 n.1 steady rest diameter mm 740 Chip conveyor Auction-ID: A1-48745-13
Machine number: 9611-1806Operating voltage: 380 VFrequency: 50 HzControl voltage: 220 VControl: SIEMENS SINUMERIKCenter height: 1240 mmMax. turning length: 2000 mmSpindle bore: 130 mmMax. chuck diameter: 130 mmMax. torque: 460 NmTool holder: VDI 40Plan stroke: 200 mmTailstock Quill cone: MK 5Quill diameter: 90 mmMax. quill stroke automatic: 150 mmIncl. workshop cabinet and large batch VDI 40 tool holdersalso coolant system and loading systemAttention: the machine can be transported on a standard truck ! Auction-ID: A7-49089-190
BLIN BL-CAK6140 CNC Lathe Type: CNC lathe Manufacturer: Ningbo Blin Machinery Co., Ltd. Model: BL-CAK6140 / CAK6140B Year of manufacture: 2020 Control: GSK CNC 980TDb Machine configuration: Flat bed CNC lathe with tailstock Swing over bed: approx. 400 mm Distance between centres: approx. 1000 mm Spindle speed range: 100–2000 rpm Main motor power: 7.5 kW Total power: 10 kVA Voltage: 380 V Phase: 3 phase Frequency: 50 Hz Total current: 40 A, to be confirmed Chuck type: 3-jaw chuck Tailstock: Included Tool post: 4-position turret / tool holder, to be confirmed X-axis ball screw pitch: 5 mm Z-axis ball screw pitch: 8 mm Rapid traverse X-axis: 3 m/min Rapid traverse Z-axis: 4 m/min Positioning accuracy X-axis: 0.02 mm Positioning accuracy Z-axis: 0.022 mm Repositioning accuracy X-axis: 0.01 mm Repositioning accuracy Z-axis: 0.011 mm Minimum input unit X-axis: 0.001 mm on diameter Minimum i ...
Technical data Manufacturer: Colchester Model: Mascot 1600 Machine Type: Lead and Pull Spindle Lathe Lead screw pitch: 6 mm Multi-stage speed selection, labeling visible up to 1,600 rpm Configuration 3-jaw chuck Fixed bezel Tailstock Tool Holder / Multiple Steel Holder Thread and feed tables on the machine Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-186

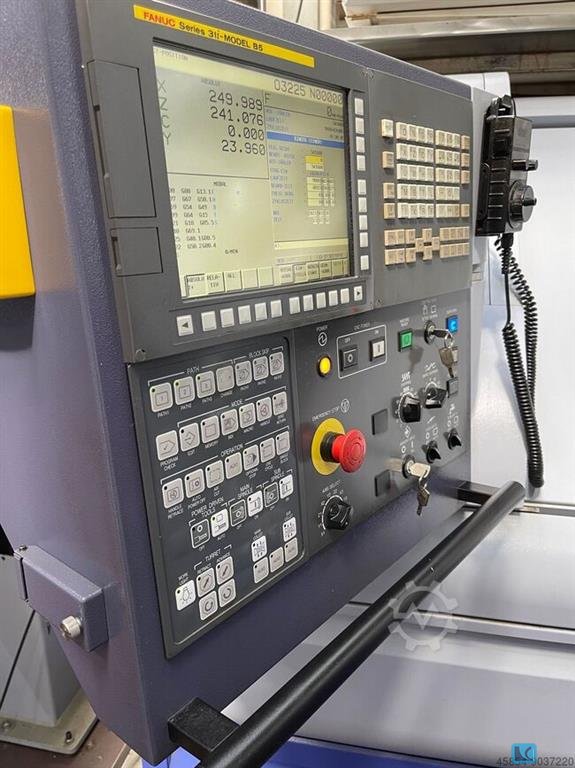

GILDEMEISTER - Sprint 20-8 linear Technical details: Turning diameter max. 20 mm Turning length max. 80 mm Control Fanuc 310is Main spindle: max. usable rod diameter 20 (25) mm Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C1: 360° Sub-spindle: Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C2: 360° Travels: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Tool carrier slide 1: Number of tool positions 17 pos. Collet Diameter ESX / ER 16 Speed driven tools 3x 3,450 / 2x 6,000 min/-1 Drive power - operated Tool stations 5x 0.98 kW Max. torque 3x 4 / 2x 2.3 Nm Tool carrier slide 2: Number of tool positions 13 pos. Interior Machining 4 Exterior machining 4 powered stations 5 pos Shaft diamet ...
General Description Horizontal CNC turning center designed for precision turning, facing, drilling, boring and threading of cylindrical components. The machine is equipped with a hydraulic chuck, 12-station hydraulic turret and chip conveyor for efficient production machining. Technical Details Machine type: CNC turning center Horizontal CNC lathe 12-station hydraulic turret Hydraulic chuck Older monochrome CNC control Chip conveyor Coolant system Condition Used industrial condition. The machine appears complete with hydraulic chuck, 12-station turret, chip conveyor and coolant system. Operational status, spindle condition and CNC functionality have not been tested. Auction-ID: A7-49124-34
- Maximum distance between points approx. 1300 mm. - Turning on bed approx. 500 mm. - Flip on carriage approx. 240 mm. - Bed width 420 mm. - Bar pitch diameter approx. 50 mm. - 18 rotation speeds. - 3-jaw chainring, diameter 315 mm. - HEIDENHAIN 2-axis digital display. - Operating conditions of this machine: unchecked. Auction-ID: A7-48839-40
VEB Heavy-Duty Industrial Lathe Type: Heavy-duty industrial lathe Manufacturer: VEB Großdrehmaschinenbau \"8. Mai\" (Germany) Year of manufacture: 1993 Distance between centers: 4000 mm Swing over bed: approx. 800 mm Swing over carriage: approx. 500 mm Spindle bore: approx. 80 mm Power supply: 3-phase, 380 V, 60 Hz Control voltage: 220 V Installed power: 13.5 kW Rated current: 28 A Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49190-23
- Total installed power 40.40 KW. - Maximum turning length approx. 2400 mm. - Bar pitch diameter approx. 98 mm. - Turret: 12 positions, the tools that appear in the photographs are included. - 3-jaw plate with a diameter of 500 mm. - SIEMENS SINUMERIK control. - Equipped with automatic hydraulic window. - Chip extractor. - Accessories and cutting tools are included. - This machine does NOT have manuals. - Operating conditions of this machine: unchecked. Auction-ID: A7-48839-4
