사용

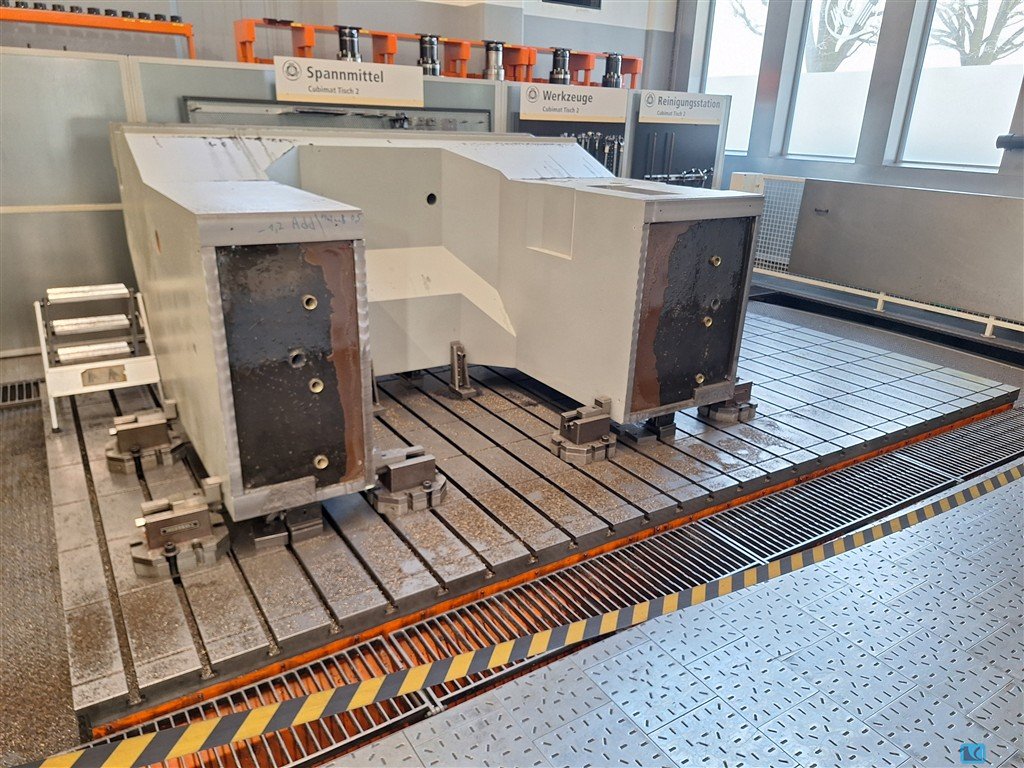

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm, ...
사용
x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm, & ...
