Le centre d’usinage horizontal CNC HELLER H 2000 a été construit en 2022 par Heller Maschinenfabrik GmbH. La machine représente la quatrième génération de la série H, spécialement conçue pour une utilisation dans des conditions de production exigeantes. Elle se distingue par son équipement étendu et l’utilisation de plusieurs solutions techniques de pointe qui garantissent un fonctionnement fiable tout au long de sa durée de vie. Le HELLER H 2000 est utilisé pour l’usinage précis sur 4 axes de pièces d’un poids maximal de 800 kg. La conception de la machine constitue la base d’une grande productivité et d’une grande précision d’usinage. Tous les composants structurels en fonte ont été soigneusement optimisés pour garantir la plus grande stabilité et un excellent amortissement des forces. La cinématique sur les 4 axes, à son tour, permet un position ...
Heller MC16 Nr 31-43514 BJ. 2009 Tours de la broche 1/min. 45-16000 Psbmlb Sswffd Ssaljrd SK40 Distances de course mm x 630 Y 630 Z 630 Vitesse de course mm/min 1-40000 Nombre d’outils 80 Diamètre de l’outil mm 70/150 (pour des espaces secondaires libres) Longueur d’outil mm 320 Nombre de palettes 2 Dimensions des palettes : 400 x 500 Charge maximale en palette KG 500 Axe B NC Système de contrôle Sinumerik 840D Sonde Heidenhain Oui Power kVA 60 Machine n° 73 ATL iTM400HP n°14916 BJ.2009 Power kVA 30 Chambre de débavure standard 400 / 400 mm Pression maximale de remplissage de gaz 20 bars Siemens Multipanel avec système d’exploitation Windows CE
Heller MC16 Nr31-43487 BJ. 2009 Tours de la broche 1/min 45-16000 SK40 Plages de course mm X 630 Y 630 Pobmlb Saowfd Eusljrd Z 630 Vitesse de course mm/min 1-40000 Nombre d’outils 80 Outil mm 70/150 (pour des espaces secondaires libres) Longueur d’outil mm 320 Nombre de palettes 2 Dimensions de la palette : 400 x 500 Palette de charge maximale kg 500 Axe B NC Système de contrôle Sinumerik 840D Sonde Heidenhain Oui Power kVA 60 Machine n° 63
Ce centre d’usinage horizontal HELLER H2000 à 4 axes a été fabriqué en 2017. Il est équipé d’un contrôle Siemens 840D Solution Line, d’une rotation rapide de 60 000 mm/min et d’une vitesse de broche de 10 000 tr/min. La machine peut gérer des pièces allant jusqu’à 720 mm de diamètre et 850 mm de hauteur, avec une charge maximale sur la table de 600 kg. Envisagez l’opportunité d’acheter ce centre d’usinage horizontal HELLER H2000. Contactez-nous pour plus d’informations sur cette machine.
x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to
x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to
x-travel:450 mm y-travel:450 mm z-travel:450 mm b-axis:360.000 x 0.001 ° main spindle speeds::45-10000 1/min weight of the machine ca.:14 t dimensions of the machine ca.:7 x 2.45 x 3.4 m size of pallet:320 x 320 mm number of spindles:2 tool taper:HSK63 tool numbers:2 x 40 spindle drive motor:25/36 (100% / 40% ED) kW Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site ...
x-travel:630 mm y-travel:630 mm z-travel:630 mm pallet size::400 x 500 mm spindle taper::HSK 63 spindle turning speed - stepless:10 - 16000 U/min total power requirement:55 kW weight of the machine ca.:11 t Machine with SIEMENS 840 D control for 4 axis - digital drives - palette changer 4-fold - tool changer 160-fold - coolant device with coolant through spindle - full B-axis - chip conveyor - hydr. workpiece clamping
x-travel:630 mm y-travel:630 mm z-travel:630 mm control:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mm max. clampable workpiece diameter:720 - 850 mm spindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/min Spindle power:20 / 30 kW Spindle Torque:95/143 Nm tool magazin::80 SK 40 total power requirement:55 kW weight of the machine ca.:11 t Machine with Unipro 90 control for 5 axis - twin palette changer - tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels - full A & B-axis - chip conveyor
Manufacturer: HELLER Model: MCH 250 Machine Type: Horizontal Machining Center Application Type: Milling Year: 2007 Control Unit: • Control Brand: SIEMENS • Control Model: 840D Movement: • Number of Axes: 4 • X-Axis Travel: 800 mm • Y-Axis Travel: 800 mm • Z-Axis Travel: 800 mm Technical Specifications: • Spindle Speed: 6,000 RPM • Tool Holder: BT50 • Number of Tool Positions: 100 Additional Information: • 4th-axis rotary table with 1 degree indexing • Workpiece/tool probing system (touch probe) Find more here - .ucymachines/ Contact us at - sales@ucymachines
x-travel: 630 mm y-travel: 630 mm z-travel: 630 mm Control: Siemens type: 840 D size of pallet: 400x500 mm numbers of pallets: 4 : 360 ° turning speeds: 10-16000 U/min Tool changer: 160 Pos. Cooling through the spindle: spindle taper:: HSK 63 chip conveyor: total power requirement: 55 kW weight of the machine ca.: 11 t dimensions of the machine ca.: m Machine with Siemens 840 D control for 4 axes - Digital drive technology, direct position measuring systems - 4-position pallet changer - Full B-axis - Coolant system with internal coolant supply - Hydraulic workpiece clamping - Filtration system The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 i ...
throat: 600 mm tool adaptor: 50,60 SK power requirement: . kW flange:: 500x500 mm Width of nail head: 270x220 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
throat: 600 mm tool adaptor: 60,60 SK power requirement: . kW flange:: 500x500 mm Width of nail head: 320x300 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 630 mm z-travel: 560 mm total power requirement: 60 kW weight of the machine ca.: 12.5 t dimensions of the machine ca.: m H E L L E R (Germany) 5 Axis - CNC Controlled Horizontal Machining Centre Model FST- MC 160 / 800 / E Year 1998 Only approx. 500 hours in operation _______________________________________________________ Working range: Longitudinal stroke X axis 800 mm Vertical stroke Y axis 630 mm Cross stroke Z axis 560 mm NC rotary table Tilting A axis 180 ° Turning B axis 360 ° Size of pallet, approx. 250 x 620 mm Tool holder HSK 63A Spindle speeds, infinitely variable 63 - 20,000 rpm Feeds / quick feeds XYZ 1 - 70,000 mm/min Spindle drive 24 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Weight, approx. 12,500 kg Accessories / Special Features 5-Axis SIEMENS CNC Path Control, Mode ...
This 4-axis HELLER H5000 horizontal machining centre was manufactured in 2021. It features a working range of 800 mm in all axes and a maximum workpiece diameter of 900 mm. The machine includes a tool taper of HSK-A 100 and a tool magazine capacity of 50 slots. If you are looking to get high-quality machining capabilities, consider the HELLER H5000 machine we have for sale. Contact us for further details.
This 4-axis HELLER MCH 250 was manufactured in 2001. It features a robust coolant/filter unit, ensuring efficient operation. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER H5000 was manufactured in 2009. It features a Fanuc 310i control system, ensuring reliable operation. If you are looking to get high-quality machining capabilities, consider the HELLER H5000 horizontal machining centre we have for sale. Contact us for further details.
Centre de fraisage horizontal 4 axes HELLER MC16 ANNÉE 2000 Commande de trajectoire CNC SIEMENS 4 axes, modèle SINUMERIC 840 D Axe X longitudinal 630 mm Axe Y vertical 630 mm Croix axe Z 630 mm Table rotative CN Axe B inclinable 360.000 x 0,001 Taille de la palette 400 x 500 mm Taille max. de la pièce x hauteur 720 x 800 mm Poids max. de la pièce 500 kg Temps de changement de palette 9 sec. Vitesse de rotation axe B 40 tr/min Cône porte-outil HSK 63 Taille de l’outil x lg. x poids 150 x 227 x 12 mm/kg Vitesses de broche réglables en continu de 45 à 24 000 tr/min Alimentations / alimentations rapides XYZ : 1 – 60 000 mm/min Force d’avance 10.000 nm Couple de rotation 48/72 Nm Entraînement de broche 30 kW Charge électrique totale, env. 60 kW - 400 V - 50 Hz Poids total 12,5 tonnes Accessoires / Caractéristiques spéciales : -Magasin d’outils sépar ...
CONTROLS CNC controls SIEMENS 840 D WORKING RANGE -CUBIC- number of processing axes (excl parallel axes): 4 .. among of them simultaneous CNC axes: 3 X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 1100 mm SPINDLE / HEAD tool fixture: HSK E100 AUTOMATIC WORKLOAD EQUIPMENT number of store positions: 4 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 6800 mm space requirements -front/back-: 3000 mm total height: 3200 mm total weight approx.: 20000 kg
Ce HELLER MC 16 avec piscine de palettes a été fabriqué en 1999. Il est équipé d’un système Control Uni Pro, d’un chargeur de 120 outils et d’un porte-outils HSK-63A. La broche fonctionne à une vitesse de 16 000 tr/min. Envisagez l’opportunité d’acheter ce centre d’usinage horizontal HELLER MC 16. Contactez-nous pour plus d’informations.

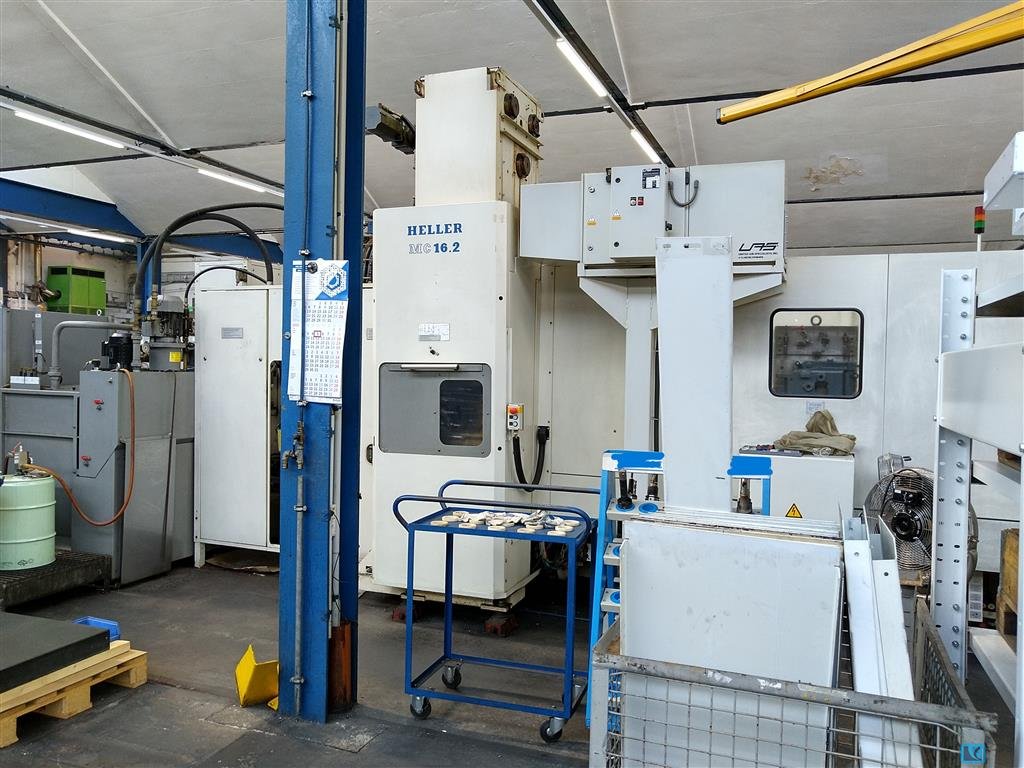

Ce HELLER MC 16-2 à 4 axes a été fabriqué en 1999. Il est équipé d’un système de commande Siemens, d’un magasin d’outils robuste avec 160 emplacements, et d’un porte-outils HSK-63A. La broche fonctionne à une vitesse de 10 000 tr/min, idéale pour des tâches d’usinage détaillées. Si vous souhaitez obtenir des capacités de fraisage de haute qualité, pensez à la machine HELLER MC 16-2 que nous proposons à vendre. Contactez-nous pour plus d’informations sur cette machine.
Heller H 6000Year of manuf. : 2024 Control : Siemens Sinumerik ONE Movement X/Y/Z : 1000/1000/1000 mmTool holder : HSK-A100 ____________Description:Spindle:Technology:Gearbox SpindleSpeed:8.000 rpmPower (max.):60 kWTorque (max.):1.146 NmTaper:HSK-A100NC-Roundtable:B-Axis:0,001°Palletsize:630 x 630 mmIn general:Toolmagazine:425 stationsRapid travers in X/Y/Z:50 m/minEquipment/Accessory:Positionsensor:Direct Scales in all AxesChipmanagement:Chip conveyorCoolingmanagement:Internal cooling unit with paperbelt-filter and high-pressure, 70barWorkpiecemeasurement:Touchprobe, Renishaw RMP60Toolbreakagecontrol:TaktilSoftwareoption:Process-integrated tool monitoringAutomation I:Palletchanger, 2 stationsAutomation II:Interface FASTEMS MLSOilmistseparation:Interface mechanical preparedFurther Accessory:Rinsing pistol
This 4-axis HELLER MCH 250 was manufactured in 2002. It features a generous X, Y, and Z-axis travel of 800 mm each, along with a B-axis travel of 360,000 x 0.001°. The machine is equipped with a Siemens 840D control unit and a tool magazine with 100 positions. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MCH 250 was manufactured in 2003. It features a robust X-axis travel of 800 mm, Y-axis travel of 800 mm, and Z-axis travel of 800 mm. The machine is equipped with a Siemens 840D control unit and a tool magazine with 100 positions. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
4 BAZ Heller 3 x BAZ Heller H5000 BJ 2019 et 2021 1 x BAZ Heller MCH 250 BJ 2001/2009
This 4-axis HELLER MCI 16 vertical machining centre was manufactured in 2005. It features a robust X, Y, and Z-axis travel of 630 mm, with a maximum spindle speed of 10,000 rpm and a tool magazine capacity of 40 pockets. The machine has a total connected load of approximately 69 kVA and weighs 9,000 kg. If you are looking to get high-quality machining capabilities, consider the HELLER MCI 16 vertical machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MC 16 was manufactured in 2001. It features a generous X, Y, and Z-axis travel of 630 mm each, along with a tool magazine capacity of 80 pockets. The machine is equipped with a rotary table capable of handling a maximum clamping weight of 500 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MC 16 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MCI 16 was manufactured in 2004. It features a robust X, Y, and Z-axis travel of 630 mm, with a maximum spindle speed of 10,000 rpm and a spindle power of 38 kW. The machine includes a tool magazine capacity of 40 pockets and a rotary table with a maximum clamping weight of 500 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MCI 16 horizontal machining centre we have for sale. Contact us for further details.
Key data: 1400 mm, 1200 mm, 1400 mm
Horiz. Centre d’usinage avec changeur de palettes à deux branches et magazine d’étagère Taille de la palette 800 x 800 mm Poids maximal de serrage 2000 kg Nombre de palettes 2 Table rotative NC : 360 000 positions Vitesse de broche jusqu’à 8 000 1/min Puissance de transmission 60 KW - 1146 Nm Traversée rapide 50 m/min Positions d’outil du magazine d’outils 260 Porte-outils HSK 100 - Système de refroidissement : COULE - IKZ 70 barres - Rinçage de la zone de travail - Sonde tactile Renishaw - Contrôle de freinage par forage - Dispositif de soufflage du pare-brise - Surveillance des outils et des collisions - Convoyeurs à copeaux - Contrôle de la température de refroidissement - Indicateur de force d’avance - Contrôle CNC Siemens 840D SL
bore capacity in steel (diameter): 50 mm arm length: 1250 mm workpiece height max.: mm total power requirement: 4 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
