travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

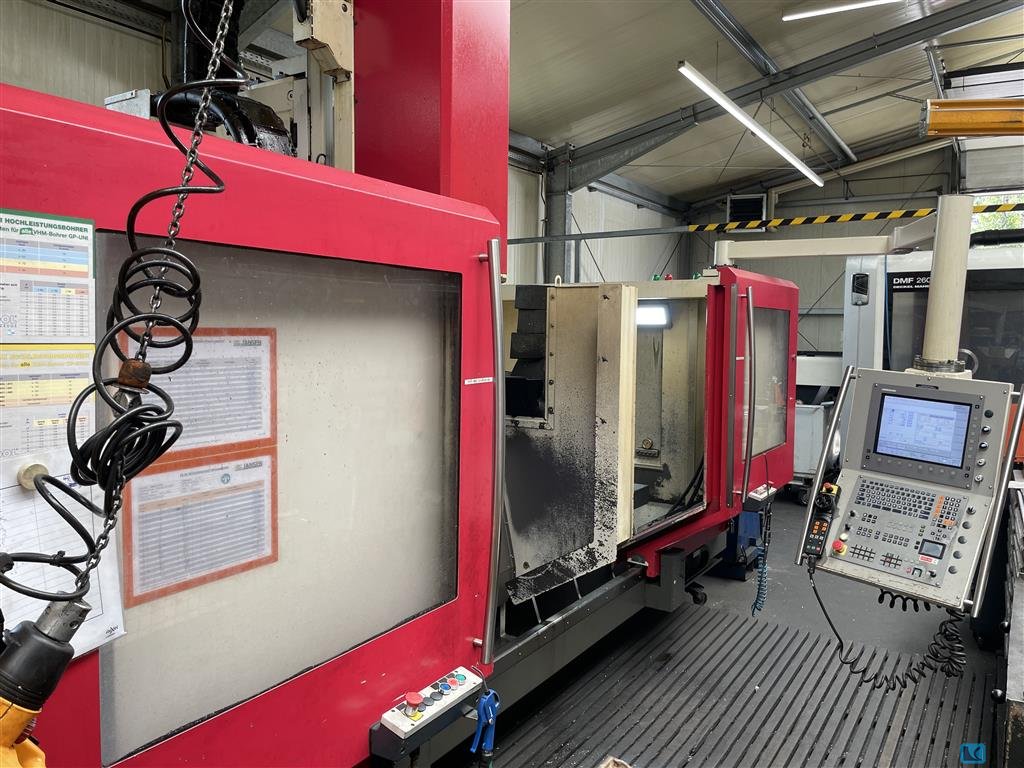

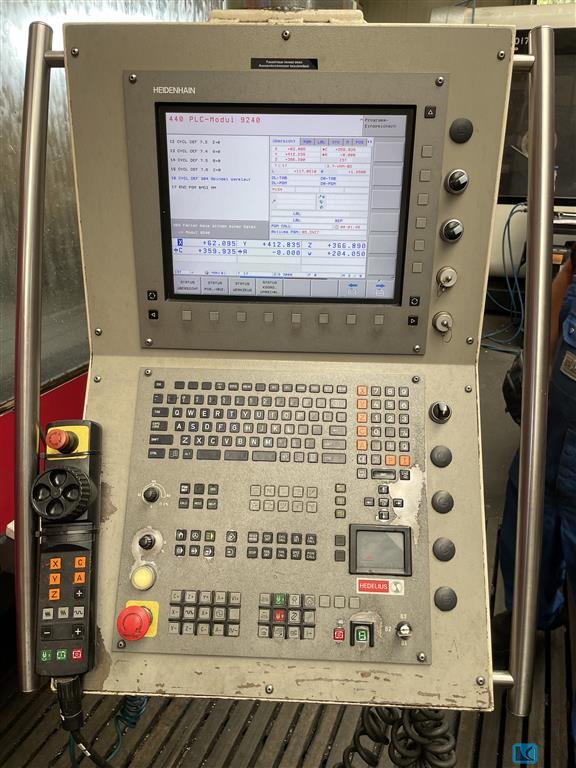

travel -x axis: 1800 mm travel -y axis: 520 mm travel -z axis: 520 mm tool taper: SK 40 table load: 3 t tool piece magazine with: 30 Plätze spindle drive: 22 kW max. torque on the spindle: 220 Nm Machine in very good condition + Loading door windows have been replaced + Linear guide carriages on X and Y axes have been replaced - Heidenhain iTNC 426-M control system - Partition wall for pendulum operation - Chip conveyor - Filter system - Spindle up to 8000 rpm - Rapid traverse x/y/z: 30/30/30 m/min - Year of manufacture 2001 Control on: 93212:52:14 Machine on: 82284:39:36 Program run: 42385:36:11 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 650 mm y-travel: 650 mm z-travel: 520 mm control: Heidenhain total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

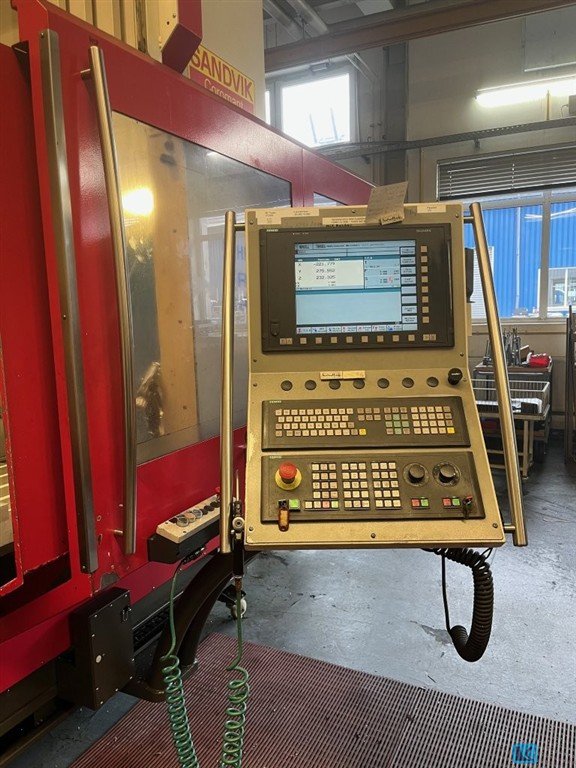

Manufacturer: Hedelius Model: C80/40/840/2300/8 (C80M-2300 / C80PM-2300) Type of machine: moving-column CNC machining center Control: Siemens Sinumerik 840D / PCU 50, 15.1 inch color flat screen, 19 inch machine control panel, Intel Pentium II processor, Windows XP operating system Axis travel: X-axis 2300 mm, Y-axis 800 mm, Z-axis 600 mm Pendulum operation: 2 x 925 x 800 mm Main spindle: water-cooled Celox motor spindle, HSK A63 tool holder, spindle speed 12000 min-1, output 29.0 kW / 183 Nm Tool magazine: 56-position Magnum tool magazine, maximum tool length 330 mm, maximum tool diameter 80 mm (125 mm at free adjacent stations), maximum tool weight 10 kg, tool change time approximately 4.0 seconds, chip-to-chip time approximately 8.0 seconds Machine table: fixed cast iron machine table with 5 T-slots per ISO 299-18, center T-slot as 18H8 guide slot Measuring system: Diadur pha ...
行程：1800毫米，行程：510毫米，行程：480毫米，总功 率需求：千瓦，机器重量约5500公斤，机器尺寸约：米 。本广告数据由ModulMWS创建——LogoTech oHG的软件解决方案
x-travel: 4500 mm y-travel: 800 mm z-travel: 600 mm control: HEIDENHAIN iTNC 530 rapid traverse: 30/40/40 m/min table surface area: 5300 x 750 mm table load: 4,5 t tool taper: DIN 69871-A40 turning speeds: 30 - 6000 U/min spindle motor: 29 kW spindle distance: 325 - 925 mm tool piece magazine with: 30 Plätzen total power requirement: kW weight of the machine ca.: ca. 20 t dimensions of the machine ca.: m equipped with: - CNC-Control Heidenhain iTNC 530 - IKZ 20 bar - NC Swivable Table - Chip Conveyor - Coolant - Tool Changer 30-fold (SK 40) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 2000 (775 + 600) mm y-travel: 620 mm z-travel: 520 mm Control: Heidenhain iTNC 530 turning speed range - main spindle: 12.000 min/-1 power capacity - main spindel: 18 kW table surface area: 1.200 x 600 mm rotary table diameter: Ø 500 mm swivellable: +15/-95 ° rotatable: 0- 360 ° max. table load: 1000/350 kg tool taper: SK 40 number of toolpositions: 30 pos. internal coolant system feed: 20 bar rapid traverse ( X / Y / Z ): 30 m/min dimensions: 5,0x 2,5 x 3,3 m weight of the machine ca.: 11 t CNC-Machiningcenter Universal, 5-Axis and fixed table Machine overhold for 60.000 € - NC-Swivel-Rotary-Table integrated right working area - Fixed-Table left working area - 4th axis on fixed table 165 centre hight - Chip conveyor - internal coolant - filter - 3D probe - Oil dust collector - 2022/2023 overhold for 60.000 € new slideways aspindles in all axis - electric roof - new spi ...
HEDELIUS RS 60 MAGNUM-2000 ist ein 5-Achsen Bearbeitungszenter, ausgelegt für präzise Bearbeitung, hohe Genauigkeit und Zuverlässigkeit. Arbeitskapazitäten: Tisch 1.200 x 600 mm (Ø 680 mm), max. Werkstückgewicht 300 kg; Verfahrwege X 2.000 (600) mm, Y 620 mm, Z 520 mm, Schwenkwinkel A +15 / -95°. Technische Daten: Spindelaufnahme SK40, 50–12.000 min-¹, Drehmoment 121 Nm; Vorschub 0–45.000 mm/min, Eilgang 45 m/min, Vorschubkraft 7.000 N; Anschluss 3x400 V 50 Hz, Gesamtleistung 25 kVA; Maschinengewicht ~11.000 kg, Abmessungen 5.400 x 4.300 x 3.000 mm; Werkzeugwechsel 3 s, Werkzeug Ø max 80 mm, Länge 330 mm, Gewicht 8 kg. Ausstattung: Werkzeugmagazin 56 Plätze, Kühlmitteleinrichtung 1.250 l, Hochdruck 80 bar, Renishaw Taster, Späneförderer, Ölnebelabsaugung, Schaltschranks-Klimatisierung, Vollverkleidung. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, M ...
