tours machines d'occasion à vendre (3,079)

Lead and pull spindle lathe Three-jaw chuck 200mm Multifix Steel Bracket Size B 3 Multifix cassettes Emergency Stop Facility Turning diameter over bed 370 mm Turning diameter over support 200 mm Turning length 1000 mm Center height 185 mm Spindle bore 56 mm Tailstock quill holder MK 4 Speed 50 - 2000 rpm Drive power 4.0 kW Machine weight approx. 1.4 t Dimensions approx. 2.3 x 1.1 x 1.3 m

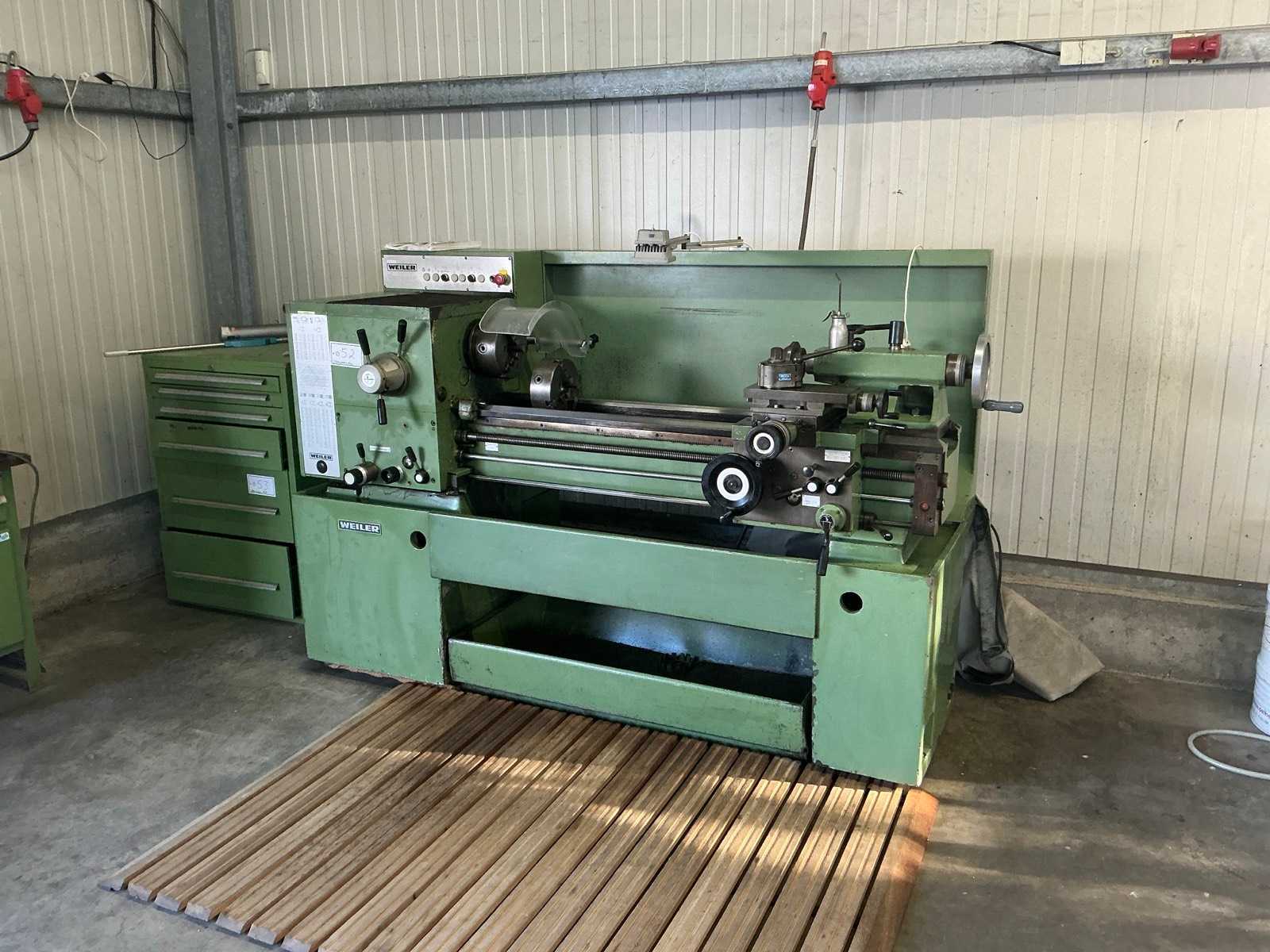

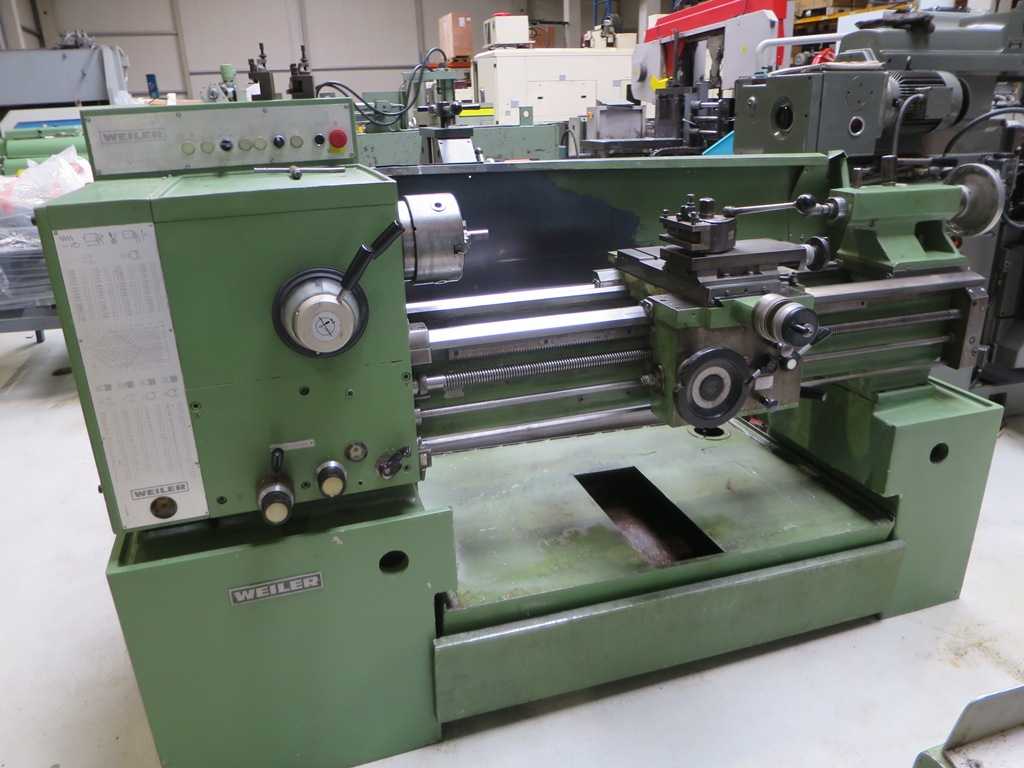

Technical data Manufacturer: WEILER Model: Commodor B Machine Type: Lead and Pull Spindle Lathe Turning diameter over bed: 380 mm Turning diameter over slide: 190 mm Center width: 750 / 1000 mm Spindle bore: approx. 56 mm Spindle speed: 25 – 2000 rpm Connected load: 4 kW Voltage: 380 V Weight: approx. 1300 – 1500 kg Configuration Lead and pull spindle Tapping function (metric / inch) 3-jaw chuck Additional chuck Multifix tool holder Tailstock Coolant Setup Chip tray Note Technical data was taken from the nameplate and machine documentation. Specifications may vary depending on the version.

Operating voltage: 230 VFrequency: 50-60 HzRated current: 11 AControl: EMCO EASY 2CONTROL (HEIDENHAIN TNC 640, SIEMENS SINUMERIC 840)Turning length: approx. 300 mmCenter height above bed: approx. 100 mmTravel X: approx. 100 mm, Z: approx. 200 mmThe machine is equipped with a tailstock, a three-jaw chuck and a special tool turretincluding a mobile workbench and matching accessoriesNote: An identical and completely identical machine will be delivered and not exactly the one that can be seen in the photos.

Guide and tension spindle lathe machine - Forkardt-3 jaw chuck F 315 - Single steel holder - Bezel - Moving center punch - Lining protection, limit switch monitored - Chip tray Turning diameter over bed 600 mm Turning diameter over support 400 mm Turning length 1000 mm Turning diameter in the offset 850 mm Speed 15 - 810 rpm Center height 300 mm Spindle bore 56 mm Total power requirement 9.0 KW Machine weight approx. 2.9 t Dimensions approx. 2.8 x 1.45 x 1.65 m

Machine number: 219278Operating voltage: 380 VSpindle passage: approx. 22 mmSpindle speed: 270-3000 rpmCentre length: approx. 350 mmCentre height above bed: 110 mmTurning diameter over bed: 220 mmCentre height over support: 70 mmTurning diameter over support: approx. 140 mmThe machine is equipped with a tailstock, a Multifix turning steel holder and a quick-release chuckincluding post collets and other suitable accessoriesReference: Ulmer - Lot 16

Number of axes: 2, control: Mitsubishi MSX840 III (MAPPS update 2025), operating hours: 9,581h, machining time: 7,541h, power on time: 58,566h. Equipment: C-axis, 12-station tool turret, increased drive power 30/25kW instead of 22/18.5kW, driven tools, rotating quill, chip conveyor, hinged belt, discharge on the right side, 1x double foot switch for chuck, tool length measuring devices, high-pressure coolant system 635/1040W, signal light, transformer. Without work area extraction, piping and side energy box. Machine is fully functional, an inspection on site is possible.

Number of axes: 2, control: Mitsubishi MSX840 III (MAPPS update 2025), operating hours: 25,824h, machining time: 19,442h, power on: 61,066h. Features: 12-station tool turret, sub-spindle/counter spindle with chuck, driven tools, chip conveyor with hinged belt and discharge on the right side, two double foot switches for chuck, second foot switch for sub-spindle, two tool length measuring devices, 2nd measuring arm for counter tools, high-pressure coolant system 635/1040W, signal light, transformer. Without work area extraction, piping and side energy box. Machine is fully functional, an inspection on site is possible.

Index R 200Year of manuf. : 2011 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2011Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of station ...

number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Machine number: 291218Center width: 760 mmCenter height: 205 mmSpindle bore: 58 mmMain spindle Speeds 12: from 20 to 2000 rpmSpindle head mount: CAMLOCK 6incl. two-axis digital display from the manufacturer FAGORThe machine is equipped with a tailstock, a Multifix turning steel holder and a three-jaw chuck from the manufacturer SMW AUTOBLOK, diameter: 200 mm and a steady restReference: Hercegfi - Lot 48

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.

turning diameter:38 mmArticle: CNC latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:25 mmArticle: CNC sliding headstock automatic latheManufacturer: TornosType: Deco 2000/20Year of construction: 2001Control: Fanucspindle diameter: D25 mmmax. speed: 7000 rpmcomb: 2 (X,Z,Y-axis)Front attachment: 1 (X,Z,S-axis)Loading magazine: Tornos Robobar SSFChip conveyor: Hinged belt conveyorother: various accessories such as polygonal impact device, HF spindlePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: SC9-46Yob: 2016Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindlesMain spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 NmCross slide units, transverse: 6 units, in positions I to VI,Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V,Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpmCross slide units, transverse: 2 units, in positions VIII and IX,Control:Siemens SINUMERIK 840SL with double NCUSoftware: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximu ...

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2015Machine was only used for reworking, so only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmChip processing container with coolant pump: 30l/min at 5barLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading conveyorCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. Transmit functionAdjusting microscope 16x magnificationCoolant supply through the clamping cylinder of the spindle,sealing air,Speed increase of the motor spindle to 8,0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant dev ...

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...

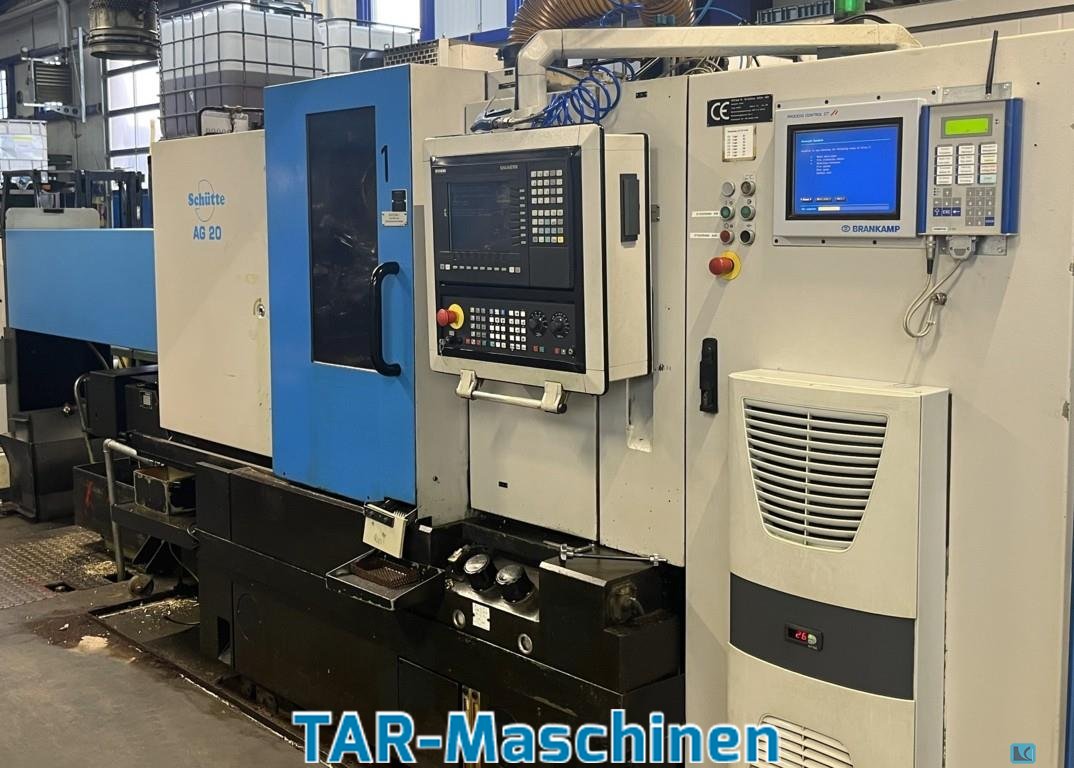

number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SG18Yob: 1999six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCloading and disloading in position 6spindle brakePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: GildemeisterType: GS20-6Yob: 1989six-spindle automatic lathe8 main spindlesfor bars up to D=20mmAll cross units are equipped with a tool holder (from Gildemeister or IMG Attachments)All longitudinal units are equipped, either fixed or rotating (without collets)An independent feed is installed at position 1A gear set for one speed is installedA gear set for one cycle time is installedThe scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: GildemeisterType: GS20-6Yob: 1989six-spindle automatic lathe8 main spindlesfor bars up to D=20mmAll cross units are equipped with a tool holder (from Gildemeister or IMG Attachments)All longitudinal units are equipped, either fixed or rotating (without collets)A gear set for one speed is installedA gear set for one cycle time is installedThe scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF20 S DntYob: 1999Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=20mmSpindle drum hirth coupled,CNC cross slide in positions 4,CNC cross slide in positions 5,pick up in position 6, sorting chute, 1x independent feed,thread cutting couplings,workpiece belt,Coolant tank with hinged belt chip conveyor Ruez,Oil/steel operation,PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,The scope of delivery regarding the tooling equipment could be different like pictures.Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)
