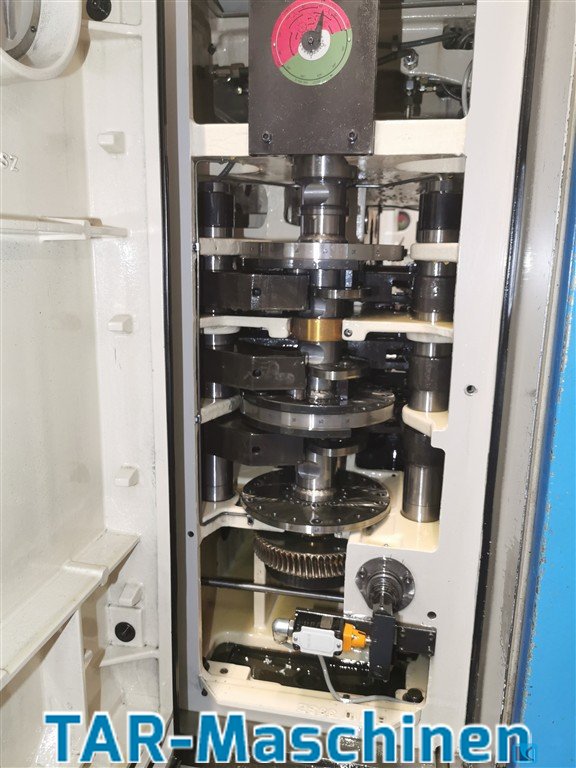

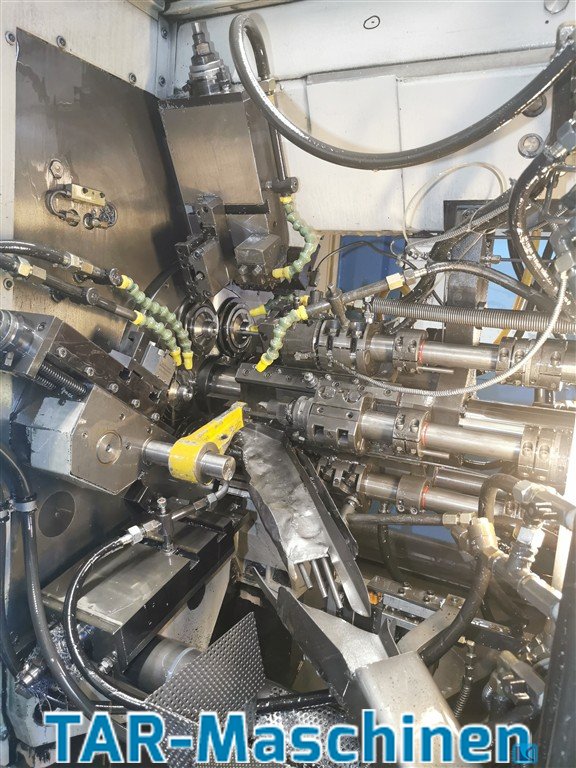

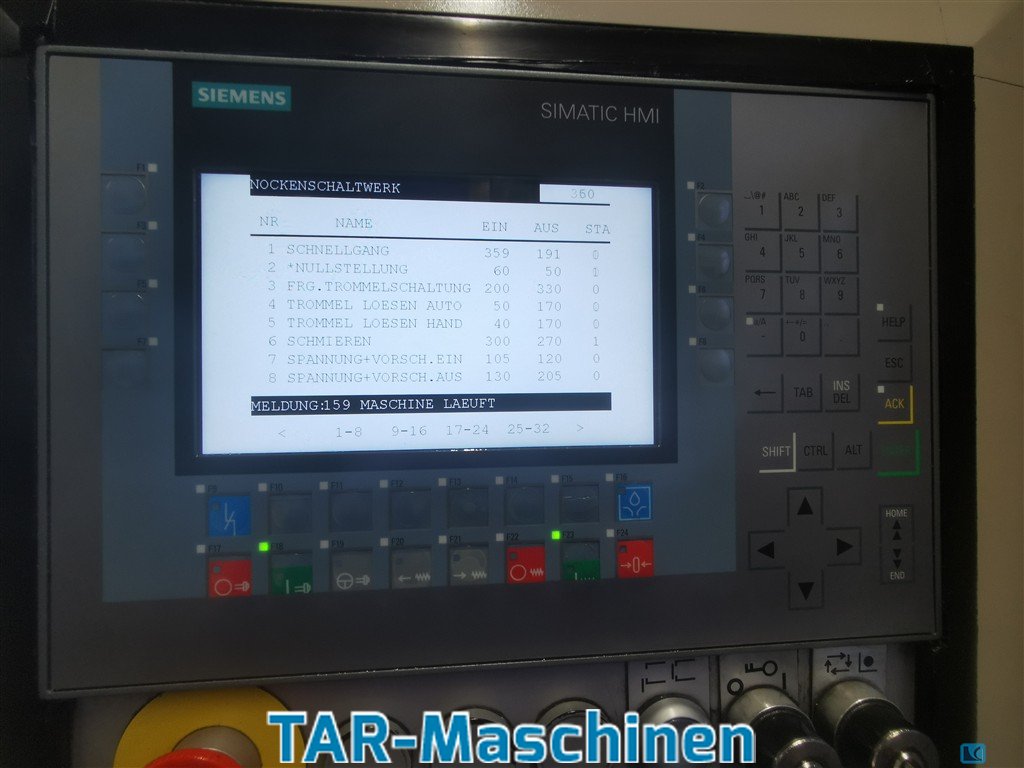

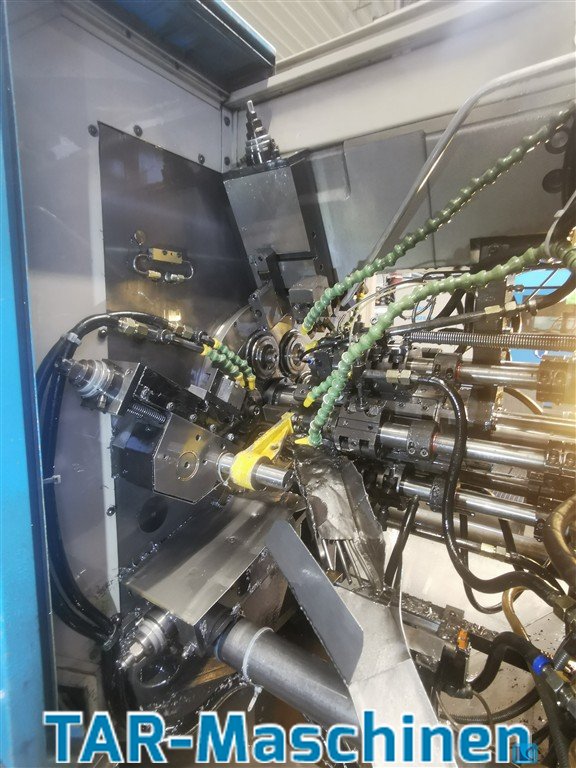

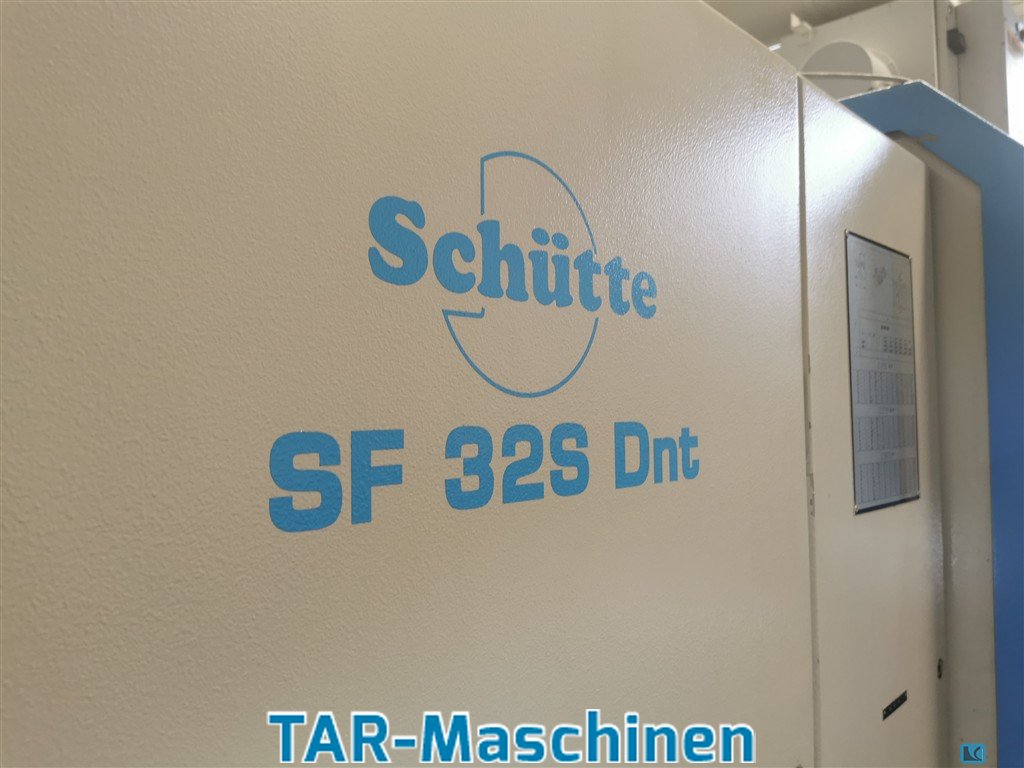

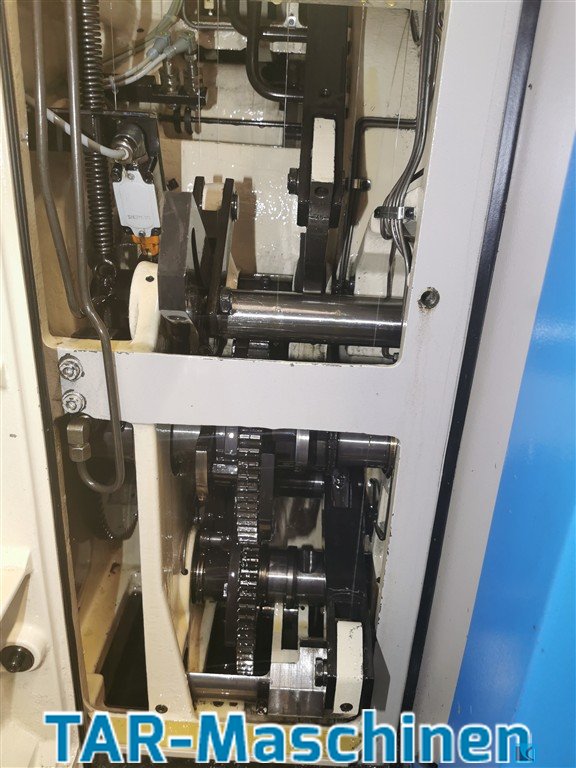

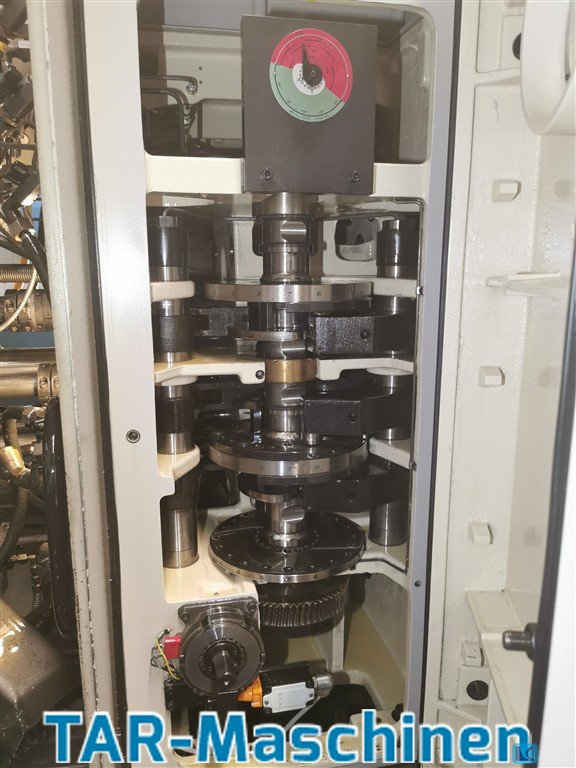

number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

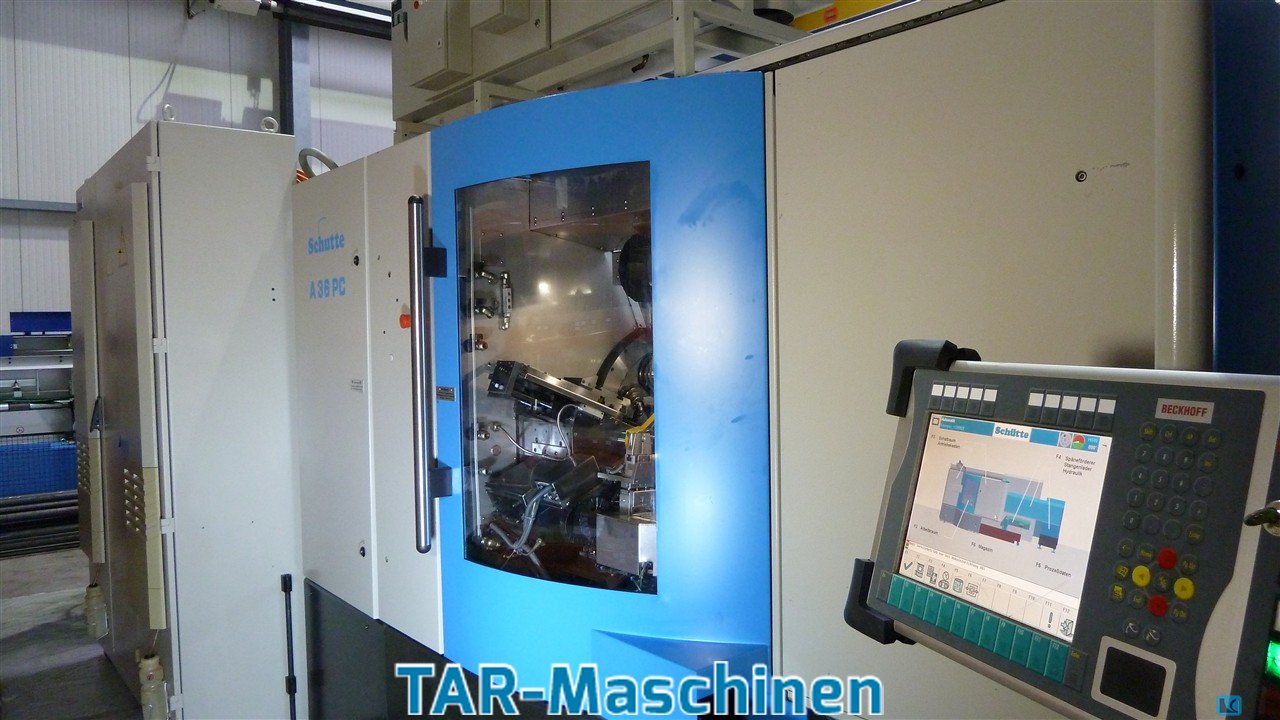

spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

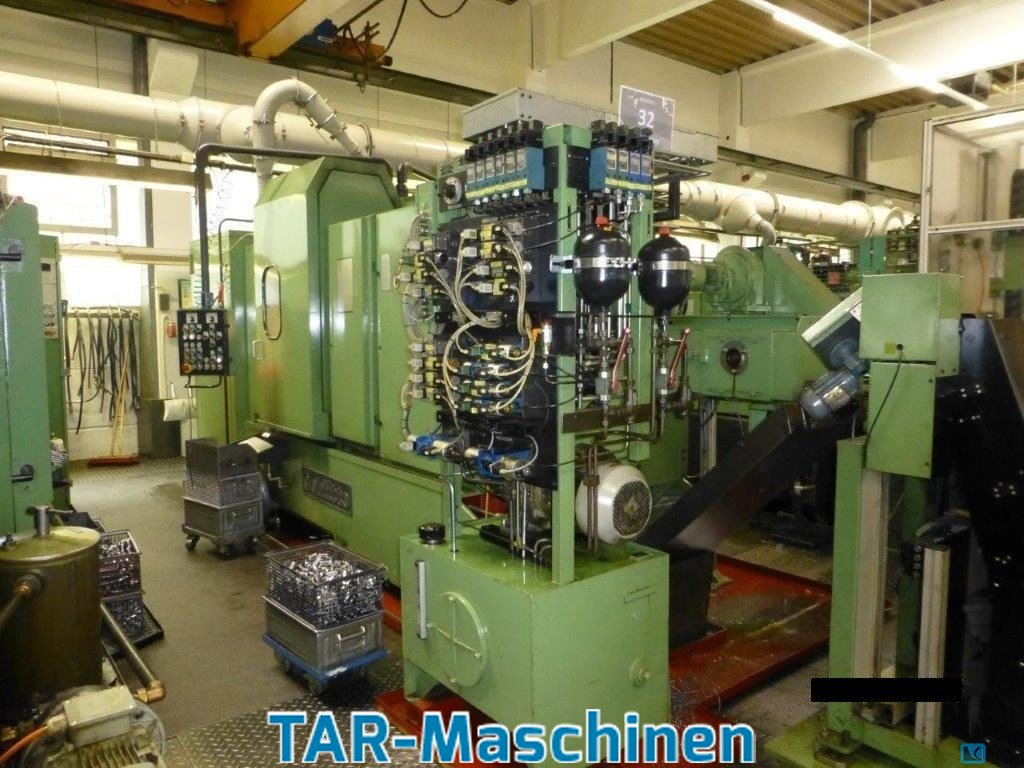

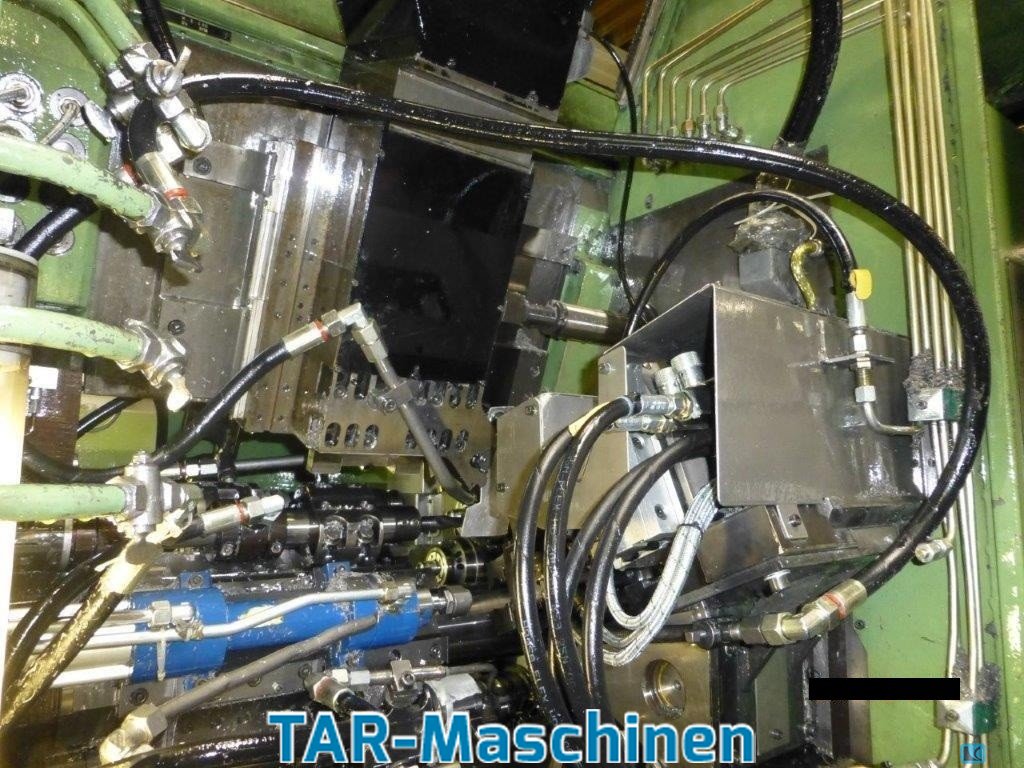

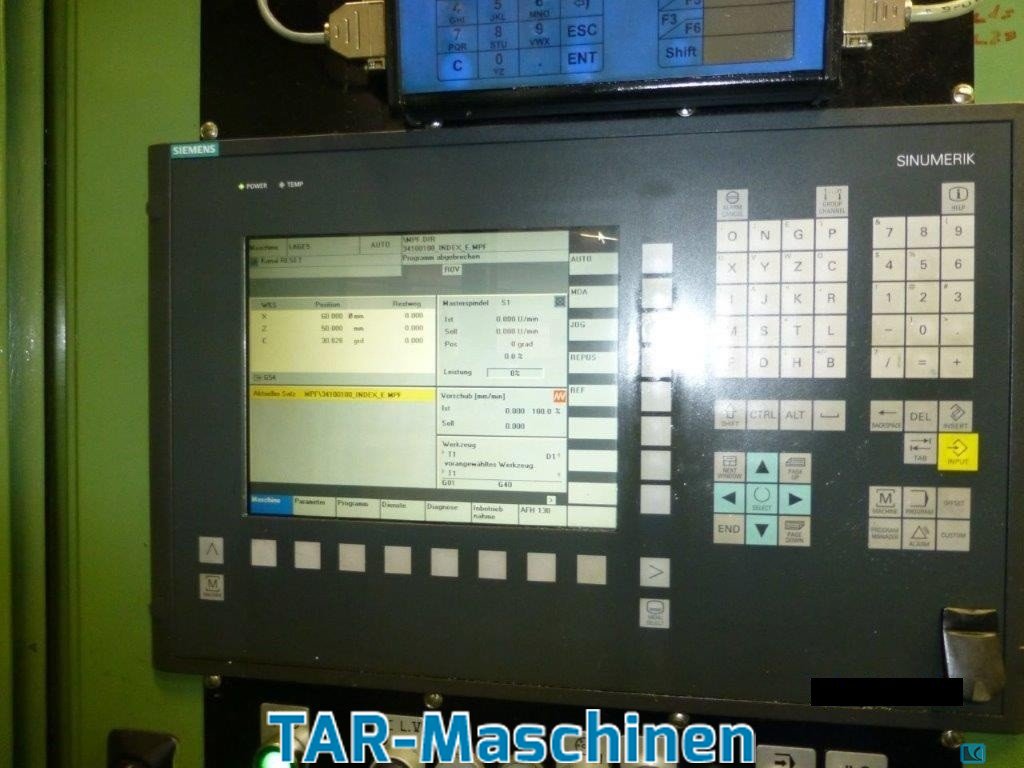

number of spindles:8 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AFH130 with CNCYob: 1990eight-spindle automatic lathe8 main spindlesChucker AFH130 for complete machining means front- and back sideControl Siemens Sinumerik 840DIcomplete revising and new configuration of this machine in year 2010.loading arm, for loading and disloading Workpiece turn around station in pos. 4 position 4 with workpiece length controlCNC compound slide in pos. 5coolant pump with magnet candle filterdelivered tooling: could be different like picturesoption:Ergomat TBF42 for cutting off for half finnishing with FMB-TurboVisiting under production condition is possiblePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
turning diameter:336 mmturning length:216 mmweight of the machine ca.:8,3 tArticle: CNC multi-axis latheManufacturer: HurcoModel: TMX 8MYSiYear of manufacture: 2022CNC multi-axis latheExcerpt from manufacturer?s specifications:Working area:Max. turning diameter: 336 mmMax. swing diameter: 560 mmMain spindle specifications:Max. speed: 4,500 rpmChuck diameter: 210 mmTie-bar diameter: 64.5 mmCounter-spindle specifications:Max. speed: 6,000 rpmTool turret with driven toolsBar-Loading Magazine: SAMSYS M3000 (2022 model)HYDAC CoolerThe machine can be visited under power.The tool configuration included in the scope of delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Key data: 3000 mm, 3300 mm, 3000 mm
Tournage vertical SC33 CNC Siemens 828 Fabricant : TITAN (Roumanie) Année de fabrication : 1986 Refonte complète de la machine en 2005 CNC TYPE Siemens 828 Principales données techniques : Diamètre de la plaque de façade : 3000 mm Diamètre maximal de tournage : 3300 mm Hauteur maximale de travail : 3000 mm ! Diamètre de tournage maximal avec tige latérale : 3300 mm Poids maximal de la pièce : 18 000 kg Plage de vitesse de la table : 1,02–92 tr/min Plage d’alimentation de fonctionnement : 0,05–5 mm/tour. Puissance du moteur principal : 55 kW Dimensions totales : 5600 x 5300 x 5400 mm Poids : 47 350 kg
Tour, Marque : Heyligenstaedt Tour manuel Année de fabrication : 1958 Longueur totale : 3825 mm Longueur du lit : 3000 mm Longueur de rotation : 1500 mm Poids : 2500 kg Optiquement en très bon état techniquement en très bon état Peu utilisé est actuellement en activité Aucune garantie, aucun retour, aucune garantie La machine est toujours utilisée dans le commerce et peut être consultée sur rendez-vous. Le transport depuis la salle est assuré par le vendeur, aux frais de l’acheteur. Le chargement sur les camions est effectué par le vendeur, aux frais de l’acheteur. Le camion correspondant (capacité de chargement) fourni par l’acheteur.
avec Fanuc 0i TF Plus Capacité : Max. Toboggan à balancement 1350 mm Maximum de diamètre de rotation x hauteur 1250 x 150 mm Règle de rotation standard diamètre x hauteur 800 x 835 mm Poids maximal du travail incluant le fixation / le mandrin 2000 kg 1.2 Entraînement de broche de table avec boîte de vitesses : Tape-fuseaux Position droite de diamètre 160 mm Diamètre du roulement avant Diame 500 mm, Diamètre 300 mm Plage de vitesses de la broche 10 - 250 tr/min Puissance de la broche, S1 / S3 22 / 30 kW Torque de broche S1 / S3 2495 / 3400 Nm Plage de broche pour la puissance constante de la broche 84 - 250 tr/min 1.3 Entraînement par axes : Traverse X/Z 675 / 850 mm Taux de traversée rapide 16 m/min 1.4 Tourelle (hydraulique) : Numéro de tourelle de la station 12 n° Tige d’outil 32 mm Diamètre du porte-outil d’alésage 60 mm I ...
This 3-axis Gildemeister CTX 500 S2 was manufactured in 2001. It features a turning length of 1000 mm and a swing diameter over the bed track cover of 680 mm. The machine is equipped with a powerful drive of 23 kW and a maximum torque of 650 Nm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 500 S2 horizontal turning machine we have for sale. Contact us for further details.
This 4-axis Gildemeister CTX -400 twin was manufactured in 2002. It features a robust turn-mill centre design, ideal for complex machining tasks. The machine is equipped with a chip conveyor system for efficient operation. If you are looking to get high-quality turning and milling capabilities, consider the Gildemeister CTX -400 twin turn-mill centre we have for sale. Contact us for further details.
Precision lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: OMAP, Lead screw and feed screw lathe type Al.Pin 180 -Turning length: 1600 mm -Turning diameter over bed: 410 mm -Turning diameter without bed: 570 mm -Turning diameter over support: 230 mm -Spindle bore: Ø 53 mm -Spindle speeds: 12 - 1650 rpm -Three-jaw chuck: Röhm Ø 250 mm -Tailstock mount: MK3 -Drive: 2.2 kW -Accessories included, see photos -Dimensions: 2670/900/H1355 mm -Weight: 1460 kg
Thread-cutting gears, number of teeth: 30, 57, 60, 105, 120, 127, equipment: lead screw for thread cutting, separate feed system, automatic longitudinal and cross feed, change gear for feed and thread gearbox, back gear in the headstock, three-jaw chuck, cross slide and compound slide, four-way tool post, tailstock, an on-site inspection is possible.
Horizontal turning machine manufactured in 1999. This SEIGER SLZ570x2000 features a swing over bed of 570 mm and a turning length of 2000 mm. It is equipped with a Siemens SINUMERIK ManualTurn control unit and offers a spindle speed range of 1-3000 rpm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ570x2000 machine we have for sale. Contact us for further details.
The machine is equipped with a tailstock, a 12-station tool turret as well as a 3-jaw chuck, diameter: 250 mm, manufacturer KITAGAWA, incl. chip conveyor
Tour CNC Okuma LB 3000 EX II-MY C 450 Contrôle : OSP-300LA Année de fabrication : 2018 Machine interne n’est pas 77 Diamètre de rotation au-dessus du plateau : 580 mm Diamètre de rotation au-dessus de la culasse : 470 mm Déplacement de l’axe X : 260 mm Déplacement de l’axe Y : 120 mm Axe Z de course : 510 mm Déplacement de l’axe C : 360 mm Diamètre maximal de rotation : 340 mm Longueur maximale de rotation : 450 mm Vitesse de la broche principale : 45 - 5 000 tr/min Enregistrement : BMT Tourelle à outils : V12 (entraînée) Équipement : - Convoyeurs à copeaux - IGF à une touche - Toucher - Axe principal Kitagawa B210 - Système de liquide de refroidissement
Centre de tournage et fraisage à 7 axes Fabricant : OKUMA Type : MacTurn 50 Année de fabrication : 2001 Contrôle : OSP-U100L Interpolation du cercle spiral Tourelle supérieure du HS ATC : X1 = 598 mm Z1 = 1 660 mm Y = 230 mm, +110 mm, -120 mm. C = 360/0,001 B = indexé à 360/1 Diamètre de rotation max : 610 mm Longueur de tournage Z1 min : 1 500 mm Diamètre de rotation : 610 mm Diamètre de rotation sur la glissière de façade : 580 mm Largeur centrale approximative : 2 000 mm Enregistrements : BT50 WZ BT50 entraîné = 40-3000 tr/min Magasin ATC 72 BT50 À tourner : 36 ≈ Propulsé WZ : ≈ 36 V8 de tourelle inférieure : X2 = 200 mm Z2 = 1 045 mm Diamètre de rotation max : 380 mm Longueur de tournage Z2 = 1 045 mm Diamètre de rotation = 380 mm Supports : VDI40 Tourelle : 8 places VDI40 Broche : Plage de vitesse : 14 - 2800 tr/ ...
A Pinacho CNC precision parallel lathe is available. Center height: 180mm, center width: 750mm-1000mm, turning diameter over guide bed/longitudinal slide/cross slide: 360mm/335mm/198mm, bed width: 250mm, bore: 42mm, speed: 4000rpm, feed X/Z: 10m/min, rapid traverse X/Z: 10m/min. Tailstock shank diameter: 58mm, tailstock shank length: 200mm, Morse taper: MK3, min. travel of moving/fixed steady rest: 10mm, max. travel of moving/fixed steady rest: 70mm/114mm, control: Fanuc 0i. Documentation available. On-site inspection is possible
This 3-axis DMG MORI NLX1500MC/500 was manufactured in 2015. It features a spindle output of 11/7.5 kW and a maximum spindle speed of 6,000 min-1. The machine is equipped with a 12-station turret and a high-pressure coolant system. If you are looking to get high-quality turning capabilities, consider the DMG MORI NLX1500MC/500 horizontal turning machine we have for sale. Contact us for further details.
The machine is equipped with a sub-spindle (equipped with a 3-jaw chuck SMW AUTOBLOK, diameter: 210 mm) as well as a 12-station tool turret, incl. driven tool stations, as well as an SMW AUTOBLOK 3-jaw chuck, diameter: 250 mm, plus chip conveyor, filter extraction, documentation and CDs.Additional technical specifications:• Bed inclination: 45°• Bed diameter: 700 mm• max. slide diameter V1 to V3: 500 mm• in the front workpiece diameter: 320 mm• centre length: 1450 mm• Travel Z3-axis: 1200 mm• Spindle height axis to floor: 1043 mm• Drawbar diameter: 81 mm• Front bearing diameter: 130 mm• Resolution axis C1: 0.001°• max. weight between centers: 500 kg• Distance between two spindle noses: 1495 mm• Z1 axis travel: 1200 mm• max. workpiece length: 1140 mm• max. workpiece diameter: 450 mm• Bar capacity of sub-spindle: 50 mm• Bore diameter of sub-spindle: 73 m ...
The machine is equipped with a tailstock and a 12-station tool turret, incl. the tool holders located in the changer, plus a 3-jaw chuck SMW AUTOBLOK, diameter: 300 mm, incl. chip conveyor and filter extraction system as well as documentation.Additional technical specifications:• frequency: 50/60 Hz• Diameter in the front bearing: 140 mm• Feed drive in X and Z-axis: 40 x 10 mm• Feed forces X/Z: 7.5 kN• Y-axis feed force: 7000 N• rapid traverse of C1-axis: 100 m/min• Position measuring system X/Y/Z: absolute rotating• Positioning uncertainty X: 0.008 mm• Positioning uncertainty Z: 0.010 mm• Working area axis distance: 1150 mm• Swivel range over X slide: 465 mm• Swivel range over bed: max. 680 mm
The machine is equipped with a tailstock, a three-jaw chuck, a chip conveyor, and a coolant system.Attention: spindle hours may increase slightly!Additional technical specifications: • Nominal voltage: 125 A• Spindle distance: 1020 mm • Max. workpiece weight chuck parts/chuck weight: 100 kg • Max. workpiece center of gravity from spindle flange: 120 mm • Travel X1: from -10 to 490 mm • Travel Y1: +-100 mm • Travel Z2: 600 mm • Travel Z3: 800 mm • Spindle flange diameter: 220 H 5 mm • Front bearing diameter: 160 mm • Slide rapid traverse speed Z-axis: 40 m/min • Path resolution Z-axis: 0,001 mmm • B-axis max. swivel speed: 70 rpm • Angular resolution: 0,001° • Quill force: 8 kN
The machine is equipped with a tailstock as well as three-jaw chuck, jaw width: 380 mm, furthermore a large batch of tool holders, clamping jaws and another jaw chuck, incl. Chip conveyor.Additional technical specifications:• frequency: 50/60 Hz• nominal voltage: 52 A
The machine is equipped with a tailstock, revolving steady rest, a 14-position tool turret, incl. the tool holders visible in the photos in the turret, as well as a three-jaw chuck from the manufacturer SMW, diameter: 315 mm and incl. an additional steady rest as well as chip conveyorAdditional technical specifications:• nominal current: 207 A• control voltage: 220 V
• centre length: 1000 mm• centre height over bed: approx. 250 mm• centre height over support: 150 mm• Incl. steady rest.
28.500 €
