Key data: 4000 mm, 1560 mm, 32
Rectifieuse d’engrenages CNC HOFLER H4000 Année 1990 Diamètre maximum de la pièce 4000mm Largeur de l’engrenage 1560mm Module 3-32 Nombre de dents 12-768 Angle maximal des dents 35 r/l grad Angle de pression 14-31 degrés Diamètre de la table 1900mm Diamètre de l’alésage de la table 750mm Poids maximum de la pièce 35000kg Course de la tête de meulage 1600mm Voies hydrostatiques Liquide de refroidissement, système de filtration Couvre-chemins : enrouleur en caoutchouc, télescopique en métal et soufflet en néoprène Puissance 3 PH / 60 Hz / 230 – 460 V Équipé: Équilibreur Reutlinger Système d’extraction des brouillards d’huile Machine de mesure HOFLER TPF-40/1100 Année : 1990 Max. Diamètre de l’engrenage : 4000mm Les deux machines sont en excellent état Cette machine était utilisée pour meuler les engrenages des transmi ...
Key data: 360 mm

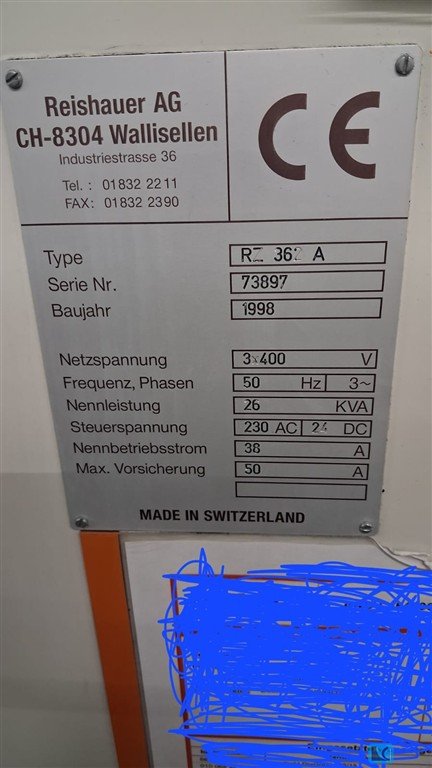

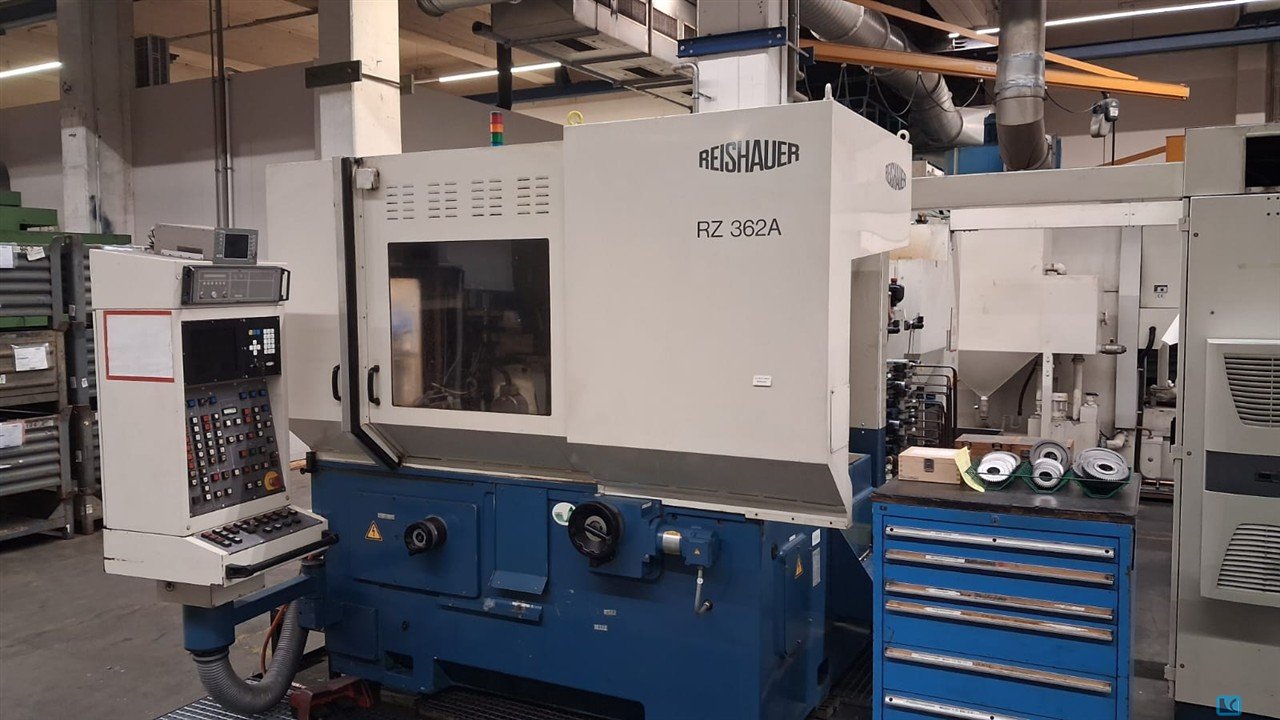

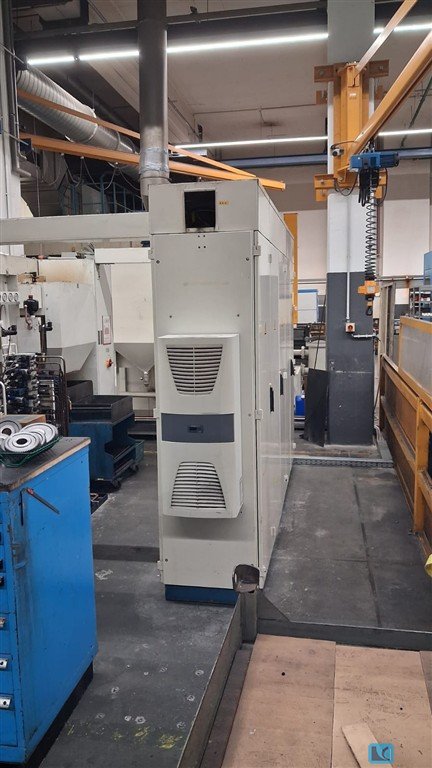

Meuleuse d’engrenages CNC Reishauer modèle RZ362A Diamètre maximal de la roue : 14,17 po Module maximum : 0,275 po Module minimum : 0,0039 po Course de glissière : 6,88 po Angle d’hélice maximal : ± 45 Nombre maximum de dents : 600 Nombre minimum de dents : 6 Poids maximal de la pièce : 132 lb Largeur de la meule : 4,09 po Diamètre de la meule : 11,02 » - 13,77 » Vitesse de broyage de la vis sans fin lors du broyage : 1100 - 2330 U/min Vitesse de broyage de la vis sans fin lors du profilage : 50 - 95 U/min Avance par tour de la pièce : 0 - 0,133" Vitesse d’entrée de la vis sans fin de broyage : jusqu’à 99,9 mm/min / 3,93 IPM Poids approximatif : 14 553 lb ÉQUIPÉ: Commandes CNC Reishauer. Contrôleur d’équilibrage MBA2000 Dittel. Collecteur de brume Elbaron R12D. Générateur de moteur Kato. Unité hydraulique autoportante. Système de ...
Rectifieuse d’engrenages CNC HOFLER H4000 Année 1990 Diamètre maximum de la pièce 4000mm Largeur d’engrenage 1560mm Module 3-32 Nombre de dents 12-768 Angle maximum des dents 35 R/L Grad Angle de pression 14-31 degrés Diamètre de la table 1900mm Diamètre de l’alésage de la table 750mm Poids maximum de la pièce 35000kg Course de la tête de meulage 1600mm Voies hydrostatiques Liquide de refroidissement, système de filtration Couvre-voies : enrouleur en caoutchouc, télescopique en métal et soufflet en néoprène Alimentation 3 PH / 60 Hz / 230 – 460 V Équipé: Équilibreur Reutlinger Système d’extraction des brouillards d’huile Machine de mesure HOFLER TPF-40/1100 Année : 1990 Max. Diamètre de l’engrenage : 4000mm Les deux machines sont en excellent état Cette machine était utilisée pour rectifier les engrenages des trans ...

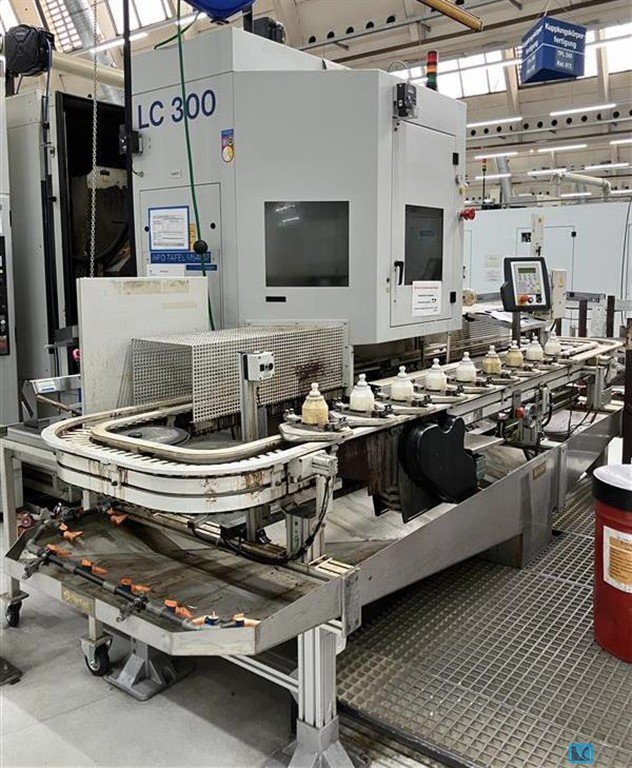

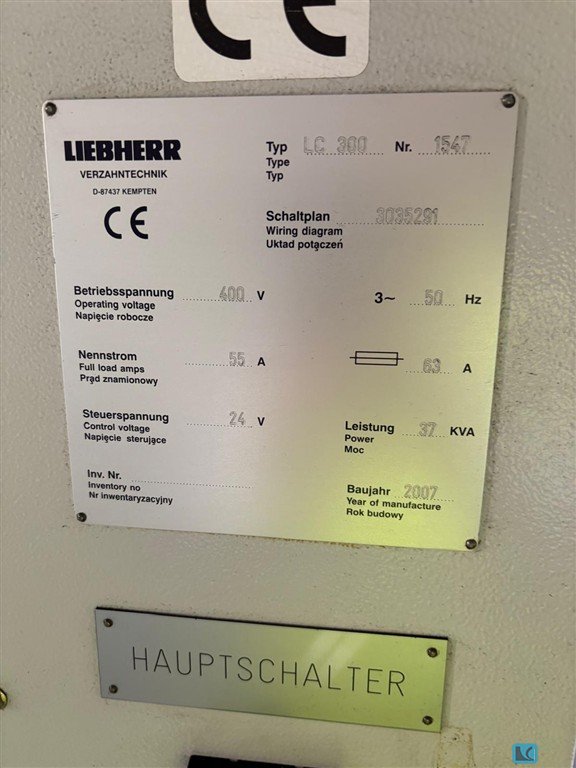

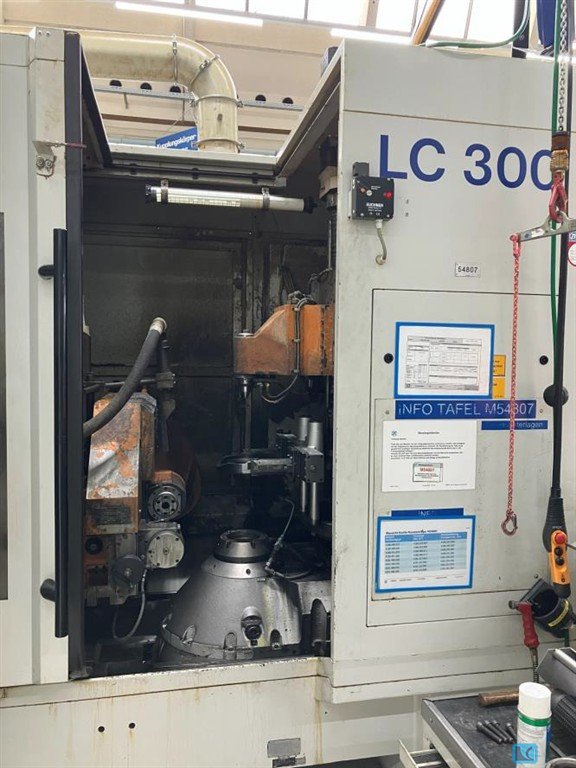

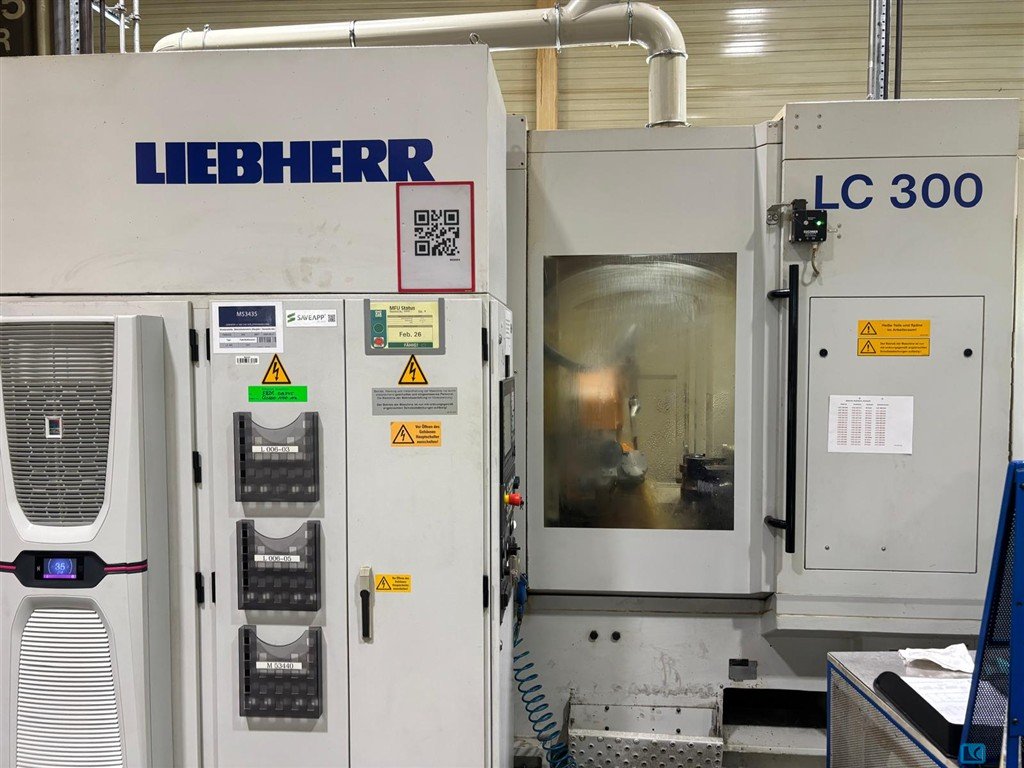

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:160 mm cutter length max.:230 mmLiebherr LC300 with loading automation Machine including counter holderThe machine used to work with emulsion
max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:160 mm cutter length max.:230 mmLiebherr LC300 with loading automation Machine without counter holderUsed to work with oil
max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwith Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories
max. wheel diameter:600 mmmax. module:10 min. module:2 total power requirement:1,4 kWweight of the machine ca.:0,68 tdimensions of the machine ca.:1,6x0,75 mdiameter of hob:15 mmgear width:140 mm

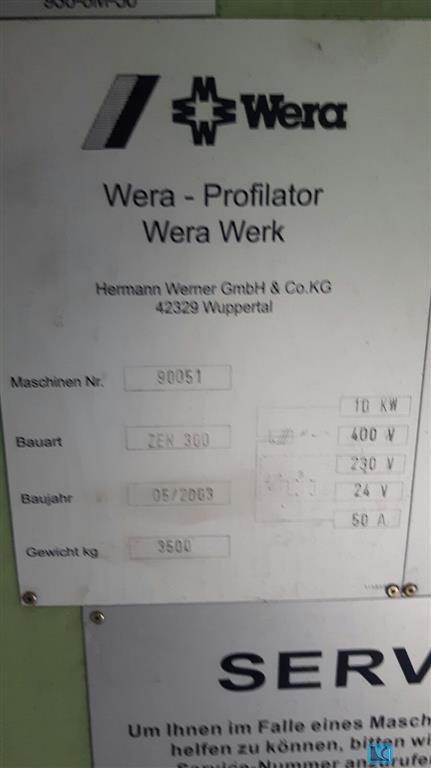

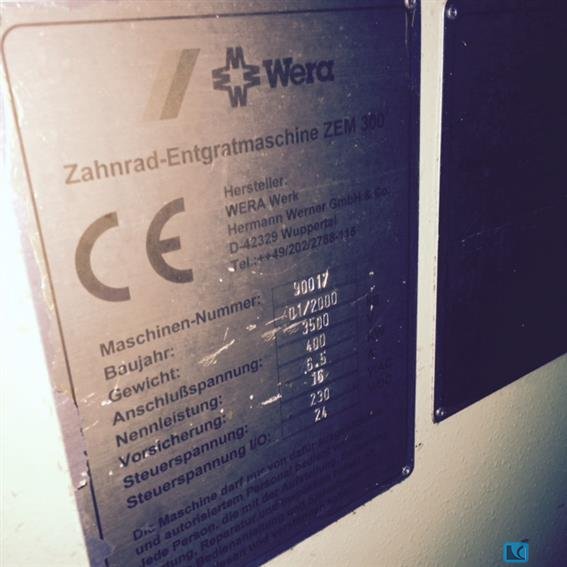

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.
max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)
max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.
max. wheel diameter:130 mmmax. module:3 total power requirement:15 kWweight of the machine ca.:6 tdimensions of the machine ca.:2,3 x 2,5 x 2,17 mA well-preserved CNC hobbing machine Vertical for shafts and wheelsWith tailstockAlso suitable for hard milling (good for steering pinion)Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mmAccessories :Hydraulical workpiece clampingAutomatic ...

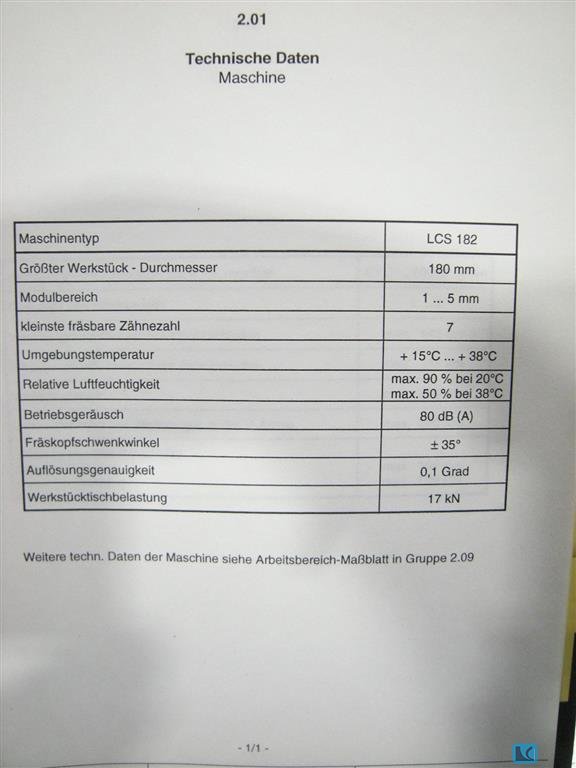

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN
max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm
max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5
pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.

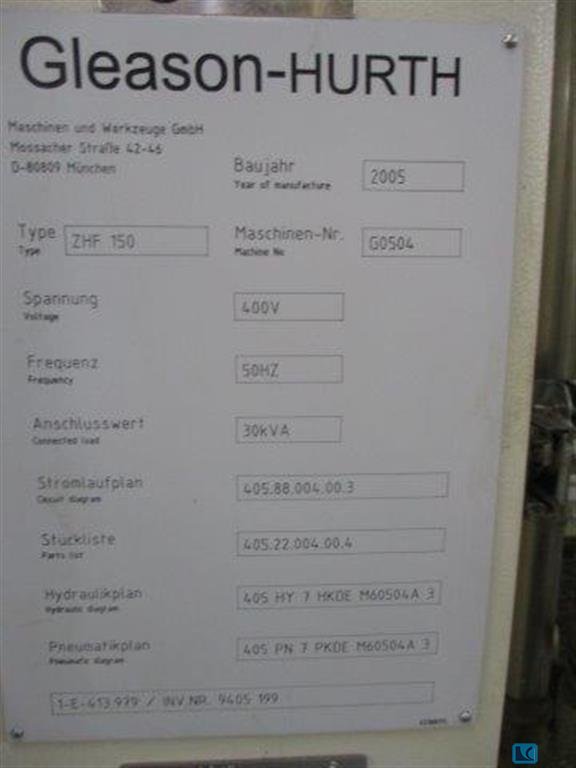

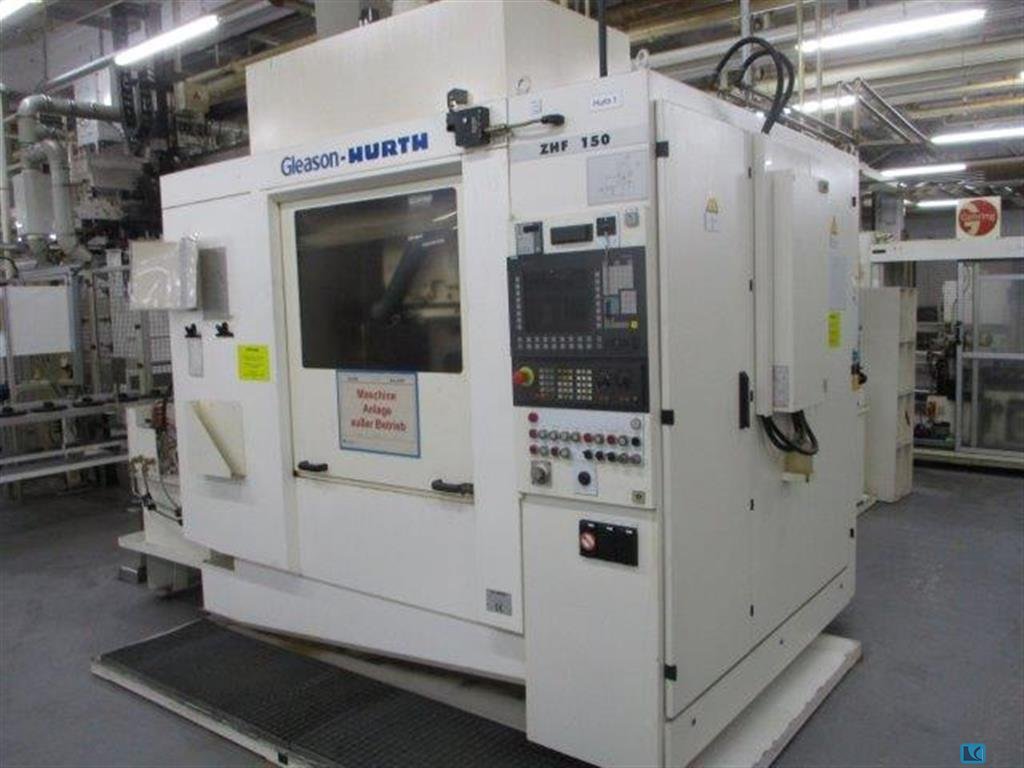

workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...
max. wheel diameter: 1600 mmgear width: 560 mmmax. module: 16 workpiece weight max.: 7000 kgtable surface area: 1350 mmturning speed range: 16 - 80 U/minfeeds - axial: 0,05 - 1,5 mm/minfeeds - radial: 0,25 - 6 mm/minfeeds - tangential: 0,13 - 4 mm/minelectrics - voltage/frequency: 380/50 V/Hztotal power requirement: 12 kWweight of the machine ca.: 18,5 tdimensions of the machine ca.: 4260 x 2555 x 3170 mm- universal Hob head- tangencial head (extra)- outer steady- change gears- 1 set big and 4x small clamping pods- arbors and approx 20 cutters (diffent Moduls)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

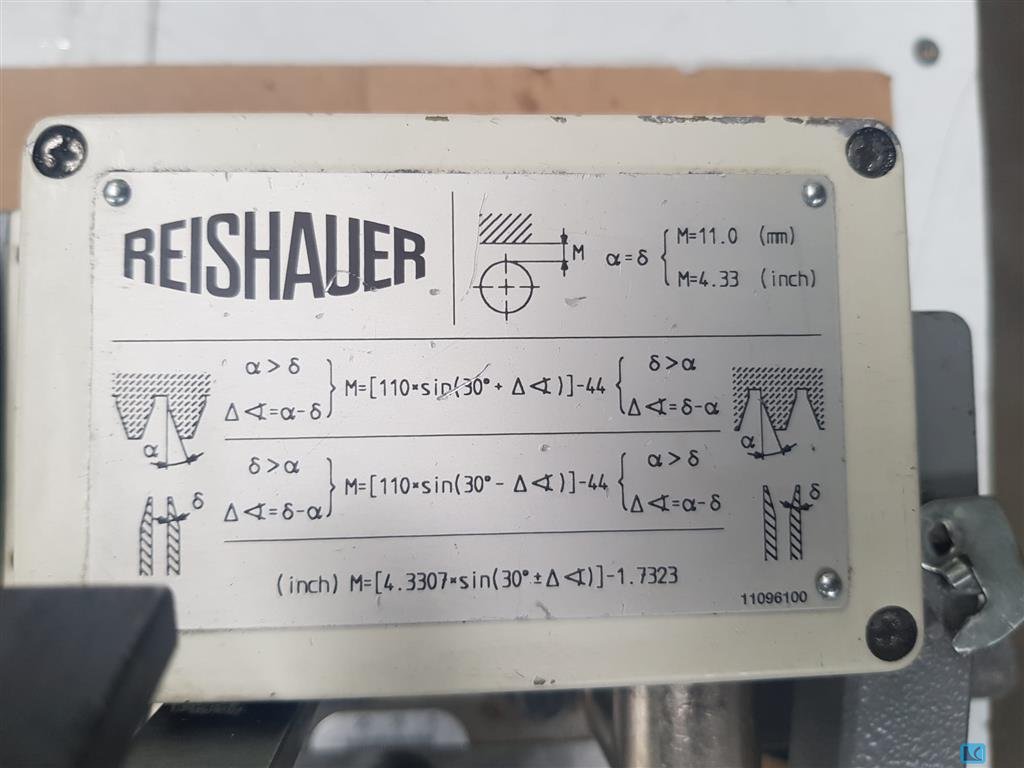

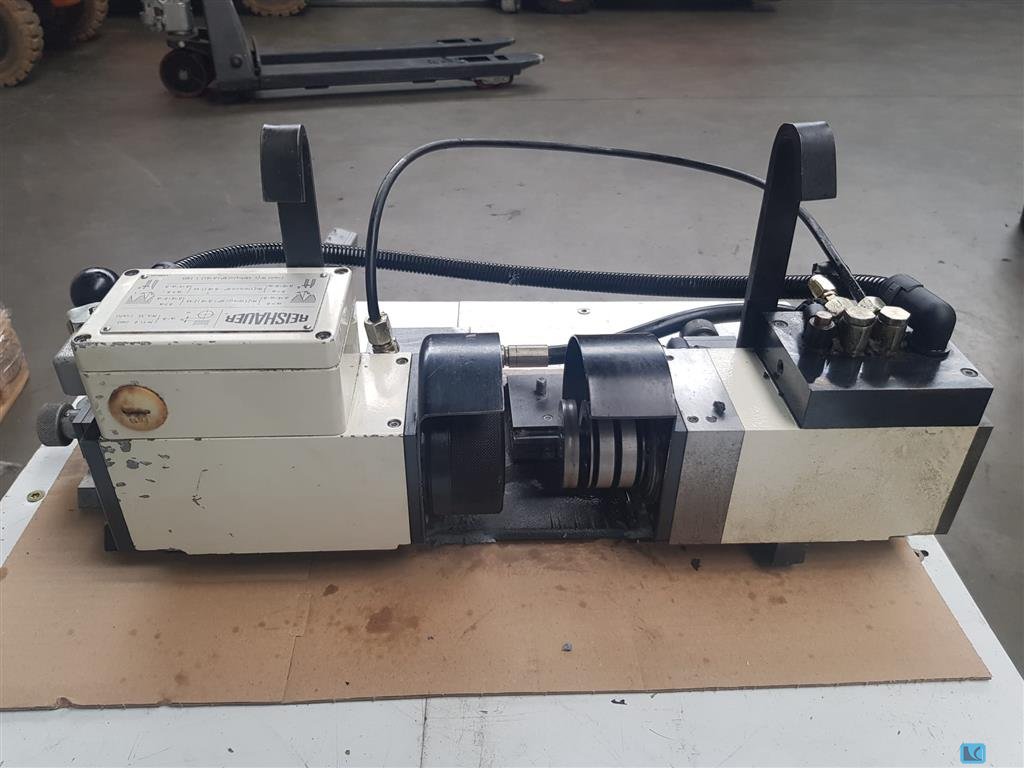

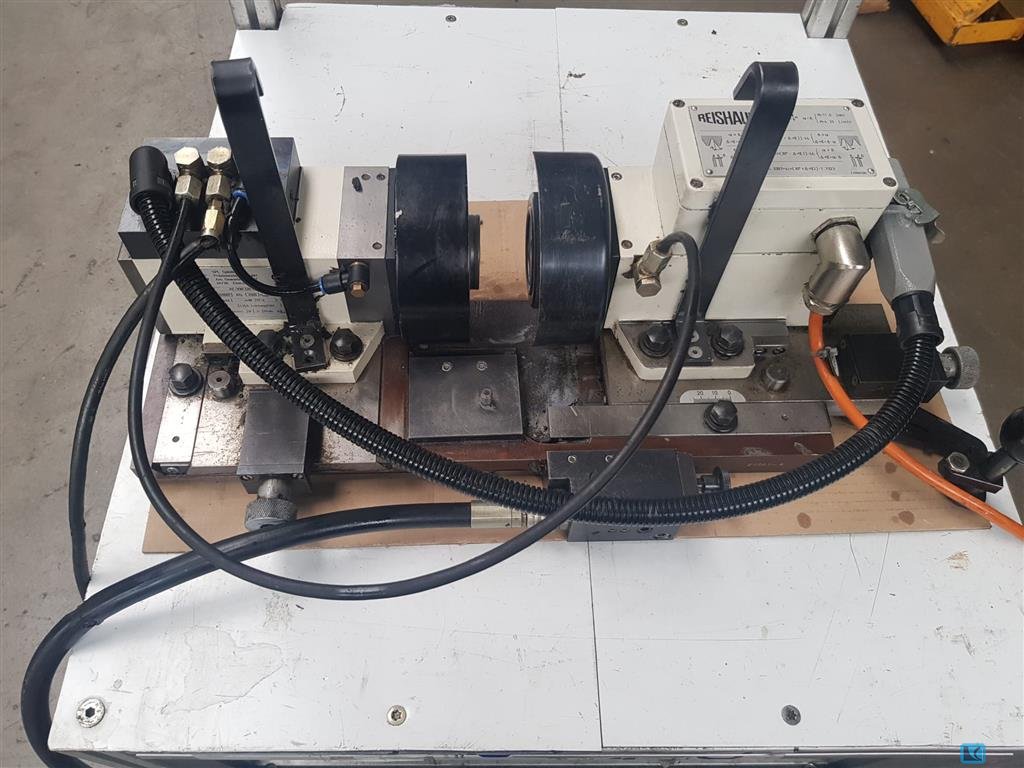

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm
weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

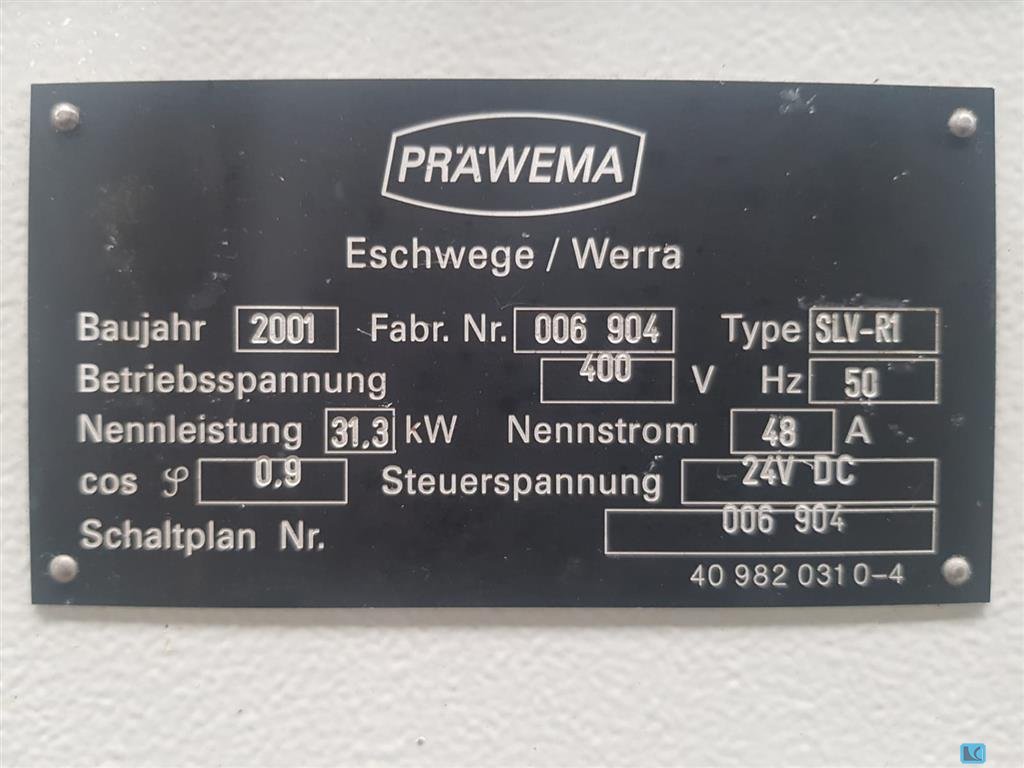

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

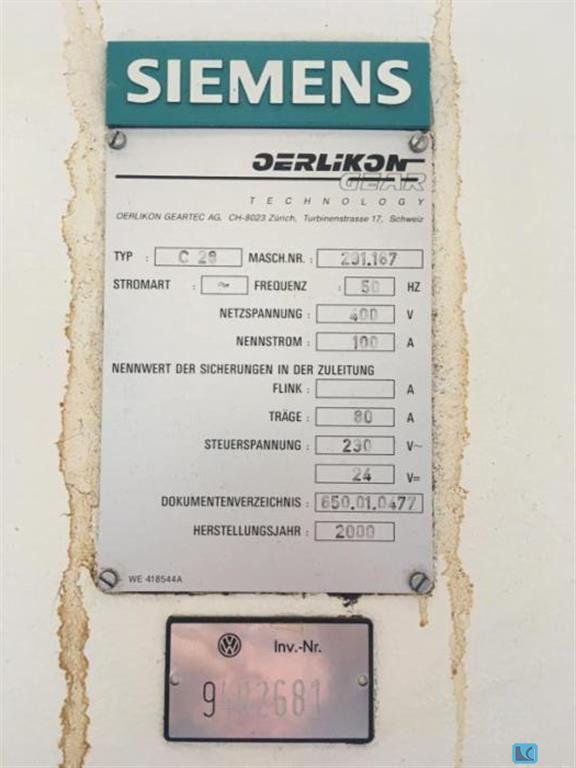

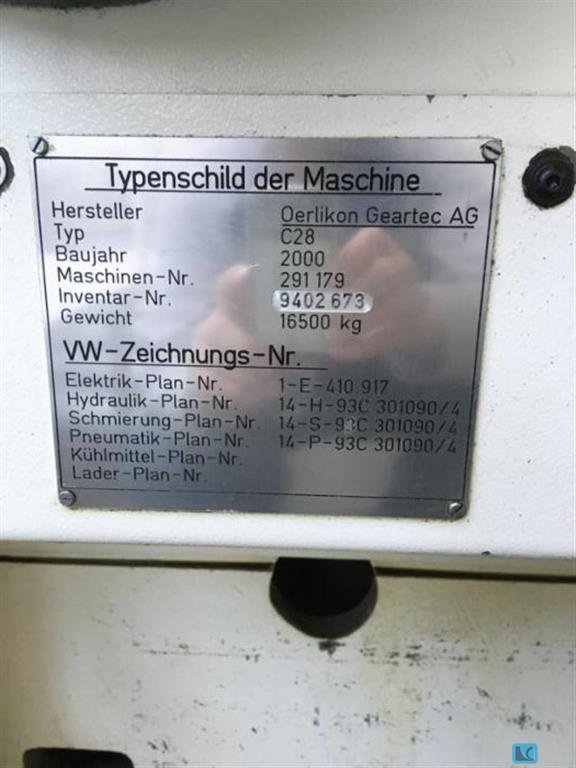

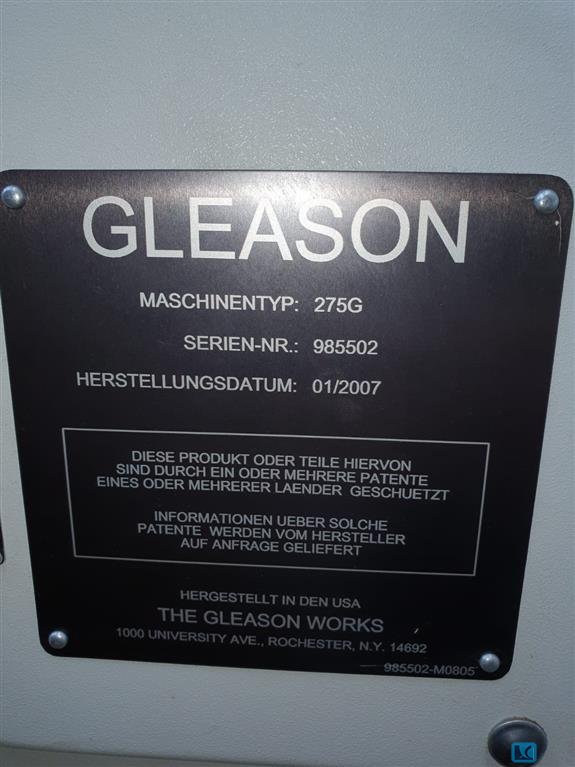

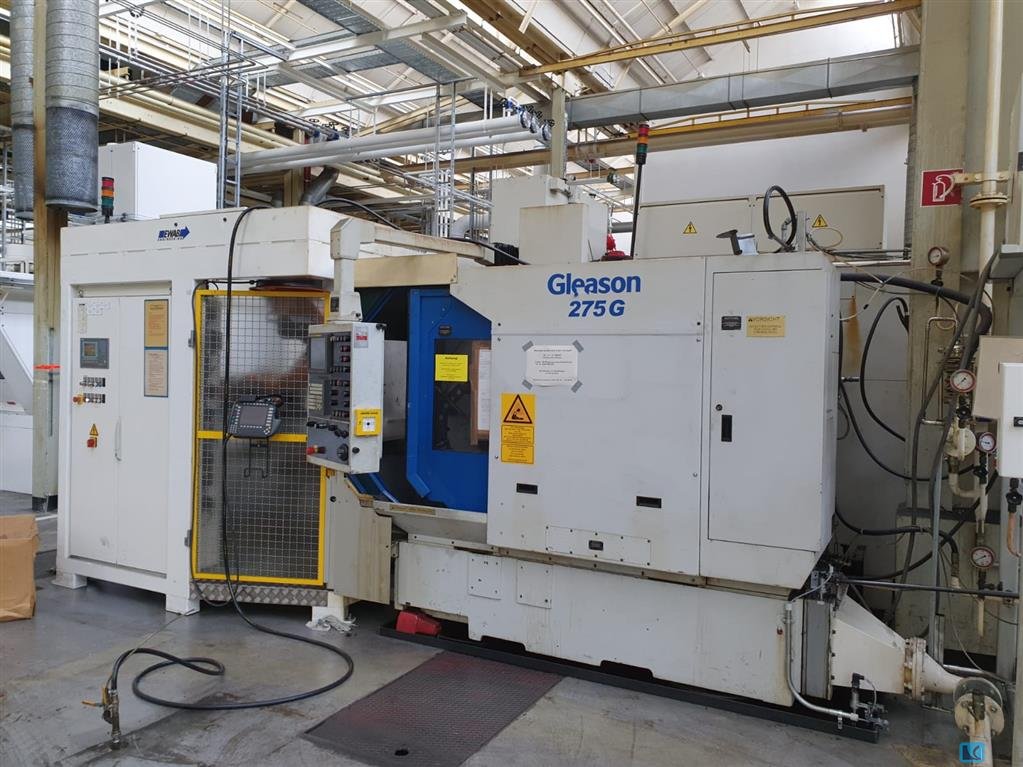

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
