Fabricant:
(Catégorie: 209)
N° Inv. : 8372 Type : ZLSM-4x1.20-3x1.20-0 Producteur : Mühlböck Generated: Paramètres: Profondeur : 5400 mm Hauteur : 4200 mm Longueur : 6520 mm Capacité : 12 x 8 63 m3 (103 68 m3) Charge : 100 kg par 1m2 Nombre de ventilateurs : 4 pièces
Je vends un sèche-linge Kovos SR 4 démonté sans électronique. Sans isolation thermique (laine de verre) 2x ventilateurs, 2x serpentins chauffants. Dimensions du sèche-linge : Hauteur extérieure 3,2 m x largeur 4,1 m x longueur 4,55 m, hauteur intérieure 2,1 m x largeur 3,8 m x longueur 4,1 m. Le séchoir est complet, il est possible de le visiter partiellement construit. Pièces décrites pour l’assemblage. Matériau aluminium, très bon état. Il a été stocké dans le hall pendant 15 ans.
Convoyeur à rouleaux lourds entraînés pour scie à ruban, scie à ruban Dimensions de la machine : longueur totale 8300 mm, largeur 1800 mm, largeur du rouleau 1600 mm, hauteur du rouleau du sol 580 mm, Rouleau numéro 11 pièces Moteur à engrenages Puissance 2 kW/1400 tr/min Poids total 2000 kg. Comme neuf
Série d’ongles : 34 clous rayés papier-magazined Diamètre filaire : 3,8 - 4,6 mm Ongles: 100 - 160 mm Pression de travail: 5 - 8 bar Poids: 7,10 kg Capacité du magazine: 72 Naegel Naegel rayé papier 4,6 x 160 19200 pièce (600 pcs/carton, 32 carton Sueck, commandez no 140037) L’ongle d’air comprimé bronzé 1100 EUR, 19200 St?ck Naegel 640 EUR
ZENO Zerkleinerungsmaschinenbau Norken GmbH Destructeur de déchets ZTLL 1000x1200 en service jusqu’à 03/2026 en bon état d’occasion Masch. N° 98A-4689 Version standard, trou de tamisage 20 mm Basse vitesse avec plancher en mouvement Transmission principale 18,5 kW, hydraulique 0,75 kW 400/690 V, courant total nominal 36A Fusible 63A Conducteur section transversale 4x16 carrés Poids 1950 kg, 20 tranchants Régime du rotor 140 tr/min Diamètre du rotor : 300 mm Diamètre d’extraction : 250 mm Vitesse de l’air d’échappement 30 m/s Section transversale d’admission L 1000mm W 800mm Séparateur magnétique externe Lame de rechange

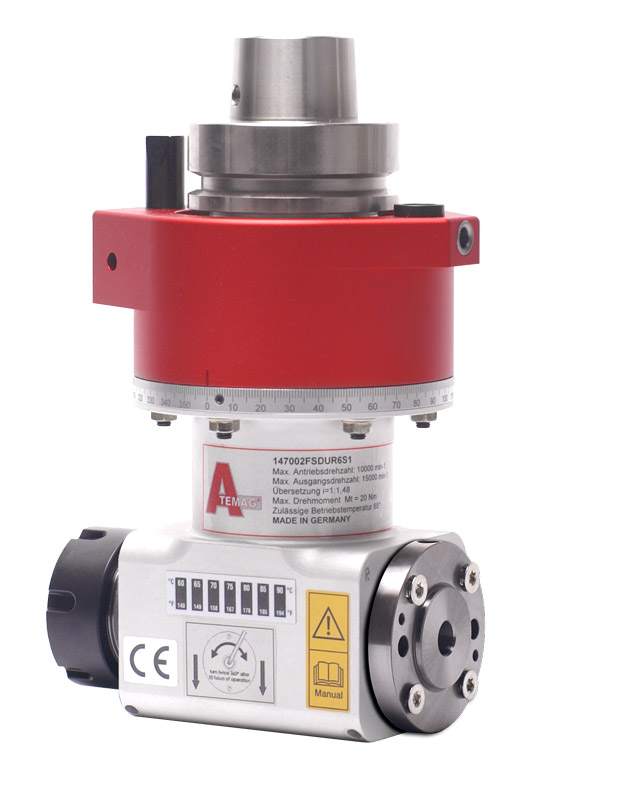

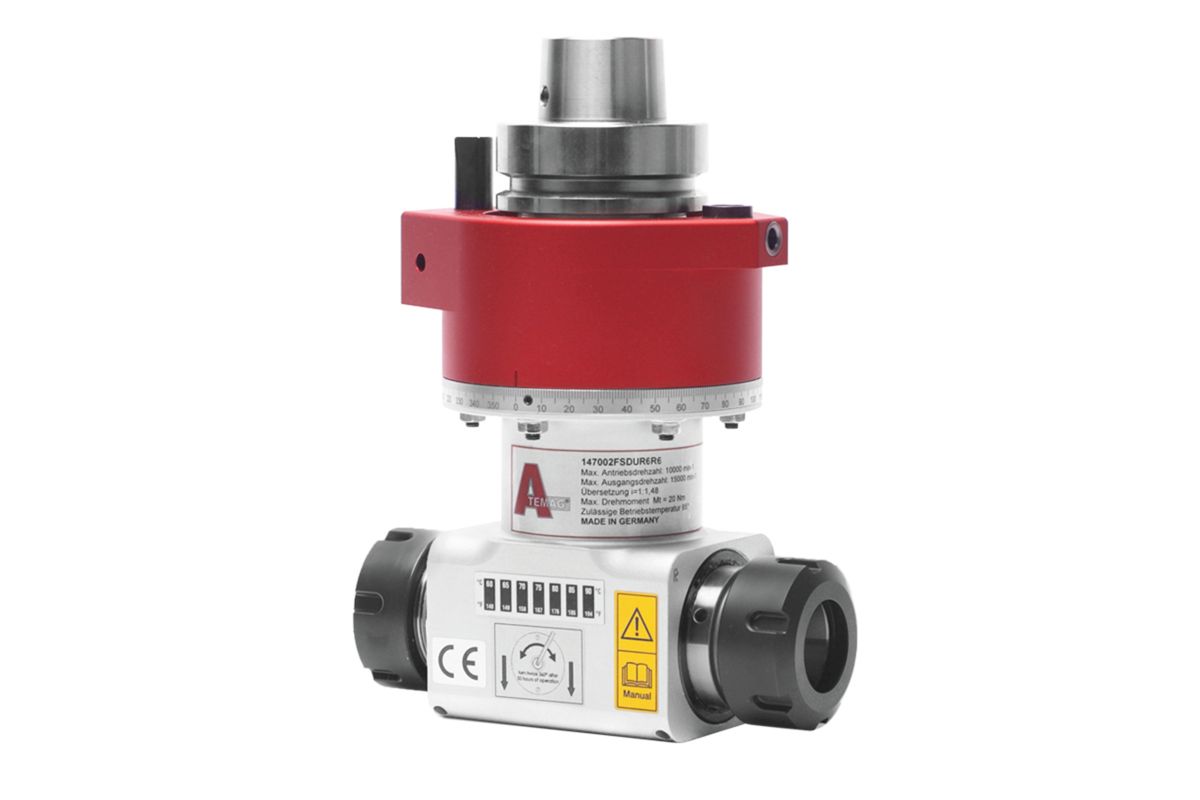

CNC unit for boring, routing and sawing Brand: Atemag Type: Function Line Duo With two tool interfaces, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M Gear ratio i = 1:1,5 Turning direction left/right Torque max. 20 Nm Tool interfaces: ER25, ER 32, saw blade flange 30 mm, sawblade dia. max. 180 mm or modular
This HEESEMANN BÃRKLE wood production line was manufactured in 2001. It features a comprehensive oil application line, including RBO vacuum feeding Tornado SC 1300, HEESEMANN MFA 8 with cross-lengthwise brushes, and BÃRKLE SLC 1400 roller application machines. Enhanced with a new Siemens control system in 2024, consider the opportunity to buy this HEESEMANN BÃRKLE wood production line. Contact us for more information.
Various old sawmill machines are available. 1) Double shaft saw Costa Leonard, max. cutting height: 200mm, max. cutting width: 350mm, weight: approx. 5000kg. 2) Step feeder Esterer WD, max. log length: 6000mm. 3) Frame saw Esterer HD 30, frame opening: 710mm, stroke: 600mm. Including accessories. 4) Multi blade saw Costa Multiprisma 35, max. log length: 6000mm. 5) Drum chipper Zeno, drive power: 55kW. 6) Board stacking machine Zimac, working length range: 800mm-3000mm. 7) Steel chimney stack Schicks, height: approx. 50m, diameter: approx. 1400mm. Documentation available. An on site inspection is possible. Individual sale possible by arrangement.
Manufacturer: IMA PU Kantenbearbeitung, Type: Combima, Year: 2003, Control: ima, Min-max edge material mm: 0,5-3,0, Work piece width min-max mm: 85, Min.-max. workpiece length in mm: 150-3500, Min.-max. workpiece height in mm: 10-55, Min-max feed m/min: 6-30, Einlauflineal gesteuert: yes, Premilling: 2 X 6,6, IR zone: 2 , Power per lamp: 2 X1,5, Coil magazine: 32, Mitre stations: yes, Bevel milling: yes, Radius milling axis adjustment: yes, 2 motors: yes, Radius scraper: yes, Flat scraper: yes, Rolling chain: yes, Spraying system 2: yes, Pre-smelting Kg/Hr: yes, Buffing unit: yes, Separation agent setup: yes, Year :2003
Manufacturer: Brandt, Type: KD 85, Year: 1998, Control: Homatic NC 21, Min-max edge material mm: 0,4-20, Work piece width min-max mm: 70, Min.-max. workpiece height in mm: 8-55, Min-max feed m/min: 7+25, Einlauflineal gesteuert: yes programm, Premilling: yes, Application of separation agent: yes, IR zone: yes, Power per lamp: 400 Watt, Coil magazine: yes, Strip magazin: yes, Mitre stations: yes, Pre-milling: yes, Bevel milling: yes, Radius milling axis adjustment: yes, 4 motors: yes, Grooves, slewable-controlled: yes, Radius scraper: yes, 4 motors: yes, Bonding part EVA: yes, Pre-smelting Kg/Hr: 8 Kilo, Number of sanding units: 3, Edge sanding: 1, Profile sanding top bottom: 2, Buffing unit: yes, Top pressure belt/roller: Band, Separation agent setup: yes, Compressed air bar: 6, Machine lenght mm: 10900, Noise enclosure: yes, FREE TEXT: Schiebeanschlag Einführung Rechtwinkliger Teile/Dr ...
Manufacturer: IMA, Type: Compact P/C F 6220, Year: 1996, Control: Imatronic 121, Min-max edge material mm: 14-55, Work piece width min-max mm: 85, Min.-max. workpiece length in mm: 150, Min.-max. workpiece height in mm: 10-50, Min-max feed m/min: 8-20, Infeed table: yes, mit Vakuum: 2 X 3 kw, Power per lamp: 1-fach, kW Leistung Laser: yes, Coil magazine: yes, Strip magazin: yes, Bevel milling: MFA. 8.346, radius milling: yes, Magazin : yes nicht schwenkbar, Vertical grooves: R 3 und R 2, Nuten : yes, Radius scraper: yes, Type of scraper: 8.50, Spraying system 2: yes, Edge sanding: Rolle, Buffing unit: Ja, Free places: yes, Year :1996
Manufacturer: Homag PU Verleimung , Type: KL 79/2/A20/S2, Control: Homatic NC 21, Work piece width min-max mm: 60, Min-max feed m/min: 10-25, Axis control: Einlauflineal, Einlauflineal gesteuert: yes, Premilling: yes, Fine milling: yes, Application of separation agent: yes, IR zone: yes, Coil magazine: yes, Strip magazin: yes, Min.-max. batten magazine mm: yes, Mitre stations: yes, Pre-milling: yes, Corner tracing type: FK 13, 2 motors: yes, Vertical grooves: 2, Grooves, slewable-controlled: yes, Radius scraper: yes, Scraper with axis adjustment: yes, Flat scraper: yes, Spraying system 2: yes, Ersatzverleimteil : PU, Bonding part EVA: yes, Edge sanding: KS 10, Profile sanding top bottom: yes, Buffing unit: yes, Top pressure belt/roller: Band, Work piece refeeding: Bartgstedt ZHR, Compressed air bar: 6,
Manufacturer: Homag, Type: KAL 310/7/A20/S3 , Year: 2011, Control: PC 22, Software: Windows XP/Woodscout, Barcode: möglich, Min-max edge material mm: 0,3-3,0, Work piece width min-max mm: 12-60, Min.-max. workpiece height in mm: 12-60, Min-max feed m/min: 18, Axis control: einlauflineal, Infeed table: Servo, Servo Einschubtisch: yes, mit Vakuum: 2 X 3 kw, Profile milling: yes, Machining cracks: yes, Power per lamp: 2-fach, Laser technology: yes, kW Leistung Laser: yes, Coil magazine: HL 84, Strip magazin: 2 X 1,5, Bevel milling: FK 8-fach Wechsler, radius milling: FK 13/Achsverstellung, Vertical grooves: Multiziehklinge MN 21 3 Profile, Grooves, slewable-controlled: PN 10, Nuten : yes, Radius scraper: yes, Servo copying: yes, Spraying system 2: A 20, Ersatzverleimteil : 5 kg, Number of sanding units: yes, Profile sanding top bottom: Einlauf und Auslauf, Barcode: möglich, Workpiece sup ...
Manufacturer: Homag , Type: KAL 310/7/A3/S2, Year: 2004, Control: NC21, Min-max edge material mm: 0,5-3,0, Work piece width min-max mm: 55/100, Min.-max. workpiece height in mm: 12 - 60, Edgeband height max mm: 60, Min-max feed m/min: 10-30, Axis control: Verleimteil/Druckzone/Formfräsen, Servo Einschubtisch: yes, mit Vakuum: 2x 3Kw, Profile milling: yes, Machining cracks: yes, Power per lamp: 2 Rollen, Coil magazine: HL 84, Strip magazin: 2 X0,55 kW, Min.-max. batten magazine mm: 2 X 0,4 kW, Mitre stations: yes, Bevel milling: FK 11/Verstellung automatisch, radius milling: 0,55 kW, Vertical grooves: PN 20, Radius scraper: yes, Rolling chain: yes, Spraying system 2: yes, Ersatzverleimteil : 5, Edge sanding: Riemen, Edge sanding radius: yes, Free places: yes, Year :2004
Manufacturer: Ima zweieinseitige Maschinen in Verkettung, Type: Combima I, Year: 1999 Überholt 2010, Control: IMA, Min.-max. workpiece length in mm: 150, Min.-max. workpiece height in mm: 10-60, Infeed table: Rollgang mit Drehstattion, Min-max edge thickness mm: 0,5-3,0, Min-max strip length mm: 300, Min-max protrusion of workpiece mm: 38, Min-max feed m/min: 8-40, Velängerte Kette mm: yes, Cam distance mm: ca.450, Premilling: yes, Profile milling: yes, Machining cracks: Zerspanen, Fine milling: yes, IR zone: yes, Coil magazine: 4-fach, Mitre stations: yes, Pre-milling: yes, Bevel milling: yes, Corner tracing type: MFA, 2 motors: yes, Servo copying: yes, Rolling chain: yes, Bonding part EVA: yes, Vertical grooves: yes, Grooves, slewable-controlled: yes, Radius scraper: yes, Flat scraper: yes, Servo copying: yes, Year :1999 Überholt 2010
Manufacturer: IMA, Type: Novimat K/I/G80/1005/SR3 L12, Year: 2000, Program: IMA, Control: IMATRONIC 100, Work piece width min-max mm: 140 - 600, Min.-max. workpiece height in mm: 16 - 32, Min-max feed m/min: 5 - 25, Infeed table: yes, Einlauflineal gesteuert: yes, Premilling: yes, Application of separation agent: yes, Coil magazine: 12 fach, Mitre stations: yes, Pre-milling: yes, Bevel milling: yes, radius milling: yes, Radius scraper: yes, Corner trace buffing: yes, Corner trace buffing: yes, Barcode: yes, Freiplätze: 1, Machine lenght mm: 12300, Noise enclosure: yes, Rückführung Typ: yes, Year :2000
Manufacturer: Homag Postforming, Type: VFR10/22, Year: 1997, Control: Homatic/NC 16, Software: Homag, Finished product: Türzargen/Verkleidungen, Indirekt Postforming: yes, Work piece width min-max mm: 60-1000, Min.-max. workpiece length in mm: 800-2500, Min.-max. workpiece height in mm: 16-28, Workpiece protrusion mm: 55-30, Profilarten : L-Profil/U-Profil, Postformig Fräsaggregate Stück/kW: 2 X 1 kw, Universalfräsaggregat Stück/kW: 2 X 4 kw, Leimauftrag für Profile mm: U-105, Düsensystem: yes, Furnierbefeuchtung: yes, Heiz und Ablüftstation: yes, Profildruckstrecke: yes, Fräsaggregat : yes, Fräsaggregat U-Profil/Nuten: yes, Year :1997
Manufacturer: Homag, Type: KAL 310, Year: 2004, Control: NC 21, Software: Homag, Min-max edge material mm: 0,5-3, Min.-max. workpiece length in mm: 150-3000, Min.-max. workpiece height in mm: 10-55, Min-max feed m/min: 24, Axis control: yes, Premilling: yes, Fine milling: yes, Application of separation agent: yes, IR zone: yes, Power per lamp: 400 Watt, Coil magazine: einfach, Strip magazin: yes, Min.-max. batten magazine mm: yes, Mitre stations: yes, Bevel milling: yes, Radius milling axis adjustment: lyes, Corner tracing type: FK 11, 2 motors: 2, Radius scraper: yes , Scraper with axis adjustment: yes, Flat scraper: yes, Spraying system 2: yes, Cleaning nozzles: yes, Bonding part EVA: yes, Pre-smelting Kg/Hr: yes, Buffing unit: yes, Top pressure belt/roller: Band, Separation agent setup: yes, Workpiece support: yes, Machine lenght mm: ca.9,5, Noise enclosure: yes, Return type: Bargsted ...
Manufacturer: IMA Nowimat Leistenmaschine, Type: U/F/12/360, Year: 1996, Min-max edge material mm: 3-12, Work piece width min-max mm: 75, Min.-max. workpiece length in mm: 350, Min.-max. workpiece height in mm: 10-60, Min-max feed m/min: 10-25, Premilling: yes, Application of separation agent: no, Coil magazine: 1-fach, Strip magazin: Ja, Min.-max. batten magazine mm: yes, Mitre stations: yes, Radius milling axis adjustment: yes, Corner tracing type: yes, 2 motors: yes, Radius scraper: yes, Flat scraper: yes, Rolling chain: no, Bonding part EVA: yes, Groove milling: Freiplätze 3, Workpiece support: yes, Compressed air bar: 6, Noise enclosure: yes, Year :1996
Slotted disks, window milling tools, indexable inserts, window construction tools-Slit disk milling tool for: wooden windows-ZUANI LOGIFIX-Socket: Ø 50 mm-Weight: 6.8 kg
