FMS machine à vendre

This FMS LINE AMADA Punching machine was manufactured in the year 2001. It is equipped with a Fanuc Series 18-P control unit.

X axis travel 3270 mm Y axis travel 700 mm Z axis travel 850 mm Distance between table top and spindle nose 100/850 mm Distance between spindle center and column 1050 mm Price board dimensions 3500 × 650 mm Maximum weight supported 20,000 kg Cavea number ti 6 × 18 mm Spindle rpm 4000 HSK 63 spindle connection Engine power in S3 20 kW 30-place tool magazine Random tool search Maximum tool diameter 80 126 mm Fast acceleration 0.3G Work progress 1/12000n mm/min Manual advance zero-4000mm minute Dimensions, weight and tank capacity Height 3600 mm Length 6700 mm +1000 mm conveyor outlet Width 3400 mm +1100 mm auxiliary Overall weight 24,000 kg 5 liter lubrication unit Coolant 450 litres COMPLETE WITH SCOTTI 4TH AXLE TABLE

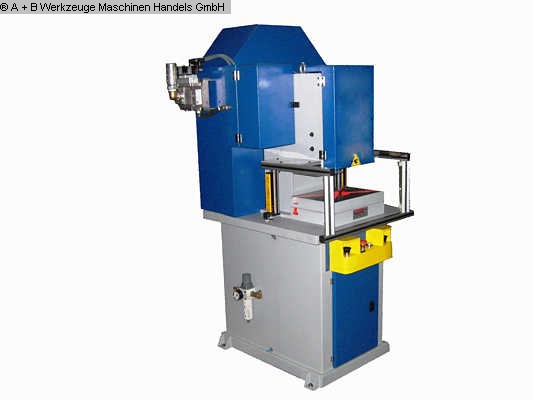

pressure: 20 t throat: 200 mm stroke: 0 - 50 mm table:: 360 x 550 mm table:: 140 mm - Bohrung no. of strokes: 160 Hub/min bore: 35,0 mm - Werkzeug compressed air: max. 6,0 bar dayligth: 240 mm total power requirement: 2,2 kW weight: 1.250 kg range L-W-H: 1310 x 1250 x 1860 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 10 t throat: 160 mm stroke: 0 - 40 mm table:: 270 x 370 mm table:: 100 mm - Bohrung no. of strokes: 200 Hub/min bore: 25,0 mm - Werkzeug compressed air: max. 6,0 bar dayligth: 180 mm total power requirement: 0,75 kW weight: 590 kg range L-W-H: 1.168 x 1.010 x 1.670 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

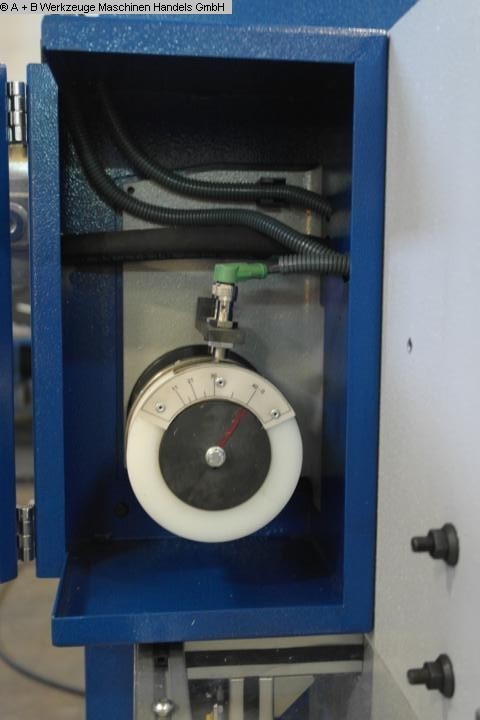

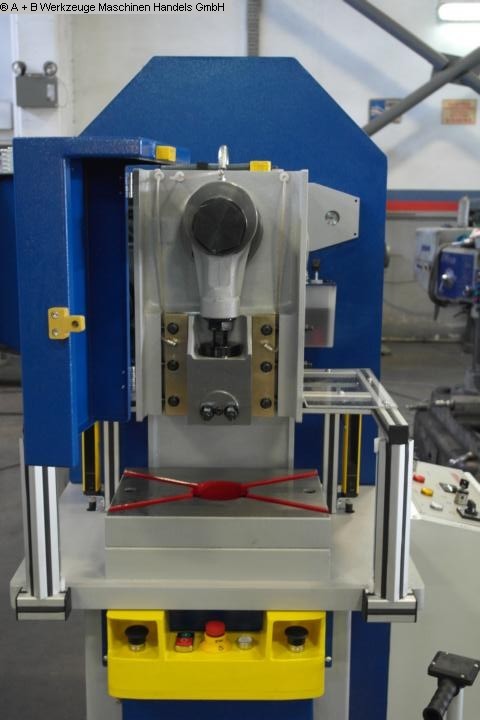

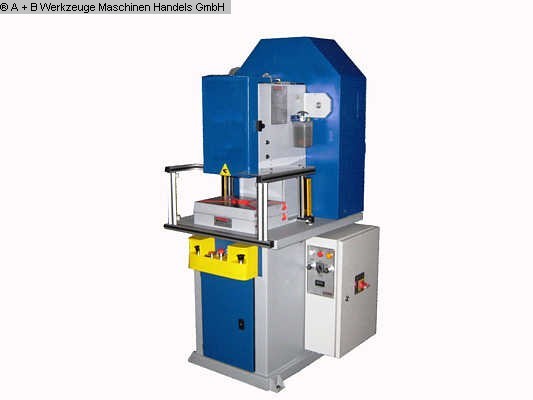

pressure: 30 t throat: 200 mm stroke: 0 - 60 mm table:: 400 x 600 mm table:: 150 mm - Bohrung no. of strokes: 140 Hub/min bore: 40,0 mm - Werkzeug compressed air: max. 6,0 bar dayligth: 300 mm total power requirement: 3,0 kW weight: 1.670 kg range L-W-H: 1150 x 1350 x 2050 mm Furnishing: - Welded steel structure body frame - AISI 4140 (42CrMo4) alloy steel crankshaft - CNC ground for maximum precision SnBz-12 quality - Bronze bearings, ground for minimal surface resistance - 4 sides pneumatic clutch-brake combination - PLC control for safety (PILZ Germany) - Photo cell light barriers around the work table (PILZ Germany) - Two-hand and foot pedal control - Adjustable stroke - Central lubrication system - CE safety approval by TÜV - electrical equipment SIEMENS, SCHNEIDER, PHOENIX, OMRON The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
