pressure:40 t distance between columns:495 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:490 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:155 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:115 l power requirement:7,5 kW weight:2,2 t dimensions (WxDxH):1,35 x 1,1 x 2,2 m depth stop:mechanisch foundation pit:nicht erforderlich
pressure:40 t distance between columns:500 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:480 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:150 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:160 l power requirement:7,5 kW weight:2,6 t dimensions (WxDxH):1,1 x 1,4 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick depth stop:mechanical foundation pit:not necessary
pressure:150 t distance between columns:300 mm stroke:180 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:570x180 / 300x410 mm table height over floor:875 mm side window:180 mm ram surface:180 mm speed down:250 mm/s speed up:160 mm/s working speed:6 - 12 mm/s oil volume:250 l power requirement:11,0 kW weight:2,4 t dimensions (WxDxH):1,3 x 1,3 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 foundation pit:nicht erforderlich
pressure: 40 t distance between columns: 495 mm stroke: 150 mm distance table/ram, max. stroke up, adjustment up: 300 mm table surface area: 490 x 400 mm hole in the table: 50 mm table height over floor: 950 mm column travel -side: 155 mm ram surface: 150 mm feed down: 480 mm/sec feed up: 480 mm/sec working feed: 20 mm/sec oil volume: 115 l power capacity: 7,5 kW weight: 2,2 t dimensions of the machine ca.: 1,35 x 1,00 x 2,21 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 100 t weight of the machine ca.: 4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pression : 40 Tstroke : 150 mm Numéro de série : 100091 : 2 : Druck & Hub Verstellbar Pression : 25 Tweight : JE 1,5 Tsafety Light Frame : ja bei beiden Les données de cette publicité ont été créées avec ModulMWS - la solution logicielle de LogoTech oHG.
Manufacturer: EXNER Model: PG 80 Year of Manufacture: 2014 The EXNER PG 80 is a four-column hydraulic tool testing press for testing stamping, forming, embossing, and drawing tools. It is designed for high precision and durability, with modern proportional hydraulic control and digital force display for tool setup and testing. Technical Data Press Ram - Number of press cylinders: 2 pcs - Nominal force (adjustable): 2 × 400 kN - Return force: 2 × 150 kN - Stroke: 350 mm - Ram width: 2100 mm - Ram depth: 840 mm - Guide length: 750 mm - Ram speed under load (100%): approx. 0–10 mm/s - Ram return speed: approx. 0–20 mm/s - T-slots (DIN 650): 18 mm - T-slot pitch: 150 mm Installation Space - Installation height (top to bottom): 550 mm - Table width: 2100 mm - Table depth: 840 mm - Table T-slots (DIN 650): 18 mm - T-slot pitch: 90 mm - Table passage (W×D): 1300 × 120 mm (to be ...

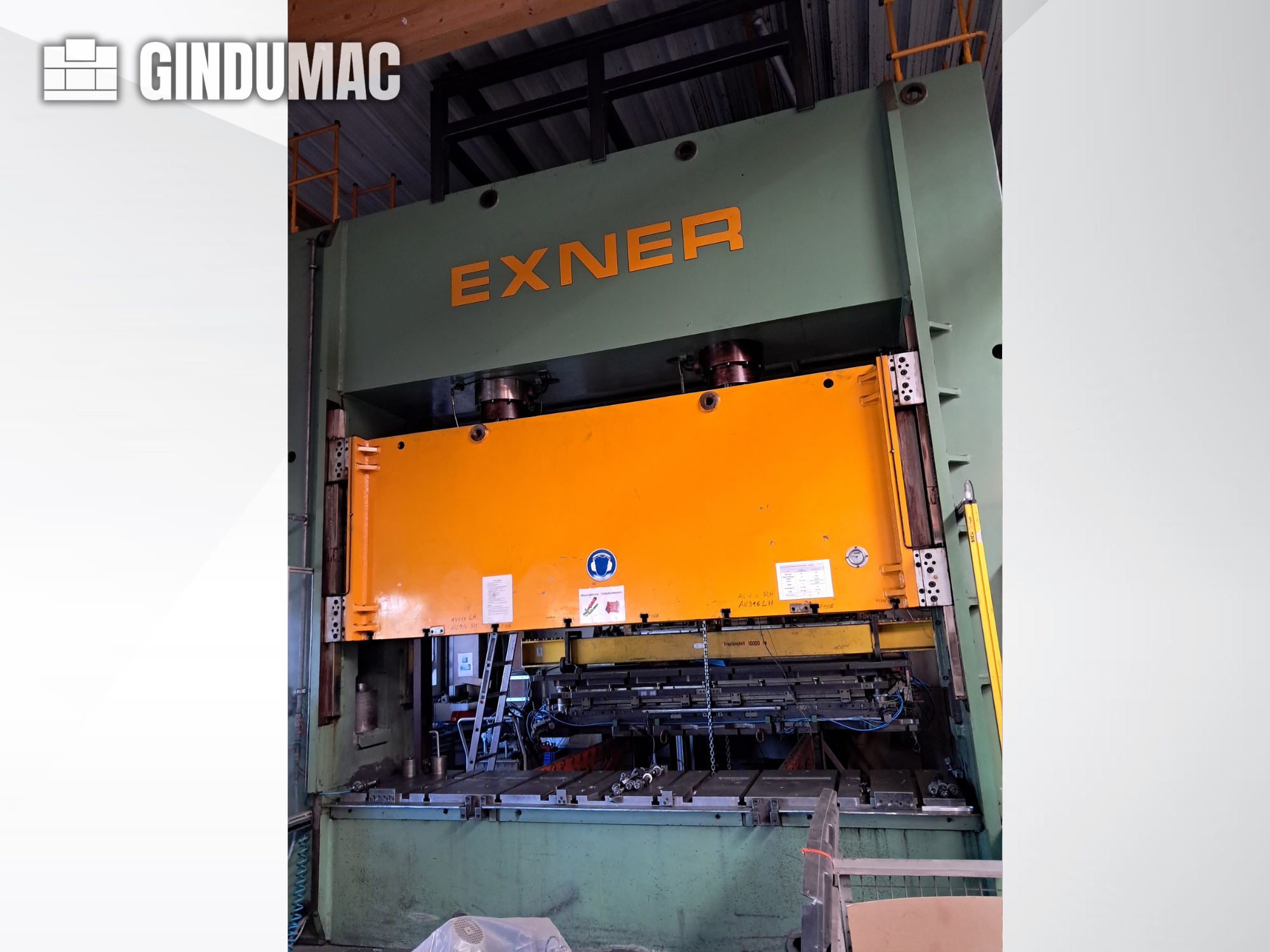

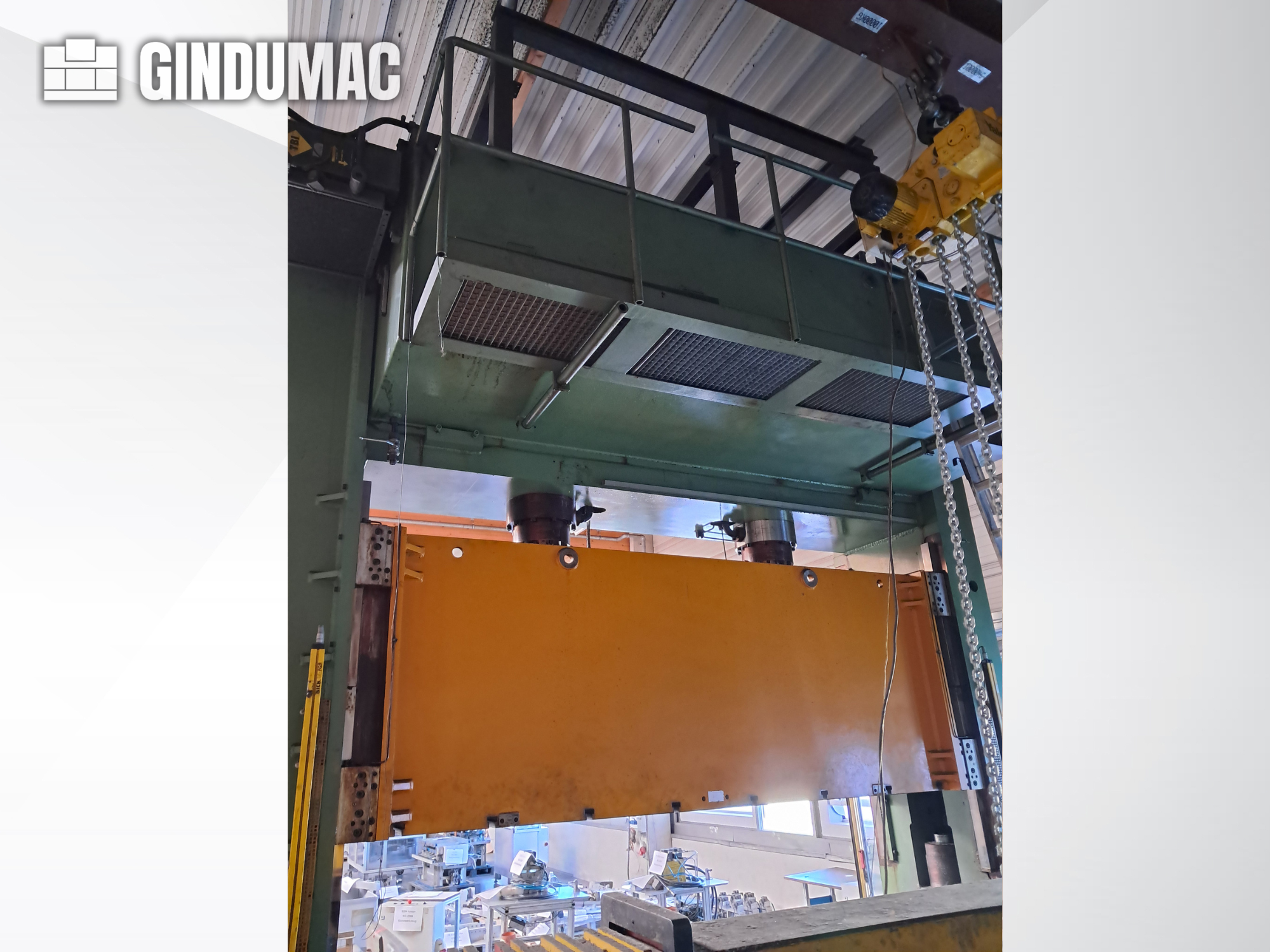

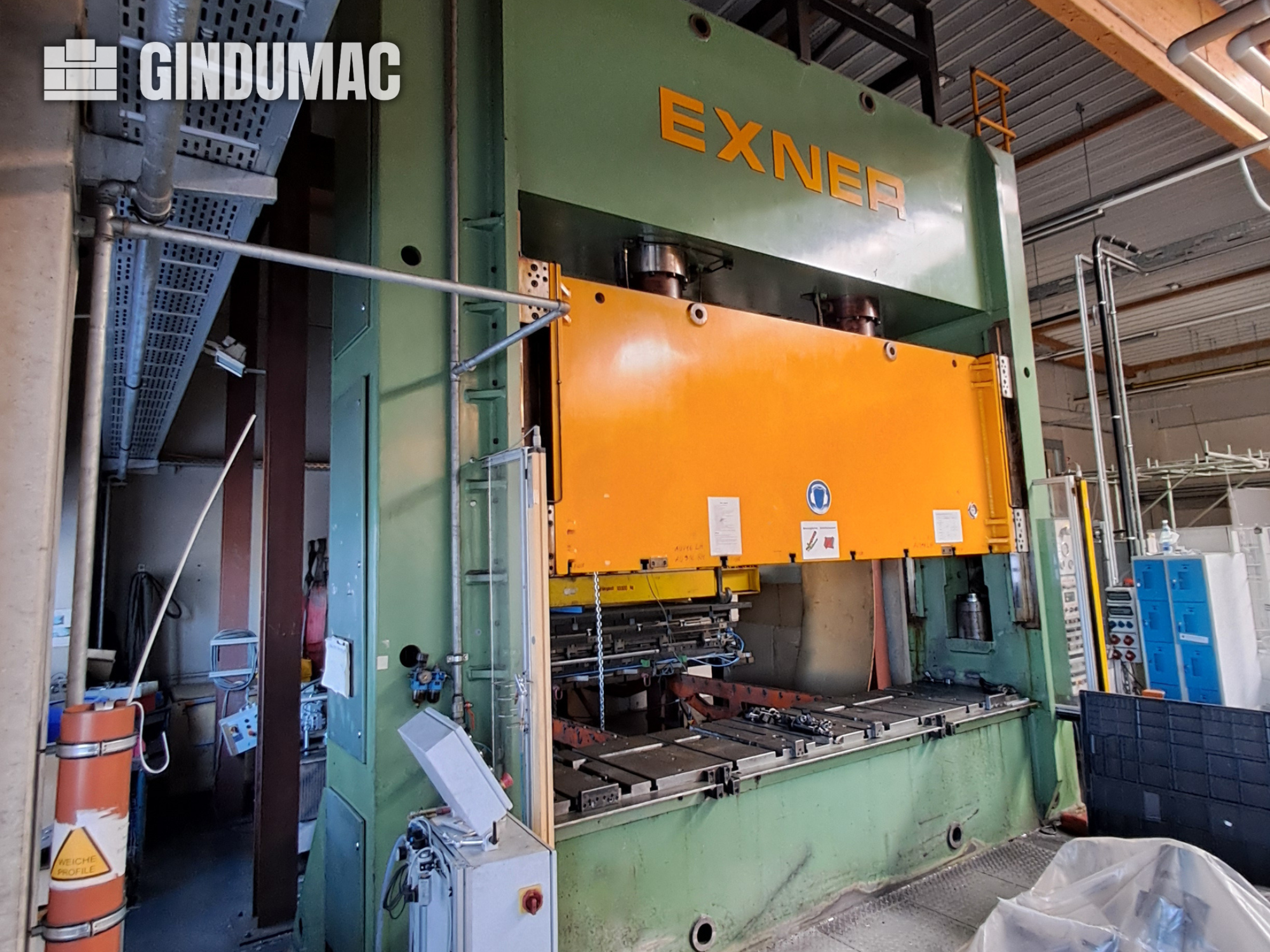

CONTROLS PLC SIEMENS S7 300 PRESS DESIGN drive system: hydraulic frame design: H-frame, monoblock openings in uprights: no number of suspensions: 2 slide ejectors / cushion: yes table cushion: yes opening in table: no quick die change system: yes moving bolster design: front PRESS FORCES total force (nominal): 400 to PRESS TABLE table surface (left-right): 2480 mm table surface (front-back): 1600 mm thickness of bolster plate: 200 mm height above floor level: 800 mm number of T-slots: 10 distance between T-slots: 200 mm SLIDE slide force: 400 to table surface (left-right): 2350 mm table surface (front-back): 1600 mm stroke: 630 mm SLIDE (HYDR. PRESS) approximation velocity max.: 270 mm/s working velocity min.: 32.75 mm/s working velocity max.: 100 mm/s return velocity max.: 270 mm/s ...
Une presse à estampage à quatre colonnes, Exner, avec une électronique renouvelée en 2011, est disponible. Force de pression : 340 t, cylindre de pression : 1, diamètre du cylindre de pression : 380 mm, course de pression : 180 mm, réglage de la course : 100 mm, hauteur d’installation : 400 mm, diamètre du rame : 260 mm, dimensions de la table X/Y : 910 mm/610 mm, dimensions de la machine X/Y/Z : environ 1300 mm/1600 mm/2950 mm, poids : environ 6500 kg. Une inspection sur site est possible.
pressure: 200 t passage width: NA mm stroke: 180 mm table length: 690 mm table width: 530 mm distance between columns: 420 mm total power requirement: 18 kW weight of the machine ca.: t dimensions of the machine ca.: m Hydr. 4-Pillar Press for Embossing/Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pression: 20 t Gorge: 185 mm Course: 100 mm Surface de la table: 380 x 350 mm Jour : 250 mm Hauteur de la table au-dessus du sol: 840 mm Puissance totale requise: 4 kW Poids de la machine env.: 1,3 t
