Drying cabinet vacuum tray dryer, tray dryer, Zschocke 630 liters
I offer a vacuum drying oven from a liquidation. The drying oven is
made entirely of stainless steel (food-safe) on the inside and allows
drying under vacuum up to 1 mbar (depending on the drying material and
connected pump). External heating is provided by a thermal fluid
(water, oil). The heating circuit is absolutely tight, various
attachments and flanges are available. The dryer was used to dry wood
chips and is therefore not contaminated.
The location of the device is Traben-Trarbach. Inspection possible,
delivery in a radius of 200km possible by arrangement, otherwise only
pick-up.
Technical data:
Boiler room capacity 630 litres, boiler room dimensions
780x1050x890mm³, number of heating plates 8, plate dimensions
730x1000mm², usable height between plates 85mm, 1 door with gasket

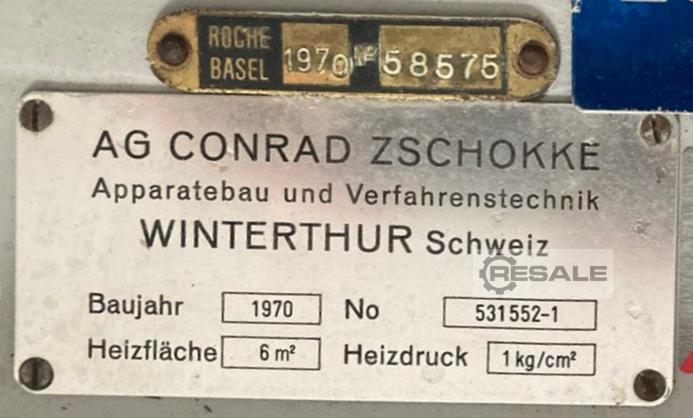

Manufacturer Conrad Tschokke AG Winterthur Switzerland, year of
construction 1970, complete original construction drawings
available
Built on frame, space requirement 1400x1100mm², height 2300mm, weight
approx. 1200kg
A suitable vacuum pump (water ring pump), as good as new, can be
specified if required.
Alemania
56841 Traben-Trarbach
