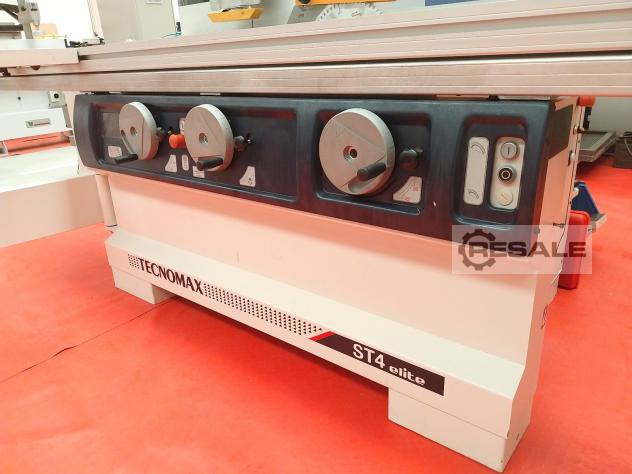

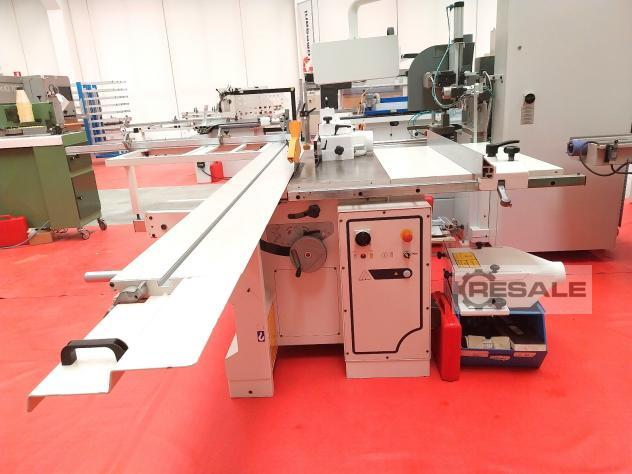

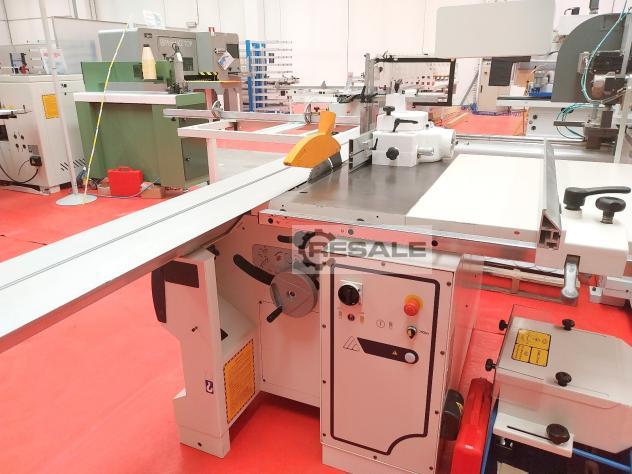

Máquinas combinadas TECNOMAX SCM ST 4 ELITE

Code: 0399
Brand: TECNOMAX SCM
Model: ST 4 ELITE - CE Standard

Saw spindle moulder with tilting blade and scoring unit and tilting spindle moulder for carpentry, furniture, wooden window frames, doors, panels and various - CE Standard

Technical data:

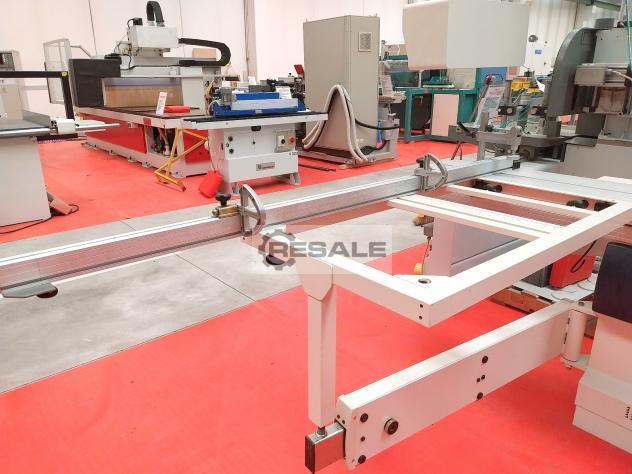

Squaring carriage length 3200 mm
Blade inclination 90-45 degrees
Max saw blade diameter with scoring unit mounted 315 mm
Max saw blade projection from the table at 90°/45° mm 100/70
Cutting width at parallel guide 1000 mm
Scoring unit blade diameter 100 mm
Workpiece clamping press

Tilting Spindle moulder 90-45°
Useful spindle length 125 mm
Spindle rotation speed rpm 3500/6000/8000/10000
Max tool diameter 210 mm
Tenoning table and head
Electrical connection and removable support for the feeding
Three-phase motors 5,5 Hp
Suction inlet diameter mm 120
Overall dimensions of assembled machine mm 3600 x 3000 x 1100 h
Overall dimensions for transport mm 3600 X 1600 X 1100 h
Weight kg 645



seller offer No. resale Code: 0399
