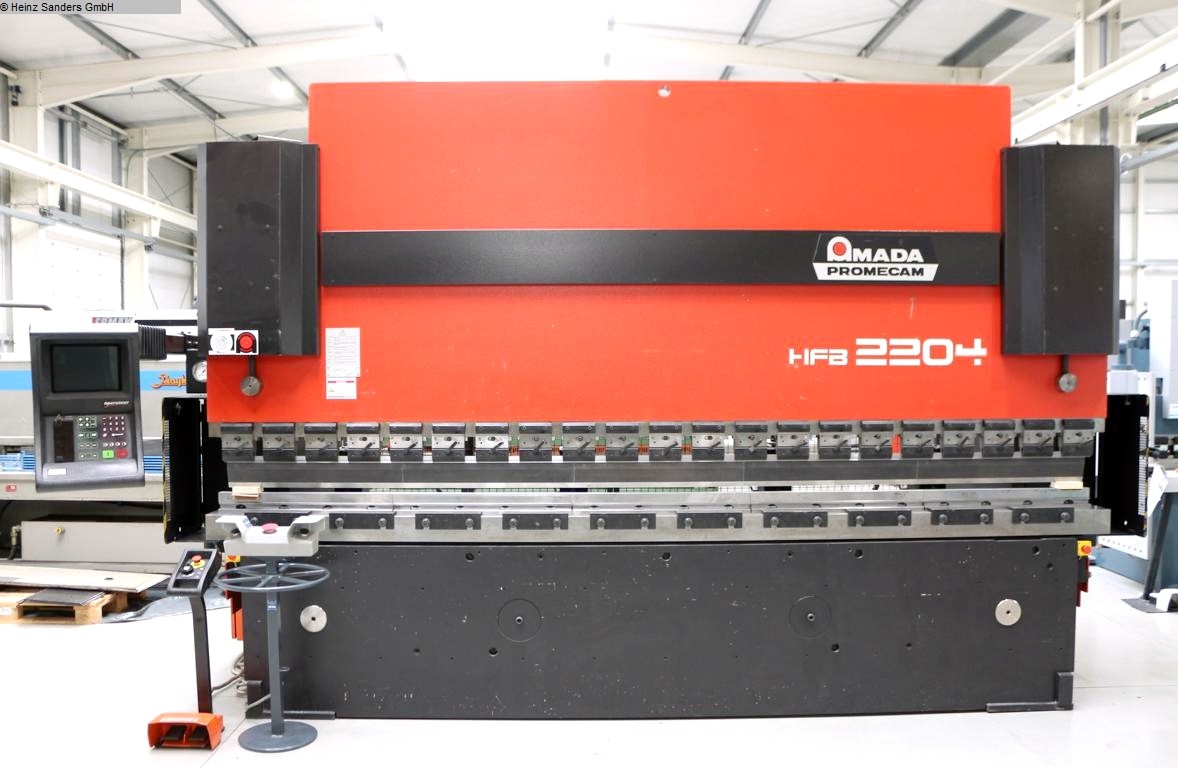

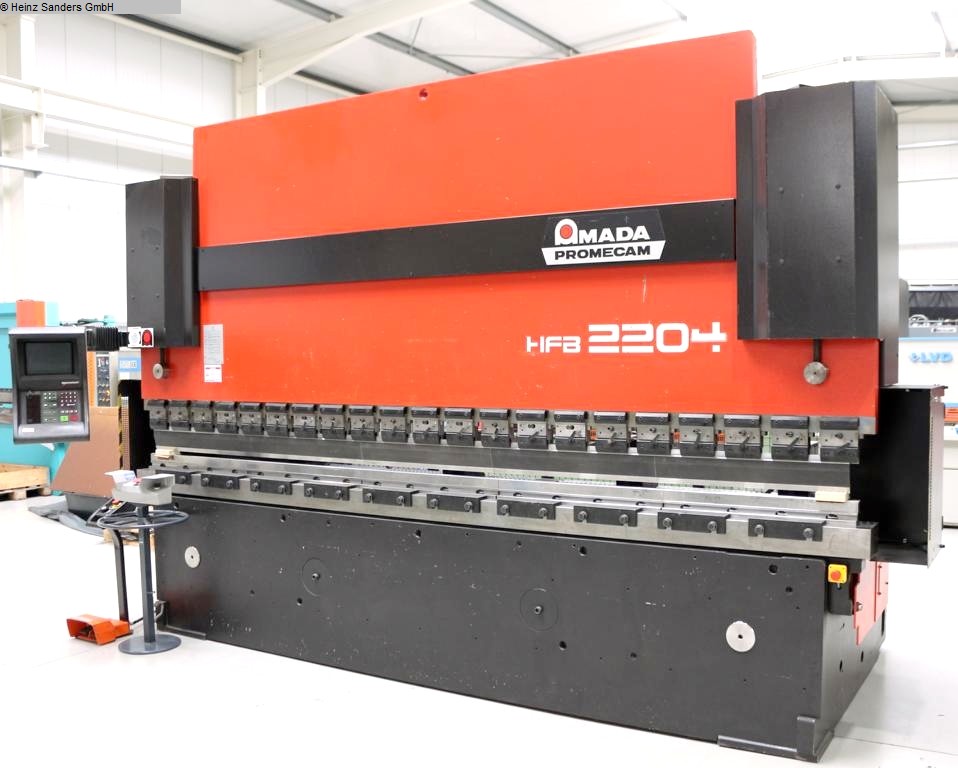

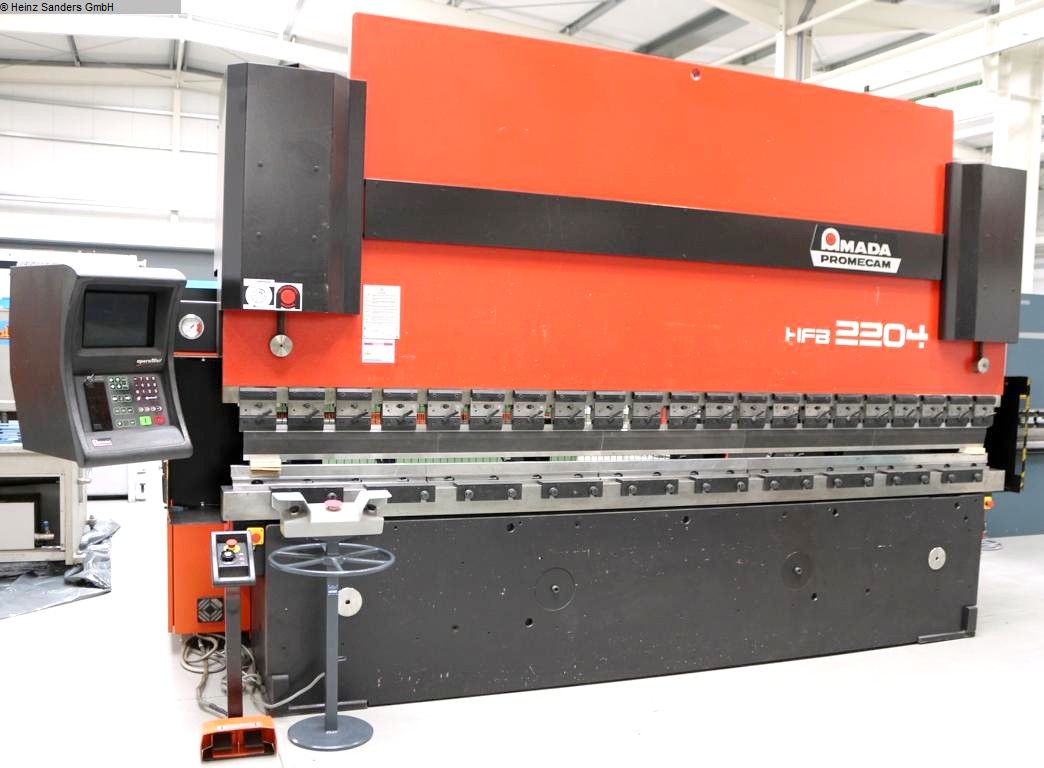

Rebordeadoras AMADA HFBO 220.40

pressure: 220 t
chamfer lenght: 4175 mm
distance between columns: 3760 mm
column arm: 410 mm
dayligth: 450 mm
stroke: 180 mm
ajustment speed: 100 mm/sec
working feed: 8.0 mm/sec
return speed: 75.0 mm/sec
table width: 180 mm
table height: 960 mm
oil volume: 190 l
0: 295 bar
controlled axis: 5 Anzahl
Number of working hours: ca. 9.400 h
total power requirement: 15.0 KW
weight of the machine ca.: 16000 kg.
range L-W-H: 4810 x 2200 x 2990 mm
Very good / well-maintained condition ()
Only approx. 9.400 operating hours

- Verified condition - Machine video -
https://www.youtube.com/watch?v=nDcOAjUtNi0

Equipment:< br/>- CNC electro-hydraulic press brake

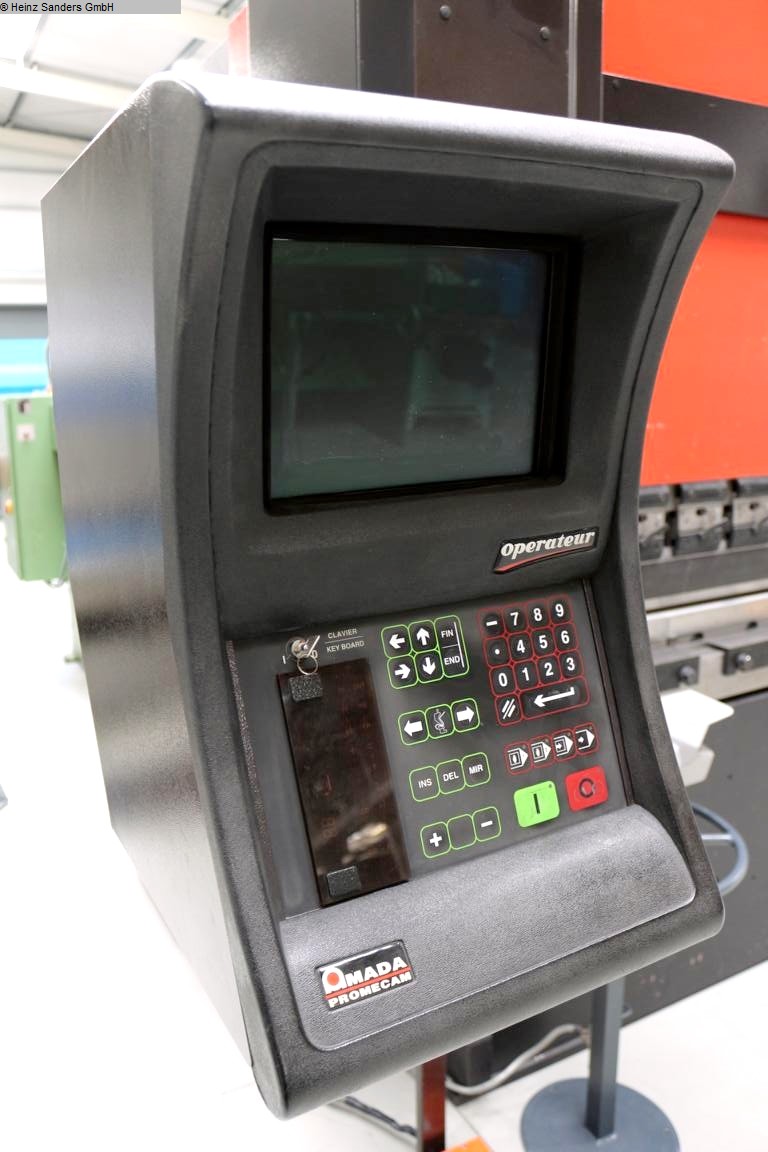

- Equipped with AMADA OPERATEUR CNC control
- 5 controlled axes (Y1+Y2/X1+X2/R)
- Swiveling control panel (on the left)
- CNC-controlled depth adjustment (Y-axis)

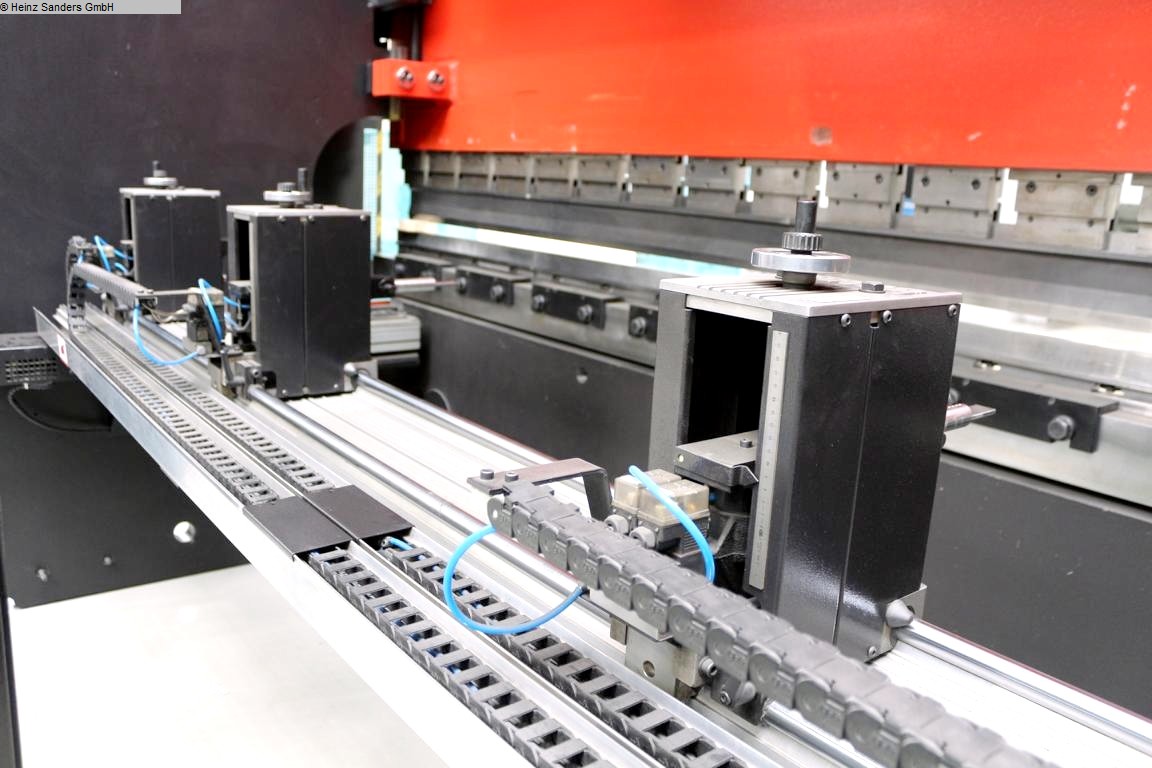

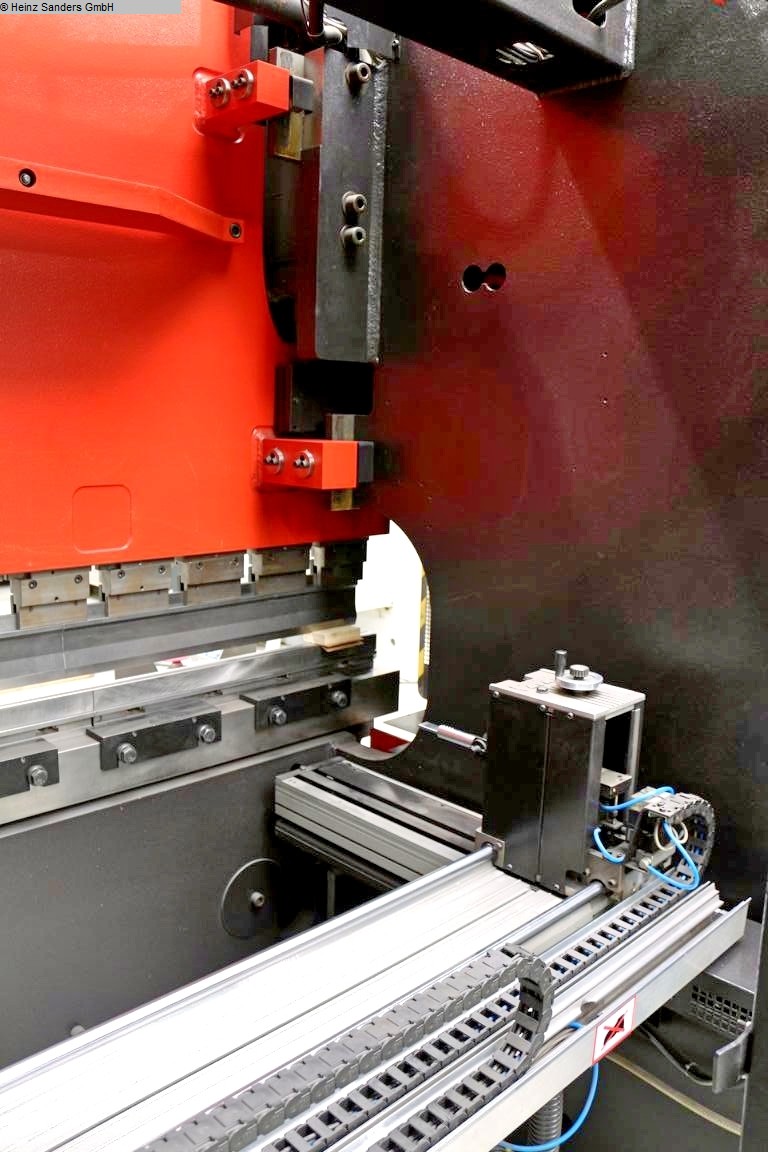

- CNC-controlled backgauge adjustment (X-axis)
- CNC-controlled vertical adjustment of the backgauge fingers (R-axis)
Pneumatic height adjustment for the backgauge fingers
- 4x manually adjustable backgauge fingers
- AMADA CNC bed crowning (compensation system)

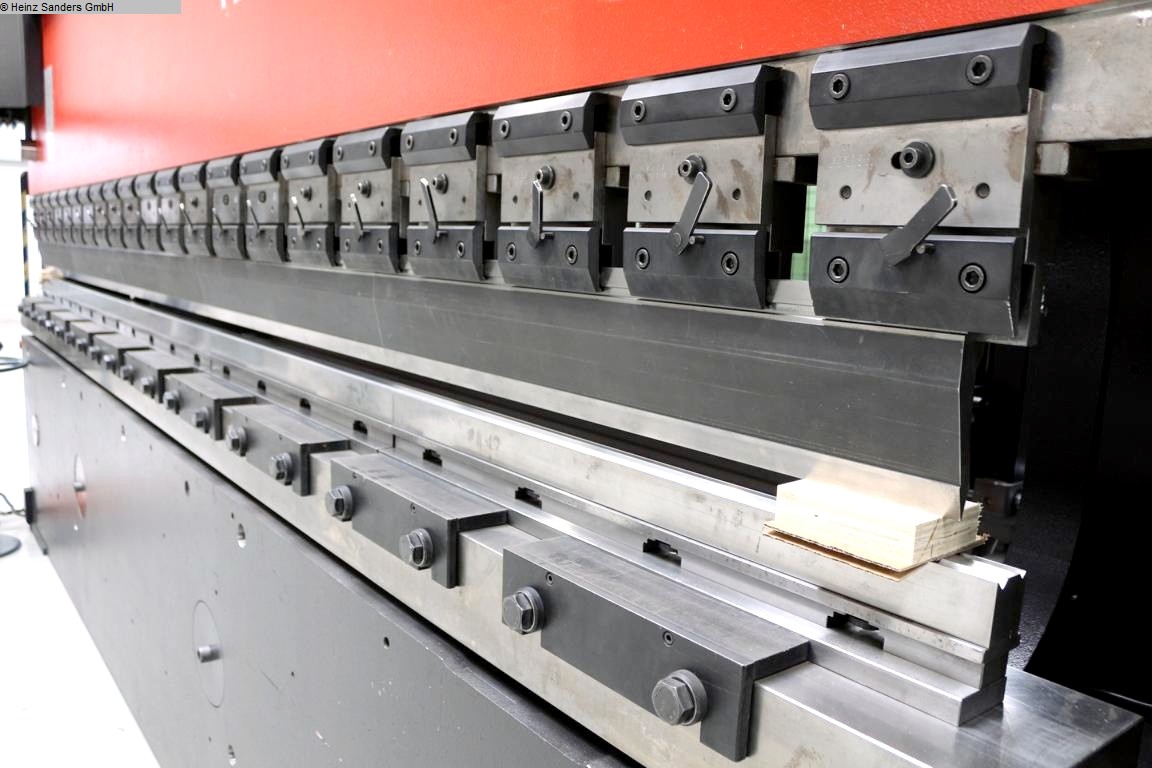

- AMADA upper tool clamping system with wedge-style crowning
Includes 1x set of segmented punch tools (30°)
- AMADA 60-series lower tool holder
Includes 1x set of segmented die holders
Includes 1x set of segmented 2-V dies
- Lateral safety guards (swiveling doors)
- Rear safety guards (swiveling door + protective fencing)
- CE-marked
- 1x mobile two-hand control unit
- 1x mobile foot pedal
Includes a handwheel for fine-tuning the ram penetration depth (Y1+Y2)
- Machine documentation
