utilisé
La machine d’ébavurage ERNST EG3M a été construite en 1988 en Allemagne. L’usinage de surface de pièces d’une épaisseur maximale de 70 mm est effectué « à sec » au moyen d’un rouleau de ponçage enlevant les bavures installé dans la machine et de deux rouleaux de brosse se déplaçant dans la direction opposée destinés à l’arrondi des bords. Pour éviter que la pièce ne soit étirée au centre de la machine d’ébavurage ERNST EG 3 M, la tôle à ébavurer est pressée sur la bande transporteuse via un rouleau entraîné sur des roulements mou à rouler. La machine d’ébavurage automatique ERNST EG 3/M 1400 permet également l’utilisation d’une courroie magnétique pour traiter des pièces plus petites. Le poids total de la machine d’ébavurage est de 3500 kg. Données techniques de la machine d’ébavurage EG3M d’ERNST - épaisseur maximale de l ...
utilisé

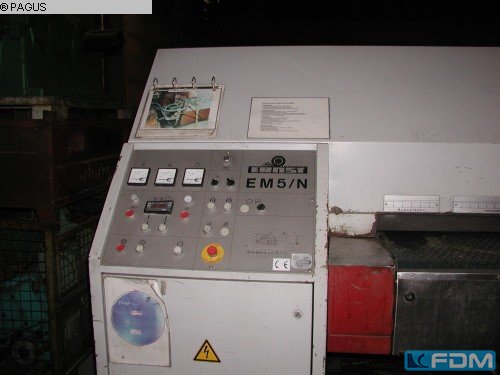

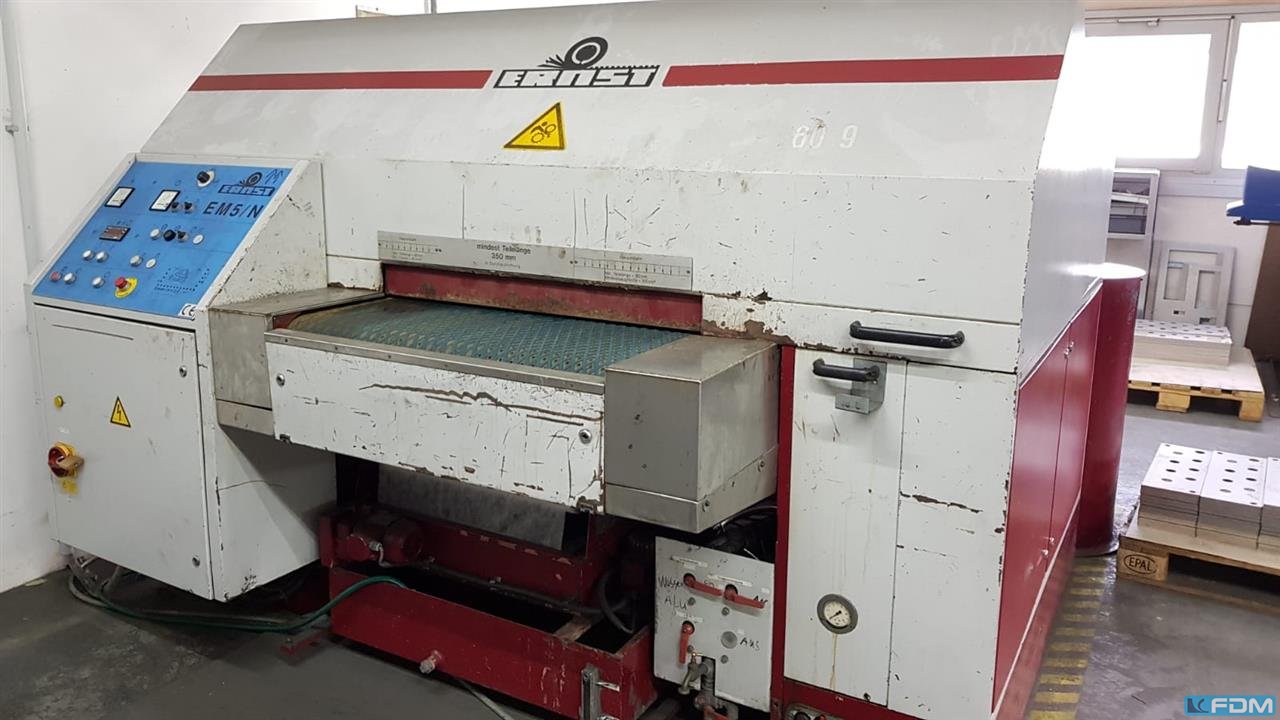

Machine d’ébavurage de tôle Fabricant: ERNST Type: EM5 / N900 Année de construction: 1999 Type de contrôle: conventionnel Largeur de travail: 880 mm Hauteur de la pièce: 1-70 mm Diamètre du tambour de broyage: 420 mm Poids de la machine env. : 2 800 kg Dimensions env. : 2 500 x 1 715 x1 675 mm Machine automatique d’ébavurage de tôle travaillant dans un procédé de meulage humide Système de filtre magnétique automatique Dispositif de ponçage humide Installations de lavage et de séchage Largeur Maglev: 200 mm Longueur minimale des petites pièces: 80 mm
utilisé
working width:1400 mm Workpiece thickness max.: 80 mm work height max.:1000 mm Feed speed:4m/min I Stufe, 8 II Stuf m/min. Required air-pressure:max. 5 bar voltage:50 Hz, 380 V workpiece length:320 mm workpiece thickness min.:1 mm weight of the machine ca.:3500 kg Documents:vorhanden
utilisé
working width:880 mm workpiece height:1- 70 mm work height max.:1000 mm Feed speed:4- 8 m/min. voltage:50 Hz, 400 V weight of the machine ca.:2.800 kg dimensions of the machine ca.:2500 x 1715 x1675 mm width:min. 350 mm Sanding cylinder diameter:420 mm electr. connected load:20 KW Required air-pressure:1 x R3/ 8 " pressure:5 bar tank:des Bandfilter ca.200 l automatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mm accessories::9 Bänder Documents:vorhanden
utilisé
Description: Includes accessories such as replacement tips, dial gauge holder and more. (see pictures) Approx. Onsite Dimension. (l x w x h): 400 x 350 x 100 mm, weight approx.: 10 kg
utilisé
This ERNST EM5N II/L Deburring machine was manufactured in the year 2007.
utilisé
work piece width: 1500 mm plate thickness: 0,8 - 100 mm Brush width: 490 mm Brush diameter: 200 mm immersion travel: ca. 1.5 - 2.0 mm grinding speed: 200 - 1200 U/min band speed: 0,8 - 4.0 m/min work height max.: 950 mm Required air-pressure: 5.0 bar Air consumption: 80.0 l/min. number of brushing / polishing units: 8 Stück Control: NC Touch voltage: 400 V total power requirement: ca. 40.0 kW weight of the machine ca.: 6.100 kg. dimensions of the machine ca.: 3700 x 2750 x 2080 mm Well maintained condition with lots of accessories New price including accessories approx. 180.000 euros Special price on request Furnishing : - ERNST dry wide belt sanding machine TYP ATLAS ER ROTOR” Area of application: - Slag removal / deburring / edge rounding / finish grinding etc. - ERNST NC control including touch screen Control of the entire system graphically supported color terminal Adjustme ...
utilisé
Deburring machine Ernst Neptun Deburring machine was little used
utilisé
Manufacturer: Ernst, Type: 830-2, Monting of the machine: längs / längs / längs, Sanding width mm: 1.350, Sanding hight mm: 3 - 120, Number of sanding belts: 3, Sanding belt dimensions: 1.400 x 3.150, Band 1 Leistung kW : 11, Belt 1 shoe unit: yes, Band 1 Schleifbandgeschwindigkeit m/s : 2 - 10, Belt 2 shoe unit: yes, Band 2 Leistung kW : 11, Band 2 Schleifbandgeschwindigkeit m/s : 2 - 10, Band 3 Leistung kW : 18, Band 3 Schleifbandgeschwindigkeit m/s : 1 - 7, Frequency control of belts: 3, Continous adjustable feeding speed m/min: 8 - 30, Vacuum table: yes, Brushing unit: 3 kW, Diameter/ brush bristles: 200,
utilisé
Manufacturer: Ernst Funierschleifautomat, Type: 840-2, Year: 2003, Monting of the machine: Quer/lang/lang/lang/Bürste, Sanding width mm: 1305, Sanding hight mm: 3-120, Number of sanding belts: 4, Sanding belt dimensions: 2620 X 1350/5400 X 150, Table hight adjustment by engine: yes, Rollers: no, Band 1Querschleifaggregat: yes, Band 1 Leistung kW : 18,5, Band 2 Schuhaggregat: Simplex Schuh, Band 2 Kombiaggregat Walze/Schuh: no, Band 2 Leistung kW : 30, Band 3 Kombiaggregat Walze/Schuh: Simplex Schuh, Band 3 Leistung kW : 30, Band 4 Kombiaggregat Walze/Schuh: Duplex Schuh, Band 4 Leistung kW : 37, Elektronische Tastung mm: yes, Table hight adjustment by engine: yes, Continous adjustable feeding speed m/min: 13,5-60, Feeding engine kw: ca.4, Constant table hight: 880, Vacuum table: yes, Segment sanding shoe: yes, wast cleaning: yes, Ionising: yes, Weight in kg: 10200, Year :2003
utilisé
Fabricant: Ernst, Type: Vakuumventilator, Année: 1993, Diamètre admission mm: ca 120 mm, Puissance du moteur kW: 2,5, Débit env. m3/h: 1500, Moteur d’entraînement par courroie trapézoïdale: oui, Côté sortie mm: ca.100, Année:1993
utilisé
Fabricant: Ernst , Type: AB 1 1300, Année: 1982, Contrôle: non, Nettoyage de l’air comprimé: oui, Nombre d’unités: 2, Unités montées verticalement: oui, Transport de rouleaux: oui, Vitesse d’alimentation réglable en continu: gekoppelt an Schleifmaschine, jets de rotor: Kanal, TEXTE LIBRE: Arbeitsbreite 1400 / Arbeitshöhe 80 / inkl. Turbine, Année :1982
utilisé
Fabricant: Ernst, Type: 830 J-2, Montage de la machine: quer / längs / längs, Largeur de ponçage mm: 1380, Hauteur de ponçage mm: 3 - 120, Nombre de bandes de ponçage: 3, Dimensions de la bande de ponçage: 5.400 x 150 + 3.150 x 1.400, Unités de ponçage transversales: 1, Längsschleifaggregate: 2, Bande 1 Leistung kW: 15, Bande 2 Leistung kW: 30, Bande 3 Leistung kW: 37, Vitesse d’alimentation réglable en continu m/min: 12 - 36, Ponçage intermédiaire de la laque: non, Hauteur constante de la table: ca 880, Table à vide: 7,5, Unité de brossage: 1,1, Poids en kg: 7.400,
utilisé
working width: 1380 mm workpiece height: 70 mm : total power requirement: 45 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
