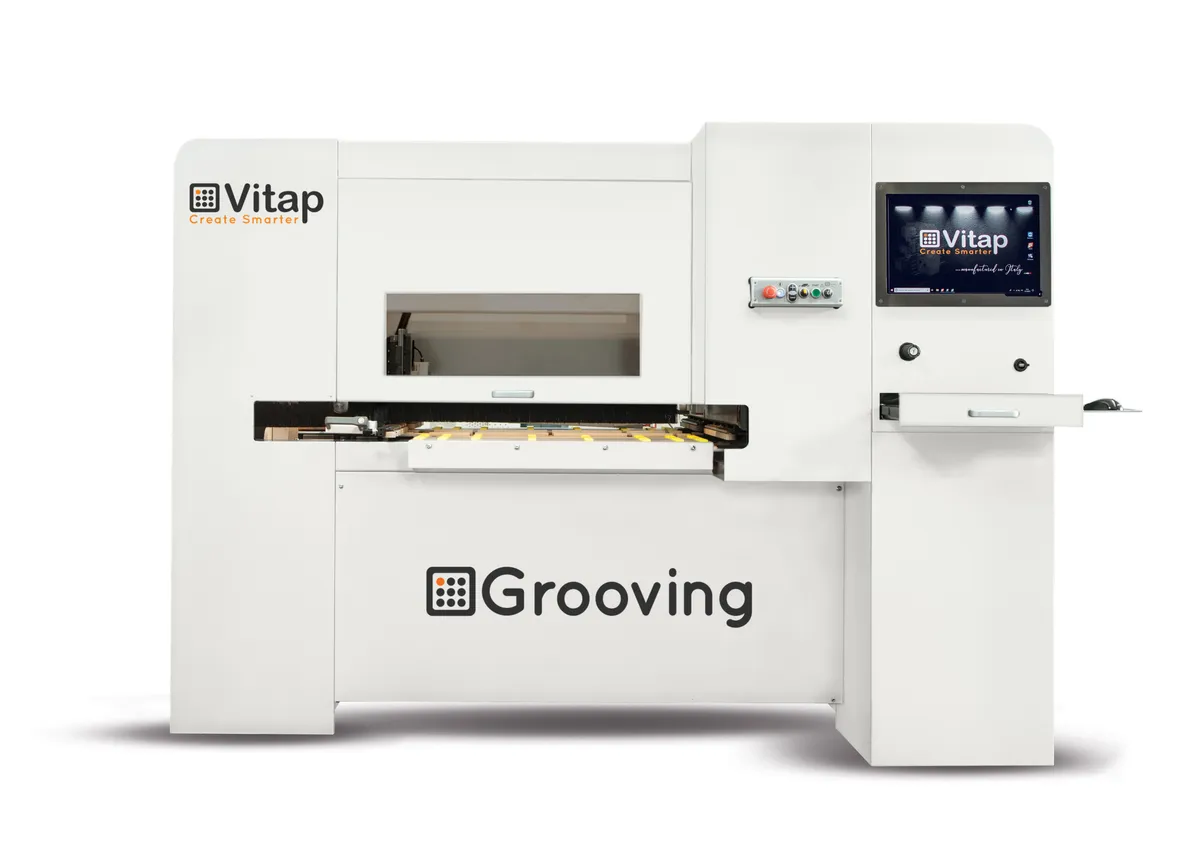

VITAP GROOVING Throughfeed machine for acoustic panels,

Grooving machine for throughfeed process
Brand: Vitap
Type: Grooving
New machine

For the processing of acoustic panels

Processing unit:
- Shaft with 7 presettable saw blades, distance 30mm.
- Blade thickness 4mm
- Rotation of the shaft , 7000 rpm.
- presetting with rapid hook HSK
- Max diameter of the blade 125mm

Workpieces:
- Max. thickness of the panel 50mm
- Max weight of the panel: Kg 50
- Max panel size : X no limit, Y 1200 mm, Z 50 mm
- Min panel size: X 400 mm, Y 300 mm, Z 12 mm

- Panel feeding speed : 25m/min

Characteristics:
3 controlled axes:
- X Axis - Panel movement with two dinamic clamps
- Y Axis - Grooving head movement with pinion and precision rack
- Z Axis - Movement with screw at spherical recirculation

- Newly patented, high rigidity operating unit movement on Y and Z axis.
- Constant side pushing to keep the 0-line
- Positioning axis X with direct motor drive, Y with toothed rack drive, Z- with ball screw

No limit in length

CE STANDARDS

Easy TPA programming
- The grooves are displayed on a virtual workpiece
- You can set the reference point exactly by entering or easily via mouse click

- Software dedicated for programming and optimization;
- Fast optimization program by inserting only the following data: bit diameter, Center distance, X axis dimension of the pattern, Y axis dimension of the pattern
- Users interface WSC with Lister, parametric tools and parametric set up
- Graphics programming CAD TPA EDI32, base version
- Set up parameters
- Working Path Configuration
- Data Entry Form with graphic support on major transactions
- Macro Programming
- Basic data always visible on screen
- Jobs List
- Cross Control between parameters and the working program
- Control: Full Parametric
- PC to support optimization programs with high speed
- Monitor LCD TFT 20
- Usb port for loading programs run on a station in each office
- 3 levels of access with passwords (operator-supervisor-assistance)
- Saving all files with all data

Inclusive:
- 22 Point Greasing pump
- Office software

Optional for an extra charge available:
- 2 kg grease cartridge LIKO EPO
- 400 g GS Artic cartridge for machine heads
- 400 g EP0 grease cartridge for machine sliding block

- Bar code reader
- Frontal and rear rollers for long panels
- Shaft (without saw blades)
- Air conditioner for electric panel
- Voltage stabilizer
