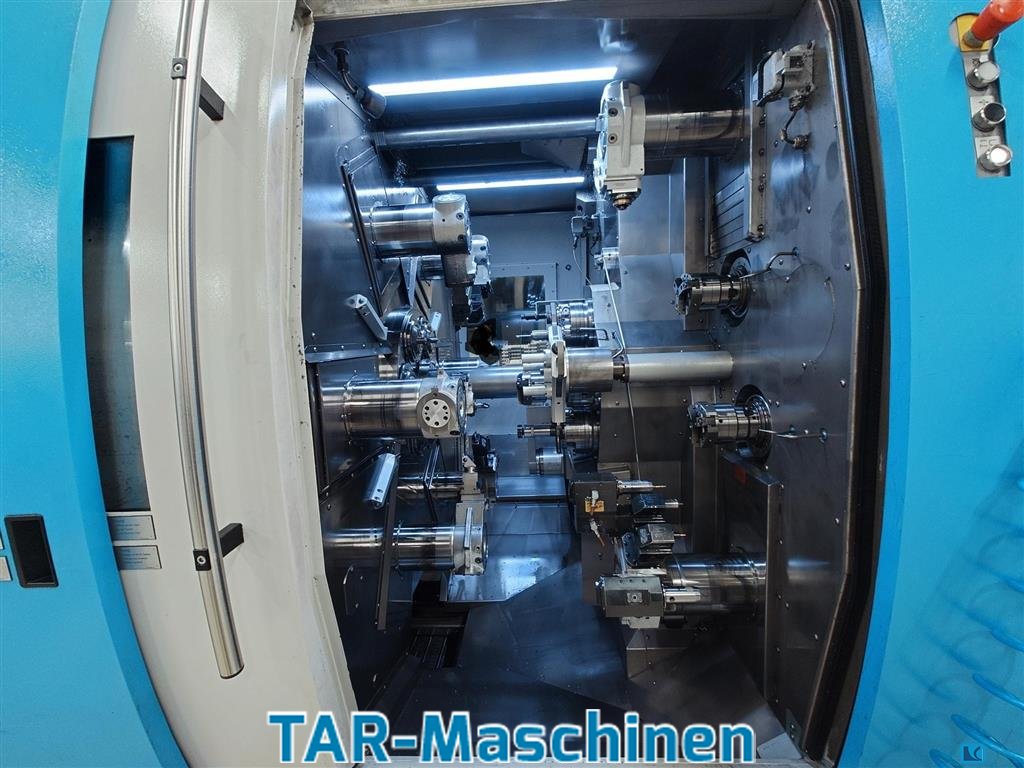

SCHUETTE SC9-46 Bar Automatic Lathe - Multi Spindle

number of spindles:9
spindle passage:46 mm
Article: CNC-controlled multi-spindle automatic lathe
Manufacturer: Schütte
Type: SC9-46
Yob: 2016
Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles
Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm
Cross slide units, transverse: 6 units, in positions I to VI,
Slide units, longitudinal: 5 units, in positions I to V,
Slide units, longitudinal: 5 units, in positions I to V,
Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm
Cross slide units, transverse: 2 units, in positions VIII and IX,
Control:
Siemens SINUMERIK 840SL with double NCU
Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,
Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)
Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximum expansion),
SIMATIC Step 7 configuration service tool, Teleservice
Further software:
Transmit and lateral surface transformation (TRACYL),
transformation ?double eccentric? (2RPT) for Z-slide longitudinal as Y-axis,
transformation ?double transmit? (DTRA, 22TRA) for Z-slide transverse as Y-axis,
interface external acquisition of machine status,
Comprehensive tool train equipment
Chip disposal
Cooling lubricant treatment system Knoll with full-flow filtration + additional filter,
Chip conveyor
Loading and unloading concept
Palletizing device for finished parts,
Cucchi BLT bar loading magazine
Fire extinguishing system
More:
Tool monitoring: Artis 8 channel, sensorless
Midex Tool monitoring of various positions,
various tools and devices for boring the jaws,
and much more...
