REFORM AR52 Typ 19 CNC Flat Grinding Machines
1 / 7

Technical data

· ID 170188175
Source: seller information

Flat Grinding Machines

Condition
used
Year of manufacture
2005
Location
Hilden

Identifikation

ManufacturerREFORM
ModelAR52 Typ 19 CNC
Item number1083-03208

Technik

Quantity1

Description

grinding length: 5200 mm
grinding width: 1000 mm
workpiece height: 320 mm

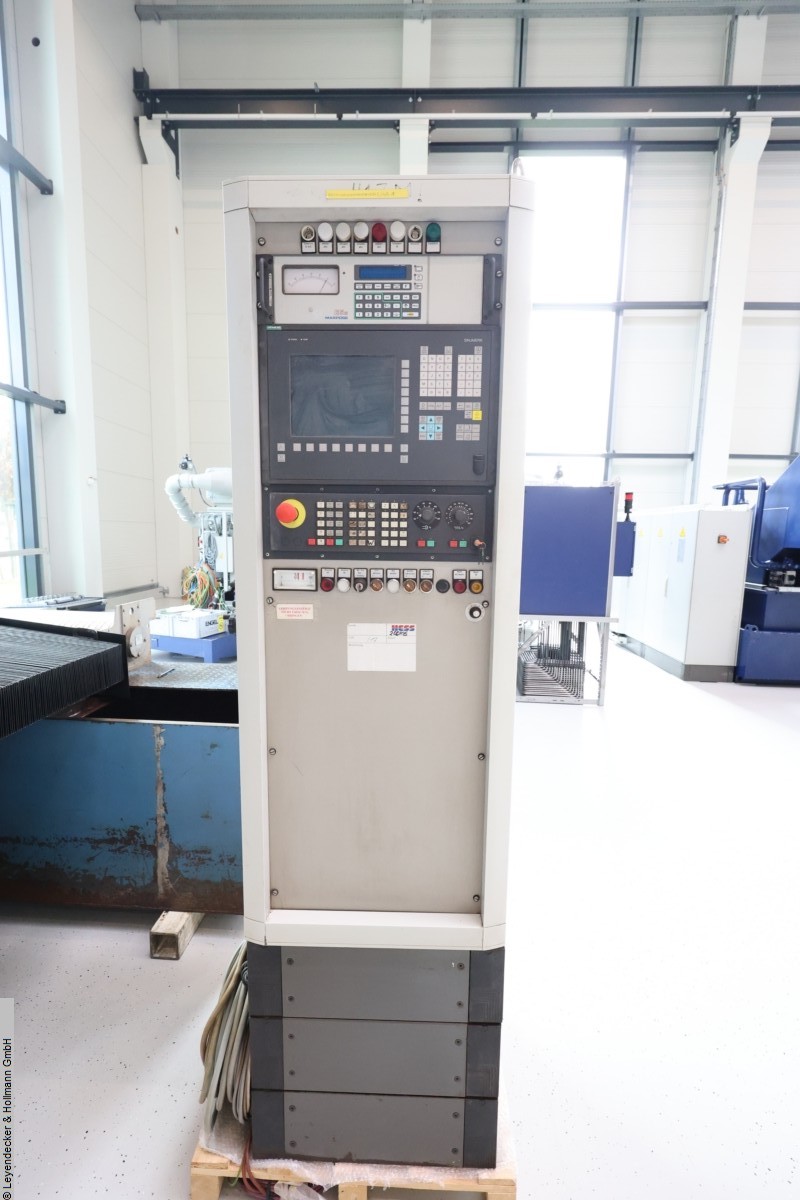

Control: Siemens 840D
Passage width: 1300 mm
grinding height: 320 mm
grinding motor: 306 kW
grinding motor turning speeds up to: 320 U/min
grinding motor feed, infinitely variable: 0,5-35 m/min
grinding motor adjustment in steps: 0,002-1 mm
grinding motor adjustment, continuously stepless: bis/upto 5 mm/min
dimensions of the machine ca.: 11,21 x 3,2 x 3,85 m

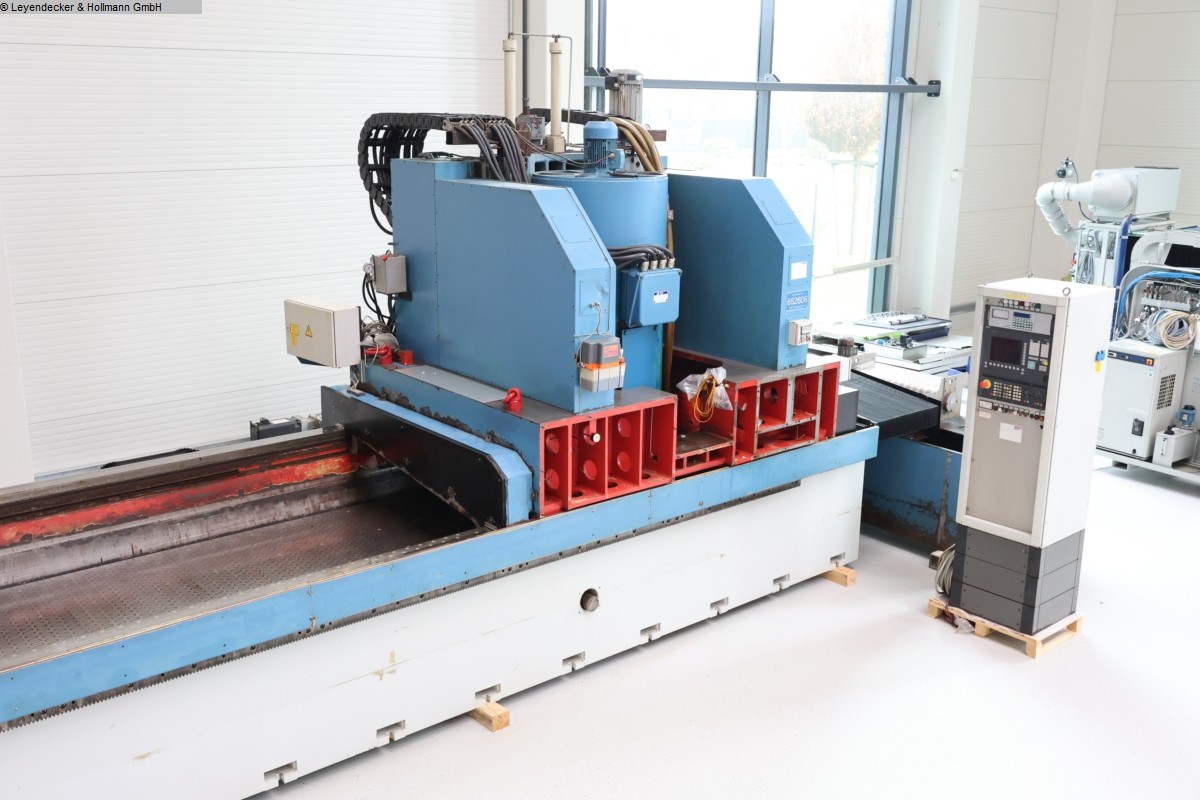

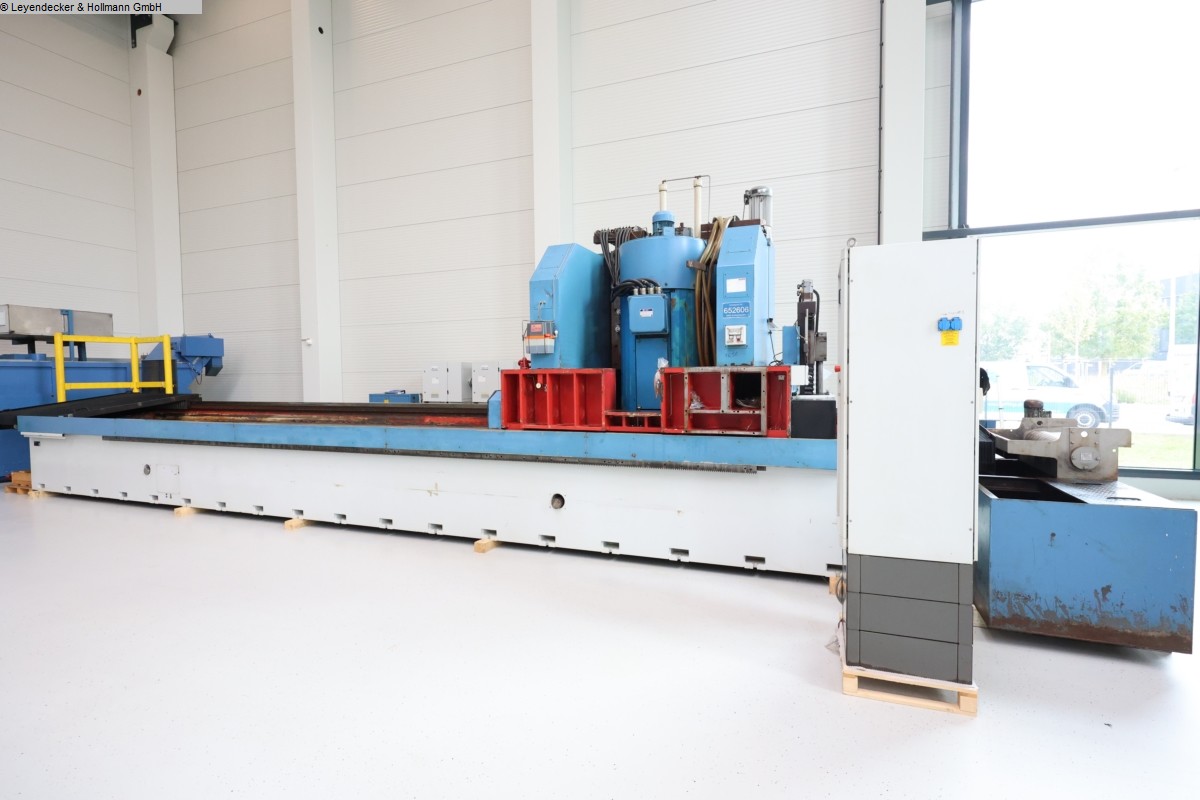

CNC production surface grinding machine with segment head
Equipment / Accessories:

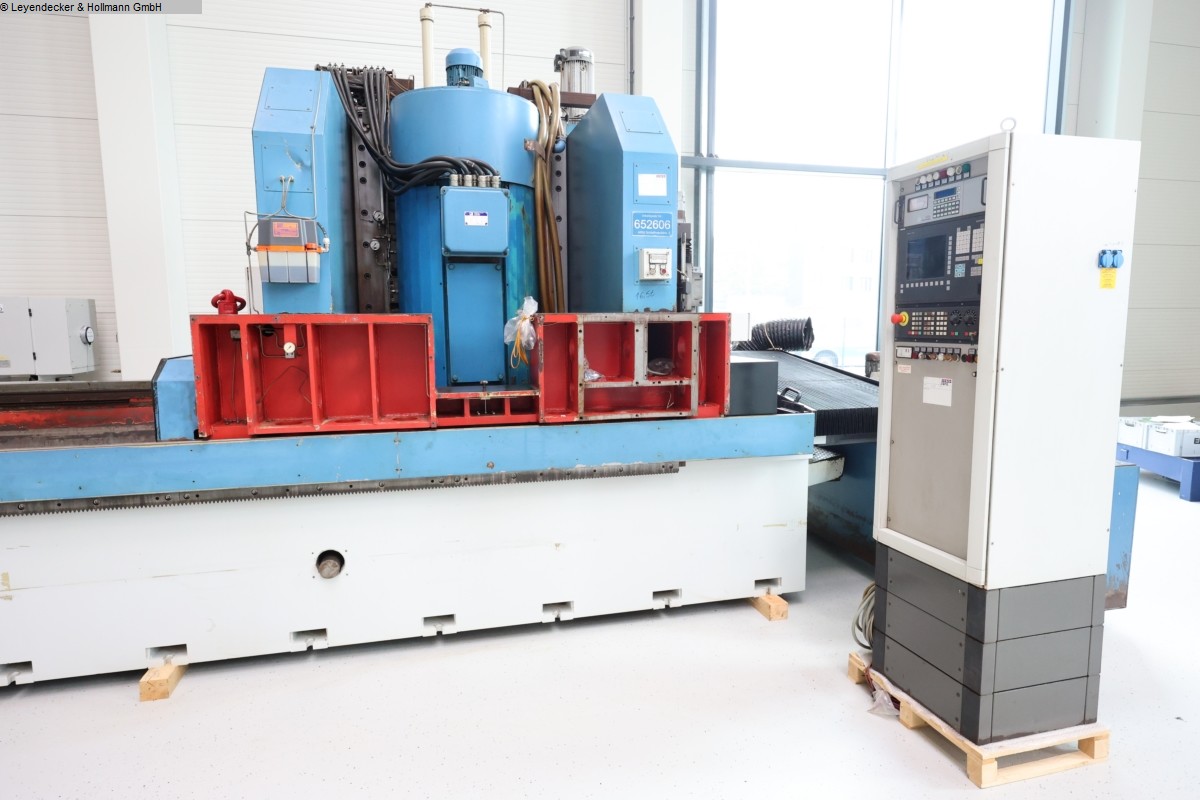

- with segment head, diameter 1400 mm
segment head dimensions: 120/106 x 41 x 250 mm
number of segments: 1 set = 26 pieces

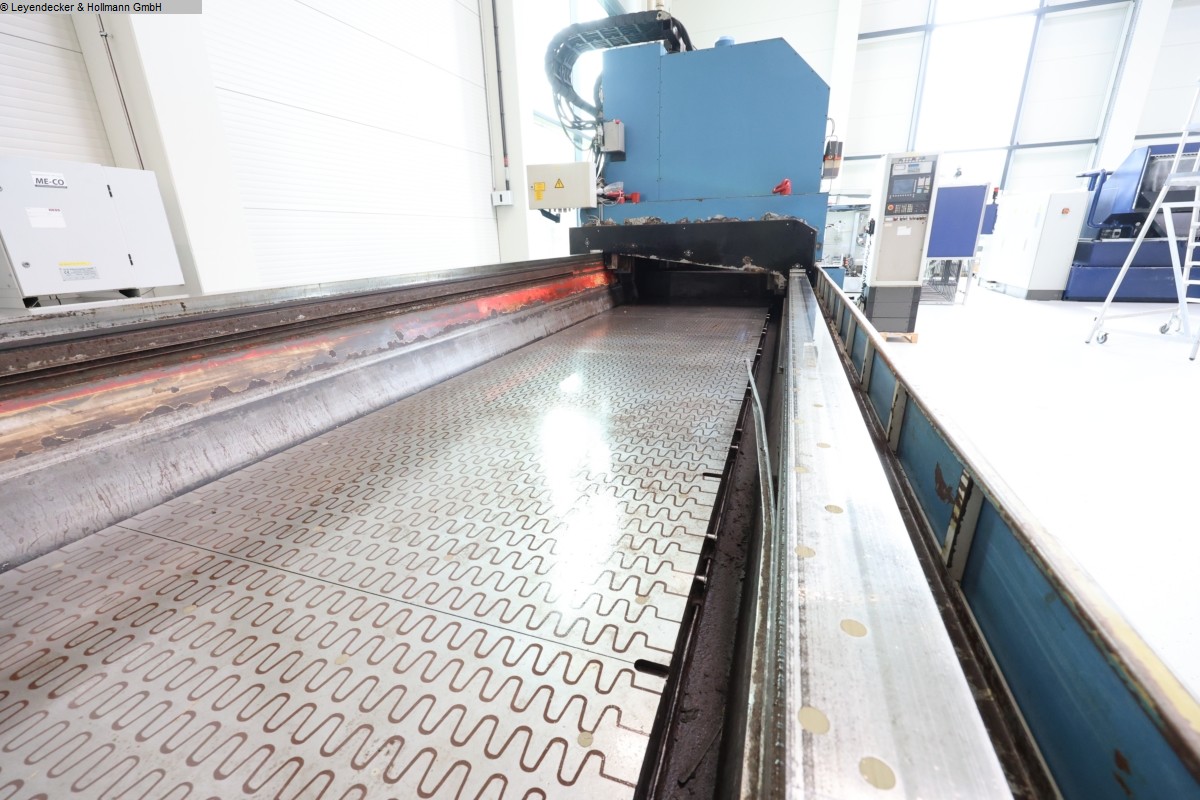

- with electro-magnetic table 5200 x 1300 mm
- Marposs measuring control
travel (Z1 axis), vertical: 420 mm
- coolant flow rate 2000 l/min
lifting station 2x pump for 1000 l/min
