Used Max Kettner filling monoblockTechnical Specifications &
Performance DataThis rotary swing-arm case packer for bottles is an
industrial packaging machine designed to pick grouped, filled, and
capped bottles from a conveyor and place them into open cartons with

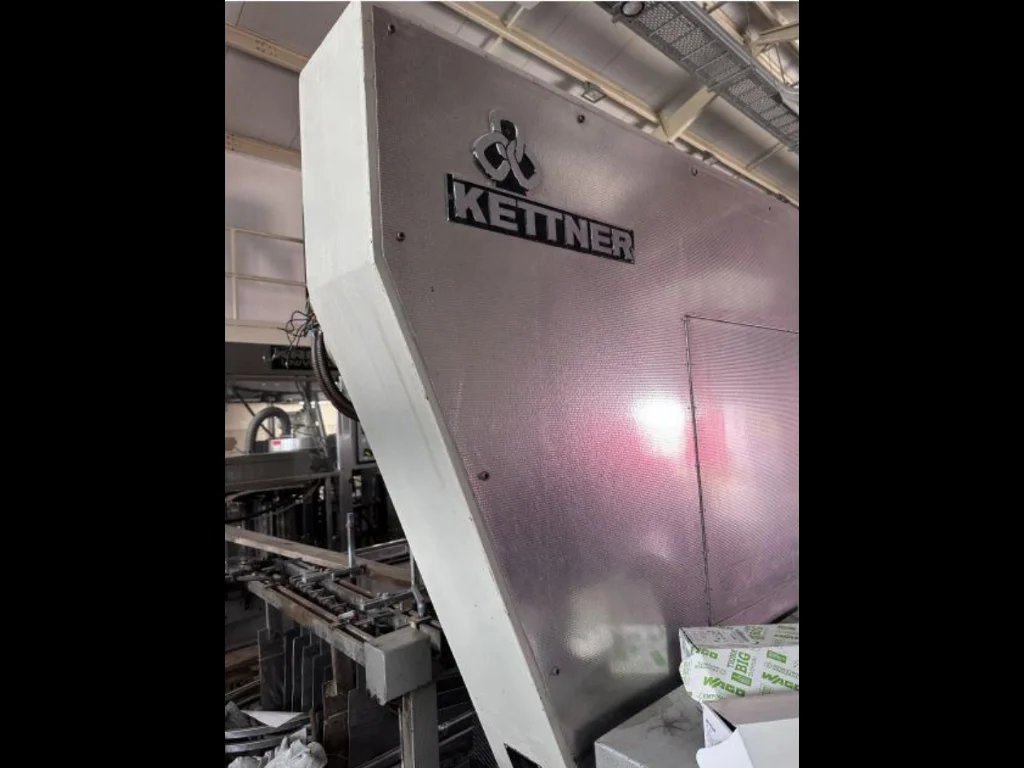

high reliability. Manufactured by Kettner, the BE 2/C-T Jun. is the
Junior two-head, T-table version, engineered for robust, repeatable
performance in beverage production and industrial packaging
environments. As a second hand solution, it integrates seamlessly into
a used bottling line, supporting both PET and glass bottle
handling.Manufacturer: KettnerModel/Version: BE 2/C-T Jun. (two-head,
T-table, Junior)Machine Type: Rotary swing-arm case packer for
bottlesYear of Manufacture: 1981Packing Principle: Swing-arm transfer
with gripper heads lowering grouped bottles into open cartonsHeads:

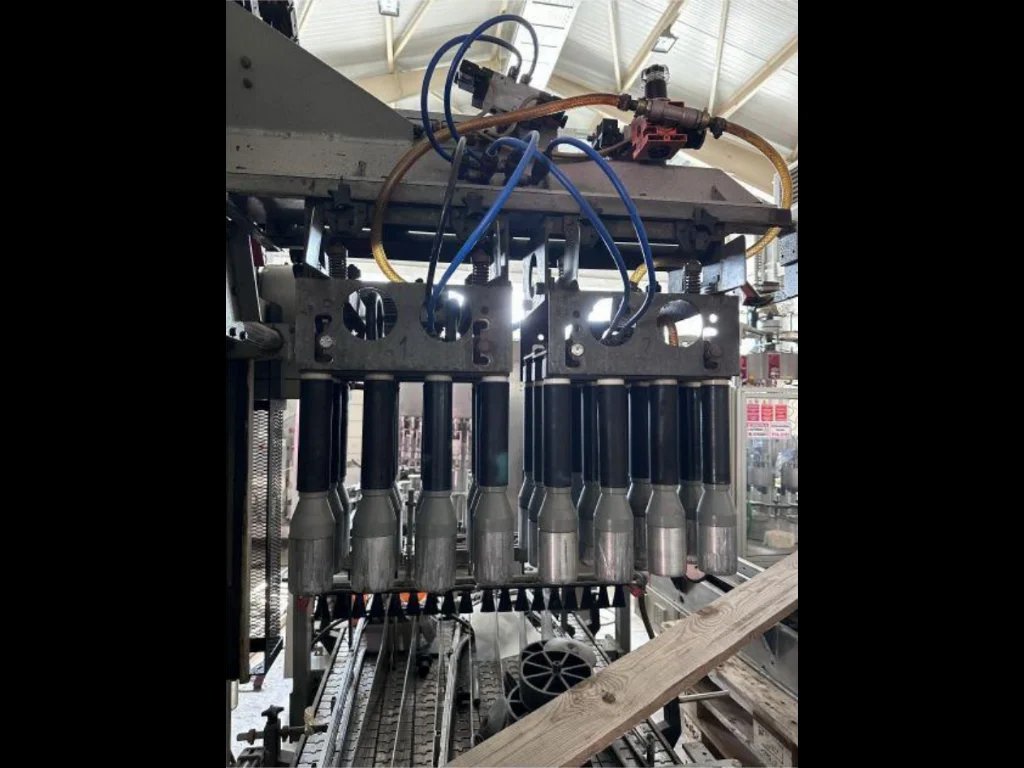

2Gripper Unit: Two blocks with rubberized gripper bellsOperating
Voltage: 220/380 VControl Voltages: 42 V and 24 VMachine Rated
Current: 10 ASupply Fuse: 16 AFrequency: 50 HzContainers: Designed for
PET and Glass bottle handlingAdvanced Automation & Control SystemsThe
machine employs proven relay/contactor logic for dependable operation,

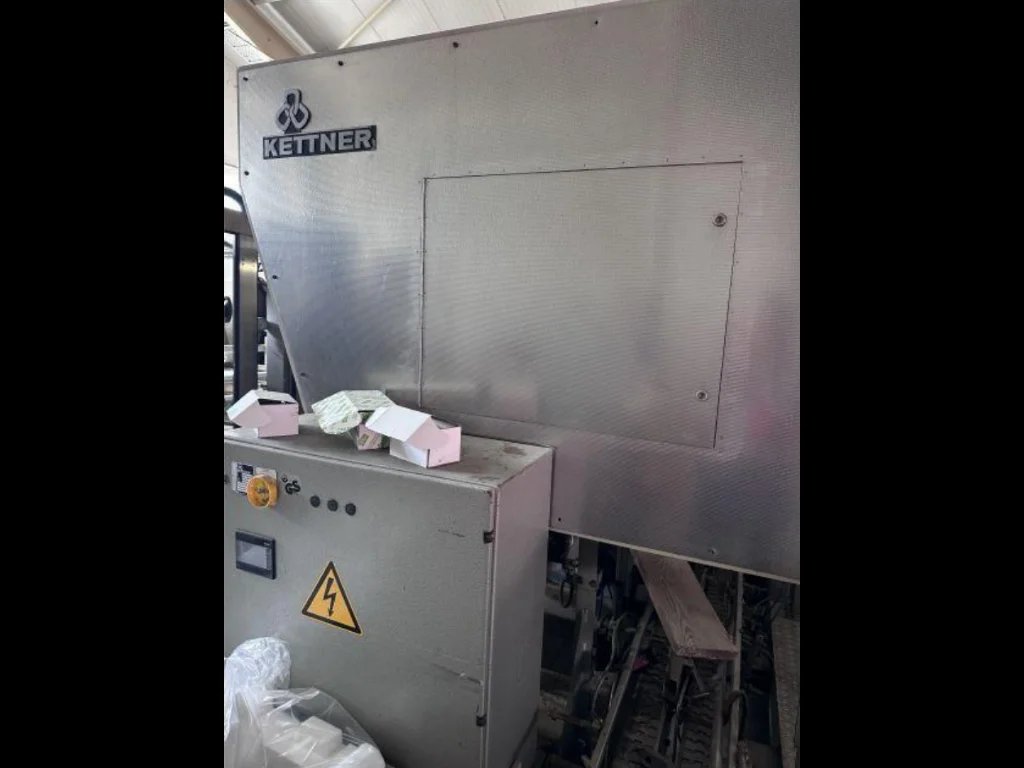

complemented by a retrofitted Omron display that modernizes one
subassembly and enhances operator feedback. It supports both automatic
and manual modes, giving flexibility during setup, troubleshooting,
and format changes on a used bottling line.Automation: Traditional
relay/contactor logicHMI: Retrofitted Omron display for status
indicationControl Modes: Automatic and manualManual Functions: Head
forward/back, basket down/up, carton out/in, air release, bottle
forward/release, home position recallElectrical: 220/380 V, 50 Hz, 10
A nominal machine current, 16 A supply fuseProduction Line Integration
CapabilitiesEngineered for smooth integration in beverage production,
this case packer accepts grouped bottles directly from upstream
filling and capping stations. It is suitable for standalone operation
with appropriate infeed/outfeed conveyors or as part of a complete
used bottling line for industrial packaging.Inline Compatibility:
Works with upstream fillers, labelers, and cappersContainers: PET and
Glass bottlesOperation Modes: Standalone or integratedHandling:
Designed to receive bottle groups from standard conveyorsMachine
Condition & Maintenance HistoryThe machine is presented as a second
hand unit in working condition, suitable for immediate integration in
production once commissioned. A partial modernization has been
performed through the addition of an Omron display on one subassembly,
improving operator interface without altering the core mechanical
reliability of the platform.Status: Ready for operationModernization:
Partial retrofit with Omron displayOperational Performance &
VersatilityWith its two-head configuration and robust gripper design,
the BE 2/C-T Jun. provides consistent transfer of grouped bottles into
cartons. The swing-arm mechanism offers precise, repeatable placement.
Its versatility makes it suitable for beverage production lines
handling a wide range of products and container materials,
particularly in industrial packaging applications seeking reliable,
second hand equipment.Applications: Beverage production and industrial
packagingBottle Handling: Groups of filled and capped bottles
transferred into open cartonsGrippers: Rubberized gripper bells for
secure handlingInstallation Requirements & Site
PreparationInstallation requires appropriate electrical service and
basic conveyor interfacing. Pneumatic utilities are recommended for
gripper actuation and air-release functions commonly used in
pick-and-place case packing.Power Supply: 220/380 V, 50 HzCurrent
Protection: 16 A supply fuse (nominal machine current 10 A)Pneumatics:
Clean, dry compressed air recommended for gripper and air-release
functionsIntegration: Connects to standard infeed/outfeed
conveyorsSafety Standards & Compliance CertificationThe case packer
incorporates standard industrial safety practices for operator
protection associated with its era and design. Safety notices are
present on the machine, and the control layout supports safe manual
jogging and setup procedures. Users should assess guarding and
interlocks to align with current site-specific and regional safety
requirements.Operator Safety: Manual and automatic modes with
controlled jog functionsSafety Notices: On-machine safety and
maintenance labelsHygiene: Suitable for beverage environments with
appropriate cleaning and maintenance procedures
