usava
Máquina não. 2037.04 Veja fotos !
novo
Coberturas telescópicas para eixos X e Z para muitas retificadoras CNC Studer S21, S31, S33, S40 etc. E para muitos outros fabricantes de máquinas a pedido.
usava
Studer S31 Spw.: 1000mm/ Sph.: 175mm Fanuc 16i- Controlo de TB Comissionamento 2004 Cursos: eixo X: 285mm/ eixo Z: 1150mm Retificadora cilíndrica universal 2x retificação externa e 1x interna
usava
Key data: 180 mm, 800 mm
Controle Fanuc 31 i - A Diâmetro máximo de usinagem 180 mm Comprimento máximo de usinagem 800 mm Eixo principal com mandril de potência 30 kN Contra-eixo com mandril pneumático Duas cabeças de moagem Torreta de ferramentas com 12 estações de ferramentas acionadas
usava
MAX DIAM 450 . COMPRIMENTO MÁXIMO 1600
usava
Key data: 1000 mm, 285 mm, 1000 mm
Studer S33 CNC Moedor cilíndrico universal Novo 2018 Controle CNC: sim Tipo de controlo CNC: Fanuc Oi-TD Capacidades e características: 350mm x 1000mm Dimensões da roda de moagem OD: 500 x 63 x 203,2 mm Curso do eixo X: 285 mm Curso do eixo Z: 1000 mm Resolução: 0,0001 mm Peso máximo da peça de trabalho entre centros: 80 kg Mesa giratória: -15 - +225 Indexação: Acoplamento automático de 1 Hirth do eixo B Tamanho da roda de moagem: 500 x 63 x 203,2 mm Velocidade periférica máx.: 50 m/seg Capacidade de potência do motor: 14.47HP / 11kW Cabeça do fuso da peça de trabalho: Veja as especificações abaixo: Veja as especificações abaixo Número de rotações: 1 - 1.500 rpm Capacidade de potência do motor da cabeça de trabalho: 1,6 / 3 kW Passagem do eixo: 30 mm Cone de encaixe: MK 5 Altura central: 175 mm Carga horária: 80 kg Mac ...
usava
Moagem Studer S21 Lean CNC :::ESPECIFICAÇÕES::: Modelo CNC: Fanuc Versão CNC: 21i-T Curso do eixo X: 254mm Curso do eixo Z: 483mm Banda da roda de moagem: 40mm Diâmetro da roda de moagem: 400mm Outros dados técnicos: Cabeça de moagem giratória (B) -15°/+195° 1° 2 rebolos ao ar livre 1 rebolo interior Rebolo externo 400 mm x 40 mm x 127 milímetros 4 kW Cabeça da peça CM 4 :::D IMENSIONS E PESO::: Comprimento: 2300mm Largura: 2000mm Altura: 2100mm Peso: 4300Kg
usava
Máquina de moagem cilíndrica externa CNC, marca Studer, tipo S40-4, Bi 1987, Os documentos estão disponíveis. O preço é líquido
usava
Diâmetro de moagem 250 mm Comprimento de moagem 650 mm Largura central 700 mm Altura da ponta 125 mm Diâmetro da roda de moagem 400/450 mm Largura da roda de moagem 50/80 mm Velocidade do eixo da peça de trabalho até 675 1/min Peça de trabalho girado +/- 45 ° Cómoda Dispositivo de medição Sistema de refrigeração Roda de moagem
usava
Comprimento de moagem
usava
- Eixo interno de moagem - Ecrã digital Heidenhain Altura máxima de 100 mm Largura da ponta 450 mm Rodas moer de 300 mm Tamanho da mesa 950x200 mm Caminho longitudinal 450 mm Cone de fuso MK 5 Velocidade do fuso continuamente 40 - 650 rpm Mesa giratória +/- 10 graus Peso aprox. 1700 kg Dimensões 1570x1100x1400 mm
usava
CONTROLS CNC controls FANUC WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 650 mm TAILSTOCK distance betw. centers (max): 650 mm sleeve stroke: 35 mm sleeve diameter: 80 mm taper: MK 3 SPINDLESTOCK GRINDING SPINDLE tilting range (B-direction) min: 0 ° rotating range B-axis up to: 8.5 ° - mode of operation: manual GRINDING TOOL type of grinding tool: wheel diameter (max): 500 mm width: 63 mm ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 2670 mm space requirements -front/back-: 2100 mm total height: 1800 mm ATTACHMENTS (GRINDING) internal grin ...
usava
CONTROLS CNC controls GE FANUC SERIES 16 GC WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 350 mm workpiece weight between centers (max): 130 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 1000 mm WORKPIECE SPINDLESTOCK spindle revolutions (min): 30 /min spindle revolutions (max): 1000 /min continuous speed variation: yes c-axis: yes TAILSTOCK distance betw. centers (max): 1000 mm SPINDLESTOCK GRINDING SPINDLE Z-axis travel: 1000 mm tilting range (B-direction) min: 0 ° rotating range B-axis up to: 210 ° drive power: 7.5 kW GRINDING TOOL type of grinding tool: wheel diameter (max): 500 mm SPINDLESTOCK INTERNAL GRINDING tilting ran ...
usava
CONTROLS CNC controls FANUC 310I-A WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 180 mm workpiece weight between centers (max): 25 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 400 mm grinding length: 1000 mm TAILSTOCK distance betw. centers (max): 1000 mm taper: MK 4 Z-axis travel: 1600 mm SPINDLESTOCK GRINDING SPINDLE X-axis travel: 220 mm Z-axis travel: 1600 mm tilting range (B-direction) min: 0 ° rotating range B-axis up to: 25 ° drive power: 6.8 kW GRINDING TOOL type of grinding tool: wheel diameter (max): 400 mm borehole: diameter: 127 mm ELECTRICAL SPECIFICATIONS mains power supply: 45 kVA mains voltage: 400 V mains frequ ...
usava
CONTROLS digital read out WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 200 mm workpiece weight between centers (max): 400 kg workpiece weight flying (max): 20 kg WORKPIECE SPINDLESTOCK spindle revolutions (min): 80 /min spindle revolutions (max): 800 /min tool fixture: MK 4 TAILSTOCK distance betw. centers (max): 400 mm sleeve stroke: 20 mm taper: MK 2 SPINDLESTOCK GRINDING SPINDLE spindle revolutions (min): 1600 /min spindle revolutions (max): 2200 /min drive power: 3 kW GRINDING TOOL diameter (max): 350 mm borehole: diameter: 127 mm width: 30 mm
usava
CONTROLS CNC controls FANUC 0I-TFP WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 350 mm workpiece weight between centers (max): 80 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 500 mm WORKPIECE SPINDLESTOCK spindle revolutions (max): 1500 /min drive power: 3 kW spindle bore diameter: 30 mm tool fixture: MK 5 c-axis: yes - positioning/indexing: 0.5 ° TAILSTOCK distance betw. centers (max): 400 mm sleeve stroke: 60 mm taper: MK 4 SPINDLESTOCK GRINDING SPINDLE X-axis travel: 370 mm Z-axis travel: 500 mm tilting range (B-direction) min: 60 ° drive power: 9 kW GRINDING TOOL diameter (max): 500 mm ...
usava
grinding diameter:400 mm grinding length:650 mm centre height:125 mm total power requirement:5/8,25 kW weight of the machine ca.:3,4/3,5 t
usava
grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m
usava
internal diameter: mm grinding depth: mm centre height:175 mm grinding length:120 mm longitudinal and cross slide:300 grinding wheel diameter:10 mm grinding wheel speeds:90.000 U/min Z-axis:300 mm Incl. automatic feeding B-Axis
usava
grinding diameter:300 mm grinding length:540 mm centre height:175 mm total power requirement:20 kVA centre distance:1000 mm
usava
grinding diameter:50 mm grinding length:100 mm centre height:100 mm centre distance:200 mm
usava
CNC : Fanuc 21i-TB Internal and External Grinding Machine : Distance between centers : 1000mm Center heights : 175 mm Tailstock :
usava
Description: Serial Number: 020.0658.90.079 grinding diameter: 300 mm, grinding length: 500 mm, table slide longitudinal travel max.: 267 mm, control: GE Fanuc Series 16-T, weight approx.: 3,800 kg, Approx. Onsite Dimension. (l x w x h): 2,000 x 2,500 x 2,000 mm
usava
Description: FANUC control system Two external and one internal grinding spindle Machine must be collected in mid-June 2024 Machine no.: 022.0102.90.017, max. travel of longitudinal slide: 1050 mm, max. speed of longitudinal slide: 10,000 mm/min, max. inclination of table: 8.5 degrees, max. travel of cross slide: 275 mm, max. speed of cross slide: 10,000 mm/min, max. workpiece weight between centres: 130 kg, max. quill travel 35 mm Attention: Clamping device and measuring system are not included in the scope of delivery Approx. Onsite Dimension. (l x w x h): 2,500 x 4,000 x 2,000 mm, weight approx.: 4,000 kg
usava
Description: Serial number 046, control FANUC 16 I-T, ,Machine number: 202552, max. sanding length: 200 mm, max. Z-axis travel: 500 mm, max. speed: 10,000 mm/min, max. X-axis travel: 120 mm, max. speed: 5,000 mm/min, fixed sanding spindle bore 120 mm, speed range: 0-1500 min, spindle clearance: 50 mm, spindle torque: 30 Nm Attention: Clamping device and measuring system are not included in the scope of delivery Approx. Onsite Dimension. (l x w x h): 3,100 x 2,000 x 2,100 mm, weight approx.: 6,000 kg
usava
Machine in good technical condition, after agreement possibility of testing. Grinding diameter Ø 250 mm Grinding length 750 mm Size of grinding wheel 400 x 50 mm. Length 2400 mm Width 1300 mm Height 1500 mm.
usava

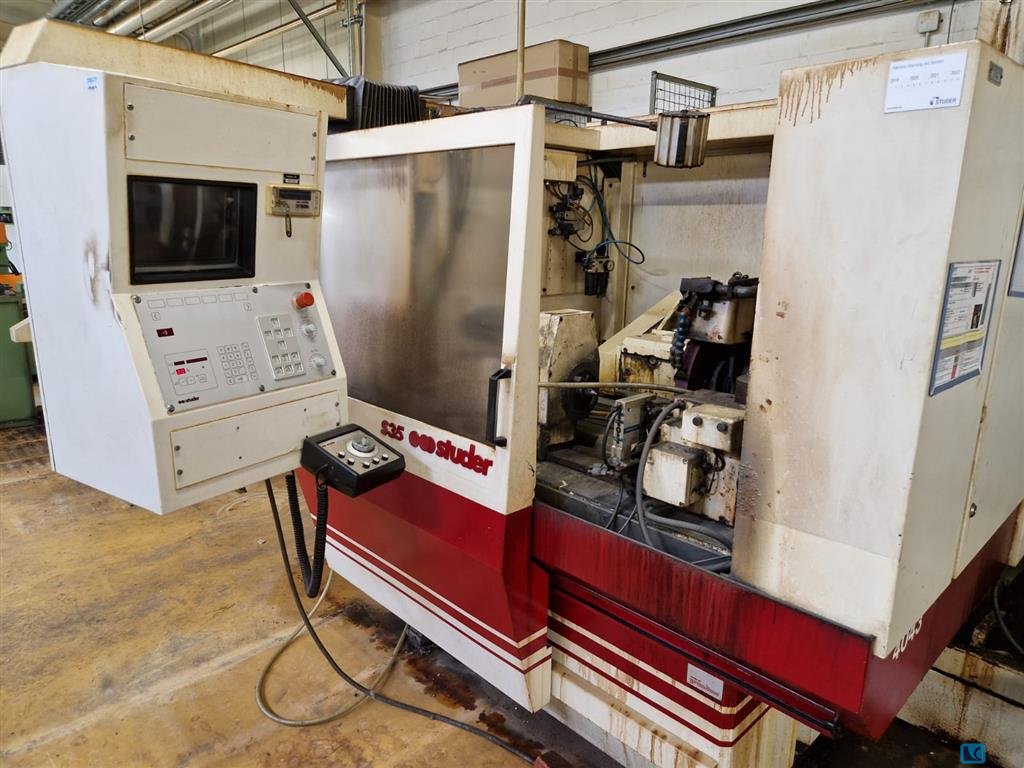

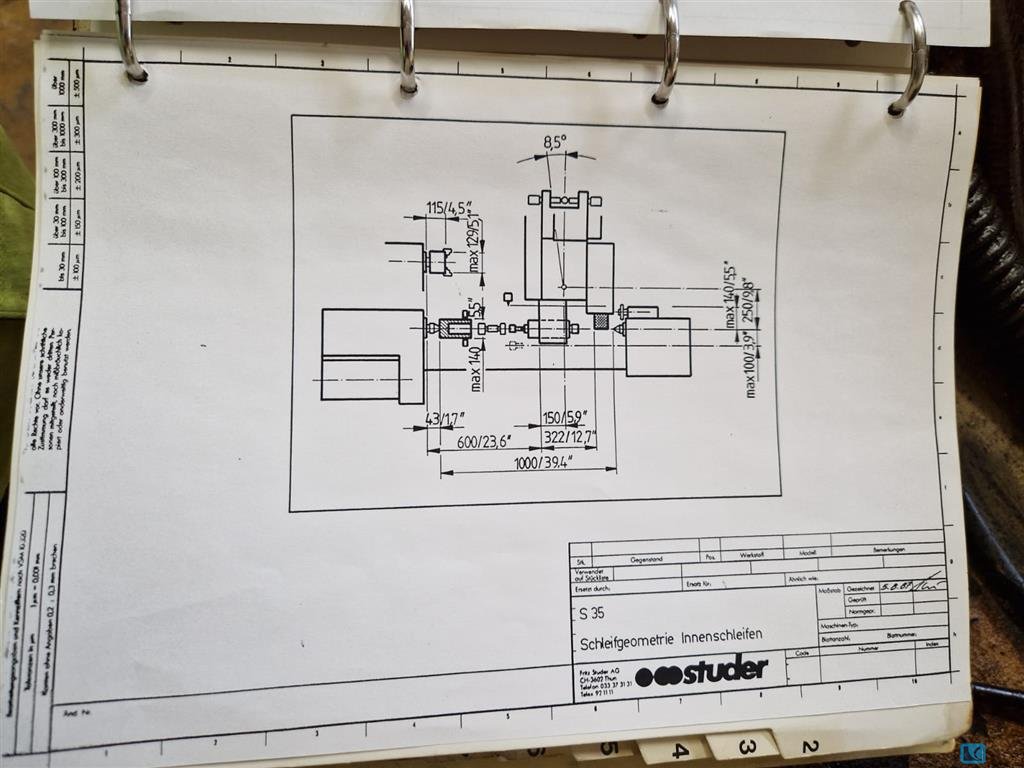

- - -: - - - - - -: - - - -: - - - - Retificadora cilíndrica | STUDER - S 35 A máquina está em boas condições e pode ser inspecionada sob potência a qualquer momento no local da fábrica suíça. Dados técnicos da máquina seguirão em breve. - - - - #Tags- S-35
usava
Description: Center height 175 mm, center width 1000 mm, maximum longitudinal slide travel 1050 mm, longitudinal slide speed 0.0001 to 10000 mm per minute, maximum table inclination 8.5 degrees, maximum cross slide travel 275 mm, maximum cross slide speed 0,0001 to 10000 mm per minute, quill travel of tailstock 35 mm, maximum workpiece weight between centers 130 kg, speed range of workpiece spindle 30 to 750 rpm, including manual operation and existing documentation, machine number 011.0126.60.021 control: GE FANUC SERIES 16-GC, weight approx.: 6,000 kg, Approx. Onsite Dimension. (l x w x h): 4,400 x 2,300 x 2,600 mm
usava
altura central: 100 mm distância central: 650 mm diâmetro da roda de moagem x largura: 350x32 mm diâmetro do furo da roda de moagem: 127 mm peso da máquina ca.: 2,3 t dimensões da máquina ca.: 2 x 1,6 x 1,8 m
usava
Distance between centers : 1000 mm Centers height : 175 mm Grinding wheel holder headstock orientation : 0 - 180 ° Grinding wheel holder headstock indexing precision : 5 ° Grinding wheel dimensions : 500 x 63 x 203 mm Cutting speed : 35 m/sec Headstock power : 7.5 kW Maximum workpiece weight : 130 kg Table orientation : 10 ° headstock rotation speed : 35-520 rpm EQUIPMENT : Sensitron 6 : Internal grinding spindle : 1 Measuring head MOVOMATIC ES124 for the diameter : 1 Tailstock : 1 Diamond grinding device for external wheel : 1 Radius grinding devic : 1 Display 2 axes HEIDENHAIN : 1 Lubricating tank with paper filtration : 1 Set of grinding wheel holders and grinding wheels : 1
