GROB máquina utilizada para venda

Key data: 800 mm, 1020 mm, 970 mm

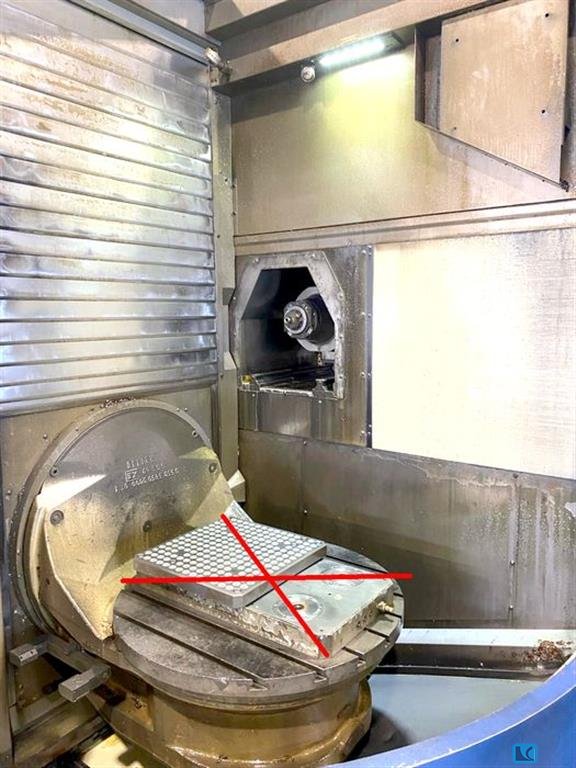

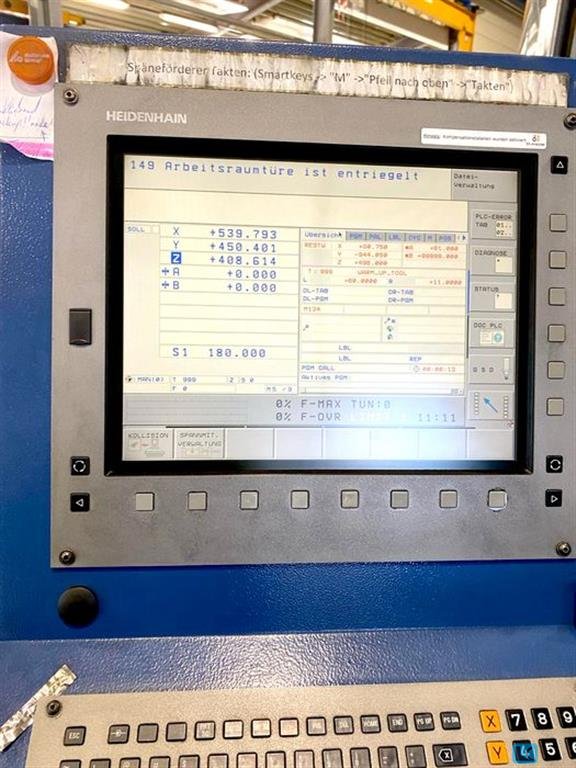

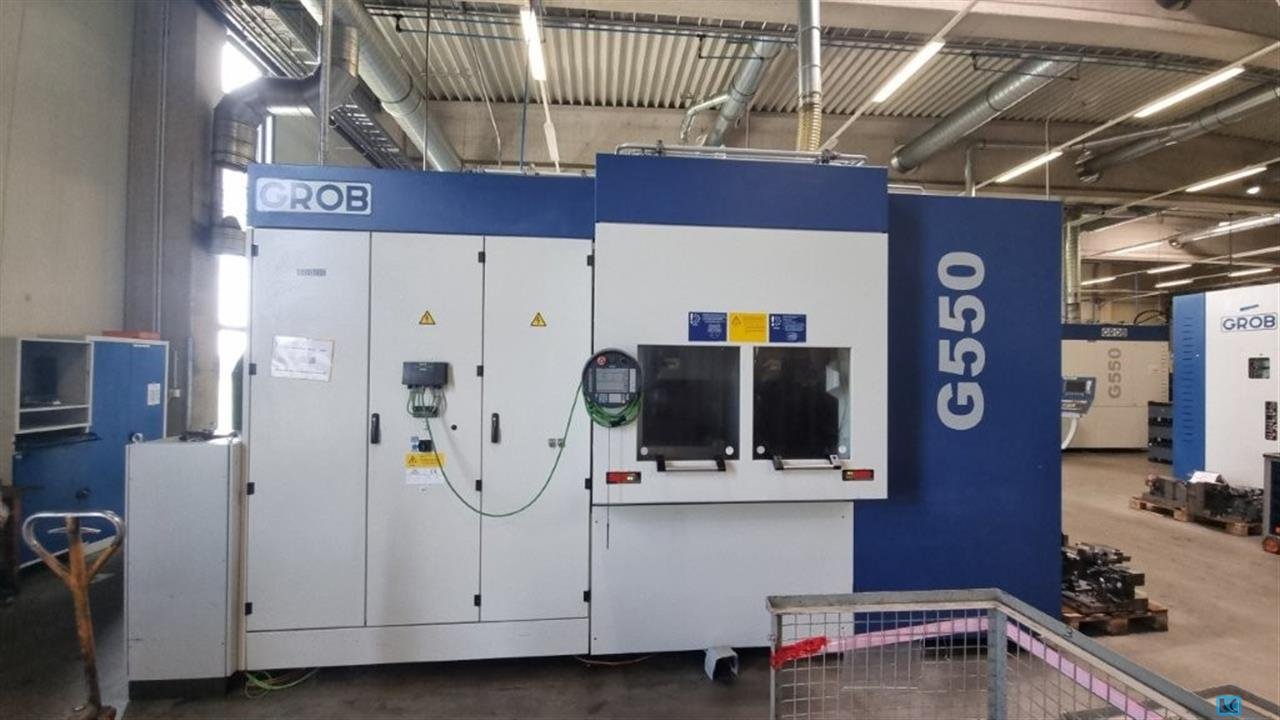

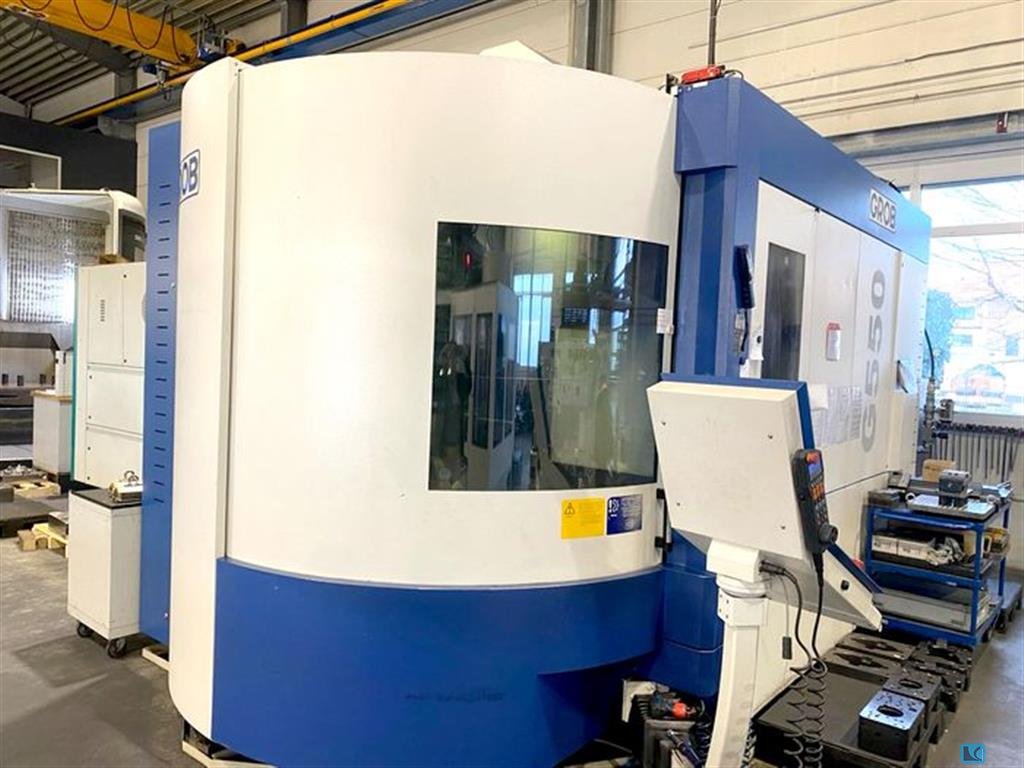

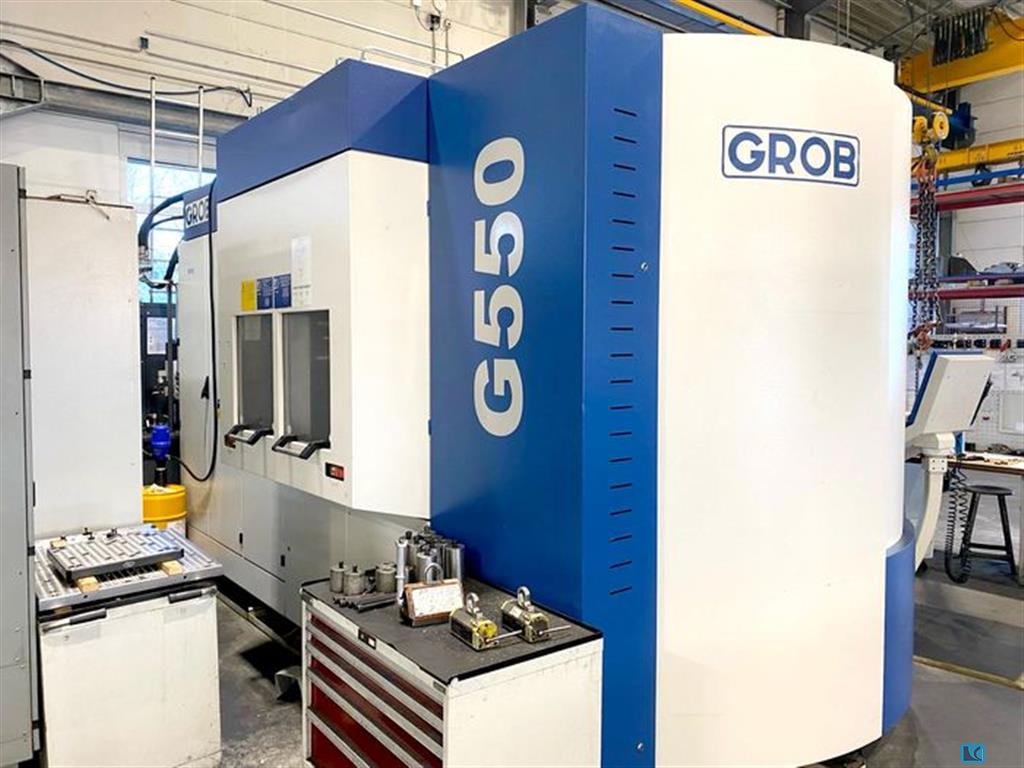

grosseiro G 550 / 5 eixos, Ano de construção 2016, Controle Heidenhain iTNC 530, viagens X/Y/Z 800/1020/970, Schuler Automação LMC 900, 15 espaços para paletes, Tamanho da palete 600 x 600 mm, Ww 60 velocidade, Revista adicional 218 lugares, HSK 63, Velocidade do eixo até 16.000 rpm, novo fuso Februrar 2024, Mesa rotativa giratória de 2 eixos NC Ø 770 mm, Um eixo -185° / + 45°, Eixo B 360°, IKZ, Transportador Automático. Desligado e ligado, Sonda 3D Heidenhain, Opção cinemática,

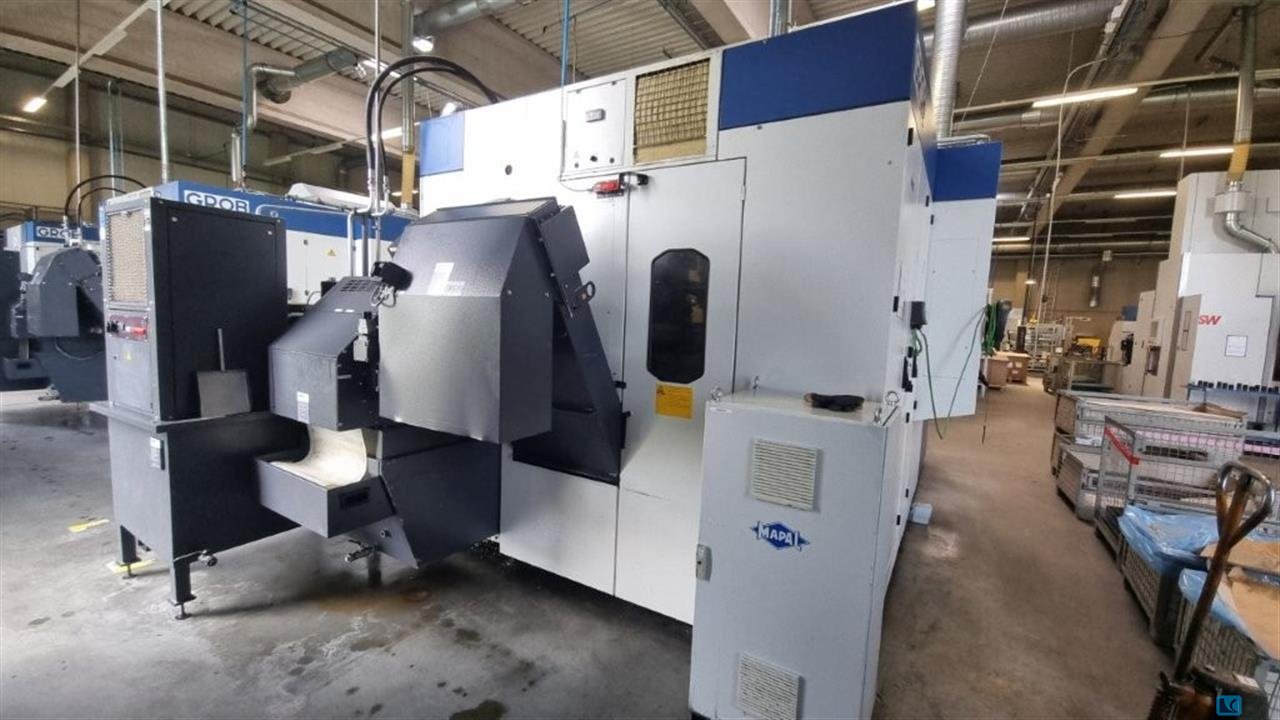

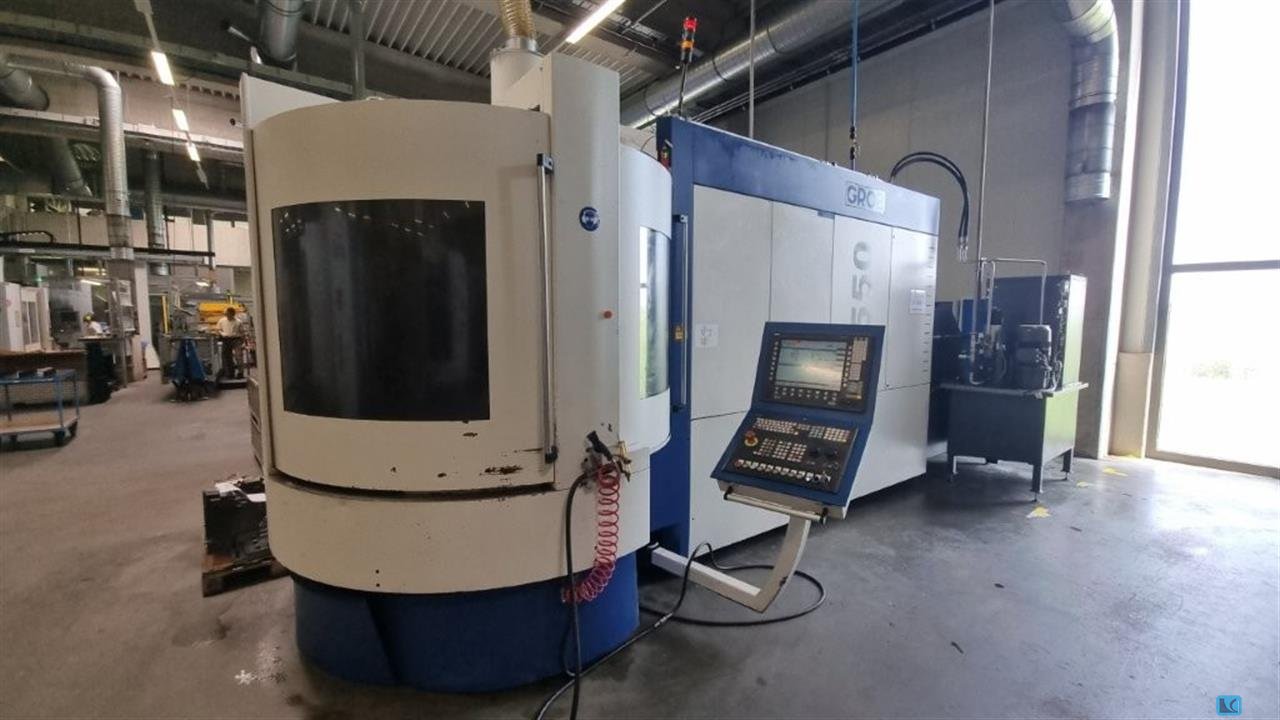

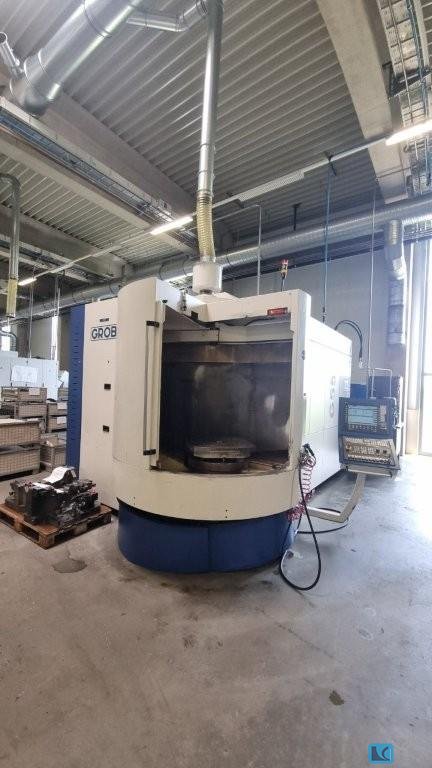

Centro de maquinação de 5 eixos com 2 vezes trocador de paletes Viagem x/ y/ z = 600/ 770/ 675 mm Tabela giratória/rotativa (eixo A/B) Trocador de paletes 2 vezes Tamanho da palete 400x400 mm Velocidade do fuso até 16.000 1/min Potência do eixo 160/ 223 Nm Revista de ferramentas 34 vezes + posições adicionais de ferramentas da revista 99 Suporte de ferramentas HSK 63 - Controle Siemens 840D sl - Revista adicional TM99 - Abertura/fecho automático para carga e descarga manual - Paletes com ligações fluidas (ligações de engate) - Dispositivo de comprimento da ferramenta eletromecânica - Sonda de infravermelhos Renishaw - Fornecimento interno de refrigerante, infinitamente variável até 38 bar - Unidade de controlo portátil - Extração de espaço de trabalho - Diagnóstico remoto de máquinas - Sistema de proteção automática Brankamp - Fixação hi ...

GROB BANDSAEGE VERTIKAL TIPO NS 18 - Uitlading 450 mm - 12/600 m/min - Zwenkbare werktafel - 380V DUTCHMACH Máquinas de metalomecânica ENSCHEDE - PAÍSES BAIXOs (3 km da fronteira alemã)

Travel X/Y/Z: 800mm/690mm/630mm, max. spindle speed: 15000 rpm, drilling capacity: 30mm. Table size X/Y: 630mm/630mm, max. workpiece weight: 1100kg, control: Siemens Sinumerik. Dimensions X/Y/Z: 6000mm/2900mm/2400mm, weight: approx. 25000kg. Spare parts available. Including chip conveyor and separate coolant system.

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Double-Spindle Mechanical processing cylinder head VR6

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:HEIDENHAIN iTNC 530 table load capacity:800 kg tool taper:HSK 63 turning speeds:16.000 1/min spindle:35 / 25 kW table-size:770 mm max. torque on the spindle:160 / 223 Nm tool change unit:120 (2x60) Pos. weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis), milling head horizontal, internal coolant device (10-80bar), oilmist-suction, electromech. tool-length measuring device GROB, chipconveyor, 3D touch probe, KINEMATICOPT, BLUM laser, el. handwheel, hour meter: approx. 80.500 h "machine on", approx. 48.500 h "spindle on"

x-travel:800 mm y-travel:840 mm z-travel:865 mm total power requirement:24 kW weight of the machine ca.:15,5 t dimensions of the machine ca.:4 x 3 m 5 axes, 1 spindle A axis -30TO + 210 DEG B axis 360 x 0.001 Axis speed: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle: 29 KW max. spindle speed = 1200 rpm max. torque = 34.6 Nm Tools: HSK-A63 87 places in the magazine

x-travel:800 mm y-travel:840 mm z-travel:865 mm control:Siemens 840 D spindle speeds::10.000 rpm spindle drive motor:20 kW weight of the machine ca.:16 t dimensions of the machine ca.:4 x 3 m 4 axes, 1 spindle A axis 360 x 0.001 Axis speeds: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle torque = 262 Nm Spindle 20KW / 10,000 rpm Tool HSK-A100 57 places in the magazine

weight of the machine ca.:11,2 t one spindle

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:600 mm y-travel:655 mm z-travel:685 mm weight of the machine ca.:17 t dimensions of the machine ca.:4x3,1x3,1 m

x-travel:750 mm y-travel:840 mm z-travel:865 mm weight of the machine ca.:23 t Cylinder Head Housing / Steel ZKG steel 2 spindles 4 axes A axis 360 x 0.001 Spindle: 20kW each, 8,000 rpm each HSK-A63 2 x 40 pos. Without loading / Transfer

x-travel:600 mm y-travel:655 mm z-travel:675 mm weight of the machine ca.:22 t dimensions of the machine ca.:4,0 x 3,20 x 3,20 m 2 spindles, 5 axes B axis 360 x 0.001 Spindle: 20kW each, 12,000 rpm HSK-A63 2 x 40 pos. For technical data see attached PDF Machining center G 320 AB with swivel changer Project: GM 4284/01-01 to 06 Process: Production of cylinder head cover Al Si 9 Cu 3 Minimum quantity lubrication 1-channel Lubrix 2x5bar/4x10bar Lubricant Eccocut Micro Plus20 Tool magazine 2x40, cone cleaning Tool holder HSK 63 tool breakage control Tool monitoring Artis probe BDE connection Control Siemens 840D Solution Line NCU 720.2 (730.2) PN with PLC319-3PN/DP

x-travel:750 mm y-travel:800 mm z-travel:865 mm weight of the machine ca.:23 t dimensions of the machine ca.:4,93 x 3,50 x 3,28 m b-axis:360 (0,001) ° with B axis 360 x 0.001 2 spindles (each 29 KW, 12,000 rpm) Tool: HSK-A63 2 x 40 places

x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes

x-travel:750 mm y-travel:840 mm z-travel:865 mm number of spindles:2 From cylider crank case production 2 spindles HSK-A63 4 axes, A-axis

Description: Machine no. 218 Control: conventional Workpiece diameter 115 mm Workpiece length 2150 mm Toothing diameter 120 mm Number of teeth - max. 96 Number of teeth - min. 12 Rolling head speed 1,800 rpm Feed rate 30 - 180 mm/min Rapid traverse 1,800 mm/min Total power requirement 20 kW Approx. Onsite Dimension. (l x w x h): 5,700 x 3,000 x 2,300 mm, weight approx.: 11,000 kg

garganta: 450 mm Dimensões da mesa: 610 x 610 mm : 3660 x 6 mm necessidade de potência total: 1,5 kW peso da máquina ab.: 600 kg dimensões: 1150 x 1000 x 1950 mm

This GROB G350 Universal Machining Center was manufactured in the year 2011 and has 54019 hours, of which 17507 are spindle hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 18000 rpm.

curso x: 750 mm y-curso: 1000 mm z-curso: 870 mm Controlo: 840 D potência total necessária: 29 kW peso da máquina ca.: 22,5 t dimensões da máquina ca.: B 3,2 x L 6 x A 3.3 m

x-travel: 800 mm y-travel: 1020 mm z-travel: 970 mm Control: HEIDENHAIN iTNC 530 : 18000 min/-1 Feeds (X,z,u,w-axis): 29 / 39 kW tool taper: HSK 63 : 60 Pos. rapid travel x/y/z: 65/50/80 mm/min table diameter: 630 x 630 mm table load capacity: 700 kg max. workpiece diameter: 900 mm A-Axis: -185 / +45 ° b-axis: 360 ° total power requirement: 42 kVA weight of the machine ca.: 22 t dimensions of the machine ca.: m 5-axis BAZ Equipped with: - CNC control HEIDENHAIN iTNC 530 - pallet changer 2-fold (630x630mm) - tool changer 60-fold (HSK-A63) - Swivel rotary table (A-/B-axis) - IKZ 4-38 bar - chip conveyor - belt filter system - spindle cooling 6 Machines available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressão: 7 t diâmetro máximo da peça: 43 mm comprimento da rosca: 3000 mm ângulo de rotação para o fuso de trabalho: 10 potência total requerida: 6,5 kW de peso da máquina ca.: 1.280 kg dimensões da máquina ca.: 1,4x1,8,1,4 m

x-travel: 600 mm y-travel: 855 mm z-travel: 750 mm table surface area: 400 x 400 mm clearance diameter: 720 mm pivoting angle: -185 / +45 Grad workpiece weight: 340 kg table rotation speed: 50 U/min tool taper: HSK-A 63 spindle turning speed - stepless: 12000 U/min spindle motor: 40 kW tool diameter: 70 mm tool length - max.: 365 mm weight of tools max.: 8 kg rapid travel range: 70/45/90 m/min control: Heidenhain iTMC 530 total power requirement: 54 kVA weight of the machine ca.: 15 t dimensions of the machine ca.: 6,1 x 2,47 x 3,17 m The 5-axis universal machining center G350 offers nearly unlimited possibilities in the milling of workpieces of various materials. materials. equipped with: - CNC control Heidenhain iTNC 530 - 2-fold Pallet Changer - NC swivel rotary table (A-/B-axis) - tool changer 40 places (HSK A63) - IKZ / coolant system 3-22,5bar - chip conveyor The data for this ad ...

x-travel: 600 mm y-travel: 855 mm z-travel: 750 mm table surface area: 570 mm clearance diameter: 720 mm workpiece weight: 400 kg pivoting angle: -185 / +45 Grad table rotation speed: 50 U/min tool taper: HSK-A 63 spindle turning speed - stepless: 12000 U/min spindle motor: 40 kW tool diameter: 70 mm tool length - max.: 365 mm weight of tools max.: 8 kg rapid travel range: 70/45/90 m/min control: Heidenhain iTMC 530 total power requirement: 47 kVA weight of the machine ca.: 13 t dimensions of the machine ca.: 6,1 x 2,47 x 3,17 m The 5-axis universal machining center G350 offers nearly unlimited possibilities in the milling of workpieces of various materials. materials. equipped with: - CNC control Heidenhain iTNC 530 - NC swivel rotary table (A-/B-axis) - tool changer 40 places (HSK A63) - IKZ / coolant system 3-22,5bar - chip conveyor 2 identic machines available The data for this ad  ...
