used
This 3-axis Zayer 20 KFU milling machine was manufactured in 1995. It features a robust GRUNDIG CNC 1290/V300 control system and a versatile spindle capable of 1800 rpm, with automatic horizontal and vertical rotation. The machine includes a 2500 ATC with 30 tools, enhancing productivity and precision. Ideal for heavy-duty operations with a weight of 18 tons. For more information about this milling machine, please reach out to us.
used
x-travel: 4700 mm y-travel: 1000 mm z-travel: 1000 mm control: HEIDENHAIN TNC355 table-size: 5000x1000 mm T-slots: 7x mm turning speed range: 2800 U/min feed: 6-5000 mm/min rapid traverse: 15000 mm/min spindle motor: 30,00 kW spindle taper: SK 50 Table load: 10.000 kg Main drive: 40 PS weight of the machine ca.: 27,00 t dimensions of the machine ca.: m With HEIDENHAIN TNC 355 control. Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 4700 mm y-travel: 1000 mm z-travel: 1000 mm control: HEIDENHAIN TNC355 table-size: 5000x1000 mm T-slots: 7x mm turning speed range: 2800 U/min feed: 6-5000 mm/min rapid traverse: 15000 mm/min spindle motor: 30,00 kW spindle taper: SK 50 Table load: 10.000 kg Main drive: 40 PS weight of the machine ca.: 27,00 t dimensions of the machine ca.: m With HEIDENHAIN TNC 355 control. Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 4000 mm y-travel: 800 mm z-travel: 800 mm control: HEIDENHAIN TNC355 table-size: 4000x8000 mm T-slots: 6x mm turning speed range: 30-1800 U/min feed: 5-5000 mm/min rapid traverse: 15000 mm/min spindle taper: SK 50 weight of the machine ca.: 15 t With HEIDENHAIN TNC 355 control. Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Table length: 3000 mm Table width: 1000 mm Longitudinal X: 2709 mm Cross Y: 1212 mm Vertical Z: 1501 mm Positions ATC: 40 CNC Brand: Heidenhain CNC Model: TNC 426 Make Zayer KFU 3 Type 20 KFU 3000 Year 1995 Zayer KFU with TNC 426 bedmiller bedfreesmachine Table length (mm) L = 3.000 Table width (mm)W = 1.000 Longitudinal X (mm)X = 2.709 Cross Y (mm)Y = 1.212 Vertical Z (mm)Z = 1.501 CNC Heidenhain TNC 426 Iso 50 / 1800 / 22 kWATC Chain 40 positionsNC Hor. / Vert 2 Positions
used
Code 8529 Description CNC Bed milling machine Make Zayer Type 2200 BF 3 Machine nmb 52248 Year 1986 Control Fagor 8020 Table size 2200 x 800 mm Movement table (X) 1830 mm Cross traverse ram (Y) 1016 mm Vertical traverse milling head (Z) 1016 mm Spindle taper ISO 50 Max. Weight on table 4000 kg No. of spindle speeds 18 steps Spindle speeds 28 – 1800 rpm Feeds dir. Progr. X-Y-Z 3 – 5000 mm/min Rapids Longitudinal 5 m/min Cross 5 m/min Vertical 5 m/min Total Weight 10.000 kg Mainmotor 11 kW Power connection 38 KVA Voltage 380 Volt Accessories Milling head Horiz./Vert. with ISO-50 Hydr. tool clamping device Condition Machine is in good condition
used
x-travel: 6000 mm y-travel: 2000 mm z-travel: 3000 mm Control: heidenhain TNC 415 total power requirement: 34 kW weight of the machine ca.: 31 t dimensions of the machine ca.: 7000 mm m Stocknumber 1110055 Type of machine CNC Floortype milling machine Make ZAYER Type KCU6000 Build in 1992 Type of control Heidenhain TNC 415 X-stroke (mm) 6.000 Y-stroke (mm) 2.000 Z-stroke (mm) 3.000 Speeds (Rpm) 20 - 1.800 Admission in spindlehead BT50 Feeds X (mm/R) 5 - 5000 mm/min Feeds Y (mm/R) 5- 5000 mm/min. Feeds Z (mm/R) 5- 5000 mm/min. Rapid feeds 10.000 mm/min. Total Power (KW) 34 Lenght (mm) 11.000 Width (mm) 2.500 Height (mm) 7.000 Weight 31.000 Kg Additional information Juaristi MG6 turntable: 1500 x 1200 mm Cooling system: 2.5 Bar Tool cooling: 15 Bar The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Table length: 8500 mm Table width: 1200 mm Longitudinal X: 7400 mm Cross Y: 1250 mm Vertical Z: 2000 mm Positions ATC: 0 CNC Brand: Heidenhain CNC Model: TNC 426 PB MACH-id 4179 MAKE Zayer Spain TYPE 30KM YEAR 2005 SPECIFICATIONS X - Travel 7400 mm Y - Travel 1250 mm Z - Travel 2000 mm Controll TNC 426 PB Table Length x Width 8500 x 1200 mm Table load in kG 30000 Kg Spindle Taper Bt50 kW power on spindle 37 kW Spindle speeds / ranges 3000 Rpm CNC Automatic milling head / Gr.2 x 180.000 DIMENSIONS Length   ...
used
Fixed bed milling machine Zayer 2000BF. Table: 2500x700mm. Longitudinal travel: 2000mm. Cross travel: 1000mm. Vertical travel: 1000mm. ISO50. Speeds: 18. (28-1800rpm). Power: 15cv. Weight: 13000Kgs. Equipped with DRO Fagor.
used
Table length: 2000 mm Table width: 630 mm Longitudinal X: 1700 mm Cross Y: 800 mm Vertical Z: 800 mm Positions ATC: 0 CNC Brand: Heidenhain CNC Model: TNC 426 MAKE Zayer Spain TYPE ZF 2000 YEAR 1996 SPECIFICATIONS X - Travel 1700 mm Y - Travel 800 mm Z - Travel 800 mm bed / plano / portal / moving column Bed milling machine Controll Heidenhain TNC 426 Table Length x Width 2000 x 630 mm Table load in kG 6000 Kg Spindle Taper Sk 50kW power on spindle 15 kW
used

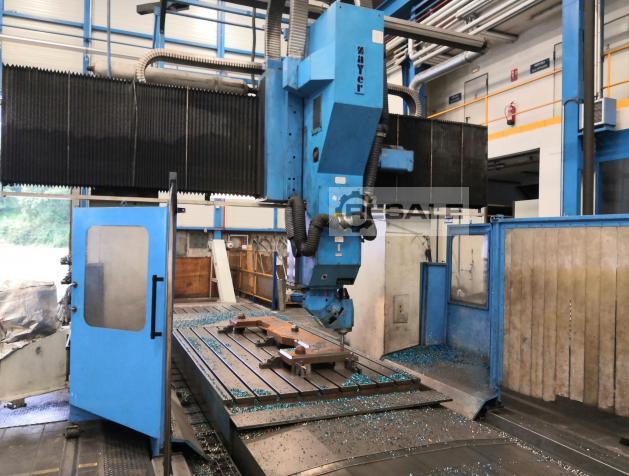

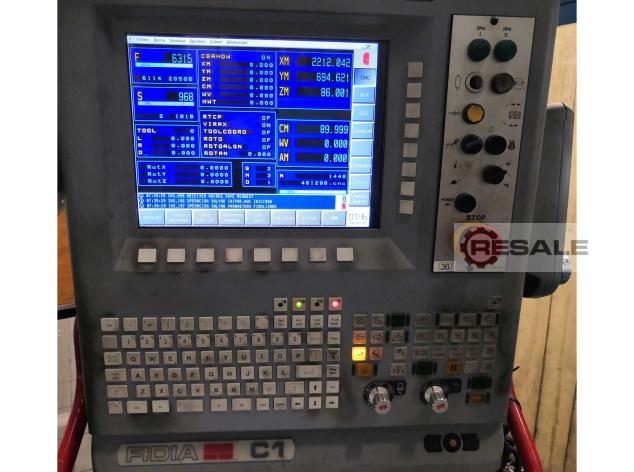

BRAND: ZAYER YEAR: 2002 MODEL: KP 6000 AR PRODUCTION HOURS: 47943 APPLICATION TYPE: MILLING LOCATION: SPAIN MACHINE TYPE: MILLING MACHINE AVAILABILITY: 01/07/2024 Technical Information CONTROL UNIT BRAND: FIDIA MODEL: C1 MAIN DRIVE SPINDLE SPEED RANGE: 5500 1/MIN NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 6000 MM Y-AXIS MOVEMENT: 3600 MM Z-AXIS MOVEMENT: 1100 MM C-AXIS MOVEMENT: 360 ª MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - SPINDLE POWER CONTROL MODULE INSTALLED - AIR-COOLED AND EXTERNAL COOLANT - EXTERNAL DUST EXTRACTION MODULE INSTALLED. MAXIMUM POWER 6 BAR. QUALITATIVE MACHINE BENEFITS: - BEARINGS + EXTENSION HEAD GEARS REPLACED AT 43026H - BEARINGS + ANGULAR GEARBOXES REPLACED AT 45682H - Z-AXIS MOTOR REPLACED AT 47260H.
used
Table length: 3000 mm Table width: 1000 mm Longitudinal X: 2705 mm Cross Y: 1209 mm Vertical Z: 1004 mm Positions ATC: 0 CNC Brand: Heidenhain Bed type milling machine ZAYER - 20 KF 3000 Automatic head 2 x 180 Gr Central lubrication Heidenhain TNC 426 Heidenhain HR-410 Handwheel X-Axis: 2705mm Y-Axis: 1209mm Z-Axis: 1004mm Table Length: 3000mm Table Width: 1000mm Table load: 10000 Power on spindle: 22kW Spindle speeds: 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 15000mm/min. Feed rate Y-Axis:&nb ...
used
Zayer 5 axis CNC Milling Maching Fidia Control x:3000 y:1500 z:1200
used
Manufacturer ZAYER Model 30 KMU-5000 Year 1999 CNC HEIDENHAIN TNC-430PA Table Surface 4.700 x 1.200 mm. Travels (X/Y/Z) 3.400/1.250/2.000 mm. Quill Travel (W Axis) 500 mm. Taper ISO-50 Main Motor Power 37 kW Automatic Head 45º INCLUDED Automatic Head 45º 0.001º/0.001º Head 45º Max. Speed 3.000 rpm 45º Head Taper ISO-50 Twist Head Contiuous INCLUDED Twist Head Max Speed 3.000 rpm Twist Head Taper ISO-50 Ram with Quill INCLUDED Quill Diameter 150 mm. Quill Taper ISO-50 Internal and External Coolant Head 45º and Quill INCLUDED External Coolant Twist Head INCLUDED Semi-automatic head change INCLUDED Automatic Tool Changer INCLUDED Positions in ATC 60 Pick up station AITEK for 45º and Twist Heads INCLUDED Chip Conveyor INCLUDED Portable Handwheel HEIDENHAIN HR-410 Piece Touchprobe RENISHAW MP 16+SP2/1 Machine Weight 35.000 kg.
used
Bed type milling machine ZAYER 30 KF-5000 Table 5000 x 1000 mm. Max allowed weight on the table 10 Tn. Travels: X 4710 mm. Y 1508 mm. Z 2013 mm. Spindle Taper ISO 50 Spindle speed 35-3000 r.p.m. Spindle power 37 Kw Feedrate 6-5000 mm/min Rapid traverse 15,000 mm / min Machine weight 32,000 kgs. Year 2000 Equipped with: CNC HEIDENHAIN TNC 426 Autoindexing milling head 360.000 pos (0.001º). The 2 bodies rotate at the same time. Cooling equipment Chip conveyor
used
This ZAYER KP 6000 AR Milling machine was manufactured in the year 2002 in Spain and has 48852 working hours. It is equipped with a FIDIA C1 control unit and has 5 axis. The machine has a spindle speed of 5500 rpm.
used
Manufacturer ZAYER Model TEBAS-5000 Year 2013 CNC HEIDENHAIN iTNC-530 HSCI Table Table Surface 5.200 x 2.200 mm. Max. weight allowed on table 25.000 kg. Max distance from 45º head nose to table in vertical position 1.410 mm. Max distance from 45º head nose to table in horizontal position 1.465 mm. Max distance from direct exit head nose to table in vertical position 1.420 mm. Travels and feeds Longitudinal Traverse (X Axis) 5.000 mm. Transversal Traverse (Y Axis) 3.750 mm. Vertical Traverse (Z Axis) 1.250 mm. Distance between columns 3.000 mm. Rapid Traverse 50.000 mm/min Max. Working Feed 30.000 mm/min Headstocks Universal Auto Indexing Head 45º 0.001º/0.001º Taper DIN 69871 AD 50 Spud ISO 7388-2 B 50 Spindle speed 6.000 rpm Speed ranges 3 Main spindle power 43 kW Direct output head reduction 1-2,29 INCLUDED Taper DIN 69871 AD 50 Spud ISO 7388-2 B 50 S ...
used
Table length: 5000 mm Table width: 1800 mm Longitudinal X: 15000 mm Cross Y: 15000 mm Vertical Z: 15000 mm Positions ATC: 0 CNC Brand: Heidenhain Portal milling machineZAYER - KP 5000 MACH-ID 8601 Make: ZAYER Type: KP 5000 Control: HeidenHain TNC 426 Year: 1998 Hardned guideways Automatic lubrication Hydraulic compensation vertical travel Roller packs for movement carriage X - Travel: 4700mm Y - Travel: 3050mm Z - Travel: 1600mm Distance between column: 2300mm Table Length: 5000mm Table Width: 1800mm Table load: 10000 Feed rate X-Axis: 15000mm/min. F ...
used
Description: ZAYER 66BM Universal Milling Machine no. ,35368 x-travel: 1524 mm y-travel: 1070 mm z-travel: 560 mm table-size: 2032x700 mm Boring head allowance (ISO): ISO 50 Spindle Speed: 28>,1800rpm Approx. Onsite Dimension. (l x w x h): 3,250 x 2,830 x 1,954 mm, weight approx.: 5,800 kg
used
Description: ZAYER 66BM universal milling machine Serial number 35883 stroke x: 1524 mm stroke y: 1070 mm stroke z: 560 mm table size: 2032x700 mm 18 spindle speeds: 28 - 36 - 45 - 58 - 75 - 92 - 125 - 160 - 196 - 260 - 335 - 410 - 525 - 680 - 840 - 1120 - 1475 - 1800 r.p.m. Engine Power 21.75 HP Tools included , ( see photo ) Approx. Onsite Dimension. (l x w x h): 3,000 x 2,200 x 2,500 mm, weight approx.: 5,000 kg
used
Description: ZAYER KM-6000 Bed Milling Machine serial number: 61028 (In working condition when was mounted, but need to  ,be grinded the guides ,of ,X ,axis) z-motion: 1,200 mm, x-motion: 4,400 mm, y-motion: 1,500 mm, control: HEIDENHAIM, table surface area l x w : 5700x1200 mm, weight approx.: 20,000 kg, Approx. Onsite Dimension. (l x w x h): 7,500 x 4,000 x 3,600 mm
used
x-travel: 12000 mm y-travel: 2500 mm z-travel: 1000 mm control: Heidenhain TNC 415 taper ISO: 50 P.D.B. spindle speeds: 20 - 1800 mm voltage: 380 V total power requirement: 37 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 8000 mm y-travel: 2500 mm z-travel: 1000 mm control: Heidenhain TNC 355 taper ISO: 50 spindle speeds: 20 - 1800 mm voltage: 380 V total power requirement: 27,6 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 800 mm y-travel: 800 mm z-travel: 5000 mm control: Siemens tool adaptor: ISO 50 number of spindle speeds: 285-3000 voltage: 380 V total power requirement: 36 kW weight of the machine ca.: t dimensions of the machine ca.: m ATC 40 positions 2x workpiece holders with (2x) hydraulic support The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
x-travel: 3.400 mm y-travel: 1.250 mm z-travel: 2.000 mm Control: TNC-430PA table-size: 4.700 X 1.200 mm V- travel: 500 tool taper: ISO 50 milling head -swivable: 0.001º/0.001º Grad main drive: 37 kW Chip coveyor: inkl handwheel: HR-410 Tools changer: 60 pos. milling head: Automatic Head 45º weight of the machine ca.: 35 t - Automatic Head 45º INCLUDED - Automatic Head 45º 0.001º/0.001º - Head 45º Max. Speed 3.000 rpm - 45º Head Taper ISO-50 - Twist Head Contiuous INCLUDED - Twist Head Max Speed 3.000 rpm - Twist Head Taper ISO-50 - Ram with Quill - Quill Diameter 150 mm. - Quill Taper ISO-50 - Pick up station AITEK for 45º and Twist Heads - Rotary Table ZEATZ Ø 1200 INCLUDED - RENISHAW MP 16+SP2/1 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
