used SAACKE uw

Catalog No. : 6752 Type: UWIE Producer: Saacke Made in: 2005 Characteristic: X-Axis travels: 340 mm Travels Y: 240 mm Z-Axis travels: 840 mm Max. tool lenght: 330 mm Max. tool diameter: 250 mm Maximum rotary speed of the spindle: 10000 1/min Center height: 152 mm Machine height: 2090 mm Machine length: 2450 mm Machine width: 2050 mm Machine weight: 3900 kg Equipment: Chuck Collets Mandrel

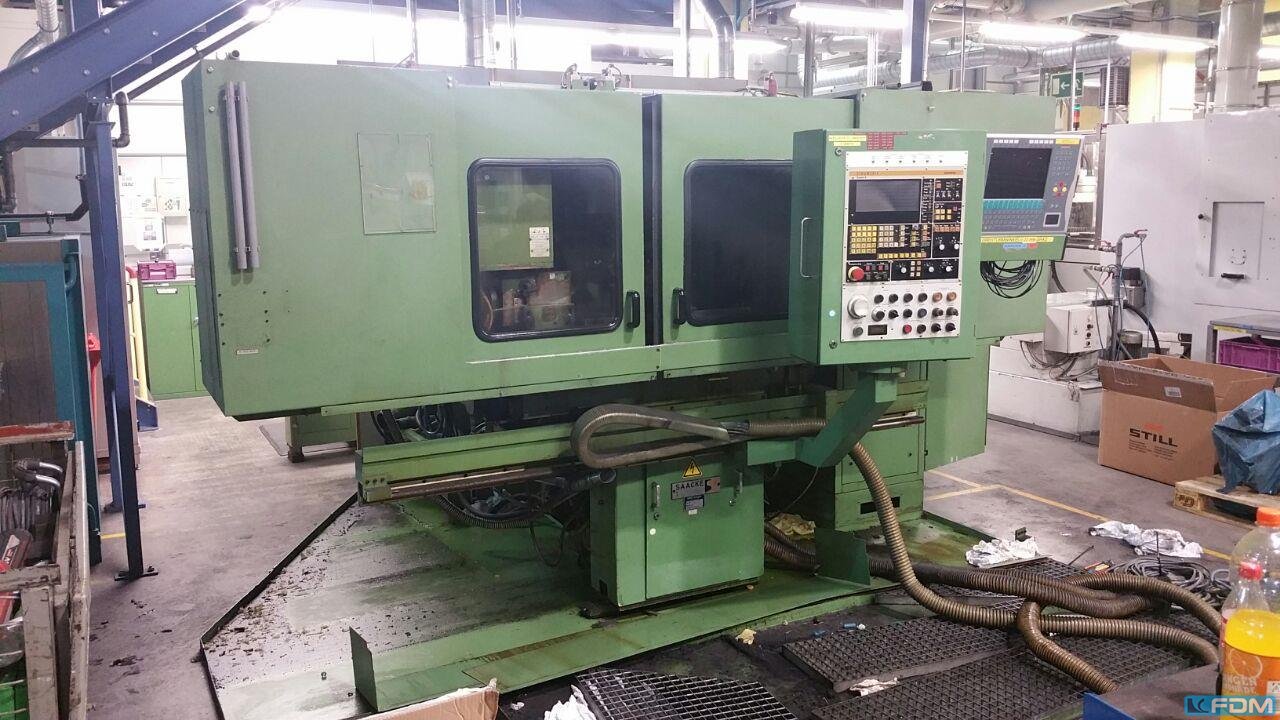

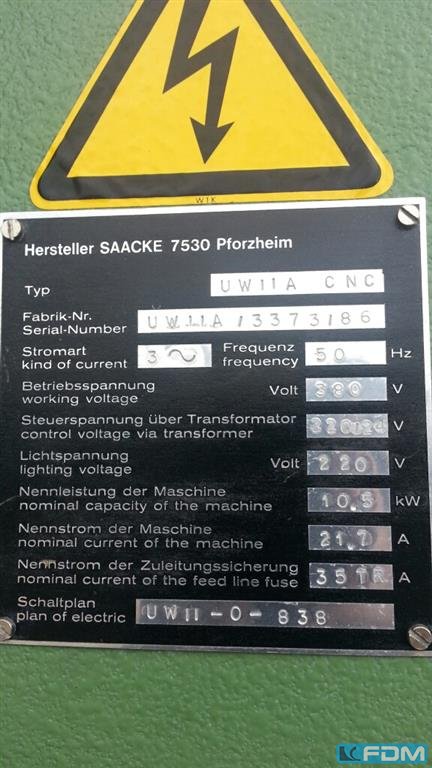

Saacke UWIA CNC 5 A CNC Tool Grinder machine

Steam generation plant consisting of Double flame tube boiler with economiser, 2 x SAACKE burner Teminox for natural gas H, calorific value HS 11.4 kJ/Nm³, 14MW (2 x 7 MW), 17 to. Saturated steam at 20 bar ü (25 bar hp). Boiler: Manufacturer LOOS Deutschland GmbH Type ZFR 2300 Type of large-capacity water boiler with two flame tubes (three-speed) and a flue gas water preheater (Economizer) Permissible operating pressure (PS): 24-25 bar Permissible operating temperature: 224°C Permissible steam output: 23 to. Saturated steam Burner: 2 x SAACKE Type Teminox GS 75-22 Fuel: Natural gas There is a soundproofing hood for each burner Fireplace: 37 meters above ground Outlet area: 0.507 m² Stainless steel double fireplace Water treatment plant Manufacturer CHRIST consisting of softening system and downstream reverse osmosis system Complete installation from y ...

SAACKE UW I D CNC universal grinding machine was manufactured in Germany in 2020. The extremely powerful machine is designed for the fully automatic wet grinding of a wide range of tools, such as knives, cutters or drills. Machining is performed in a single work cycle, which significantly increases production efficiency, saves time and reduces costs. The SAACKE CNC tool grinding machine allows the use of a chain or pallet system for automatic tool feeding and machining of workpieces within it with a maximum diameter of 250 mm and a length of 480 mm. Precision tool grinding is performed in five numerically controlled axes (X,Y,Z,A,B) using grinding wheels housed in a 6-position magazine separated from the workspace with an automatic grinding wheel changing system. In order to guarantee high travel speeds and positioning accuracy, the X,Y and Z axes of the UWID CNC tool grinder are m ...

Saacke Universal Tool Grinding Machine - with partial apperat - with cylindrical loop device - with collet chuck - with many grinding wheels Center height: 125mm, Center width: 600mm, Speed: 3300/ 5400/min, Grinding length: 500mm, Table dimensions: 835x145mm, Grinding wheel dimensions: 175x20mm - with coolant devices Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with f ...

Manufacturer Producer Saacke Typ type UW2 CNC Year of construction Construction year 1989 Steuerung control Sinumerik Machine size machine size 3500x3000x2500 mm Spannung Voltage 400 V Machine weight machine weight approx. 2.5 t

workpiece diameter: 110 mm grinding length: 410 mm clamping length: 20 mm total power requirement: 0,25 kW weight of the machine ca.: 500 kg dimensions of the machine ca.: m Profile Tool Grinder for Chamfer Angles, accessories The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: conventional, speed: 2100 -6000 rpm; Workpiece diameter, including: extraction device

Description: Universal tool grinding machine Cylinder loose on one side, freely movable by hand weight approx.: 650 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 1,600 mm

total power requirement:10,5 kW weight of the machine ca.:4800 kg dimensions of the machine ca.:3000 x 2100 x 2000 mm centre distance:1200 mm Height of centres:200 mm grinding-table stroke max.:X -Achse 1000 mm table-size:2060 x350 mm z-axis:Querhub 250 mm Feed speed:0,005 - 5 m/min. grinding head - swivable:360 ° taper ISO:50 control:Sinumerik System 8 Documents:vorhanden

Main drive - spindle motor at 2450 RPM power - 4,5 kW spindle speed within four gears - infinitely variable speed range 20-4000, tool holder horizontal and vertical ISO 40 tool CLAMPING hydromechanisch 1200 daN, Quill stroke vertical fur 80 mm feed drive - single DC motors 1-2000 mm / min feed force in all axes each axis 5400 N, rapid traverse in all axes 5 m / mon workspace - along x axis 500 mm, cross y axis 360 mm, vertical z-axis 400 mm measurement - measurement of X, Y, Z - direct, resolution 0.001 mm, input gauge 0.001 mm, display step 0.005 mm, resolution 0.001 mm table AUFSPANNFLaeCHEN of rigid 4.Achse angle table 800 x 390 mm number and distance of T-grooves, wide T-slots 6/63/14 h7 NC rotary table 30 swivel 4.Achse - diameter. 380 mm control train control HEIDENHAIN TNC 115 / TNC 355 - screen screen - control SIEMENS 3 M4 810 M Kuhl installation - lubrication coolant - rinsing  ...

UWM PRESS BRAKE/WORKSHOP PRESS TYPE UWM 50TE -Capaciteit 50 ton -Max druk pomp 25 MPA -Werkslag 220 mm -Max hoogte 680 mm -Max Queen 790 mm -Afmeting table 400 x 800 mm -Afmetingen 1500 x 650 x 1950 mm -Weight of 980 kg -Motor 3 KW/400V DUTCHMACH Metal working machinery ENSCHEDE - NETHERLANDS (3 km from the German border)

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

x/y/z = 500/360/400 mm, max. 4000 rpm, 4 clamping corner, 1 pushbutton, various shots, cabinet Lista

Bearing number 1105-02690 Machine type Milling machine - Universal Make HERMLE Type UWF 1000 Built in 1988 Control type CNC Storage location FRANCE Country of origin Germany Delivery time SOFORT Freight base EXW Technical details x-way 700 mm y-way 630 mm z-way 500 mm Control heidenhain 355 Tool holder SK 40 (DIN 69871) Table clamping area: 1000 x 490 mm Spindle speed Gear stage 1 25 - 400 rpm. Spindle speed Gear stage 2 401 - 1260 rpm Spindle speed Gear stage 3 1261 - 4200 rpm Feed 5 m/min Rapid speed 10 m/min Swivel of the milling head + / - 90 ° Pinole diameter 110 mm Pinole stroke 95 mm Total power requirement 18 kW Machine weight approx. 5 t Information with full cabin coolant device Sale takes place without clamping equipment approx. 8500h switch-on hours

With CNC control, HEIDENHAIN, Type: TNC 155, measuring taster Separate control cabinet: 1260 x 500 x 1700 mm Travel distances 700 x 550 x 550mm Table area 1000 x 490 mm Accessories: Treatment / Cooling system / tool shots The machine stored since 2013. At the time of storage, the machine was fully functional.; ready for use

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

UWM PRESS BRAKE/WORKSHOP PRESS TYPE UWM 100 -Capaciteit 100 ton -Max druk pomp 32 MPA -Werkslag 220 mm -Max hoogte 680 mm -Max Queen 1000 mm -Panel afmeting 500 x 1000 mm -Afmetingen 1500 x 700 x 1820 mm -Weight 1200 kg -Motor 3 KW/400V DUTCHMACH Metal working machinery ENSCHEDE - NETHERLANDS (3 km from the German border)

Hobart dishwasher Dimensions Length 250cm or 450cm Width 102cm Height approx.170cm

Universal tool milling and drilling machine make HERMLE type UWF 851 HBuilt in 1993Technical specifications:X travel, longitudinal: 600 mmY travel, transverse: 450 mmZ travel, vertical: 400 mmSpindle speed: 4 switching steps continuouslySpeed range: 20 - 4500 rpm.Tool holder DIN 2079: SK 40Quill stroke vertical: 75 mmFeed area in all axesmanual / programmable: 1 - 5000/10000 mm / minRapid traverse in all axes: 10 m / minAngular table: 850 x 440 mmWeight approx .: 2700 kgusedPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

X: 500 mm Y: 360 mm Z: 400 mm Speed range: 40-2000 RPM Spindle retainer: SK 40 DIN2079 Control: HEIDENHAIN TNC 155 Total power: 6 kW Machine weight: 2000 kg Dimensions (W x D x H): 2.8 x 2.9 x 1.9 m Condition: good, ready to use

- 800 mm working width - Re-fluted reels - 15 kW

Tool grinding machine Walter UWS30 CY - original condition - Width: 120cm - Height: 140cm - Depth: 100cm - with electric stroke adjustment - Sub-machine, 8 grinding shots - Grinding wheel pulling device - Electrical documentation + equipment Good condition fully functional can be visited and tried out on site. Shipping abroad. Visit: Basically, I would like to point out to you that in order to avoid misunderstandings, the article can be viewed before purchase and tested under electricity. Please ask questions before purchasing to avoid any ambiguity. If you have any general questions or make an appointment for a visit, I can be reached at any time, using the telephone number below or above. Errors in the description and intermediate sale reserved. The VAT is shown separately on my invoices. Shipping with forwarding.

DATA ON THE MACHINE Machine type: CNC milling machine Manufacturer: HERMLE Model: UWF1001H Built: 1991 Condition: used Location Warstein , Germany Reference M-HER-0221 Description We offer you a used CNC milling machine from manufacturer Hermle. Control Heidenhain TNC 407/415 Monitor new x-path 700 mm y-path 550 mm z-way 500 mm Table clamping area 650 x 395 mm Spindle speeds - infinitely 20- 4200 rpm Spindle holder ISO 40 DIN 2079 Pinole stroke vertical 95 mm Drive spindle motor 12 kw Machine weight approx. 3.8 t Space requirements approx. 5 x 4.6 x 2.5 m Electrics 400 Volt Coolant device Fixed angle table 1000 x 490 mm Vertical milling head swivel. +/- Full-protection cabin Separate control cabinet (absolutely clean and uncrafted) electronic handwheel Our offer is aimed at professionals who are covered in accordance with the Trade Code in accor ...

Key data: 100 , 140

Stock No.2452 1 used, partially overhauled and functionally tested pelletizing line Throughput up to 500 kg/h depending on the material, consisting of: Tamping unit Kreyenborg SW 100, drive 7.5 kW Extruder BKG single screw Ø 100 mm – 35 LD, Drive 132 kW – AC frequency controlled Screw speed up to 143 rpm.-1 screw depth 14 mm Heating capacity approx. 35 kW installed 1x athm. Degassing zone Screen-pack-changer Double piston Kreyenborg K-SWE 160 RS back-flush self-cleaning with screen surface 244 cm² BKG underwater pelletizer AH 300, complete with: Start-up valve incl. Hydraulic station Granulator with drive 4 kW Water pump 2.2 kW By-pass system, water tank with heating 9 kW installed and heat exchanger BKG granulate centrifuge TWE 300 with drive 3 kW pellet classifier table Control board and Siemens material feed conveying, big-bag filling station � ...
