REISHAUER machine à vendre

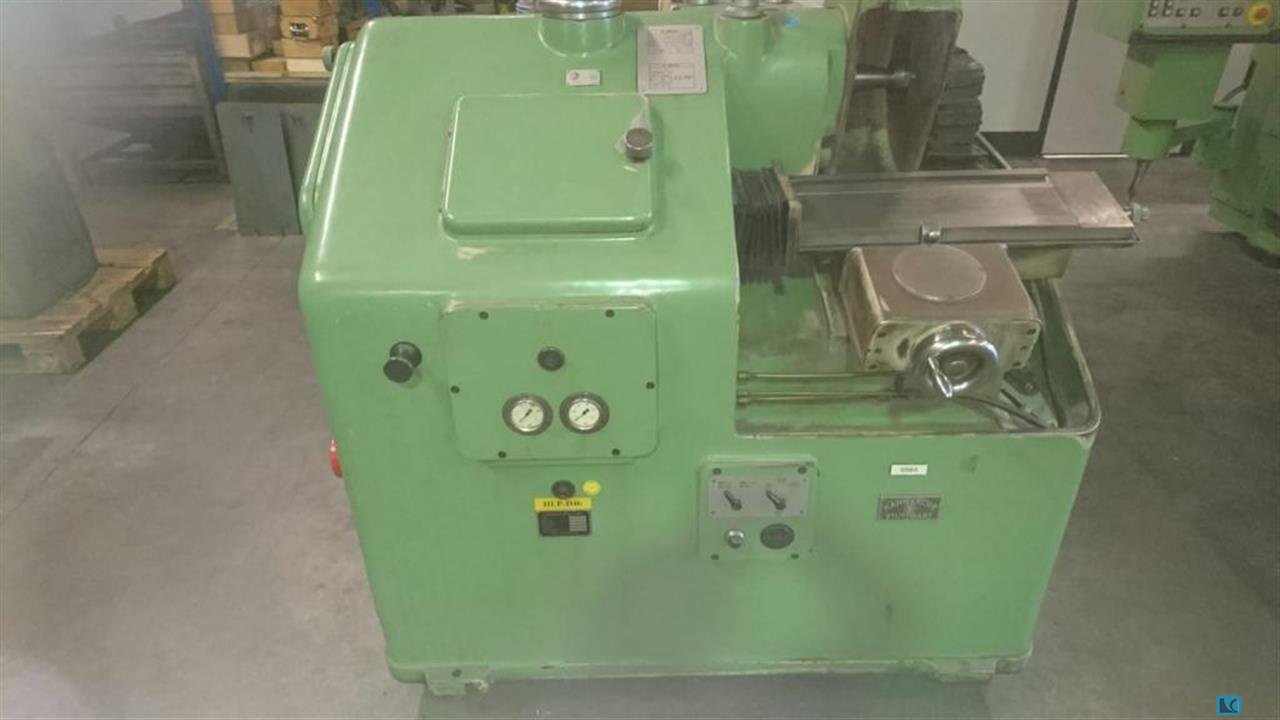

Meuleuse à engrenages REISHAUER OZA avec changement de vitesses.

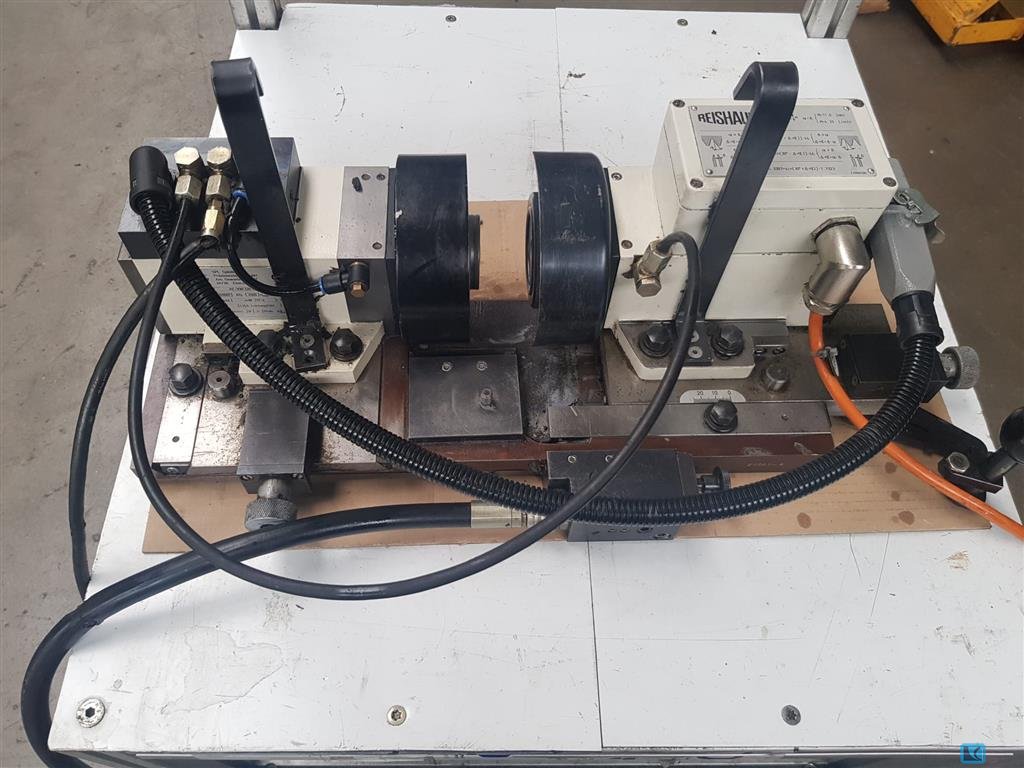

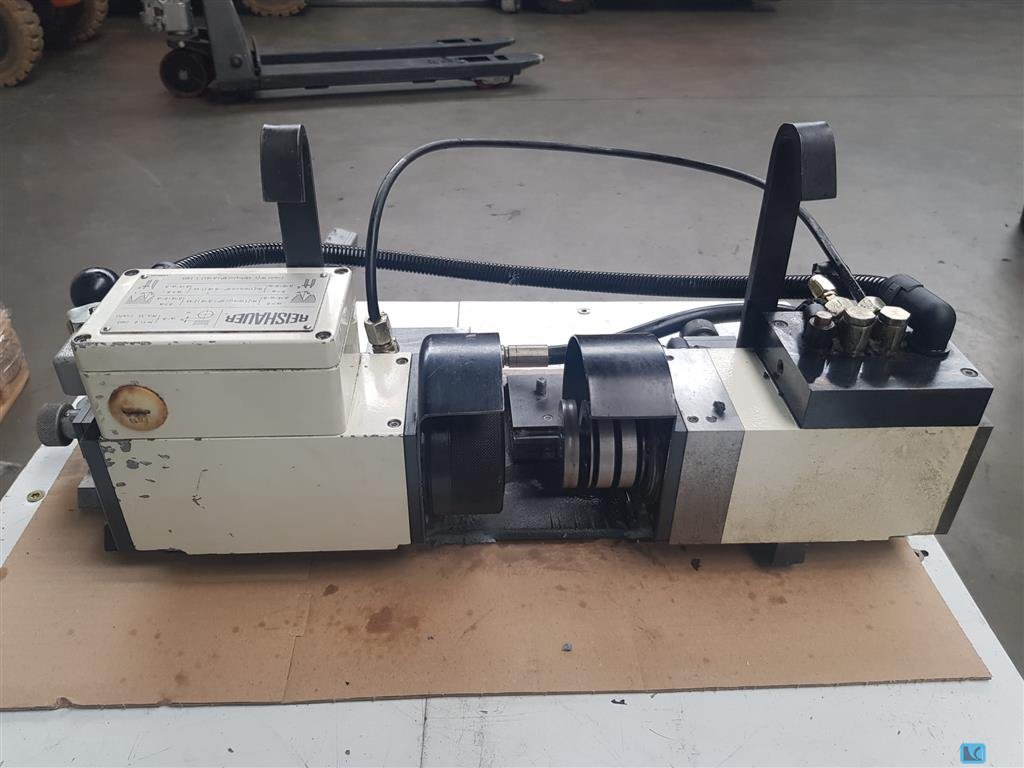

grinding wheel diameter:400 mm total power requirement:3 kW weight of the machine ca.:1,5 t dimensions of the machine ca.:1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm

max. wheel diameter:150 mm max. module:3 min. module:1 weight of the machine ca.:7,2 t dimensions of the machine ca.:2,44 x 1,43 x 2,46 m grinding wheel diameter:206-275 mm Betriebsstunden: 99.235 Incl. automatic loading system Felsomat, without filter No Twist Control Grinding Option

max. wheel diameter:150 mm max. module:3 min. module:1 weight of the machine ca.:7,2 t dimensions of the machine ca.:2,44 x 1,43 x 2,46 m grinding wheel diameter:206-275 mm Working hours 98.780 Incl. automatic loading system Felsomat No Twist Control Grinding Option

max. wheel diameter:400 mm max. module:10 min. module:0,3 weight of the machine ca.:11,5 t dimensions of the machine ca.:3,3 x 2,75 x 2,8 m max. number of teeth:999 min. number of teeth:5 Width of teeth:0-300 mm pressure angle max.:30 pressure angle min.:14 workpiece weight max.:300 kg worm grinding diameter:300...205 mm width of grinding worm:125+0,7 / -0,5 mm boring diameter:160 H7 mm with loading device FELSOMAT Type: FZ250 Year of construction: 2002 No tail stock

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M3 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M3,5 EW17,5° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M3 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2.25 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M1.5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M1.5 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2 EW15° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 300 mm max. module: 8 min. module: 0,3 control: Sinumerik 840 D number of teeth: 5 - 999 pressure angle: 14 - 30 ° helix angle: -45 / +45 ° workpiece weight: max. 300 kg x-axis: 490 mm rapid traverse X-axis: 15 m/min y-axis: 220 mm rapid traverse Y-axis: 5 m/min z-axis: 300 mm rapid traverse Z-axis: 5 m/min grinding wheel diameter: 205 - 300 mm grinding wheel width: max. 125 mm boring diameter: 160 H7 mm number of starts: 1 - 5 weight of the machine ca.: 12,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. wheel diameter : 400 mm Gear width : 0 - 300 mm Max. module : 8 Min. module : 0,3 Number of teeth : 5 - 999 Tooth width (Z1- grinding slide travel) : 0 - 300 mm Centre distance : 60 - 700 mm Max. helix angle : +/- 45 ° Workpiece weight max : 300 kg Tip circle diameter : 10 - 400 mm Root circle diameter : 10 - 400 mm Equipment/Accessories : CNC : Siemens 840D Pallet conveyor : Coolant/filter device Novotecnic : CNC dressing device REISHAUER :

Minimal diameter of the gear wheel : 350 mm Maximum diameter of the gear wheel : 280 mm Max. thread diameter : 200 mm Min. thread diameter : 3 mm Max. length : 700 mm

Max. wheel diameter : 300 mm Gear width : 180 mm Max. module : 5 Min. module : 0,5 Max. table load : 50 kg Number of teeth : 7-256 Max. helix angle : +/-45° Max. diameter of grinding wheel : 350 mm Turning speeds : 1100-1900 U/min

For sale lot of machines, main for thread grinding, and gear grinding, also horizontal pfauter, best price for bundle. Reishauer NRK Reishauer US x2 Klingelnberg HNC 35K Wmw hinterdrehmachine x2 Reinecker hinterdrehmachine Kapp grinding Wmw niles 35/20-29 Horizontal Pfauter Lindner grinding x2 Klingelnberg gear test machines

Max. wheel diameter : 300 mm Gear width : 180 mm Max. module : 5 Min. module : 0,5 Max. table load : 50 kg Number of teeth : 7-256 Max. helix angle : +/-45° Max. diameter of grinding wheel : 350 mm Turning speeds : 1100-1900 U/min

Max. grinding length : 450 mm Max.clamping length : 700 mm Thread diameter : 3–200 mm Thread pitch : 0,40–80 mm Max. angle pitch : -25º / +25º Grinding wheel diameter : 275-350 mm Grinding wheel width : 8-40 mm Grinding wheel bore : 160 mm Grinding wheel speed : 1550-1900 rpm Weight approx : 3500 kg

Diamètre max. de la roue : --- mm Largeur de l’engrenage : --- mm Module max. : --- min. Module : --- Contrôle : --- puissance totale requise : --- kW poids de la machine env. : 5,0 t dimensions de la machine env. : --- m

Wedge bar chucks, power chucks, three-jaw chucks, three-jaw lathe chucks -Chuck size: Ø 290 mm -recess recess: Ø 268 mm -Hole circle: Ø 168 mm -Through hole: Ø 70 mm -Weight: 43.5 kg

max diameter of the tooth heads wheel: 300 mm minimum diameter of the bottom of the grooves: 10 mm max number of teeth: 130 min. number of teeth: 12 (10) max module: 5 max angle of teeth inclination: 45 degrees sled stroke: 180 mm max object weight: 60 kg max diameter of grinding wheel: 350 mm min. grinding wheel diameter: 270 mm grinding wheel width: 62/84 mm grinding wheel hole: 160 mm

Manufacturer: Reishauer AG : Switzerland in working condition... sample grinding can be done on request. Specifications: Max impeller diameter: 300 mm Gear width: 170 mm / / Module:-Min: 0.5 -Max: 5 Clamping length max: 420 mm Tooth angle Max: 45 grad Number of teeth: 12 -Min: 12 // -Max: 130 Contour slide: 200 mm Helical lead -Min: 200 mm -Max: 6000 mm Max diameter of grinding wheel: 350 mm Max wheel grinding width: 84 mm Vudg7ohvx Total power requirement: 9 kW Dimensions 2500 x 2000 x 2300 mm Total weight: 4600 kg

Reishauer AZA Gear Grinder The machine is in very good condition with complete equipment. It is connected to electricity and can be seen in operation. Complete documentation.

workpiece diameter: 460 mm threading length: 900 mm thread pitch: 100 mm total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dépage: 0 mm Désinérage du fil: 0 mm Poids de la pièce: 0 kg CNC Marque: 0 CNC Modèle: 0 Données techniques Longueur maximale du meulage: 450 mm Longueur de serrage maximale: 1055 mm Max. diamètre de la pièce: 250 mm Dépage du fil: min.: 2 mm max: 250 mm Alésage de la broche de la pièce: 45 mm Poids de la pièce sur les centres max.: 200 kg Pas du fil: min.: 0.3 mm max: 100 mm Moi d’angle max.: 40 Pas d’angle max.: 40 max. module: 10 Milles de traction: Diamètre: min.: 280 mm max: 350 mm Largeur: min.: 3,5 mm max: 40 mm Alésage: 40 mm Vitations de roue: nombre (marches): 6 à partir de: 1700 tr/min jus de min Vitée de la tête de broche de la pièce de travail: numéro (pas): 27 à partir de: 0,4 tr/min jusqu’à : 160 tr/min Tension 50 Hz 3x : 380 Volt Moteur de broche de broyage : 4,4 kW Puissance totale requise : 15 kVA Poids de la machine environ : 4700 kg Meill ...
