horizontal boring used for sale

Bowser With Rototranslating Table X Axis Travel 2000 (Rotary Table) Z-Axis Travel 500 (Sleeve) Y Axis Travel 1200 (Vertical) W Axis Travel 1000 (Rototranslating Table) Rototranslating Table 1100x1300 Iso50 Sleeve Control: Selca 4045 (Retrofitted In 2008) Machine From 1991

ISO 50 tool holder seat Spindle sleeve diameter mm 130 X axis stroke mm 3000 Y-axis travel mm 2000 W-axis travel mm 1500 Z-axis travel mm 750 Table plate dimensions mm 1400x1200 Number of table positions No. 360,000 Retrofitted in 2000 completely electrically (cables, motors, ECS-2401 control, complete electrical cabinet)

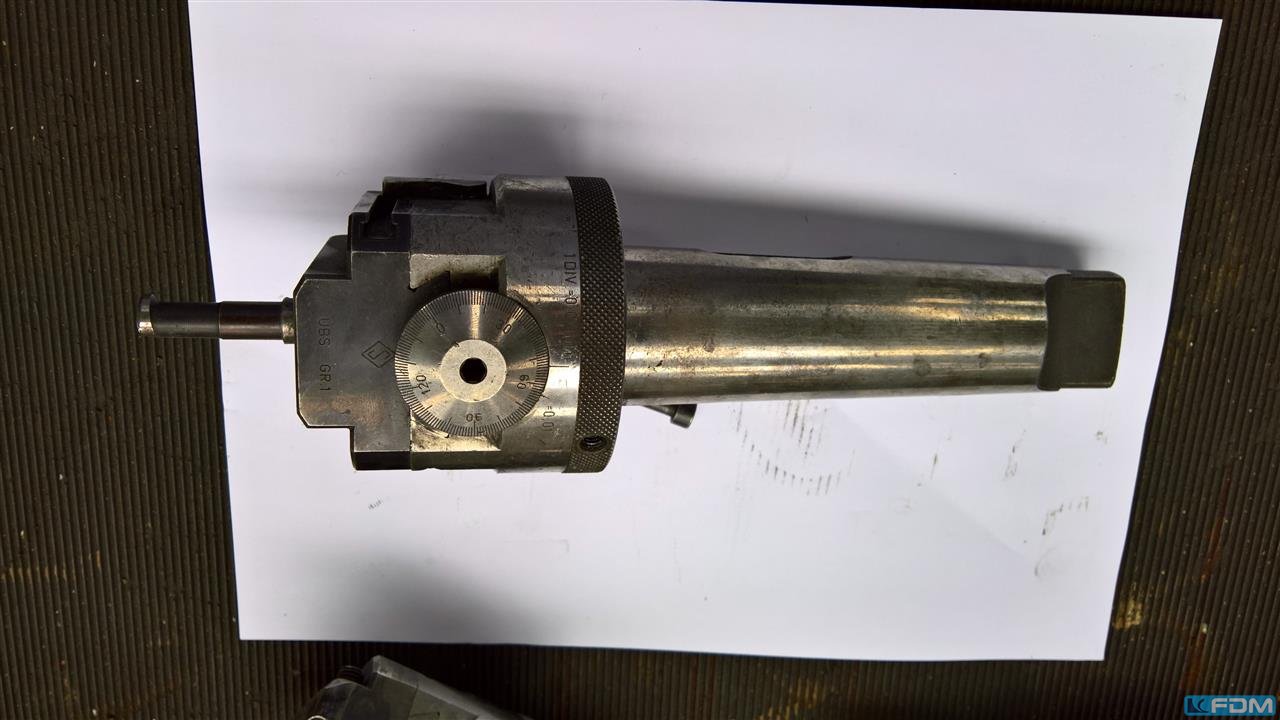

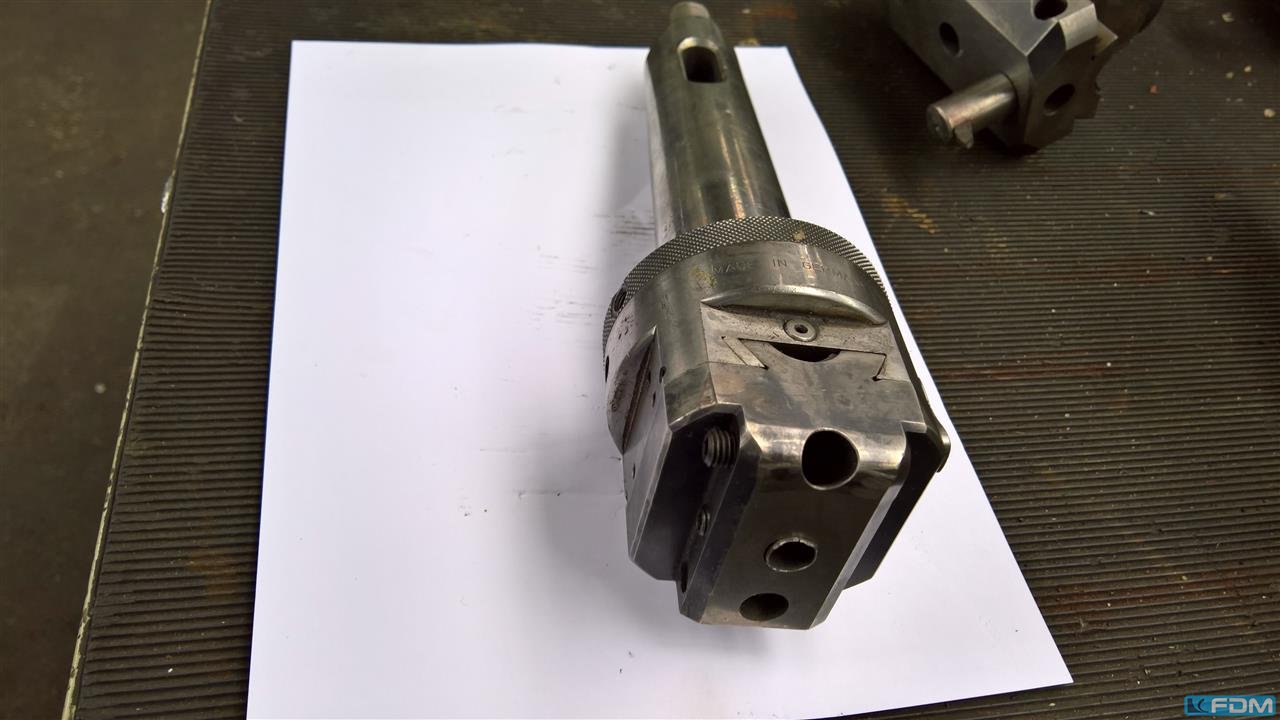

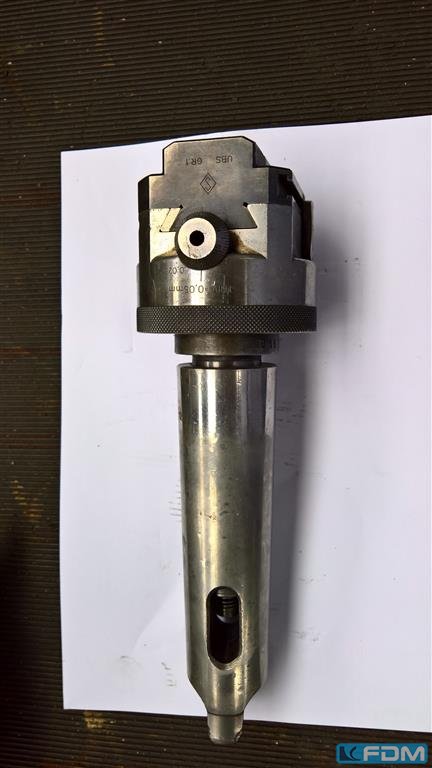

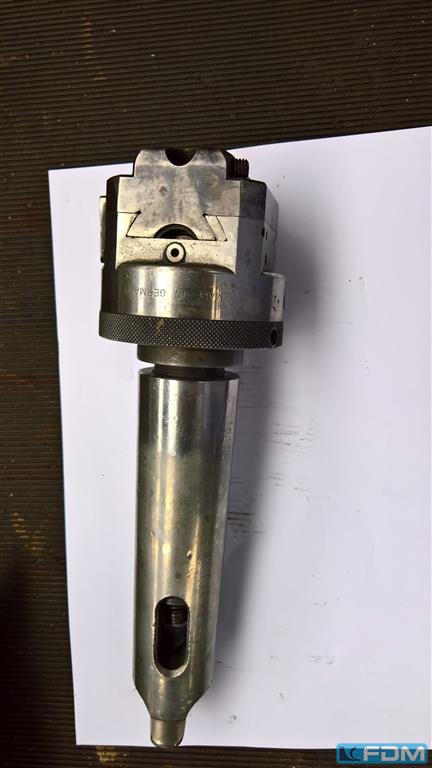

diameter: 0 - 800 mm tool adaptor: MK 6 Slide cross: 140 mm Weight: - kg Box Set Boring Head Wohlhaupter MK-Adaptor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

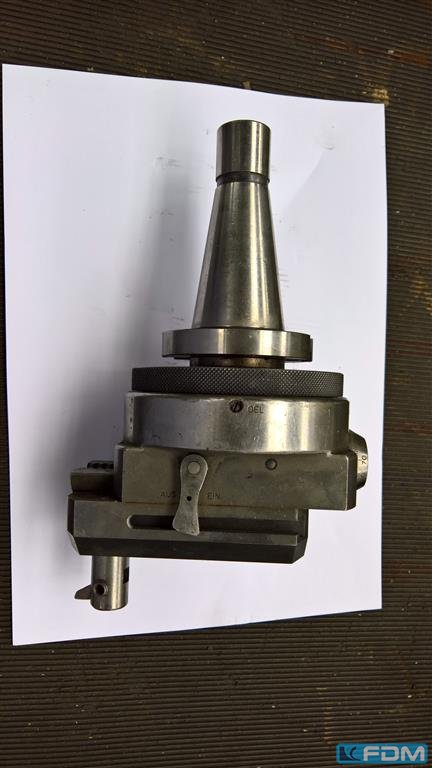

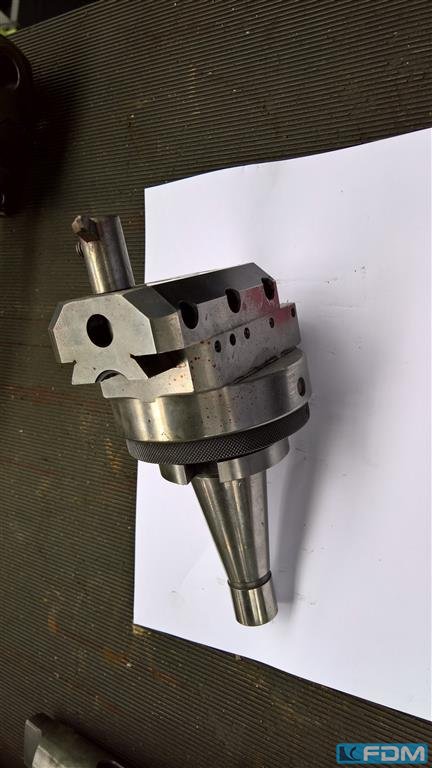

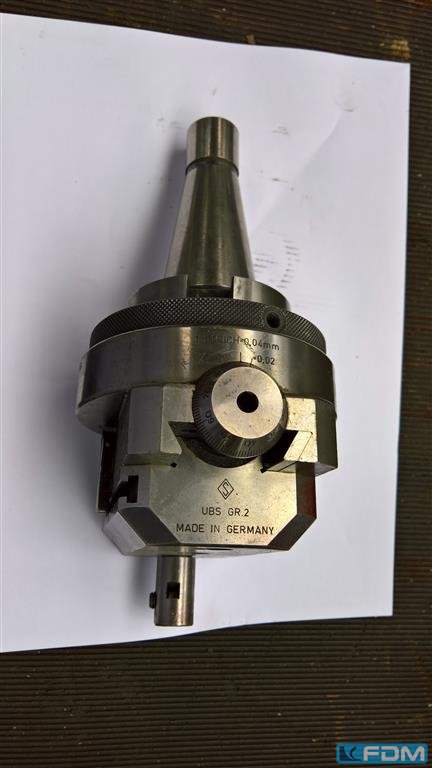

Description: Wohlhaupter UPA 4/5 Boring head ISO40 taper incl accessories Approx. Onsite Dimension. (l x w x h): 200 x 200 x 200 mm, weight approx.: 10 kg

Description: Tool holder: SK 40 Incl. various boring tools Approx. Onsite Dimension. (l x w x h): 250 x 230 x 80 mm, weight approx.: 20 kg

CNC system Heidenhain iTNC 530 HSCI - Axis: X (cross travel of table) 4000 mm Y (vertical spindle travel) 2500 mm Z (longitudinal column travel) 1600 mm W (spindle stroke) 800 mm - Table clamping area 1800 × 2500 mm - Spindle taper ISO 50 Heidenhain iTNC 530 HSCI CNC system - Axes: X (cross travel of table) 4000 mm Y (vertical travel of headstock) 2500 mm Z (longitudinal travel of column) 1600 mm W (spindle stroke) 800 mm - Table clamping area 1800 × 2500 mm - Spindle taper ISO 50

Key data: 850 mm, 600 mm, 625 mm

Travel • X-axis (table): 850 mm • Y-axis (horizontal): 600 mm • Z-axis (vertical): 625 mm Control • CNC control: Heidenhain iTNC 530 Automatic swivel head • Quill 120 mm • Tool holder: SK 50 DIN 69871 & DIN 2080 • Speed range: 2,500 rpm History • 2009 – Conversion of the control system • 2012 – Partial overhaul • 2021 – Milling head overhaul • 2024 – Inspection and, if necessary, repair • Inspection of all components - > replacement if necessary • Geometric acceptance is carried out according to the new machine acceptance protocol Stepless NC rotary table • Clamping area: 1,100 mm x 840 mm

Description: In metal box , with SK 40 tool holder Approx. Onsite Dimension. (l x w x h): 400 x 300 x 150 mm, weight approx.: 20 kg

Description: 2 pieces On SK 40 holders Manufacturer: CO Adjustment range: 0.4 - 20 mm Approx. Onsite Dimension. (l x w x h): 300 x 140 x 60 mm, weight approx.: 4 kg

Code: 0270 Brand: CASATI MACCHINE Model: HF/BP Boring hinges and plates inserting machine for furniture, kitchens, bathroom furniture and various Motor power Hp 1,5 Boring unit stroke mm 100 Max boring depth mm 50 Millimetric length of shoulder mm 1000 Head with 4 spindles : Centre distance between 2 spindles mm 52 Operating pressure 6 bar Overall dimensions mm 1000 X 680 X 700 h Weight kg 60

HBM WYSSBROD B74 with control system Heideinhain.

Type: VSP 50 CNC Parameters: 11750 mm, 2000 mm Manufacturer: Tos Description: The machine is in good technical condition, after agreement the possibility of testing. Main dimensions maximum and smallest distance of the spindle axis from the stand guide: -version without tool magazine 2500/500 mm -version with tool magazine 2500/600 mm maximum and smallest spindle end distance: -from bed guide 1480/380 mm -from the base of the machine 1860/760 mm headstock adjustment 2000 mm adjustment of the headstock on a machine with a tool magazine 1900 mm arm adjustment 800 mm Sleigh adjustment: -version with one bed 1000 mm -version with two beds 4500 mm -version with three beds 8000 mm -version with four beds 11500 mm Maximum drilling diameters: diameter of drilling fully into steel with a strength of 600 MPa 50 mm diameter of drilling completely into cast iron with a strength o ...

Description: Longitudinal travel of upright X 10,000 ,mm Spindle head vertical travel Y 3,300 mm RAM transverse travel Z 1,100 mm Spindle quill travel W (boring bar) 800 mm Translating travel C 2,000 mm Turntable plate positions B 360,000 n Turntable size 2,700 x 2,700 mm Drilling unit vertical travel V 2,700 mm Drilling unit transversal travel U 500 mm SELCA S4045PD control Serial number 02-021.021 Dig depth 2000 mm z-motion: 1,200 mm, table surface area l x w : 2700 x 2700 mm, control: SELCA 4045PD, power capacity - spindle: 50 kW, weight approx.: 160,000 kg, Approx. Onsite Dimension. (l x w x h): 19,000 x 10,000 x 6,000 mm

spindle diameter:110 mm x-travel:1800 mm y-travel:1400 mm z-travel:1400 mm W-axis (spindle longitudinal):600 mm max. table load:5 kg table-size:1250x1400 mm spindle drive:22 kW spindle taper:50 ISO spindle speed:10~3000 1/min Spindle motor torque:1000 Nm rapid speed:(X/Y/Z/W):5/5/5/3 m/min feeds:(X/Y/Z/W): 3/3/3/2 m/min positioning accuracy:0.025/1,000 mm (X/Y/Z), 0.03/600 mm (W) repeating accuracy:0.015 mm (X/Y/Z), 0.025 mm (W) mm total power requirement:50 kva weight of the machine ca.:18,5 t spindle bearing:SKF Scales:FAGOR allen Achsen CNC controller:Siemens/Fanuc/Heidenhain tabel encoder:Siemens Servo motors:in allen Achsen vom Steuerungshersteller

:HBM-110L spindle diameter:110 mm x-travel:900 mm y-travel:900 mm z-travel:1400 mm W-axis (spindle longitudinal):600 mm U-axis:Planschieber: 180 mm B-axis (table):360x1 ° table load:5 t table-size:1100x960 mm T-slots:22 Stk. spindle speed:22 Stufen, 8-1000 1/min spindle taper:50 ISO rapid speed:(X / Y / Z / W) 2500 mm/min speed - faceplate:4-200 (18 Stufen) 1/min torqe of face plate:1960 Nm dia of faceplate:600 mm movement of facing slide:180 mm weight of the machine ca.:11500 kg main drive:7,5 kW Machine size (LxWxH):4910x 2454x2750 mm 2-Axis DRO :für X- und Z-Achse (von NEWALL)

x-travel:510 mm y-travel:400 mm z-travel:350 mm table-size:600x400 mm spindle speeds:12000 (Motorspindel) 1/min. spindle drive:5,8 kw spindle taper:30 BBT oder SK rapid traverse in x-y-z axis:60 m/min Tool changer:16 fach weight of the machine ca.:2,8 t CNC controller:SIEMENS 828D (10.4" LCD+SHOPMILL) high speed directl spindle motor:12000 1/min inner coolant:20 bar chip conveyor - auger:im Bett Brandnew machine with: 1. CONTROL SYSTEM SIEMENS 828D (10.4" LCD+SHOPMILL) 2. WORKING TABLE SIZE: 600 X 400 MM 3. MAX. TABLE LOAD CAPACITY: 250 KGS 4. SPINDLE SPEED 12.000RPM (DIRECT DRIVEN TYP) 5. SPINDLE MOTOR 5.8 KW (1PH8087) 6. SPINDLE NOSE BBT 30 7. X/Y/Z STROKE 510/400/300 MM 8. X/Y/Z STROKE RAPID TRAVERSE: 60/60/60 M/MIN 9. ATC CAPACITY 16 TOOLS (DISC TYPE) 10. STANDARD SPLASH GUARD 11. ELECTRICAL CABINET WITH HEAT EXCHANGER 12. COOLANT UNIT 13. MANUAL PULSE GENERATOR 14. RIDGID TAPPING  ...

spindle diameter:110 mm x-travel:1600 mm y-travel:1000 mm z-travel:1250 mm w-axis:Ausfahren der Spindel: 400 mm B-axis (table):360 x 1° mm Distance table/spindle center:0-1000 mm table load:2,5 t table-size:1000x800 mm T-slot (width-distance-quantity):22H8 x 7 x 100 mm tool taper:50 ISO spindle turning speed - stepless:2 Stufen: 20-1000 1/min feeds:X/Y/Z-Achse: 3-950 mm/min feeds:W-Achse: 3-400 mm/min rapid speed:X/Y/Z-Achse: 2,8 m/min rapid speed:W-Achse: 2 m/min main drive:15 kw (drehzahlgeregelt) feed motors:X/Y/Z-Achse-Servomotoren: 2,9 kW Feed motor:W-Achse-Servomotor: 1,3 kW range L-W-H:3.874 x 4.317x3.715 mm weight of the machine ca.:12 t total power requirement:20 KVA Automatic tool clamping:pneumatisch ball screw in axes:X/Z/W CNC controls from:Siemens/Fanuc/Fagor

:HBM-110 | HBM-110L | HBM-110XL spindle diameter:110 mm x-travel:900|1250|1600 mm y-travel:900|900|1200 mm z-travel:1400|1400|1400 mm W-axis (spindle longitudinal):600 mm B-axis (table):360x1 ° table load:5 t table-size:1100 x 960|1250 x 1100|1250 x 1100 mm T-slots:22 mm spindle speed:22 Stufen, 8-1000 1/min spindle taper:50 ISO rapid speed:(X / Y / Z / W) 2500 mm/min speed - faceplate:4-200 1/min torqe of face plate:1960 Nm dia of faceplate:630 mm movement of facing slide:180 mm weight of the machine ca.:11,5|18|20 t main drive:7,5 kW Machine size (LxWxH):5120x3380x3100 mm 2-Axis DRO :für X- und Y-Achse (von NEWALL) CE-design:von TÜV Süd servo motors:von Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fagor

:FB-160 spindle diameter:160 mm x-travel:4000/6000/8000/10000/12000/14000/16000 mm y-travel:2000/2500/3000/3500/4000 mm z-axis:1200 mm w-axis:700 mm spindle cone:50 SK/BT spindle speed max.:3000 U/min spindle drive:37/51 kW feeds:X/Y/Z/W: 10 / 10 / 10 / 8 / 5 m/min rapid speed:X/Y/Z/W: 20 / 20 / 20 / 10 / 5 m/min max. torque on the spindle:3.300 Nm cross section of ram:460x520 mm table load:30 t table-size:2500x2500 mm table travel:1500 mm weight of the machine ca.:FBM-160 mit X=4m: 80 t positioning accuracy:0.032/1000 mm repeating accuracy:0.018/1000 mm CNC controller:Siemens/Fanuc/Heidenhain CNC controls from:Siemens/Fanuc/Heidenhain Factory-new CNC controlled panel drilling machine with CNC control from Siemens / Fanuc / Heidenhain. All essential components from well-known manufacturers such as Siemens, SKF, FAG, Heidenhain, Igus and many more. Newly developed FB series Convenient fo ...

x-axis:16000 mm y-axis:1250 mm z-axis:3200 mm total power requirement:37 kW speeds:2000 U/min Soraluce milling machine FR 16000 Angle head pivotable: 2.5° Drive power: 37 KW The machine was completely overhauled in 2009: new cables, new controls. Can be viewed under power at any time - without machine table, without rotary table, without chip conveyor -- is in good condition (inspection under power is possible)

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW weight of the machine ca.:130 mit Zubehör t z-travel:1.250 Ram mm w-axis:1000 Spindel mm ram stroke:1250 mm dimension of the ram:450 x 450 mm bore spindle stroke:1000 mm bore spindle turning speed range:1600 U/min powered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table:3000 x 3500 mm Rotary-table: CNC-IOS 40 NC mm stepless adjustable, relative to diameter:Index 4x 90° -360000 Winkel =0,001 Grad mm travel - cross:Längs 1230 mm table load of rotary table max.:40 Tonnen clamping plate:3 x 8000 x 2000 mm CNC Ram-Type Floor Boring and Milling machine, dismantled and stored

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m

spindle diameter:160 mm x-travel:6000 mm y-travel:5000 mm z-axis:1500 mm dimension of the ram:470 x 500 mm w-axis:900 mm spindle taper ISO:50 spindle turning speed range:1 -3000 U/min spindle motor:71 kW feed speeds:1 - 5000 mm/min rapid speed:25 m/min total power requirement:187,6 kW dimensions of the machine ca.:14,1 x 13,4 x ü.F.7,8 m Machine in mint condition ! with CNC control HEIDENHAIN iTNC 530 autom. toolchanger 80 - pockets CNC Rotary Table 4000 x 4000 mm max. table load 75 to. longitudinal movement V-axis 1500 mm autom. head changer with universal Milling Head universal high speed milling head 5-axis 18000 rpm RENISHAW measuring probe belt filtering unit and through spindle coolant chip conveyor

spindle diameter:130 mm x-travel:10000 mm y-travel:2500 mm z-axis:800 mm w-axis:750 mm spindle taper ISO:50 spindle turning speed range:1 - 3000 U/min power maindrive:37 kW feed speeds:1 - 6000 mm/min rapid speed:15 m/min total power requirement:90 kW with CNC control HEIDENHAIN TNC 430 - automatic toolchanger 60-pockets - NC rotary table 2500 x 2000 mm max table load 20 to. - longitudinal movement table 1500 mm - floor plate 5000 x 2000 mm, angle clamping plate, chip conveyor - coolant attachment with through spindle coolant 30 l/min. 20 bar

spindle diameter:105 mm x-travel:2000 mm y-travel:1600 mm z-travel:1600 mm W-axis (spindle longitudinal):700 mm spindle taper: ISO:50 Speed of boring spindles:5 - 2000 U/min. b-axis:360 ° Table area:1200 x 1500 mm workpiece weight:5000 kg feed speeds:2 - 4000 mm/min rapid traverse:6 m/min total power requirement:65 kW weight of the machine ca.:17 t dimensions of the machine ca.:6,5 x 4,6 x 3,9 m CNC HEIDENHAIN TNC 426 working area protection coolant attachment

spindle diameter:102 mm x-travel:1530 mm y-travel:900 mm z-axis:1520 mm spindle stroke:710 mm table-size:1250 x 1400 mm table load capacity - central/maximum:2500 kp table rotating:360 ° main drive:11 kW spindle turning speed range:8 - 1600 U/min high speed spindle taper ISO:50 total power requirement:23 kW weight of the machine ca.:10 t dimensions of the machine ca.:5 x 3,5 x 2,8 m with 3-axes digital readout Point to Point controll HEIDENHAIN 310 Diverse Toolholders

table diameter:1400 mm x-travel:2200 mm y-travel:1200 mm z-travel:1100 mm c-axis:360.000 x 0,001 b-axis:+/- 60 ° w-axis:350 mm distance spindle center to column::1100 mm table load:6 t spindle drive:15 kW Torque:4600 nM spindle turning speed range:10 - 1600 U/min spindle taper ISO:50 no. of tools in the magazine:20 Stück total power requirement:45 kW weight of the machine ca.:30 t dimensions of the machine ca.:5,8 x 5,8 x 4,9 m Machine complete overhould and retrofit in 2001 with SIEMENS 840 D control for 6 axis - tool changer for 20 tools - spindle quill 350 mm as W-axis - rotary table as C-axis - angualar milling head indexable - oil cooler, chip conveyor, hand operating panel.

spindle diameter:150 mm x-travel:5100 mm y-travel:3600 mm w-axis:1950 mm z-axis:1000 mm spindle drive:52 kW spindle turning speed range:5 - 1600 U/min spindle taper ISO:50 B-axis (table):0,001 ° table surface area:2500 x 2500 mm table load:30 to workpiece swing dia.:~6000 mm weight of the machine ca.:58 t total power requirement:85 kW dimensions of the machine ca.:10,5 x 8,6 x 6,9 m Machine retrofit and overhouled in 2007 with HEIDENHAIN TNC 530 control - angular milling head - exhauster - coolant device

Working spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Largest quill extension 1,600 mm Spindle speed in the range 0.8 - 630 min-1 Displacements in the range: drilling 0.63 - 2,500 mm / min milling 0.63 - 4,000 mm / min Power consumption of the spindle electric motor 77 kW Threads: metric 0.5 - 12 mm Whitworth 1 - 28 threads / 1 VERTICAL HEADREST TRAVEL ON STAND 3 150 mm TRAVEL OF THE STAND ON THE BED 6,000 mm BASE PLATE DIMENSIONS 12,800 x 5,665 mm

Work spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Largest spring extension 1,600 mm Spindle speed in the range of 0.8 - 630 min-1 Displacements in the range: drilling 0.63 - 2,500 mm / min Milling 0.63 - 4,000 mm / min Power consumption of the spindle electric motor 77 kW Thread: metric 0.5 - 12 mm Whitworth 1 - 28 threads / 1 VERTICAL HEADREST TRAVEL TO STAND 4,000 mm TRAVEL OF THE STAND ON THE BED 5,000 mm BASE PLATE DIMENSIONS 6,400 x 5,100 mm

Type: WHN 13A Parameters: 130 mm, 2000 mm Manufacturer: Tos Čelákovice Year of production / SO / GO: 1979 / - / - Description: Heidenhain control system Cross arrangement of beds Four axes + rotary table Retractable working spindle Machine designed for universal engineering production Heidenhain control system Axis strengthening hydraulically Machine parameters: X-axis 3510 Y axis 2040 Z axis 1200 W 800 axis incl. reinforcement, 600 without reinforcement Clamping surface of the table 1800 x 1800. The machine is connected, with the possibility to test. Bearings and damaged wheels must be replaced in the headstock.

X / Y / Z / W = 8000/3200/1600/1250 Working spindle diameter 160 mm Spindle taper M 100 Maximum spindle drilling depth 1,600 mm Largest quill extension 1,250 mm Spindle speed in the range of 2 - 800 min-1 Displacements in the range: drilling 0.5 - 1,600 mm / min milling 0.5 - 3,200 mm / min Power consumption of the spindle electric motor 6 - 55 kW Threads: metric Whitworth 0.5 - 12 mm 1 - 28 thread / 1 VERTICAL HEADBOARD TRAVEL ON STAND 2,500 mm TRAVEL OF THE STAND ON THE BED 6,000 mm MOTHERBOARD DIMENSIONS 8,000 x 5,500

CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...

Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

Semi-automatic boring machine Brand: VITAP Typ: ALFA 35 T New machine Technical data: - One boring head 35 spindles - QUICK CHANGE SPINDLES - Pneumatic cylinder for horizontal/vertical positioning of the boring group (45 degreese and any intermediate angles) - Frontal/top 51aliper to obtain the same boring measure between horizontal and vertical position - Tilting side stops adjustable by metric scale and nonius and magnifying lens on each stop - 2 safety clamps inclined 4 degrees - Height regulation of the boring group by mechanical digital position indicator - Stroke regulation by means of 6 positions revolver (turret) (0-80 mm) - Automatic vertical-horizontal depth difference device (10 mm) - Speed regulation of the boring group command by control board - Strengthened steel structures for tilting of the boring group - 1 motor HP. 3 (Kw 2,2) - Sta ...

Horizontal side channel pump Materials: - Case: 1.4581 - Wheels: 1.4408 - Wave: 1.4571 Housing sealing: single-acting sliding ring seal, carbon/silicon carbide/viton Version A6: Pump mounted on base plate elastically coupled with 1.35 kW IEC standard rotary current motor Pressure: 2 bar Power: 800 l/h Revolutions: approx. 1,450 rpm Rated frequency: 50 Hz Engine power: 230/400 V Protection class: IP 55 Type of protection: E Ex eII T3 Type of construction: B3 Pumps partly unused, therefore in very good condition!

Well-preserved horizontal pillow-pack packaging machine. Very well suited for cylindrical or other elongated products. Was used to extract a sausage in foil. Please see the video. Fully functional, there is some evidence of second-hand. Price on request machine is immediately available.

Materials: Housing: 1.4581 Wheels: 1.4408 wave: 1.4571 Sealing: single-acting mechanical seal, carbon/silicon carbide/Viton Model A6: Pump on base plate mounted elastic coupled with 1.35 kW IEC standard motor, three-phase Pressure: 2 bar Revolutions: approx. 1,450 U/min Output: 1,200 l / h Mains frequency: 50 Hz Engine power: 230/400 V Protection class: IP 55 protection class: E ex eII T3 Design: B3 Pump partially unused in excellent condition!

Plate filter with pump Manufacturer: Rover Pompe Type: Colombo Field of use: Olive oil Filter plates: 25 PCs. End plates: Stainless steel Sheet size: 20 cm x 20 cm Pump: Capacity: 28 l / min Conveying height: 22 m Water temp. Max: 35 ° C In very good condition! Plate filter incl. new replacement filter plates and replacement filters!

Horizontal Milling Machine DIXI, Type 350 Mach. No. 350-16 Control: Dixi CNC 4400 Table dimensions: 810 x 810 mm table load: 2000 kg X/Y/Z: 1000 / 1000/1000 mm B-axis rotating table C-axis vertical round rotating table RPM: 10-3000 U / min Power: 18 kWh Table with 7 T-slots: 18 mm rapid traverse: 20-10000 mm / min taper ISO 50 Weight: 17 tons Accessories: Vertical milling head, vertical round table, angle rack, holders, etc.

Cutting capacity round 90°: 170 mm cutting capacity flat 90°: 140 x 210 mm cutting capacity around 45°: 125 mm section flat 45°: 100 x 125 mm working height: 890 mm band saw blade dimensions: 2080 x 20 x 0,9 mm cutting speed: 20-90 m / min coolant pump S1 100%: 100 W power: 0.75 of kW machine dimensions (L x D x H): 1250 x 540 x 1600 mm weight approx.: 157 kg

with palletech Table size 800 x 800 mm Table NCRT Number of pallets 14 Movement x-Axis 1300 mm y-Axis 1100 mm z-Axis 1000 mm Table indexing 0,001° Number in tools in magazine 237 pieces Maximum spindle speed 35-7.000 min Tool taper DIN 69871A-50 CNC control M-plus

Bei Fragen: 01718367957

Capacity 85 beats / min.

Surface grinders - horizontal ELB-SCHLIFF perfect B-10 SPS Second-hand machine Grinding length: 1000 mm Grinding width: 400 mm Workpiece height: 450 mm Table size: 1000 x 400 mm Grinding wheel dimensions: 300 x 50 mm Grinding spindle motor: 3.5 kW Table speed: 2-30 m / min Grinding wheel speed: 1500 rpm Magnetic plate size: 1200 x 500 mm Total power: 15 kW Machine weight approx.: 4,5 t Space requirement approx.: 3.5 x 2.5 x 2.5 m General overhauled by 2015 with 12 month warranty Paper machine Magnetic clamping plate 1000 x 400 Automatic dressing device with compensation 1 flange Items put up

Used machine as good as new Grinding length: 600 mm Grinding width: 400 mm Workpiece height: 450 mm Table clamping area: 600 x 400 mm Grinding wheel dimensions: 300x50 mm Grinding spindle motor: 3.5 kW Table speed: 0 - 30 m/min Grinding wheel speed: 0 - 35 m/s Magnetic plate size: 600 x 400 mm Total power requirement: 15 kW Machine weight approx.: 4.5 t Room requirements approx.: 3.5 x 2.5 x 2.5 m 12 month warranty Paper filter machine Automatic table dressing with compensation 1 pc. flange Setting-up elements

Surface grinders - horizontal ELB perfect BD 10 PLC Second-hand machine overhauled 2014 Surface grinders - horizontal ELB-SCHLIFF perfect BD 10 PLC Second-hand machine Grinding length: 1000 mm Grinding width: 600 mm Workpiece height: 600 mm Table size: 1000 x 600 mm Grinding wheel dimensions: 400 x 100 mm Grinding spindle motor: 11 kW Table speed: 2-30 m / min Grinding wheel speed: 0-35 m / s U/min Total power consumption: 35kW Machine weight approx.: 6 t Space requirement approx.: 3.8 x 2.5 x 2.5 m Part of 2014 overhauled with 12 month warranty Paper machine Magnetic clamping plate 1000 x 600 Automatic dressing device with compensation 1 flange Items put up

Plate filters/layers filter on role Manufacturer: KTM Troxler Type: FP 430 30 filter plates made of plastic DN 25 outlet with valve bottom Filter plate size: 40 cm x 40 cm In very good condition!

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk
