facing lathe used for sale

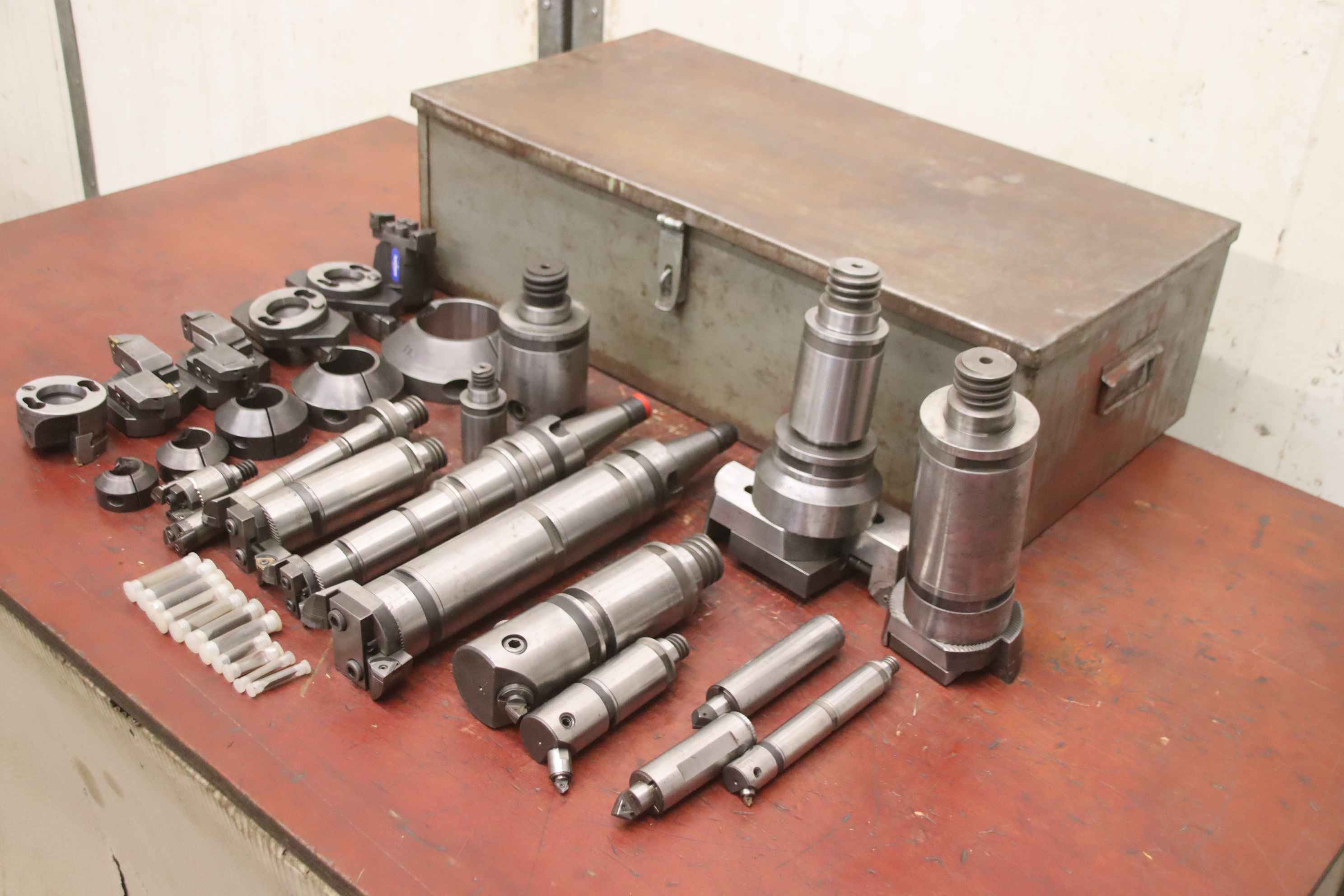

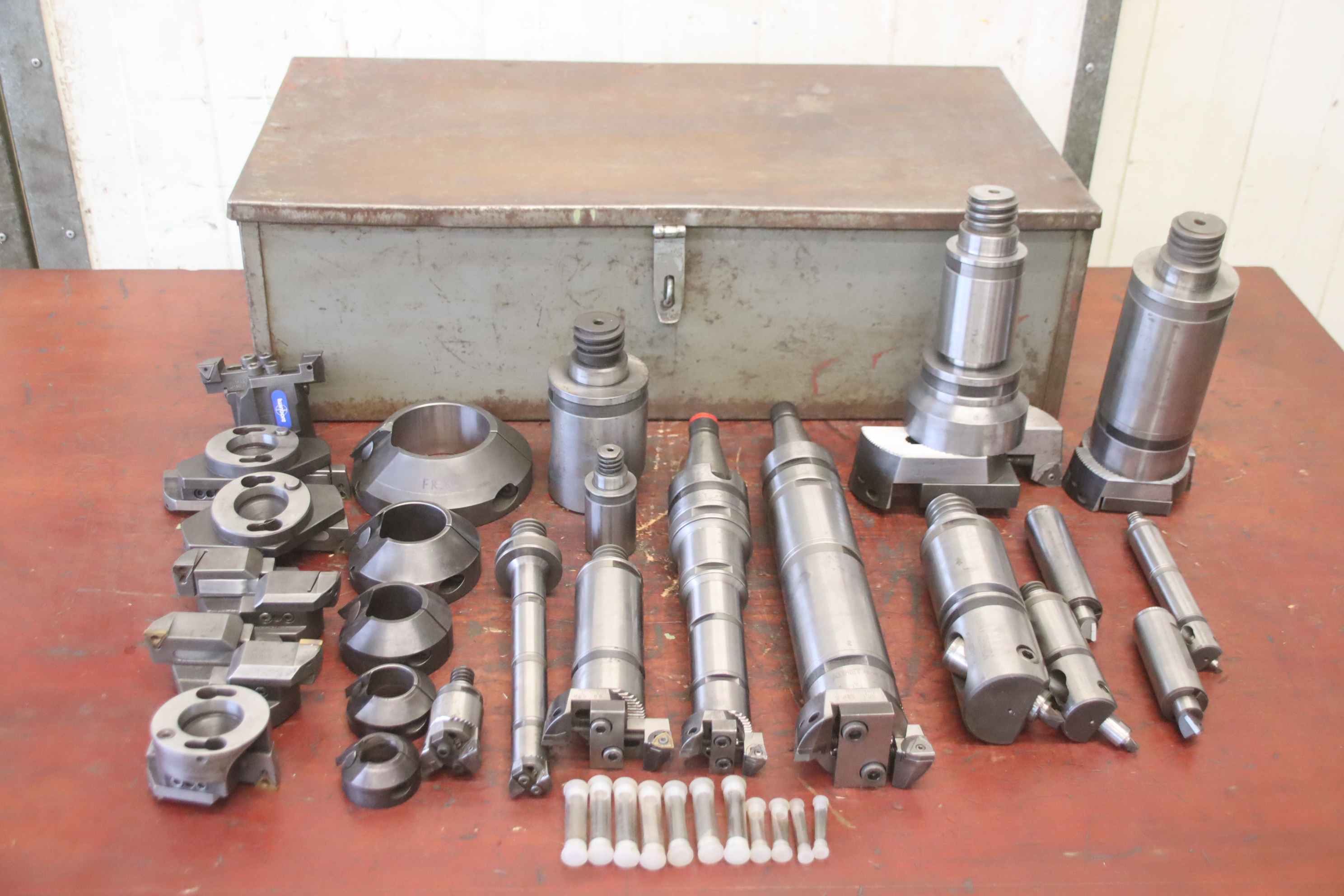

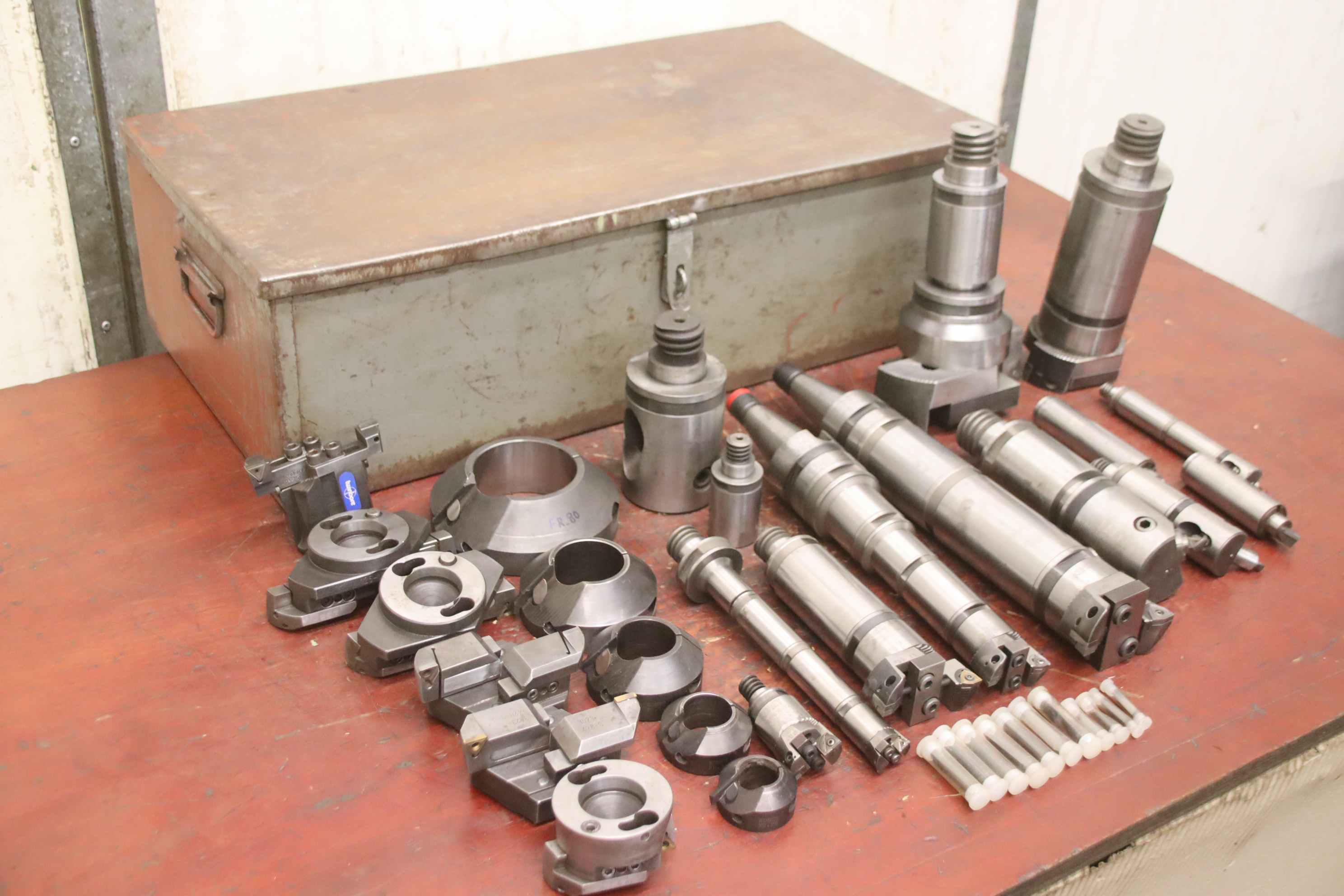

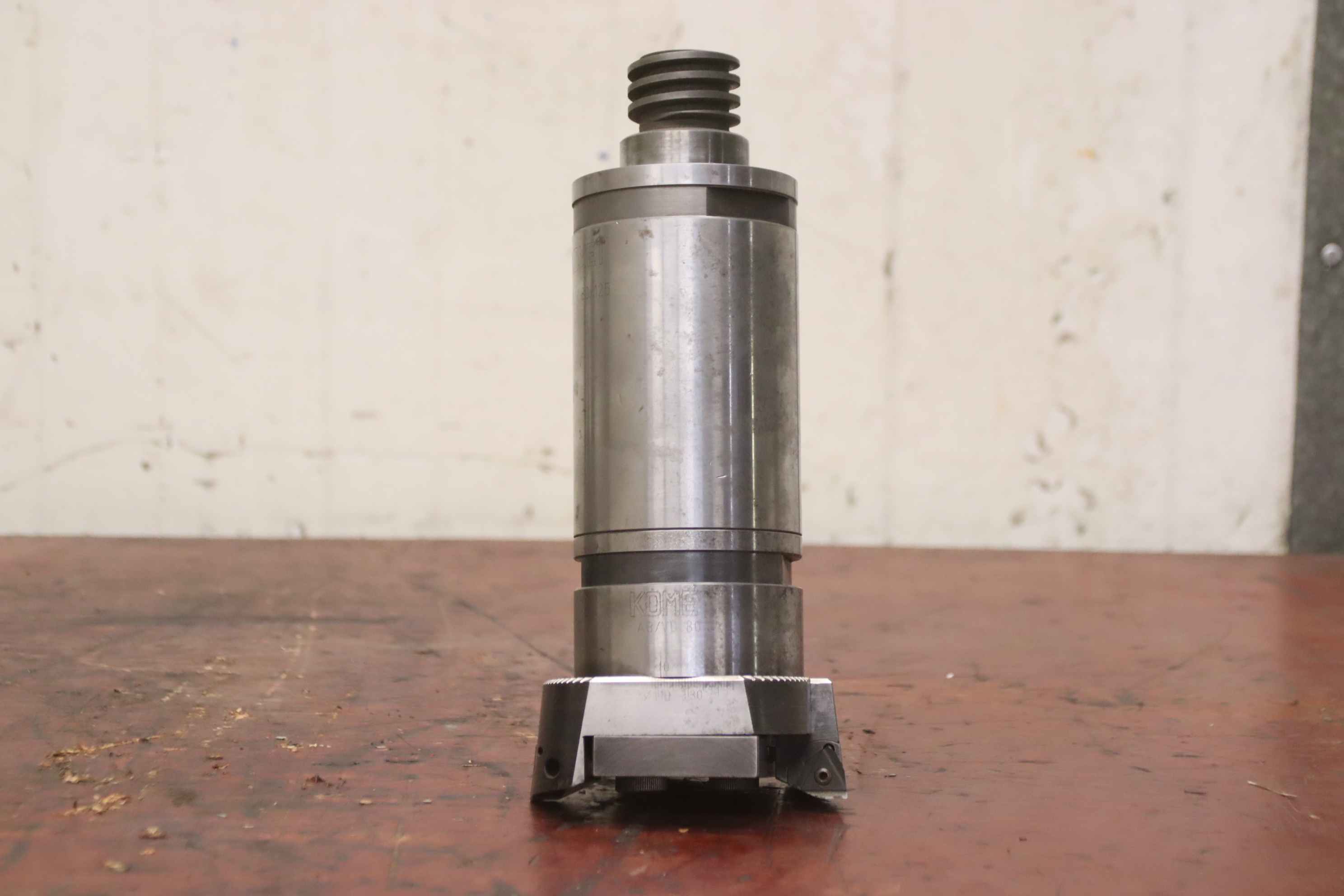

Flat slider for drilling rig for mounting in the drilling spindle Tool holder SK50

Facing lathe DP 800

Tip height: 1250 mm Turning diameter: 2,500 mm over bed Centre distance: 4.000 mm Support motion: 750 mm longitudinal feeds 630 mm cross feeds Face plate: Ã? 1250 mm Spindle speed: 5.6-280 RPM. Spindle bore: 100 mm Workpiece weight: 10.000 kg Equipped with: -Floor plates 4.500 x 2.200 mm -Powered tailstock -Operating instructions Country of origin: Germany Engine power: 45 kW Machine weight: 18,000 kg Machine Lxwxh: 8,000 x 4,000 x 2,100 mm

Code 151295 Description Facinglathe with center Make WMW NILES Model DP 1 / S 2 Serial number 261 526 149 Year of make 1986 Max. centerheight over base plate 1250 mm Max. swing over base plate 2480 mm Max. swing in Gap 3100 mm Distance between centers 4000 mm Max. workpiece weight betw. centers 10.000 kgs Spindle bore 100 mm Movement slide ( max. ) 1000 ( + 750 ) mm crossslide 630 mm toolslide 200 mm 18 Speeds 5,6 – 280 rpm Motorpower 45 kW Total power 55 kVA Machine weight total ± 18000 kgs Accessoiries 4 chuck facingplate of Ø 1250 mm Condition Machine is in very good condition

Engine lathe NILES DP1/S3 Year of manufacture: 1988 Manufacturer: NILES Made in Germany Machine is almost not used, complete Technical Data: Height of center over bed: 800mm Max. processing diameter over bed: 1.600mm Max. processing diameter over support:1.250mm Min. work-piece diameter: 250mm Max. work-piece weight: 40.000kg Max. work-piece diameter: 1.250mm Internal spindle cone (1:10): 120mm Range of longitudinal support feeds: -1st row (stepless adjustment): 1-200mm/min -2st row (stepless adjustment): 36-3600mm/min Range od feeds of transversal slides: -1st row (stepless adjustment): 0,4-80mm/min -2st row (stepless adjustment): 14,4-1440mm/min Range of feeds of cross slides: -1st row (stepless adjustment): 0,12-25mm/min -2st row (stepless adjustment): 4,5-450mm/min Length of travel: -Of transversal slides: 760mm -Of cross slides: 500mm -Of incisive ca ...

Manufacturer: Alfing Type: E II special machine Machine No.: 10-02541 Year of construction: 1976 Weight of the plant: approx. 43t General / technical data: Connecting rod stitch size: 400mm- 1.100mm Spindle thickness: depending on tools up to Ø350mm Installation area (l x w x h): approx. 6000 x 10000 x 3000mm Power Supply: 380V / 50Hz / 180kW Remark: ALFING special machine for fine spindling of connecting rod bearing seats for large engines. The machine has a clamping device that can be moved on the middle bed. The processing is done on 2 sides. Station 01 D with laterally movable carriage unit for adjusting the stitch size. The machine has a splash guard for wet machining. On the machine connecting rods of the Type 540 and Type 528 were produced (Deutz engines up to 300 liters displacement and 4000hp) Composed of: – 1 machine bed – 2 sled  ...

Turning diameter: 1900 mm Turning length (Z-axis): 2500 mm Spindle bore: 102 mm Turret positions: 0 Motor power: 45 HP/kW Chuck diameter: 500 mm Swing over bed Ø:        1900mm Swing over cross slide Ø:1520mm DBC Turning Length:      2500mm Spindle bore:            102mm Spindle power:           45kW Tailstock spindle Ø:     130Ø Stroke pinole:           300mm Spindle taper:           6Mk Length:                  6800mm Width:                   2800mm Height:                  2800mm Weight:                  10000kg

Head lathe, face lathe Manufacturer Ravensburg Type PKZ Center height 1140mm Center width 3000mm Turning diameter over base plate 2200mm Turning diameter via bed carriage 1700mm max. workpiece weight in the feed 3000kg workpiece weight between the tips 8000kg The machine is technically and optically in very good condition.

Turning diameter: 3000 mm Turning length (Z-axis): 3000 mm Spindle bore: 0 mm Turret positions: 0 Motor power: 0 HP/kW Chuck diameter: 0 mm CNC Model: 0 Max. thickness in 40 Kg/mm2 13 mm Max. thickness in 60 Kg/mm2 10 mm Max. workpiece:        3000Ø Maximum sheet thickness:13mm Max. dishing radius:   40mm Min. product Ø:        800 Length:                2875mm Width:                 990mm Height:                2010mm Weight:                2120kg

Face plate diameter: 1.250mm Center height above foundation slab: 1,250mm Weight: 19t Power: 55Kw Max. torque on the face plate: 31,500Nm Maximum workpiece mass between centres: 16,000 kg Speed range: 2.24 – 224 rpm

turning diameter:2000 mm faceplate diameter:2000 mm max. workpiece weight:6000 (fliegend) kg weight of the machine ca.:30 t main drive motor:55 kW

Description HEYLIGENSTEDT face lathe KH35-CNC with control Sinumerik 840 D Details Serial No. 70000134 Turning diameter over bed carriage 900 mm Turning diameter over bed sheets 1,400 mm Center height above floor 1,480 mm Tip height over bed panels 680 mm Bed width 850 mm Bed height 550 mm Control SIN 840 D Main spindle diameter at front bearing 206 mm Main spindle bore 100 mm max. main spindle torque 15,000 Nm Three-phase main spindle motor 40 kW

Key data: 1800 mm, 3000 mm

Center width: 3000 mm Rotation diameter: 1800 mm above bed / 2800 mm above floor Workpiece weight: 8,000 kg max. Jaw chuck: Ø 1800 mm Speed range: 1.8 - 180 rpm. Spindle passage: 220 mm 3-Axis Digital Readout: Easson ES-14 Equipped with: - Motorized tailstock - Various tooling -Operating instructions Country of origin: Germany Engine power: 34 kW Machine weight: 21.000 kg

Large head lathe Automatic feed in both axes Face plate 800 mm Turning diameter max. approx. 1400 mm more technical data - see pictures

Turning diameter: 1100 mm Turning length (Z-axis): 2000 mm Spindle bore: 140 mm Turret positions: 0 Motor power: 1 HP/kW Chuck diameter: 1 mm CNC Brand: Siemens CNC Model: Siemens 805 DBC Turning Length:      2000mm Swing over bed Ø:        1100mm Swing over cross slide Ø:730mm Spindle bore:            256mm Spindle power:           55kW Bed width:               600mm Tailstock spindle Ø:     140Ø Stroke pinole:           300mm Speeds / ranges:         700Rpm Length:                  6500mm Width:                   2100mm Height:               ...

Description: x-way 725 mm z-way 400 mm ManualPlus 620 control unit Speed - level 1 5 - 250 rpm Speed - level 2 5 - 710 rpm Description: 4-fold steel holder PARAT 'manual' Manually operated face plate RÖHM 4 jaws Ø 1000 mm turning diameter over slide: 1,400 mm, faceplate diameter: 1,000 mm, total power requirement: 55 kW, weight approx.: 6,500 kg, Approx. Onsite Dimension. (l x w x h): 4,800 x 2,500 x 2,100 mm

Turning diameter: 2000 mm Turning length (Z-axis): 3700 mm Spindle bore: 100 mm Turret positions: 1 Motor power: 55 HP/kW Chuck diameter: 1600 mm LatheZERBST - DP1 S3 x 3700 MACH-ID 8737 Make: ZERBST Type: DP1 S3 x 3700 Year: 1992 4 chuck 1600 mm Heidenhain digital read out Steady rest 710 mm Powered tailstock Threath cutting  Triple guide ways cast irion bed design For turbine rotors, electrical motor anchors , reactor vessels, cylinders, rope pullys, marine propulsion shaft, castings, shafts and cement industry DBC Turning Length:      3700mm Swing over bed Ø:        2000mm Swing over cross slide Ø:1600mm Spindle bore:            100mm Spindle power:           55kW Stroke pinole:           210mm Speeds / ranges:    &n ...

:FB-15 | FB-20 | FB-25 | FB-30 turning diameter:1500|2000|2500|2500 mm faceplate diameter:1500|2000|2500|2500 mm turning length:330 mm max. workpiece length:450 mm bed width:450 mm max. workpiece weight -without tailstock:3000 kg width of cross cariage:250 mm spindle bore:155 (230 opt.) mm spindle nose:A2-11 (A2-15 opt.) spindle cone:7 MK spindle speed:4-600|4-600|4-400|4-400 1/min spindle speed steps:4 cross way of carriage:330 mm movement longitudinal:1000|1000|1500|1500 mm spindle drive:22 (29 opt.) kW servo motor X-axis:ß12/3000i 1.8kw |ß12/3000i 1.8kw|1FL6067 2.0kw|1FL6067 2.0kw servo motor Z-axis:ß22/3000i 3kw |ß22/3000i 3kw |1FL6092 3.5kw|1FL6092 3.5kw ball screw:Ø25mm x P5 x C3 (X-Achse) ball screw:Ø40mm x P10 x C5 (Z-Achse) mm rapid power traverse in X-and Z direction:6/8 m/min number of tools:4 tool post size:32x32 mm weight of the machine ca.:7000|7500|8000|10000 kg Mach ...

Diameter: 630 mm. The 4-jaw mini lathe chuck body is made of cast iron, Bayonet cone 8.

Face and boring head NAREX Vhu 80 ( Vhu80 ) Mounting: SK50 in wooden case used, tested ! Dimensions: 420 x 410 x 155 mm

Face and boring head WMW C 100 - 40 TGL 32680 Mounting: SK40 Rotary chisel: Ø 20 mm used, tested ! Dimensions: 190 x 100 x 83 mm

Face and boring head WMW B71 TGL 2607.1 mount (machine side): SK40 with insert mount used, tested ! Dimensions (face and boring head): 216 x 65 x 70 mm

Facing and boring head PAGUS MK4 holder (machine side): MK4 with internal thread M14 x 2.0 Depth: 30 mm holder ( turning chisel ): 8 x 8 mm / 2x Ø 10 mm used, tested ! Dimensions: 202 x 57 x 55 mm

Face and boring head, with impact cutter PAGUS MK4 holder (machine side): MK4 with internal thread M16 x 2.0 Depth: 30 mm receptacle ( turning chisel ): 8 x 8 mm used, tested ! Dimensions: 285 x 95 x 110 mm

MKW Gathering Machine Rapid UT B3, with SFT 350, 8 stations, with circulating conveyor belt, with booklet/fold and front trimming

Description: - Capacity: Maximum diameter: 36 mm - Machining length : 35 mm - Parts length: Mini: 150 mm - Maxi: 1150 mm Equipped with : - 1 Siemens PLC - 2 machining heads Guhring Stock N° : EX928 weight approx.: 6,500 kg, Approx. Onsite Dimension. (l x w x h): 3,900 x 2,050 x 1,800 mm

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc.

min. workpiece diameter:50 mm workpiece length:500 mm total power requirement:60 kW horizontal stroke:200 mm vertical stroke:200 mm Balance shafts 1.1 Description of the basic machine concept - Horizontal end machining center for simultaneous end machining on both sides of wave-shaped parts - Cutting, centering, drilling, cross-drilling, chamfering, slot milling, etc. - Workpiece lengths up to approx. 500mm Machine base body and slide - Machine stand in compact design - Two three-axis modules with x, y and z axes, drives via AC servo motors and ball screws, linear guides size 45 Hydraulic unit - Mounted on the back of the machine - This means very good accessibility Central lubrication - Guides - Ball spindles (bearings and nuts) Tool carrier system - Right side of the machine: 2 x 6-fold crown turret - Left side of the machine: permanently installed motor spindle Electrical control cabi ...

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Tip height: 107 mm top width: 350 mm circular diameter: bed 200 mm spindle bore: 25 mm taper tailstock: 2 MK spindle speed: 35 - 3500 rpm feeds: longitudinal and mm/U thread pitches plan: 0.2-3 mm electrical connection: 380 V, approx. 2.2 kW space: 600 x 1300 x 1230 mm weight: 850 kg

Heavy Duty Lathe POREBA Model: TCA 160 /12000 Condition: Excellent, ready to work Year of manufacture: 1963 Complete Offer includes a lot of equipment Technical details : Control: Manual High of centrem over the flat way: 800 mm High of centres over the floor: 1 600 mm Swing over carriage: 1 280 mm Diametre of 4-jaws chuck: 1 600 mm Distance between centres: 12 000 mm Load carrying capacity without steady: 30 000 kg Load carrying capacity with 1 steady: 35 000 kg Load carrying capacity with 2 steady: 40 000 kg Equipment: - head for grinding 2 psc. - constant's lunette 3 psc. - mobile lunette: 1 psc. - milling head 1 psc. - carriages 2 psc. - change gear set, etc

digital display swingdiameter over bed 800 mm swingdiameter over slide 600 mm distance between center 2000 mm spindle speed750 1 / min multifix tailstock

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

TH 3309 Control and spindle lathe Fixed bezel D = 19-70 mm Revolving bezel D = 16-50 mm LED machine lamp Reduction sleeve MK 3 / MK 5 Motor protection switch Emergency stop foot operated Engine: 400V 1, 5 kW 50 Hz Tip height 156 mm Top width 830 mm Spindle speed 60 - 2000 min-1 16 levels Spindle cone MK 5 Spindle bore D = 38 mm Weight 430 kg Dimensions Lxwxh: 1685 x 745 x 1320 mm G & PIECES 3402030

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Working condition Complete electrics Yom: 1990 Technical details: Swing over bed: 2500 mm Turning length: 12 500 mm (The whole length of bed 15 700 mm) we can also make the extension of the needed workpiece weight: 120 tons bed width: 2 900 mm machine weight: 120 tons

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

No. 4620: 1 gebr. Guide and pull spindle lathe Fabr. BOLEY, Type 5 LZ, Arb.-Ber.: SpH 130 x 500 mm, Other: Spindle speeds: in 22 stages 28 - 2550 min-1 Space requirement: 1.5 x 0.9 x 1.25 m Weight ca 800 kg

Description Universal lathe suitable for tooling, fixture construction, training and mould making Peak height: 180mm Speed:25-2000 rpm Technical data Built in 2015 Speed 25-2000 rpm Peak height 180mm (360mm) Peak width 1000mm Spindle passage 38mm Reitstock MK 3 Total power requirement 4 KW Weight 880kg Connection 50 Hz 3x 380V

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Machine details Stock number 1105-03330 Machine type guide and pull spindle lathe Make ERNAULT-SOMUA Type Cholet 550 Year of construction 1990 Control type conventional Storage location FRANCE Country of origin France Delivery time immediately Freight base EX WORK price Technical details Turning diameter over bed 550 mm Turning diameter via support 500 mm Turning length 1100 mm Tip height 250 mm Spindle bore 52 mm Inner cone 136 Spindle speeds 32-1800 rpm Feeds - bed slide / lengthwise 0.05-07 mm/w Feeds flat slide 0.033-0.45 mm/min Total power requirement 13 kW Weight of the machine ca. 2,3 t Space requirement approx. 2870 x 940 x 1400 m Information accessories: PARAT steel holder 4 STUCK 3 bake lining dia 250mm 2 AXIS DIGITAL

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working
