Standard configuration
⦁ Stable C-frame
⦁ Coordinate guide with linear magazine with 19 tool stations
⦁ 2 clamps
⦁ Drives with maintenance free 3-phase servo
motors
⦁ Programmable presser foot for repositioning
⦁
Repositioning device with programmable strippers
⦁ Sensor
monitored part chutes 500 x 500 mm for Punching and Laser
station
⦁ 2 good parts containers
⦁ Laser unit: TruFlow
2700 CO2 Laser radio-frequency excited, isolated against vibrations,
integrated in machine frame, including cooling unit and Laser control
TASC 3
⦁ NitroLine: High-pressure cutting
⦁
SprintLine
⦁ ContourLine
⦁ Programmable cutting gas
pressure
⦁ Laser cutting head with 5 lens
⦁ Laser cutting
head with 7,5 lens
⦁ Laser cutting head - quick changing
device
⦁ ControlLine
⦁ LensLine

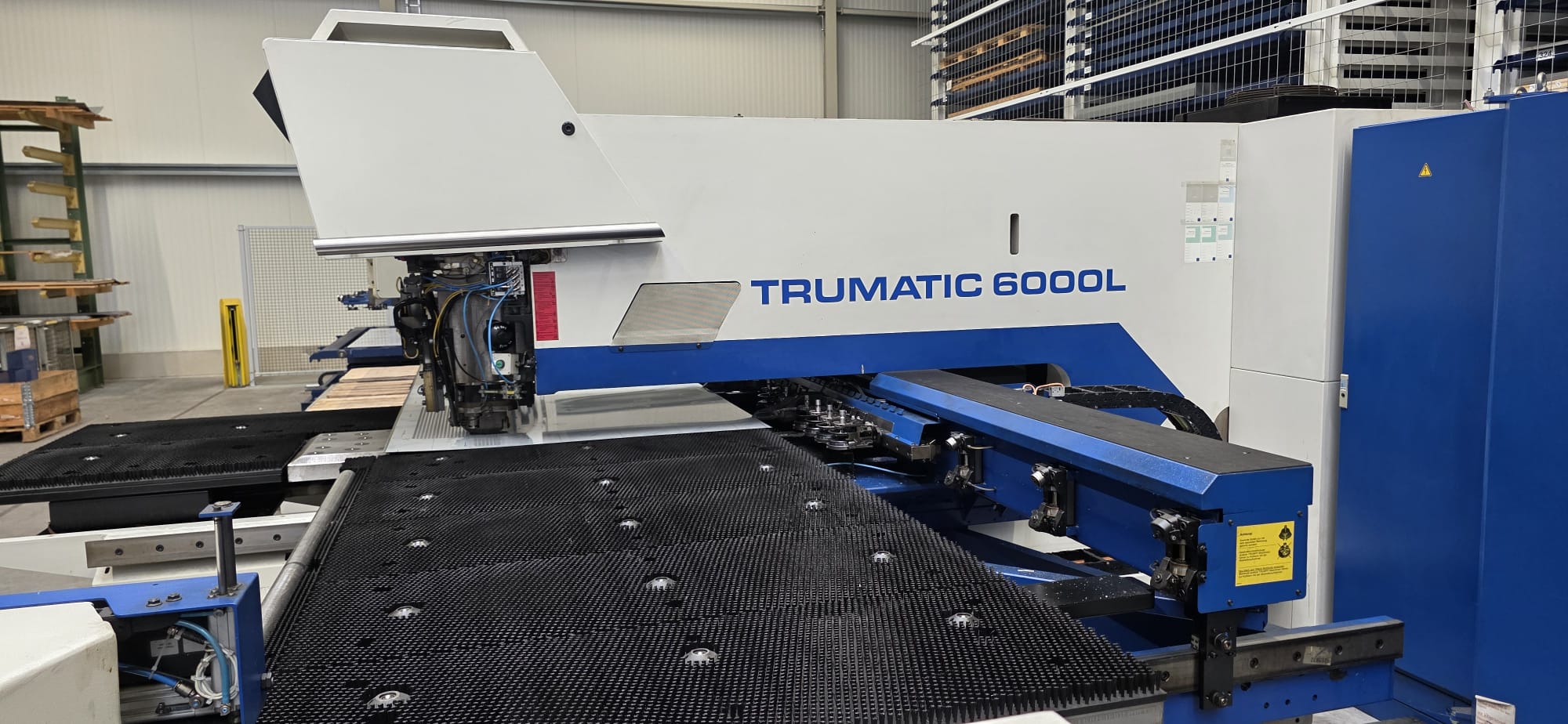

⦁ Punching head:
Mono tool adapter, 360° rotation of all tools, automatic tool lenght
compensation, spray tool lubrication, 2nd lubricant container, counter
per pass and thread, vacuum slug removal, swarf bucket
⦁ Control
unit: Siemens Sinumerik 840D, control panel with 10,4 TFT color
screen, easy to use, Online help, diagnostic functions, maintenance
logbook, technology data, teleservice, integrated 3,5 floppy disk
drive, RJ45 net connection
⦁ Safety: Multi-beam light barriers,
rapid hydraulic shutdown, extraction system, compact dust extractor,
Laser guard against scattered radiation at the cutting
head
Additional
equipment
Punching options
⦁
Function MultiTool
⦁ Function MultiShear
⦁
FunctionTapping
⦁ Function Marking/Rapid beading
⦁
Function SoftPunch
Machine options
⦁ 1
additional clamp
⦁ Chip conveyor with tilt container
⦁
Footswitch Start
Special thin sheet
processing
⦁ Brush tables with loading and unloading
aid
⦁ Sheet collision
detection

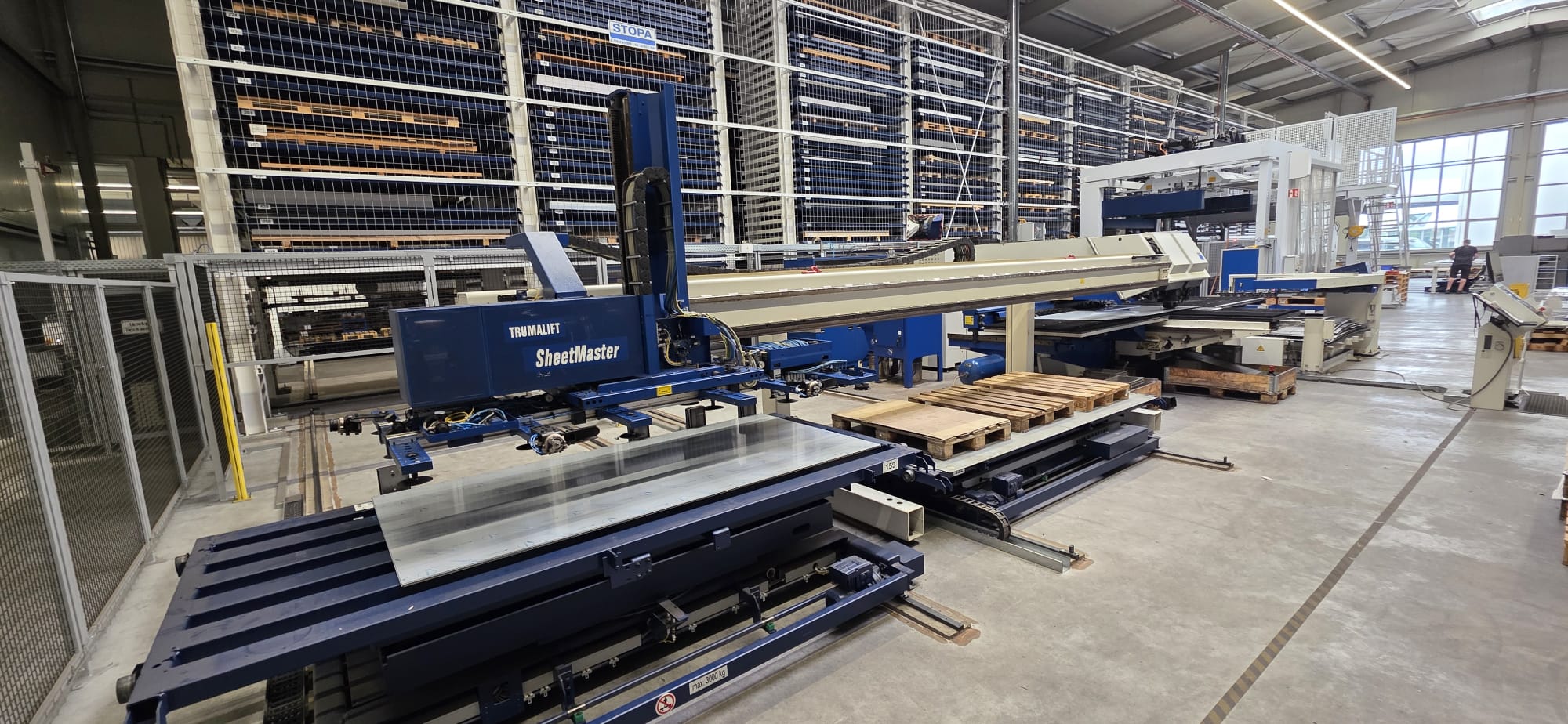

Automation
SheetM
aster
⦁ Standard configuration SheetMaster 2500 x 1250
mm
- Suction frame
- Peeler cup
- Vacuum sensor
-
Central lubrication
- Sheet thickness sensor for double sheet
check
SheetMaster options
⦁ Peeling
system

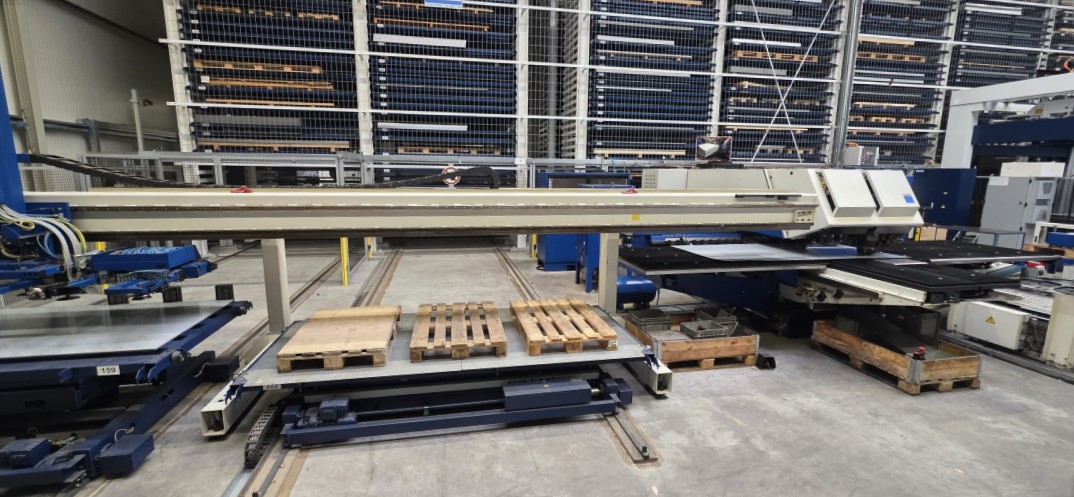

GripMaster
⦁ Standard
configuration GripMaster 2500 x 1250 mm
- Scissor table 300
mm
- Grippers with sensors
- Scrap skeleton pallet tiltable
2500 x 1250 mm
Німеччина
Backnang
