Automation
LiftMaster
Compact
Loading
max. sheet
format 3000 x 1500 mm
min. sheet format 1000 x 1000 mm
max.
sheet thickness 25 mm
max. sheet weight 900 kg
Unloading
min. parts size 150 x 150 mm
max. sheet thickness for rake 25
mm
max. sheet thickness for belt prongs 15 mm
max. sheet
weight 900 kg

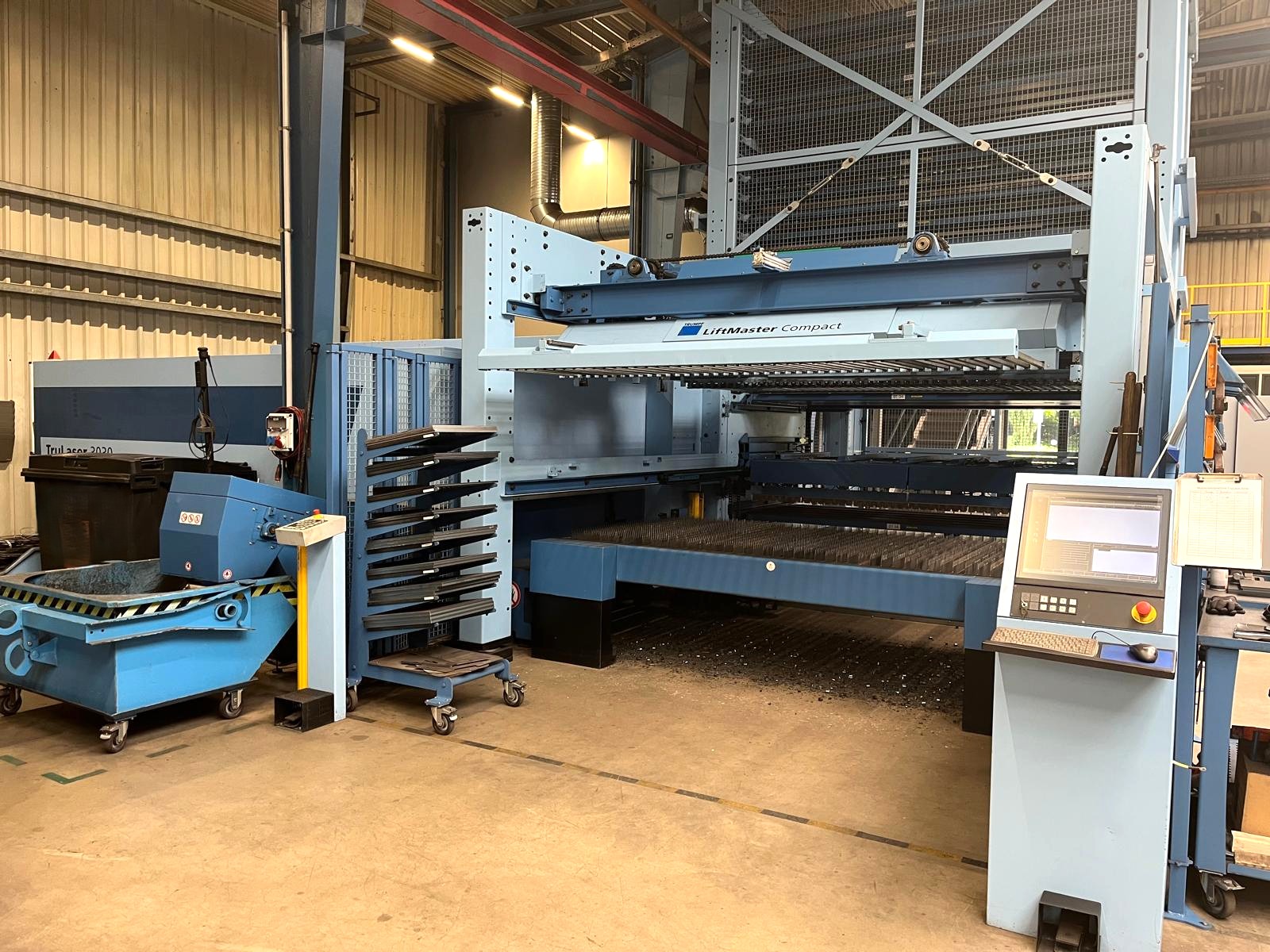

LiftMaster Compact 1530 (AL 34) basic
unit
⦁ Type 1530: sheet sizes/thicknesses 3048 mm x
1524 mm
⦁ Loading station; stack height of 90 mm / 3 t
⦁
Movable unloading rake (prong spacing 67 mm, replaceable
prongs)
⦁ Finished part pallet and extended pallet removal
station at the machine
⦁ Store interface
Loading
⦁ Peeling unit
⦁ Double sheet detection
⦁
Synchronous loader including separation of thin sheet (0.8 - 2.0
mm)
LiftMaster Compact options
⦁
Cleaning brush for slats
⦁ Safety devices for connection to
storage system incl. 2nd light barrier circuit
⦁ Storage
interface
Storage
system

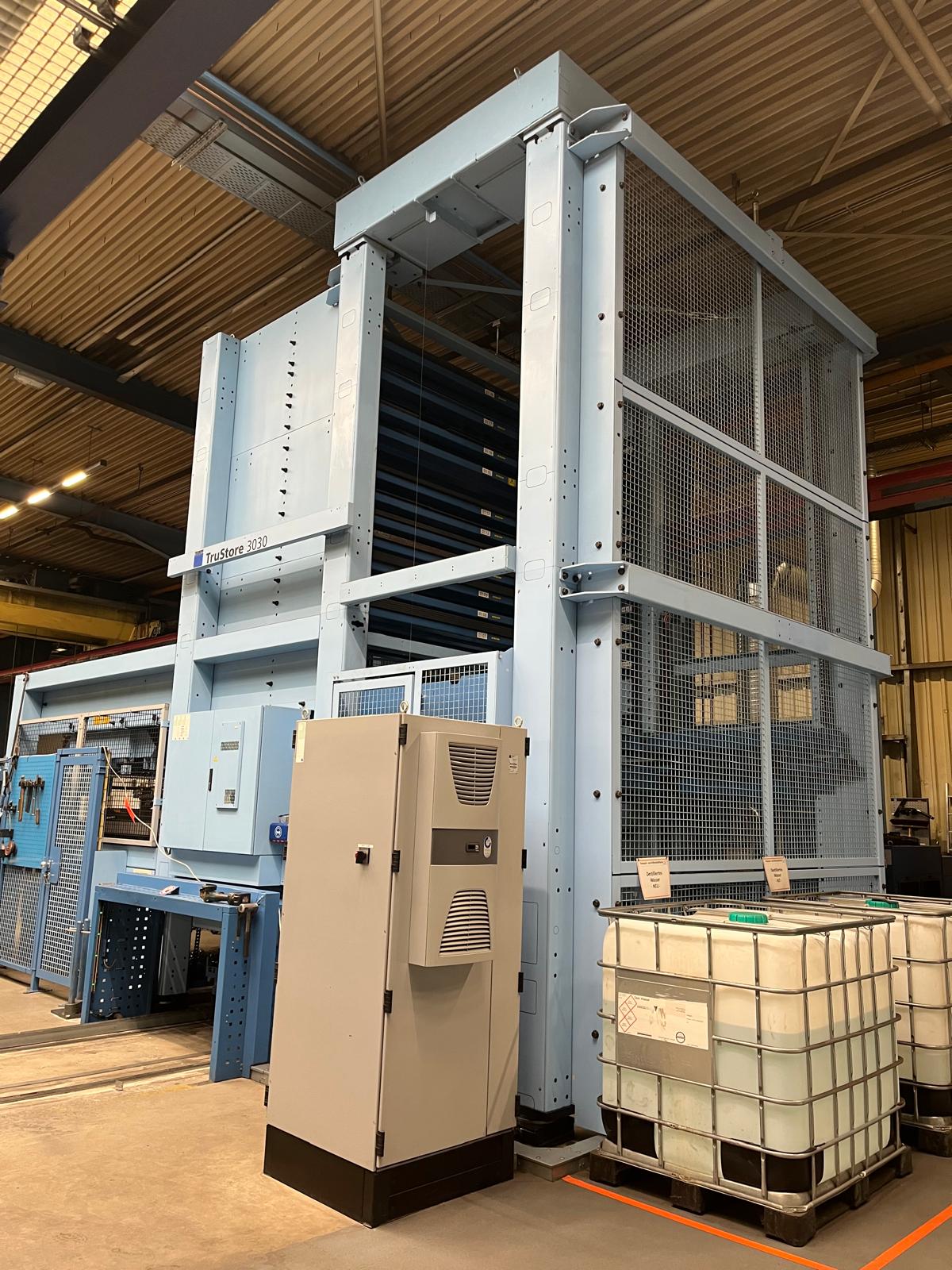

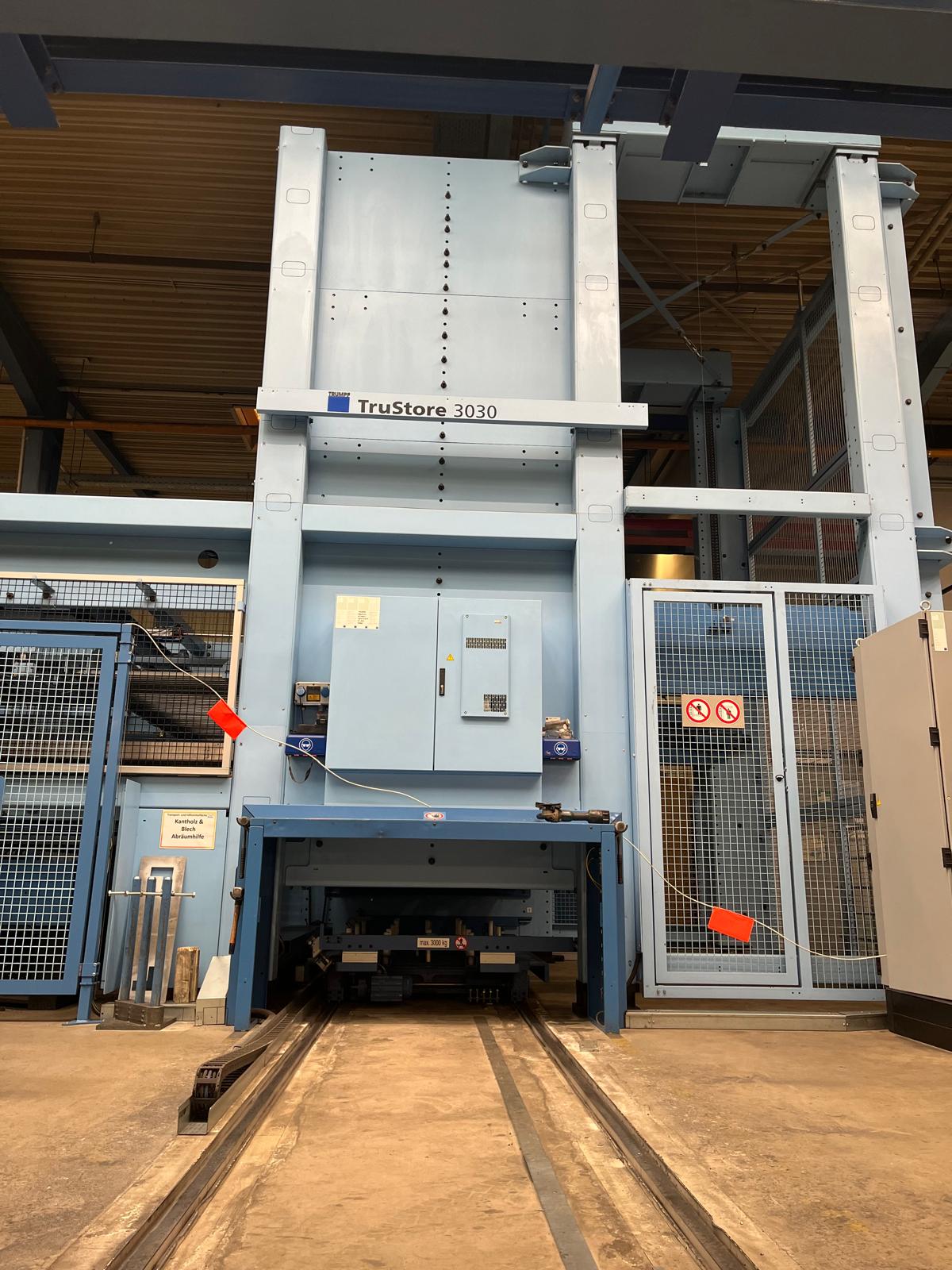

TruStore 3030 (AL12)
⦁
Standard configuration TruStore 3030 (A12)
- Sheet size 3048 x
1524 mm
- Storage safety device
- Single or double tower with
system height max. 8250 mm
- Loading height 90 or 170 mm
- 3 t
load capacity per pallet
- Start post
- Column
covering
Rack server:
- Control panel with 19 touch
screen
- Storage connection interface for connection to one
automation solution
- Switch cabinet lighting
- Lifting chain,
energy supply chain
TruStore options
⦁
Single tower - system height 6090 mm
⦁ Integration LiftMaster
Compact
- Incl. storage compartment extension
- Tower 1, incl.
interfaces, preparation for integration of additional
storage
shelves, reduced free drive of the rake frame
⦁ Input/output
scissor cart
- Integration tower 1 (without standard rail
set)
⦁ Cart version front end
⦁ Scissor table
(standard)
⦁ Storage compartment 170 mm incl. pallet tower
1
⦁ Storage compartment 90mm incl. pallet
⦁
Forklift-accessible pallet base for finished parts
- Loading
height reduced by 10 mm
⦁ Unpacking table for self-assembly
- Load capacity 3 t
