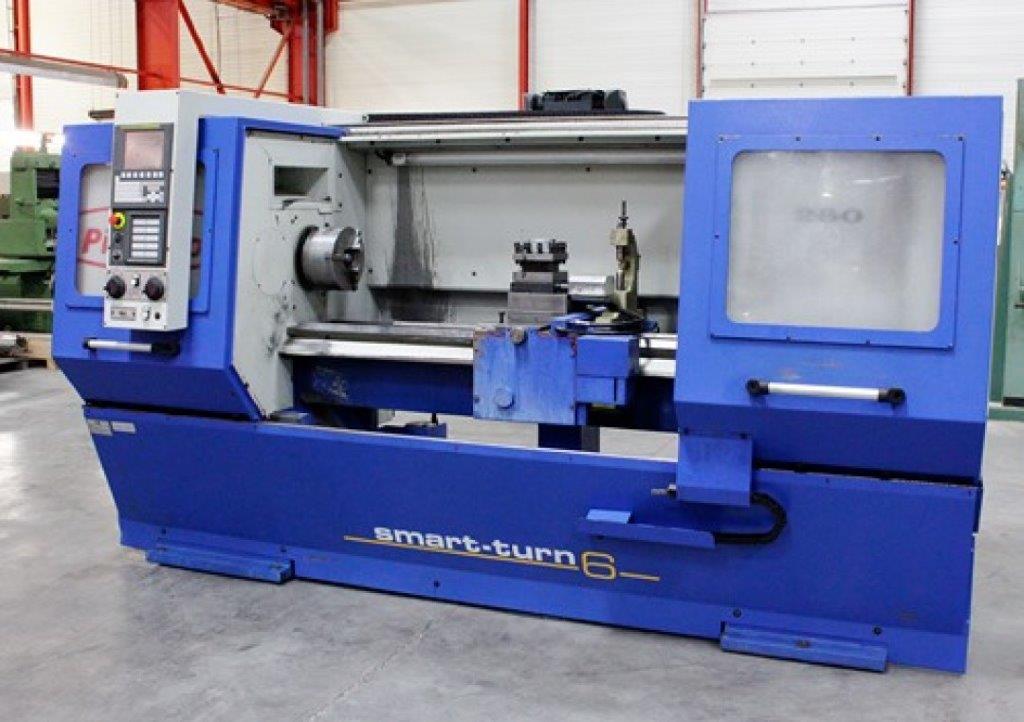

Верстат PINACHO Smart Turn 6/180

Manufacturer: Pinacho

Model: Smart Turn 6/180

Power: 7.5 kW

Frequency: 50 Hz

Control: FANUC

CAPACITY

• Center height: 180 mm

• Center width: 750–1000 mm

• Permissible diameter over bed: 360 mm

• Permissible diameter over longitudinal slide: 335 mm

• Permissible diameter over cross slide: 198 mm

• Bed width: 250 mm

SPINDLE

• Spindle bore: 42 mm

• Spindle nose: CAMLOCK no. 5 (DIN 55027 no. 5)

• Spindle taper: Morse taper no. 4

• Number of spindle speeds: 1

• Cutting speed (constant surface speed): 0–4000 U/min

FEED

• Working feed Z,X (mm/min): 0–10000 mm/min

• Rapid traverse Z,X (m/min): 10 m/min

TAILSTOCK

• Tailstock quill diameter: 58 mm

• Tailstock quill travel: 200 mm

• Tailstock U51258834 taper: Morse taper U51258834 no. 3

MOTORS

• Main motor power: 5.5 kW

• Feed force longitudinal (N): 4500 N

• Feed force cross (N): 3500 N

• Coolant pump motor power: 0.57 kW

STEADY RESTS

• Fixed steady rest opening min/max: 10–115 mm

• Follow rest opening min/max: 10–70 mm
