A decoiling, straightening and stamping line with roller feed,
straightening machine, decoiler and hydraulic press is available, 1)

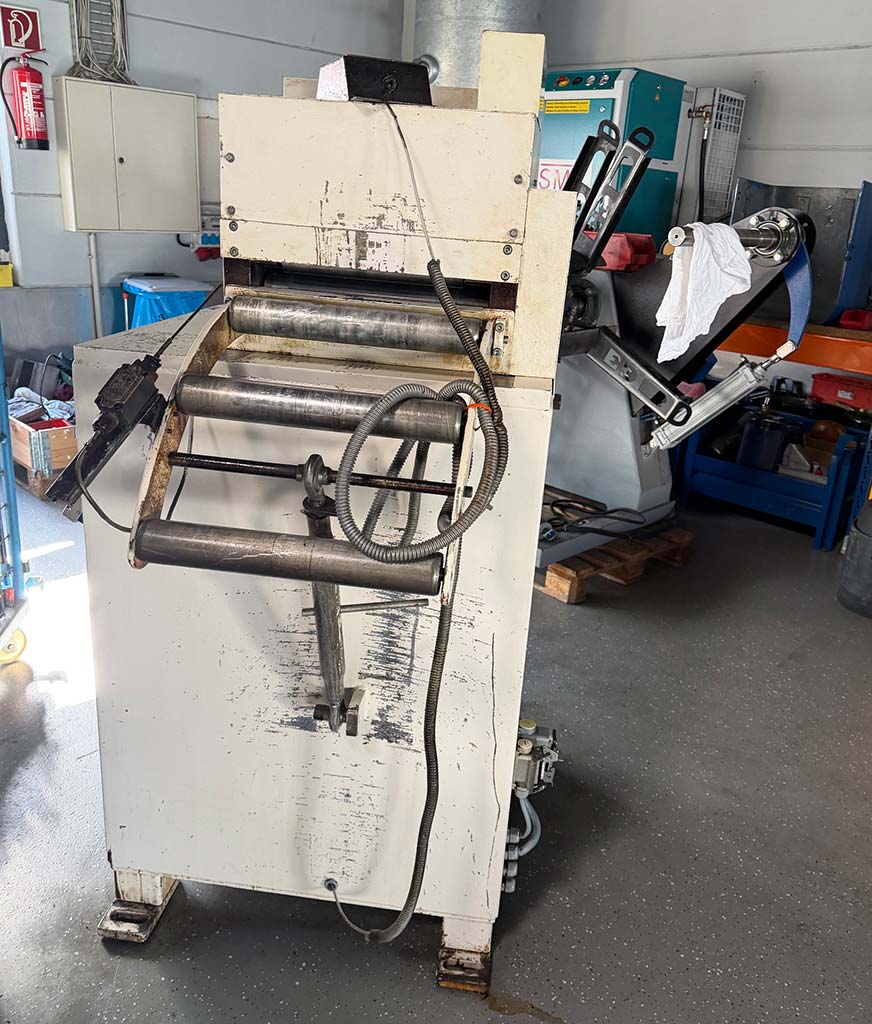

Roller feed WV-U-80/DSM 300 P-N, working direction: left to right,
max. strip width: 300mm, strip thickness: 0.1-5mm, max. strip
cross-section: 1,000mm², roller diameter: 80mm, max. feed speed:
120m/min, max. roller contact force: 4.5kN, feed accuracy: ±0.05mm,

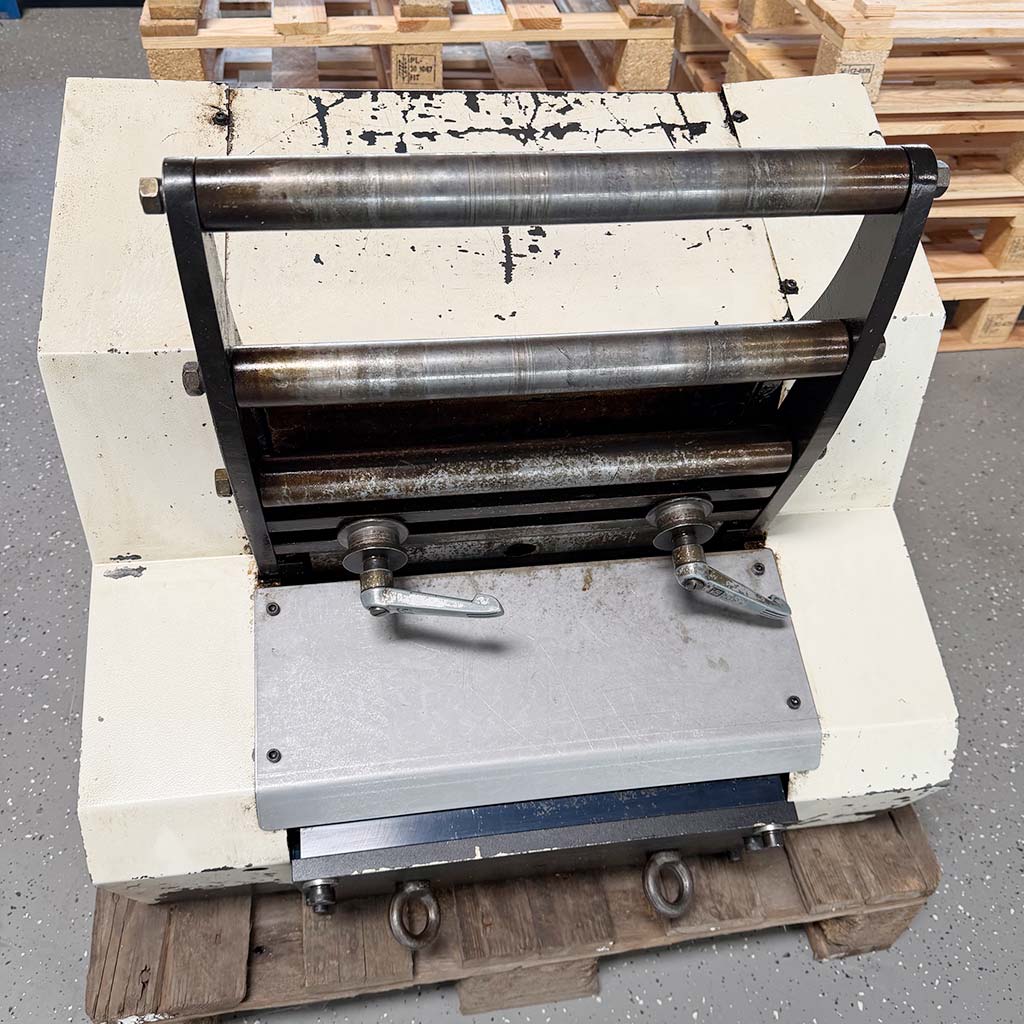

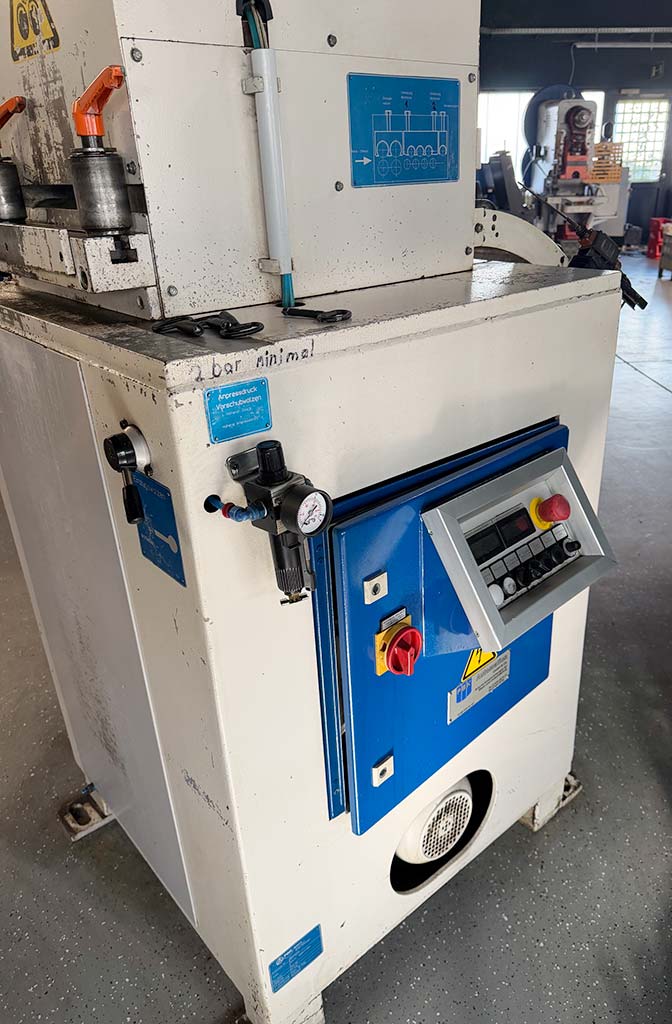

adjustable pneumatic pressure: approx. 5bar, 2) Straightening machine
RSTC W60/7/300, working direction: left to right, passage width:
320mm, max. strip width: 300mm, strip thickness: 0.4-5mm, max. strip
cross-section: 1,050mm², straightening and correction roller
diameter: 60mm, feed roller diameter: 80mm, strip speed: 0-30m/min,
feed rollers: 4, straightening rollers: 7, correction roller: 1, drive

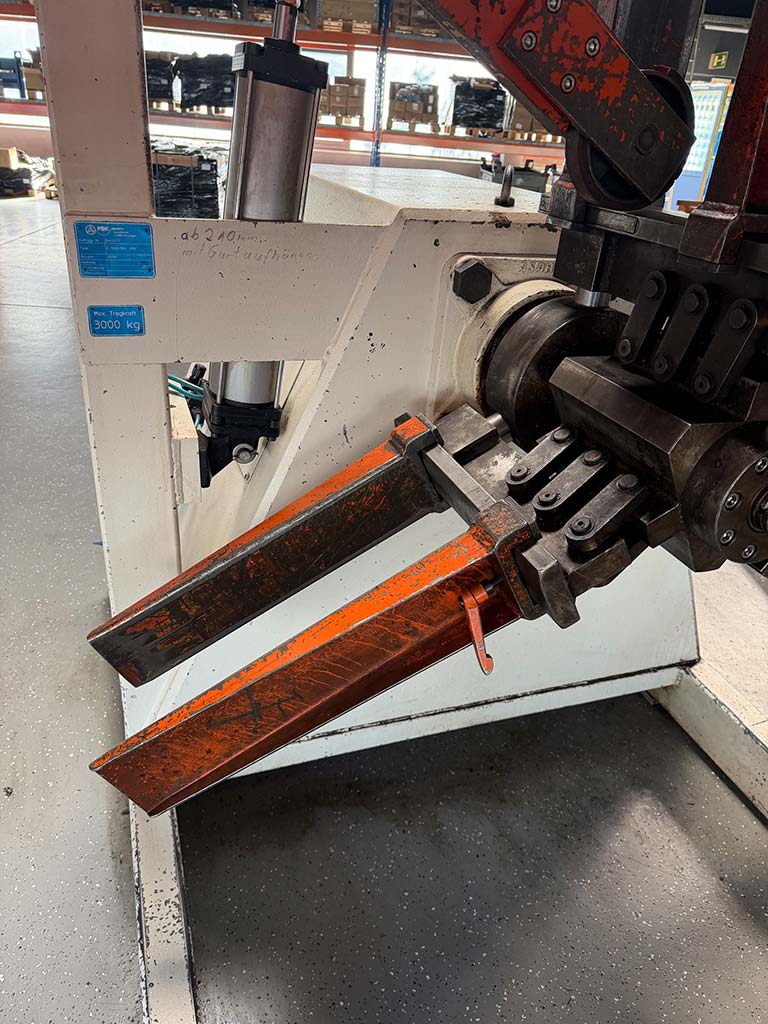

power: 3kW, 3) Decoiler E 3000/300 OMB, working direction: left to
right, max. load capacity: 30kN, expansion range: 470-520mm, max. coil
outer diameter: 1,500mm, strip width: 300mm, main shaft height above

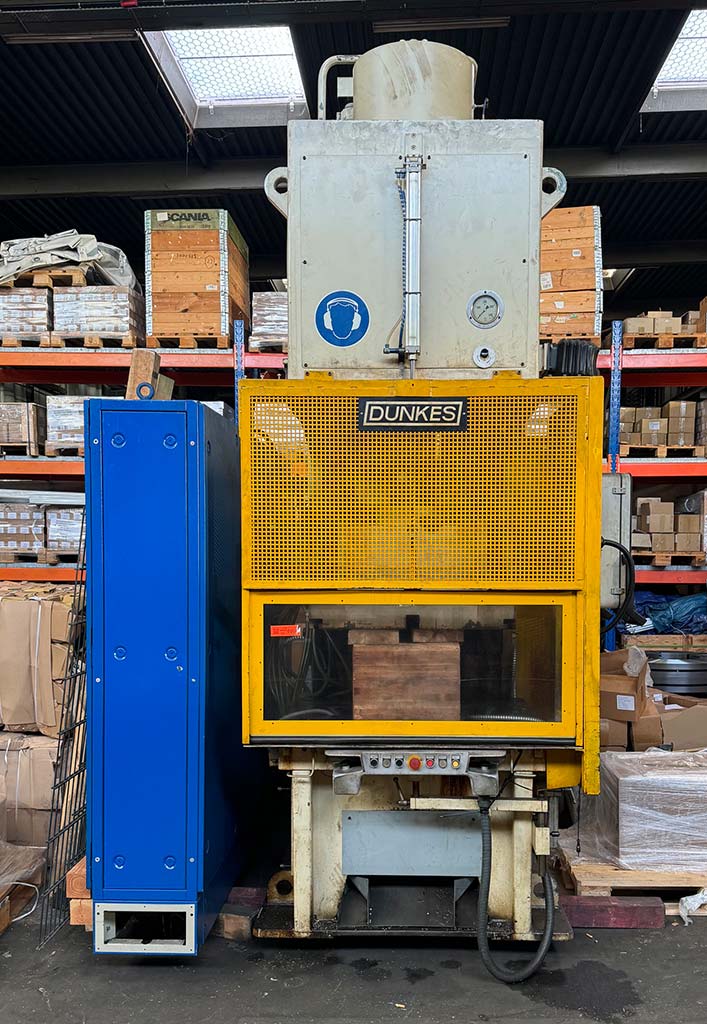

floor: 1,000mm, weight: 1.2t, 4) Hydraulic Single-Column Press Dunkes,
pressing force: 125t, including documentation. On-site inspection is
possible.
