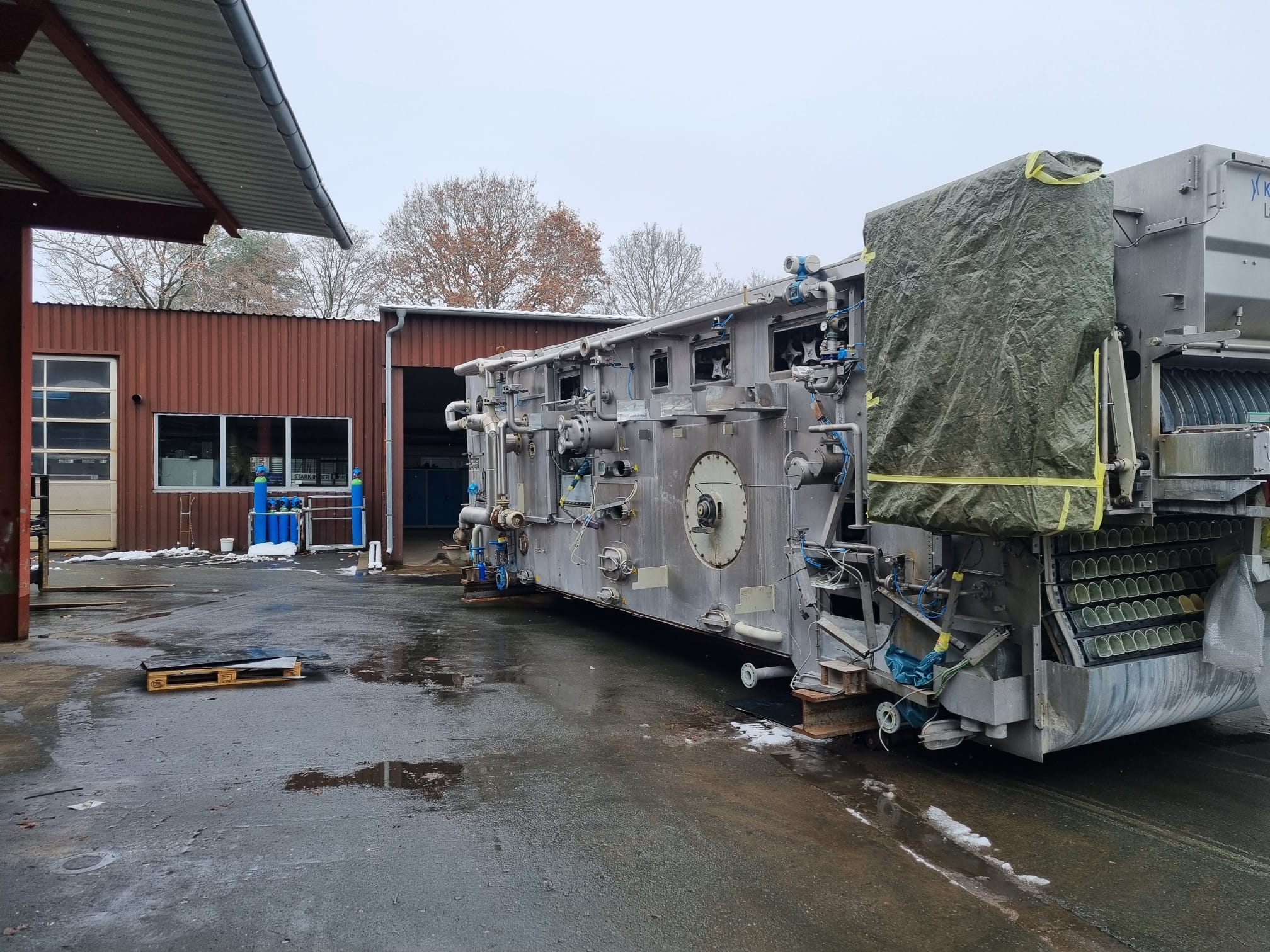

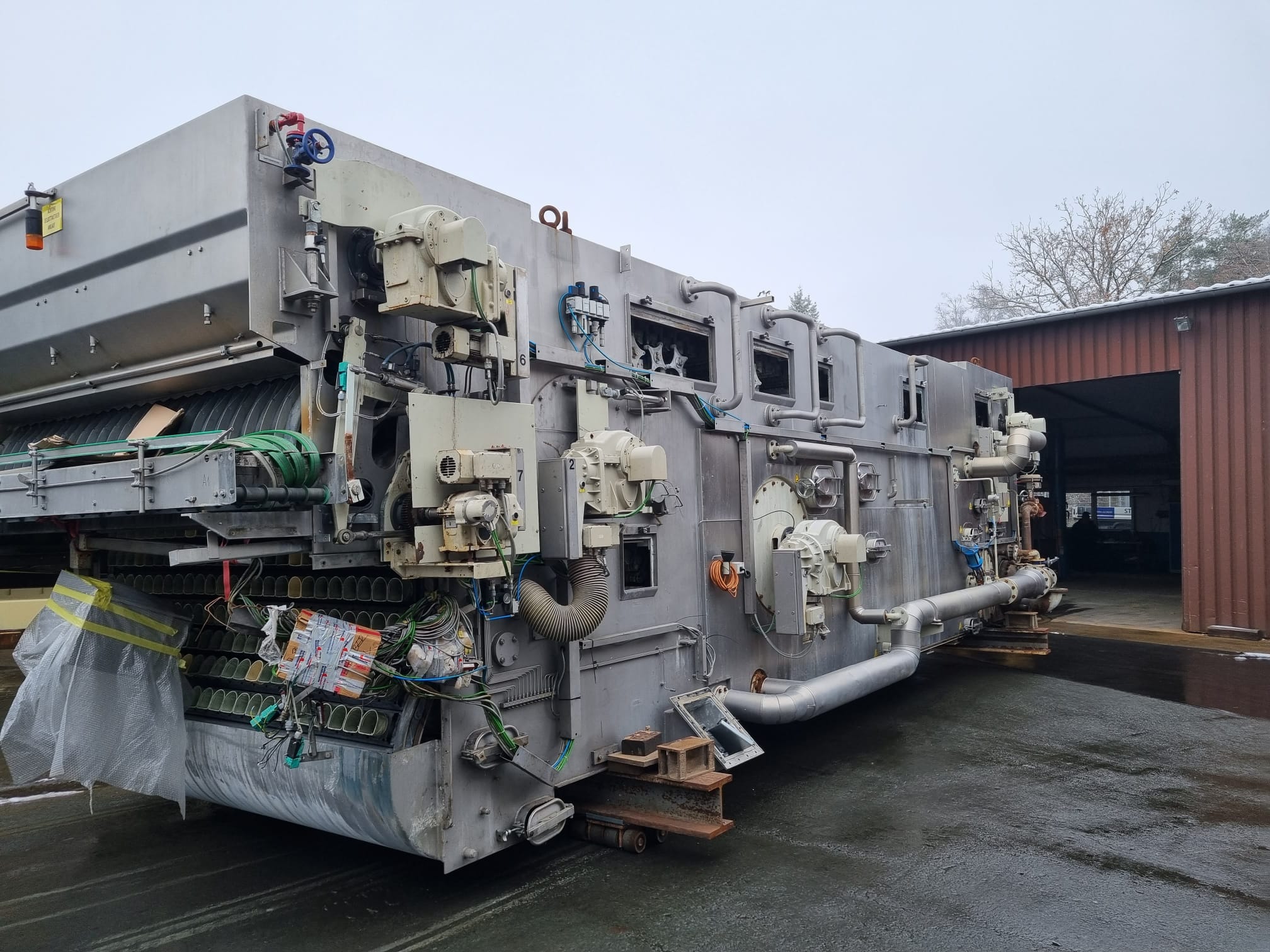

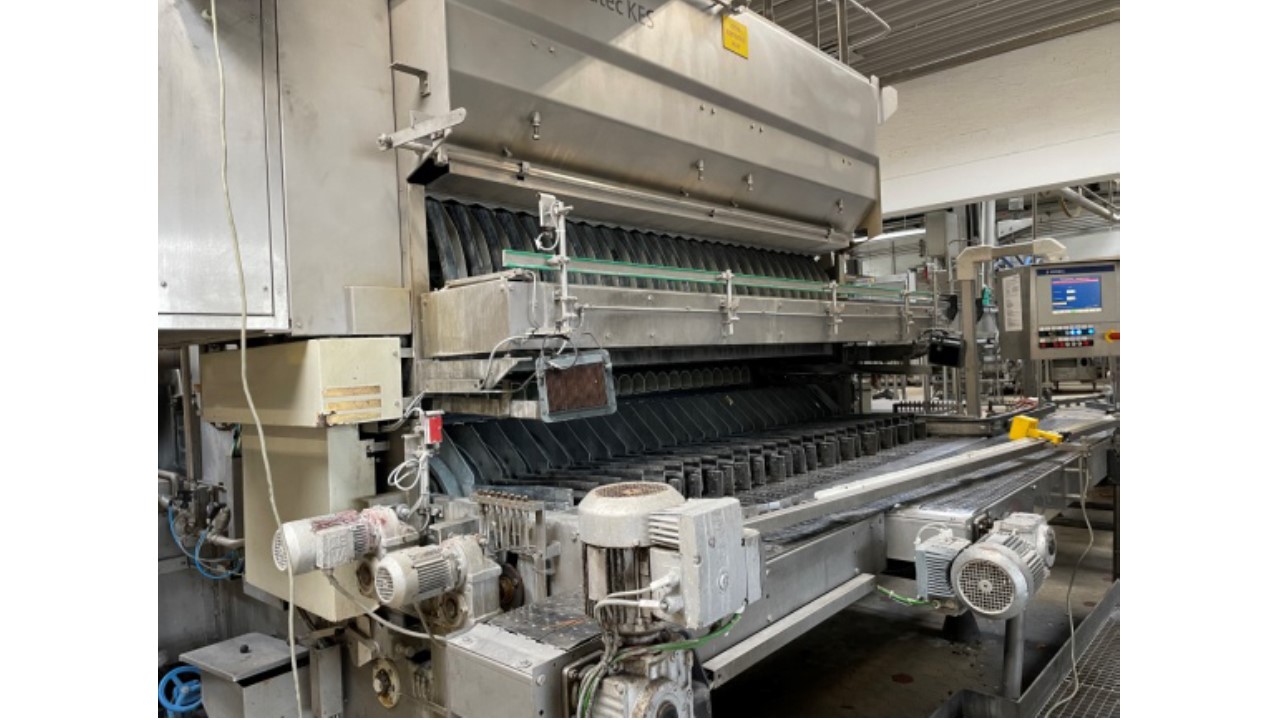

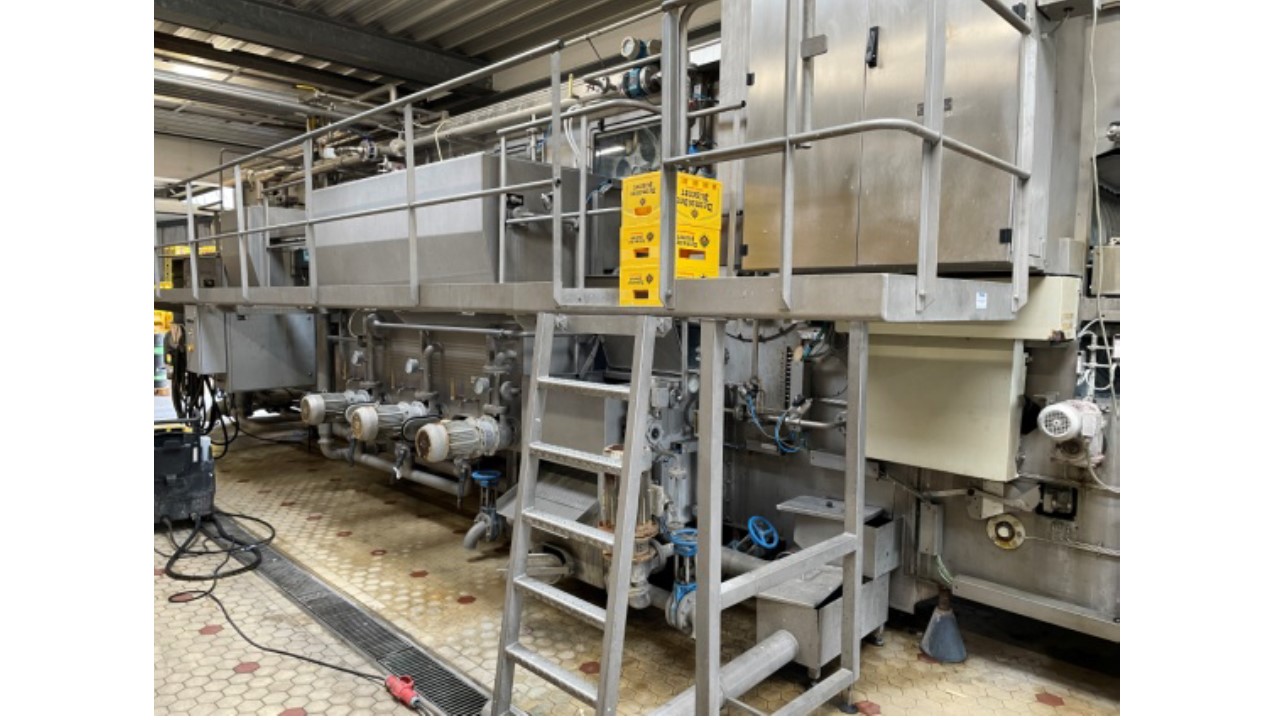

OVERVIEW This Krones KES-2-4-312/25-110 bottle washing machine is
designed for the industrial washing of returnable glass bottles in
beverage production lines. The machine is equipped with 25 bottles per
row and has a rated capacity of up to approx. 28,000 bottles per hour.
The machine can process bottle formats from 300 ml up to 1,000 ml,
making it suitable for breweries, mineral water producers, soft drink
producers and other returnable bottle operations. The washing machine
is mainly built in stainless steel, with an insulated stainless steel
caustic bath and steam heating system. The machine will be delivered
completely reconditioned. The reconditioning scope includes the bottle
infeed and outfeed, heating system, pumps, main chain, valves, piping,
spray nozzles, label removal station and electrical panel. A test run
is also included. The machine is offered with Siemens S7 PLC control
and is available as a reconditioned machine at a special price.
TECHNICAL DATA Manufacturer: Krones Type: KES-2-4-312/25-110 Machine
Type: Bottle washing machine Year of Manufacture: 2004 Capacity:
approx. 28,000 bottles/hour Bottle Rows: 25 bottles per row Bottle
Formats: approx. 300 ml up to 1,000 ml Control System: Siemens S7 PLC
Heating System: Steam heating Construction: Mainly stainless steel,
insulated stainless steel caustic bath Bottle Cell Pitch: 110 mm
Machine Cell Material: Polypropylene Bottles per Carrier: 25 pcs Total
Bottle Carriers: 274 pcs Minimum Control Range: approx. 12,000
bottles/hour Maximum Control Range: approx. 35,000 bottles/hour
Electrical Supply: 400 / 230 V, 3-phase, 50 Hz Control Voltage: 24 V
DC Empty Weight: approx. 45,000 kg Operating Weight: approx. 87,000 kg
Machine Length: approx. 11,766 mm Machine Width without Attachments:
approx. 3,136 mm Machine Height without Floor Clearance: approx. 3,200
mm Water Consumption in Operation: approx. 6.38 m³/h Water
Consumption per Bottle: approx. 0.22 l Main Chain: approx. 4 years
old, will be reconditioned Reconditioning Scope: Bottle infeed and
outfeed, heating system, pumps, main chain, valves, piping, spray
nozzles, label removal station and electrical panel Test Run incl.
Delivery Terms: EXW, unpacked
