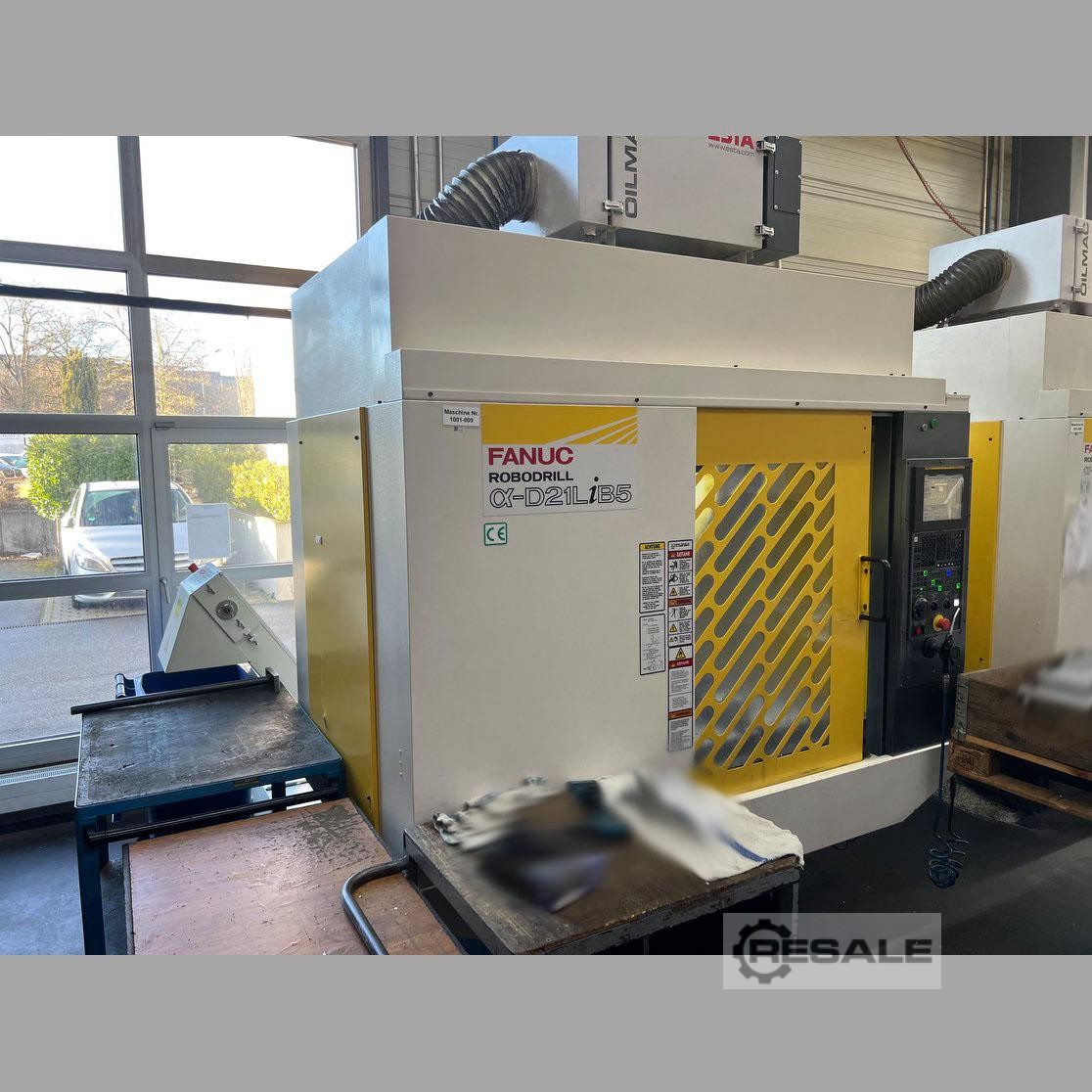

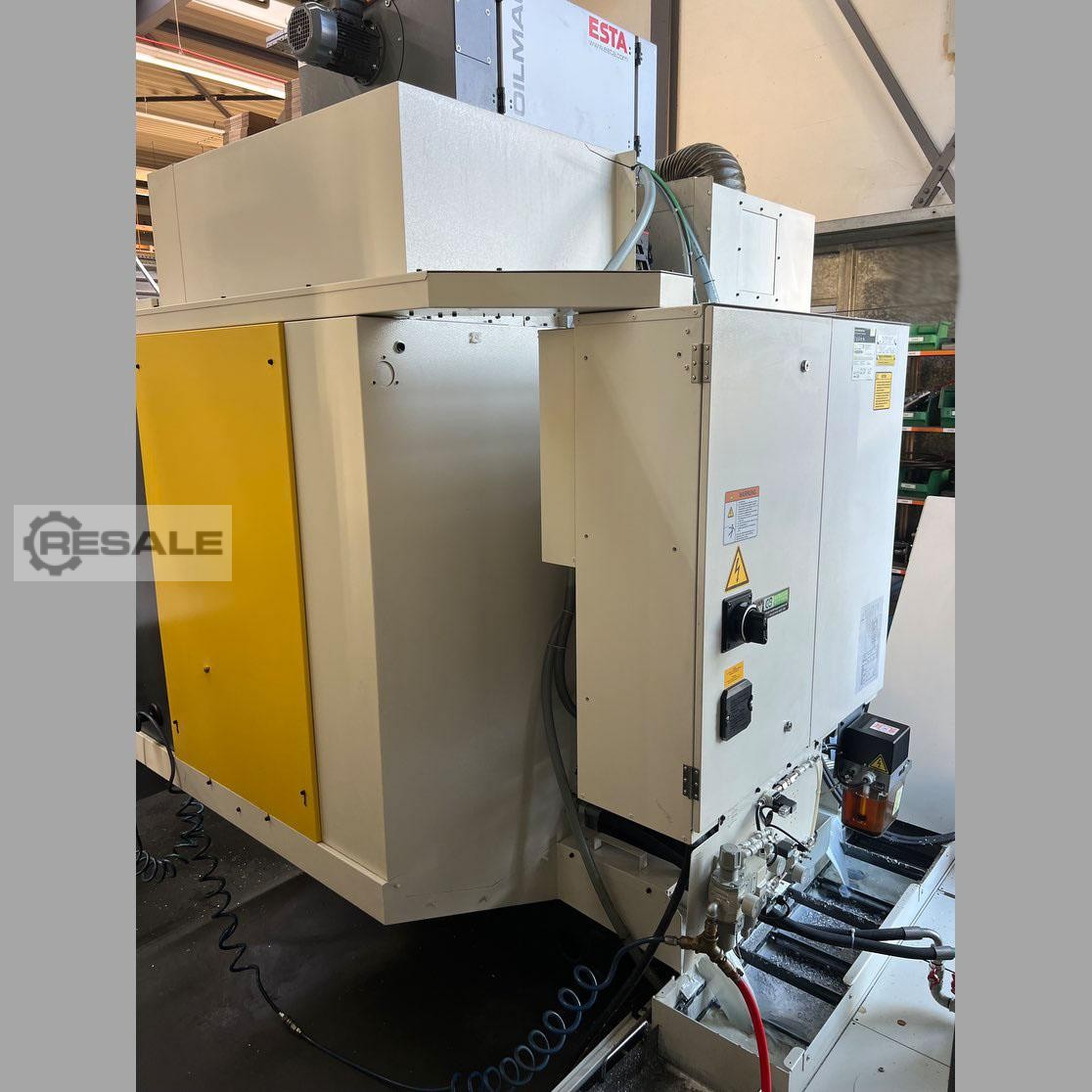

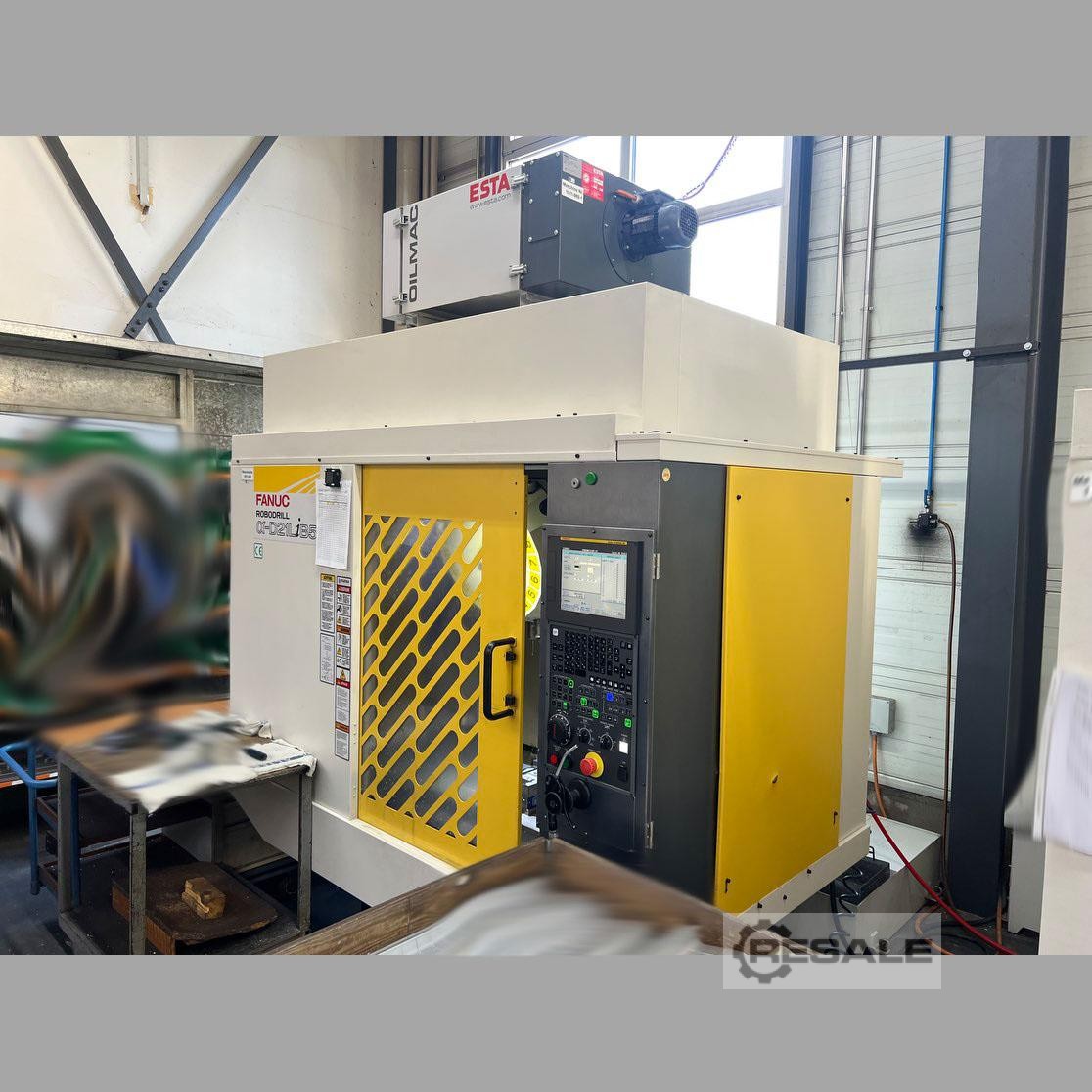

Вертикальні центри обробки з ЧПУ FANUC Robodrill alpha-D21 LiB5

GENERAL

Project No.: 905814
Quantity: 1 pcs.
Manufacturer: FANUC
Type: Robodrill alpha-D21 LiB5
Control: Fanuc 31i B5
Year of Make: 2019
Condition: Used machine
Approx (hrs): 7778
Spindle one approx. (hrs.): 1819

MILLING

Travel in X 700 mm
Travel in Y 400 mm
Travel in Z 330 mm
Max. rapid traverse speed in X/Y/Z 54/54/54 m/min
Max. feed speed in X/Y/Z 30/30/30 m/min
Max. acceleration in X/Y/Z 1.4/1.0/1.6 m/s2
Tool holder BT 30
Max. speed milling spindle 10000 1/min
Max. power at ED 10-40/100% 26/5.5 kW
Max. torque at ED 10-40/100% 35/7.5 Nm

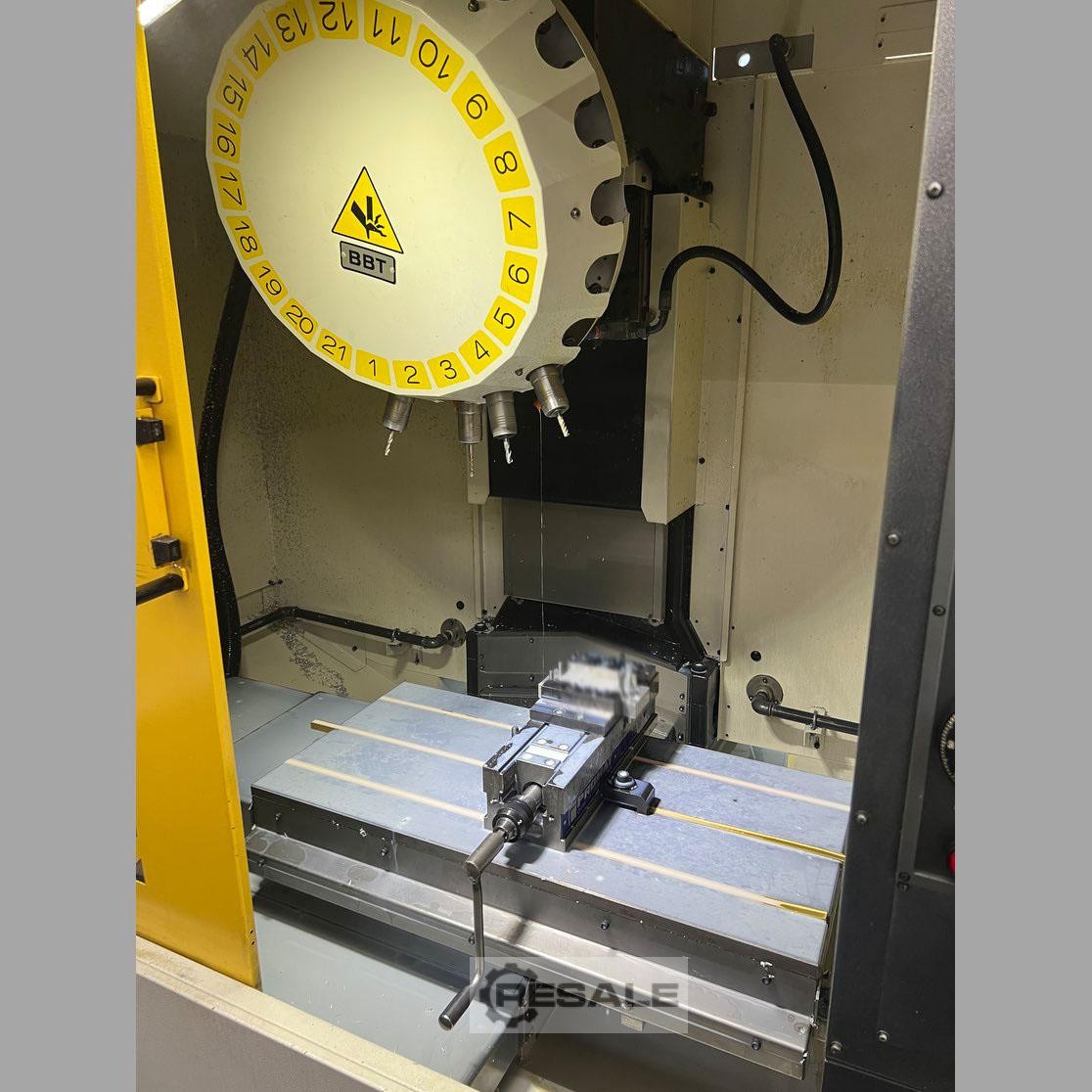

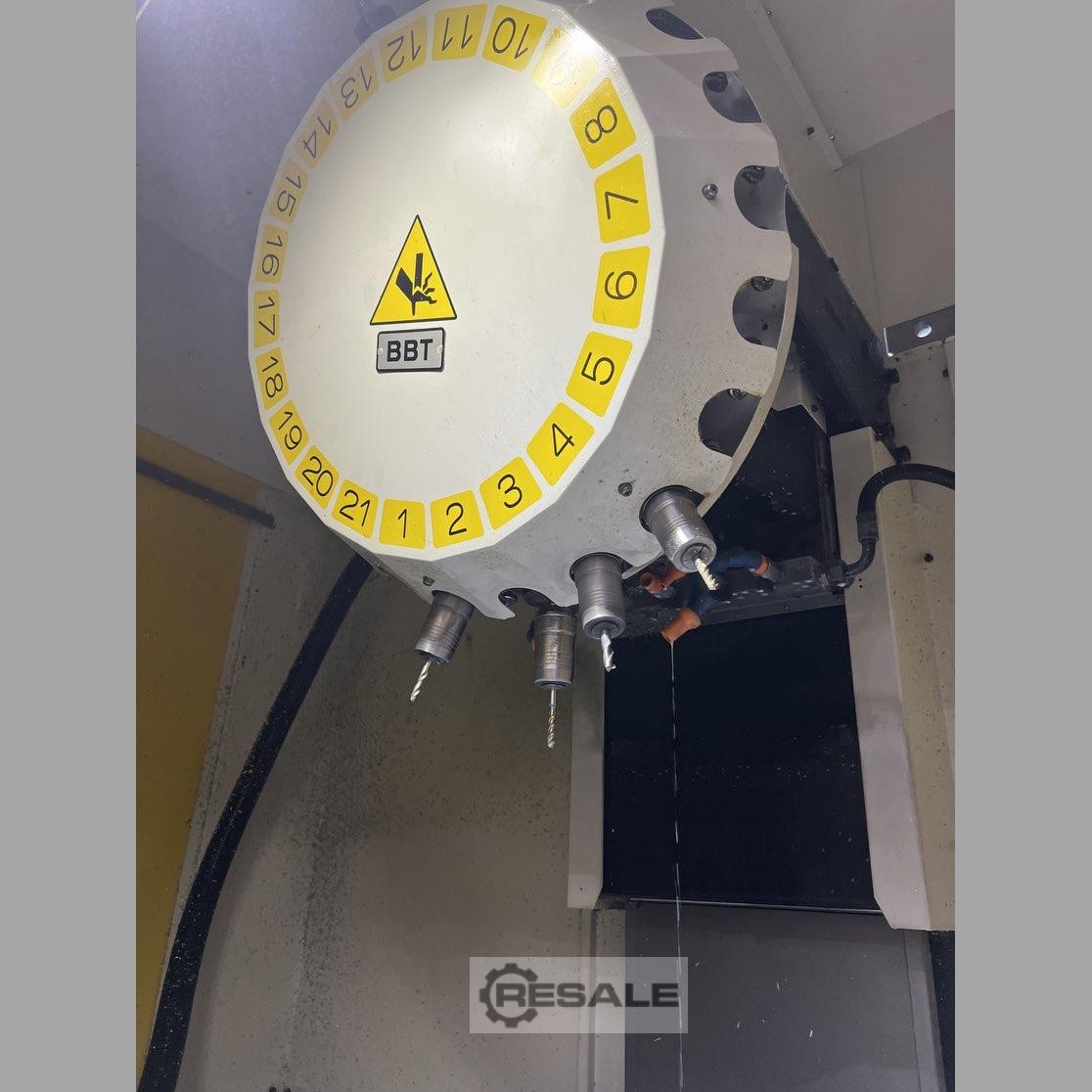

Disc tool magazine 21 stations
Max. tool diameter 80 mm
Max. tool length 250 mm
Max. tool weight 3 kg
Tool change time 1.6 s
Machine table 850 x 410 mm

OTHER EQUIPMENT

Splash protection cladding with fully encapsulated working area
Lighting in the work area
Oil/Emulsion Mist Extraction System
Chip conveyor

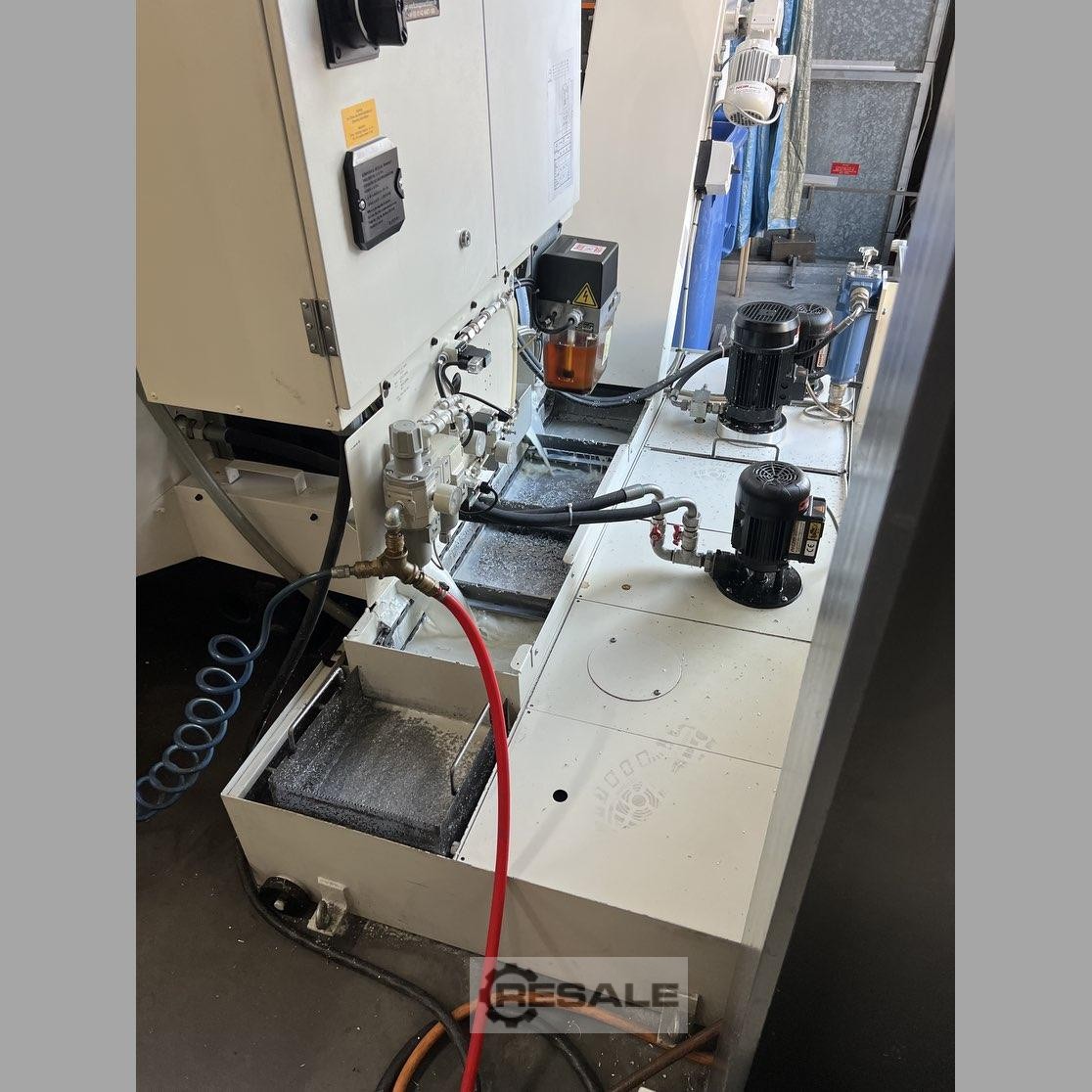

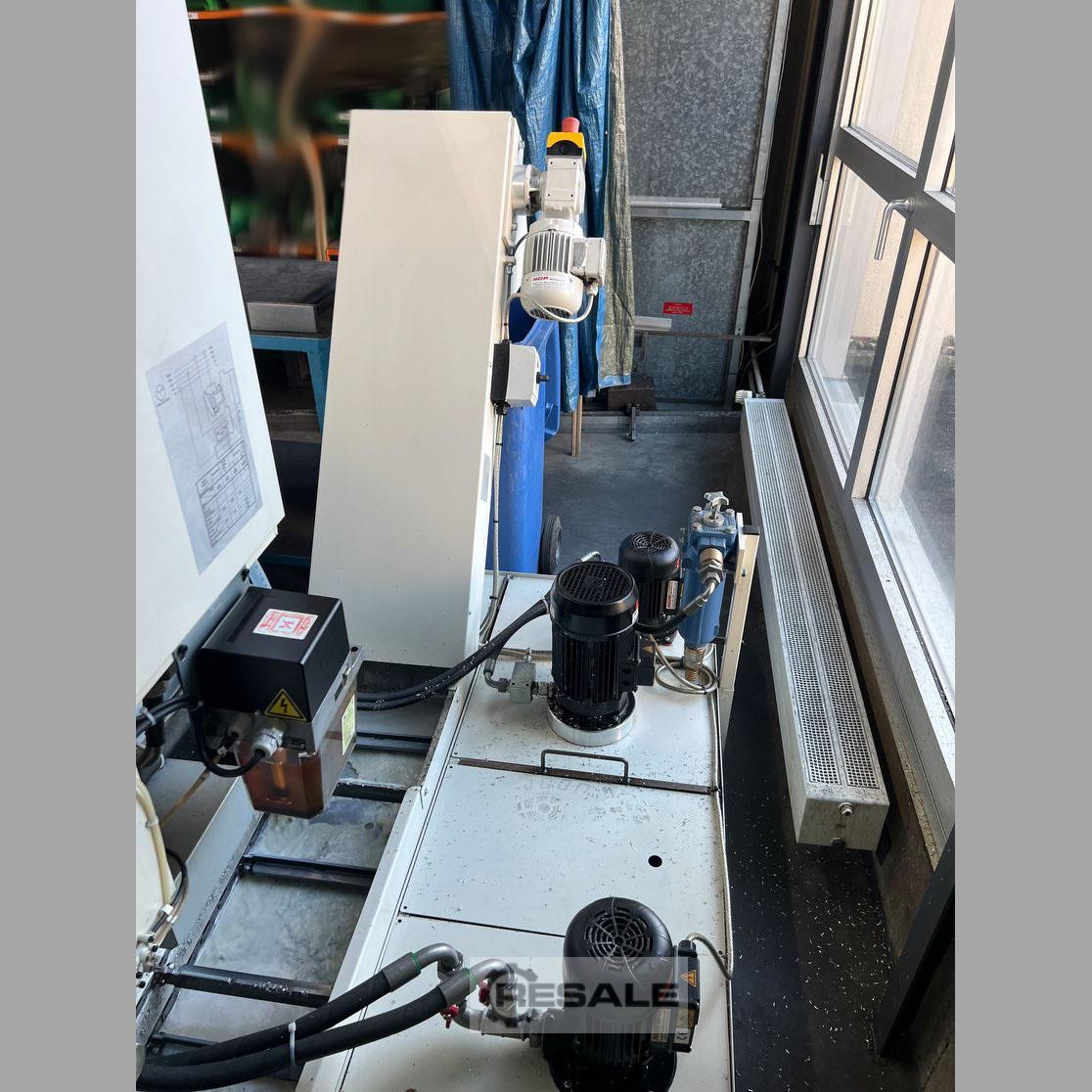

Internal coolant supply
Coolant Setup

GENERAL TECHNICAL W6124990 DATA

Area requirement of W6124990 the entire system (LxWxH) approx. 2650 x 2850 x 2775 mm
Machine weight approx. 2300 kg

NOTE

We have described the named product with the greatest possible care. However, since this does not come from our production, the data mentioned and the equipment details may differ. We therefore ask you to consider the description as non-binding and to check the data in detail during an inspection.
seller offer No. resale 905814
