x-travel: 750 mm
y-travel: 600 mm
z-travel: 520
mm
control: iTNC 530 Heidenhain
Main spindle::
turning
speed range - main spindle: 20 - 18.000 min/-1
power capacity -
main spindel: 35 / 25 kW
max. Torque: 130 / 87 Nm
tool taper:
HSK-A63
NC-Tilting round table::
table surface area: 700 x
500 mm
Swivel range B-Axis: 0 - 180 °
Swivel range C-Axis:
0,001 °
max. table load: 350 kg
center hole: 30 H6
mm
T-slots: 7x 14H7 x 63 mm
table turning speeds: 21,5
rpm
tool magazin::
number of toolpositions: 32 pos.
max.
tool length: 315 mm
max. tool diameter: 105 mm
max. tool-dia
with free toolbox: 130 mm
max. tool weight: 6,0 kg
feeds::
rapid traverse ( X / Y / Z ): 50 / 50 / 50 m/min
feed speeds:
20.000 mm/min
Feed force: X / Y / Z: 8 / 8 / 7 kN
total power
requirement: 50 kVA
weight of the machine ca.: 8,5
t
dimensions of the machine ca.: 6,5 x 3,5 x 3,5 m
Documents:
Chip-Tray:
Coolantsystem:
Tool Magazine: 32 pos.
Rotary screen:
tool setting: Laser (BLUM)
elektr. hand
wheel:
NC-Rotary Swiveling Table:
div. tool holder:
HSK-A63
exhaust fan:

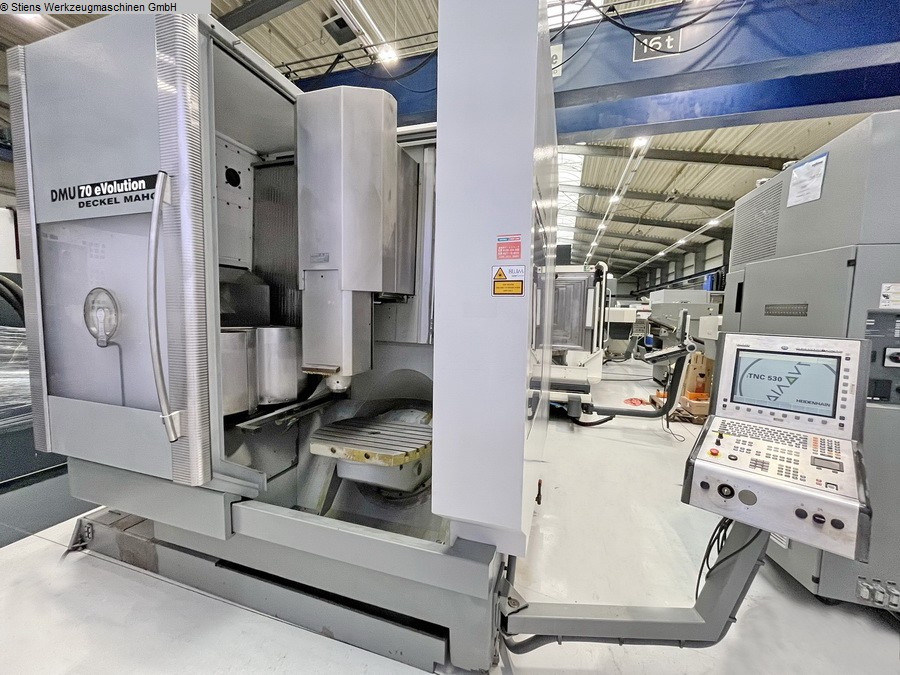

5 Axis-CNC-Machining Center
DECKEL MAHO - DMU 70 eVolution
- 5 Axis
-
NC-Swivel-Rotary-Table
- Operating-Hours: Power-On: ca. 62.500h /
Spindle: ca. 15.100h
