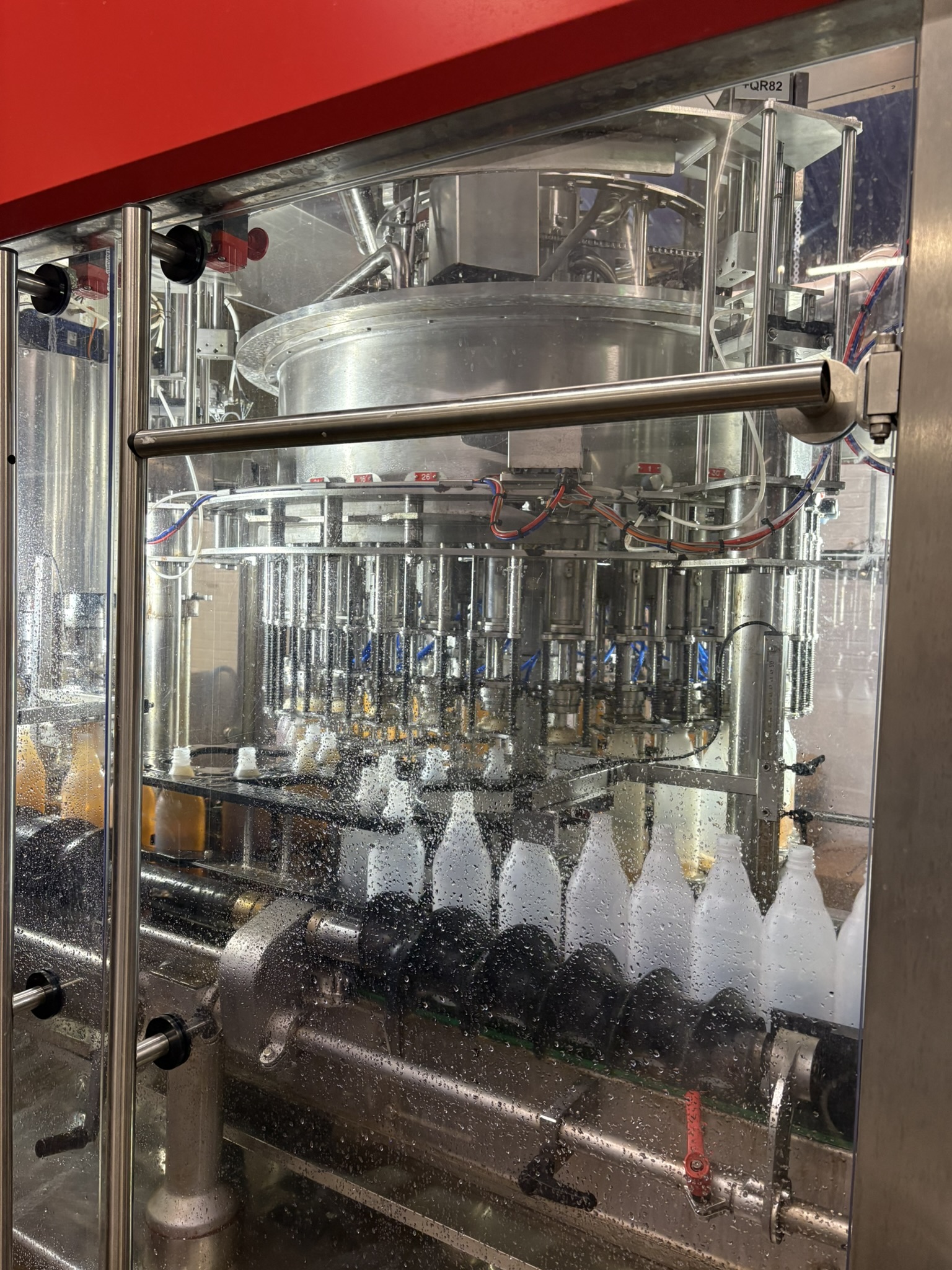

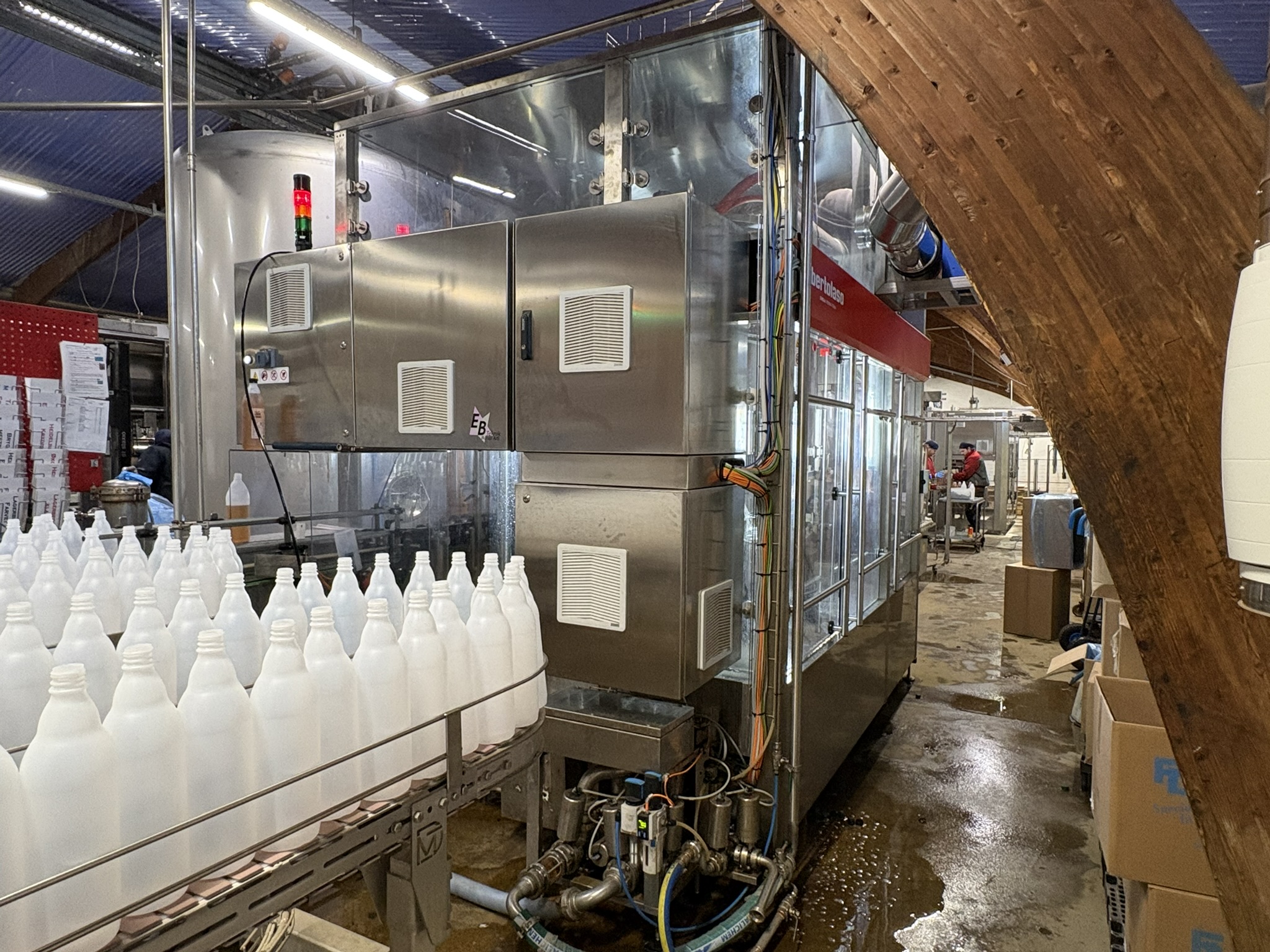

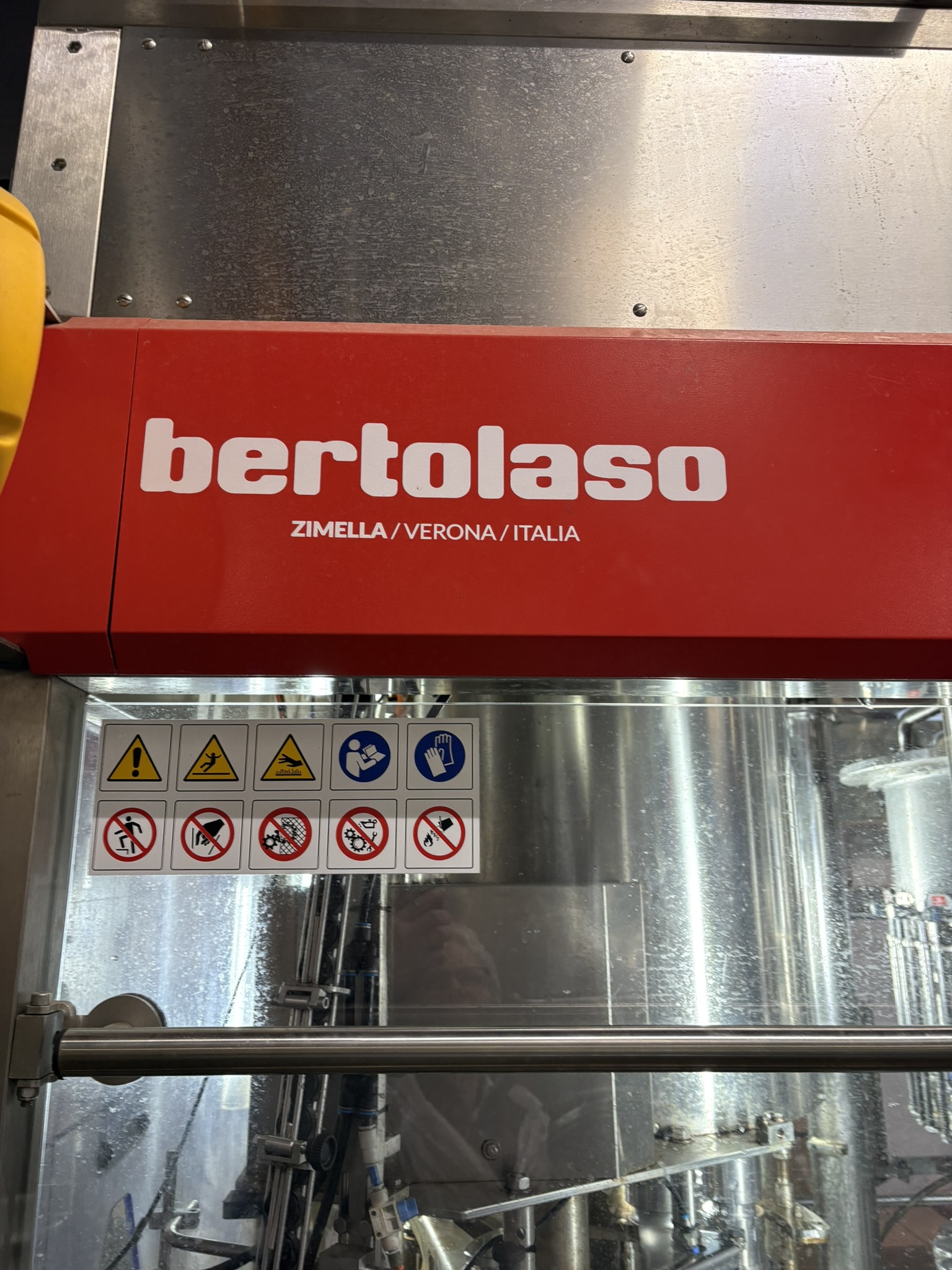

Overview The rotary filling and capping machine manufactured by
Bertolaso in 2022 is currently used for vinegar production. It
features 30 filling valves and 4 capping stations and operates based
on the atmospheric filling principle. The machine can be used with a
wide range of shape-stable containers and is suitable for filling

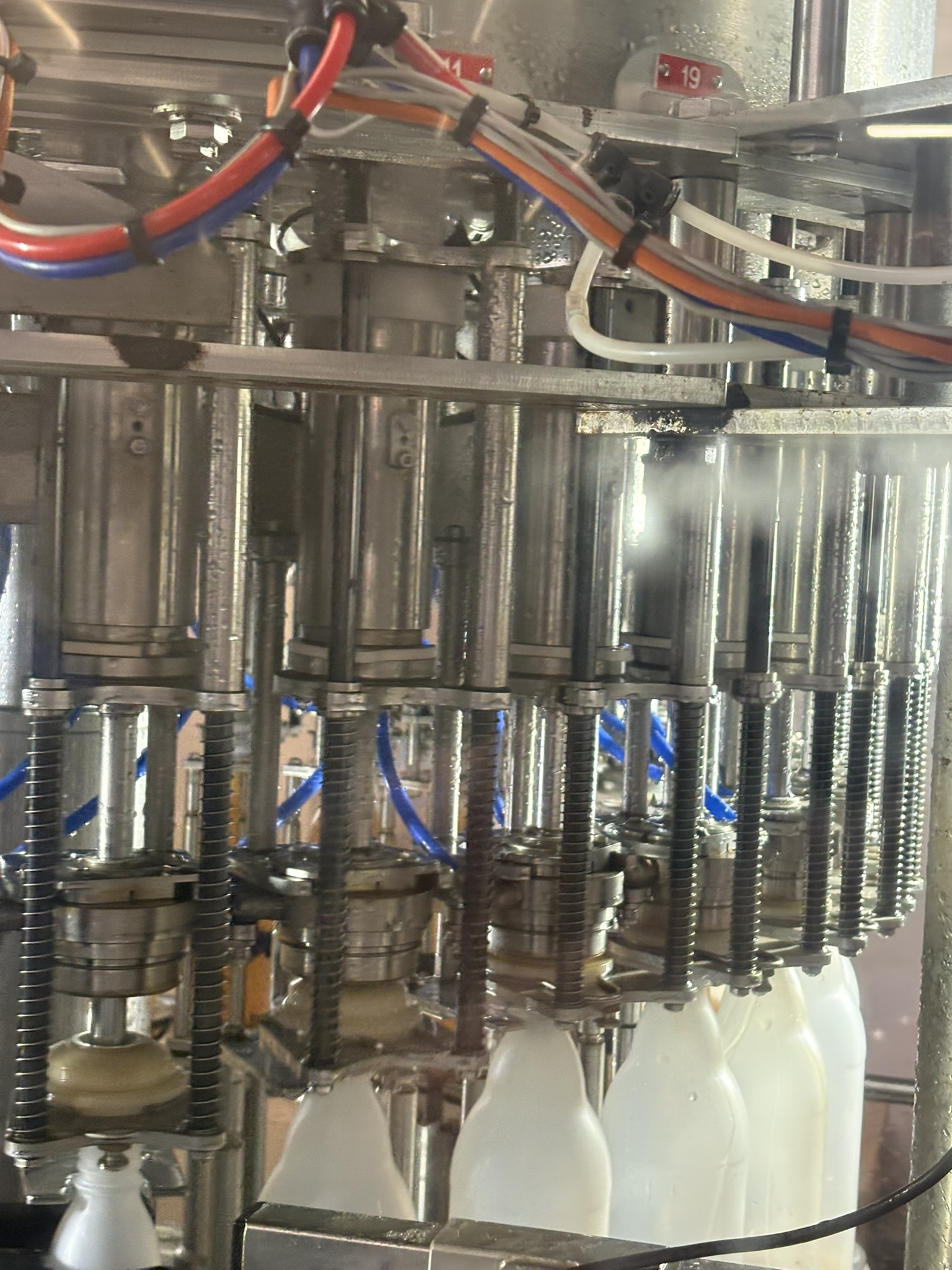

low-viscosity, non-carbonated liquids. Technical details: Filler: 30
valves (Ø16 mm), model Olimpia 30/1050 Capper: 4 Pick & Place heads,
model Sigma P&P 4/350 Bottles: 600 ml & 1000 ml cylindrical (range
Ø55–95 mm, H160–360 mm) Caps: Pre-threaded plastic Output: 8,000
bph (600 ml) / 6,000 bph (1000 ml) Material: All product-contact parts
in AISI 316 stainless steel Bowl: Electrically height-adjustable,
mechanical float level control Features: Automatic valve
opening/closing Centralized fill-level adjustment (±50 mm)
Maintenance-free lifting cylinders Automated lubrication system
Integrated washing/CIP system Remote teleservice via Ethernet Safety:
CE compliant, transparent guards with microswitches Includes: Format
parts for 600 & 1000 ml bottles; adjustable star wheels (+/-
Ø55-95mm)
