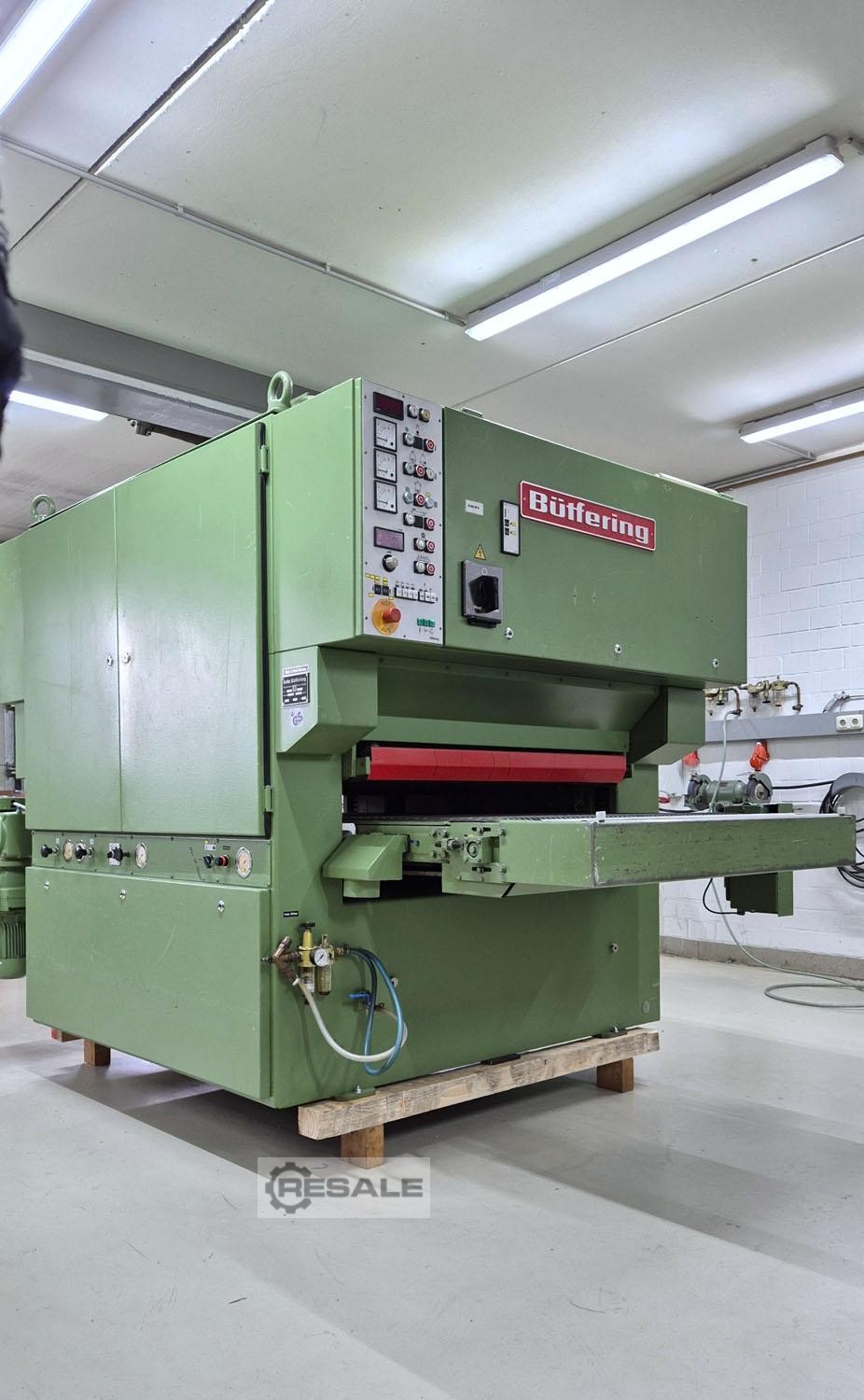

Wide belt sander BÜTFERING, AWS-3E-1100, # 0-001-747-312, year
1991
TECHNICAL DATA:
Working width max. 1,100 mm
Working height max. 150 mm
Abrasive belt width 1,110 mm
Sanding belt length 1,900 mm

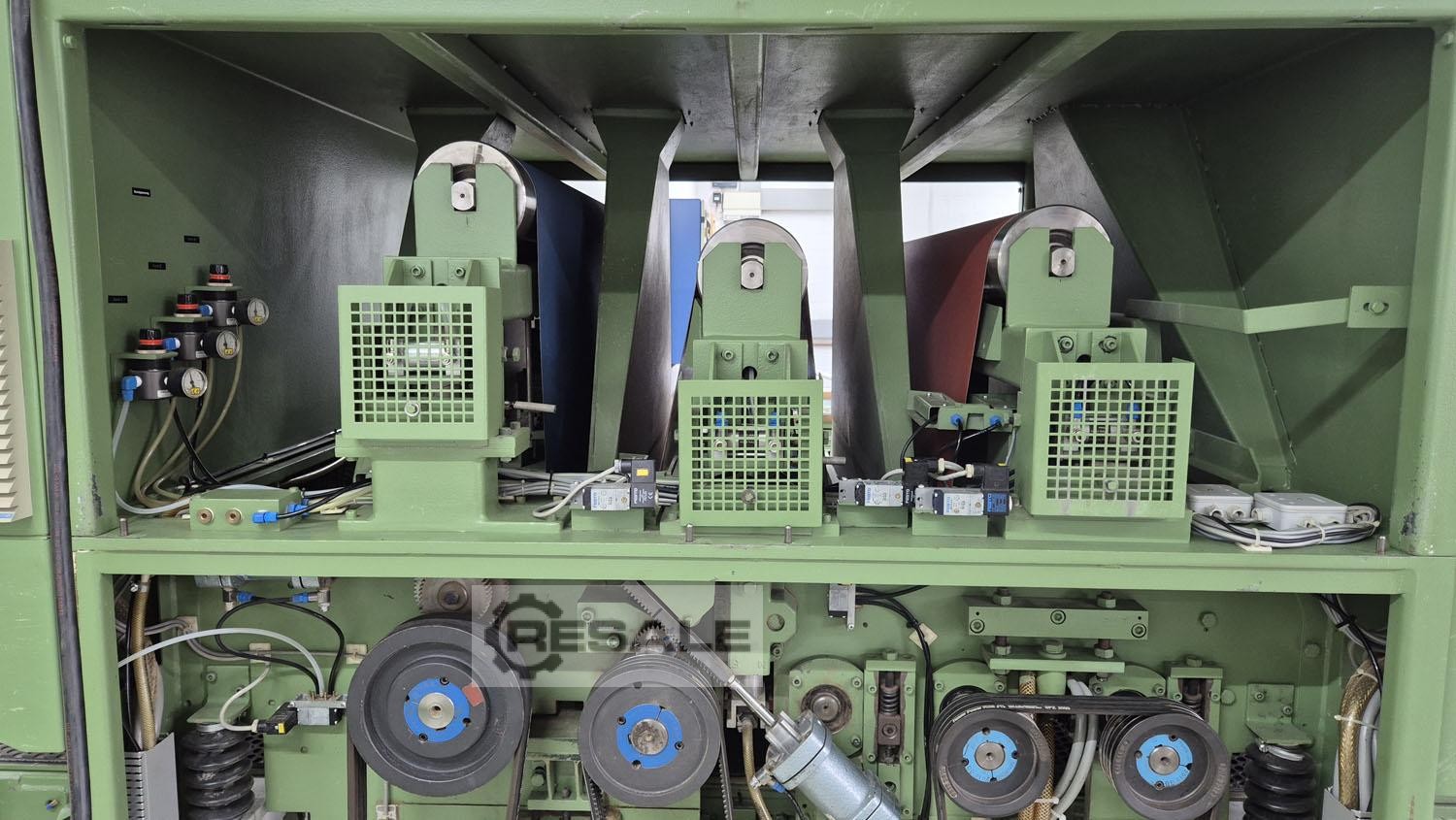

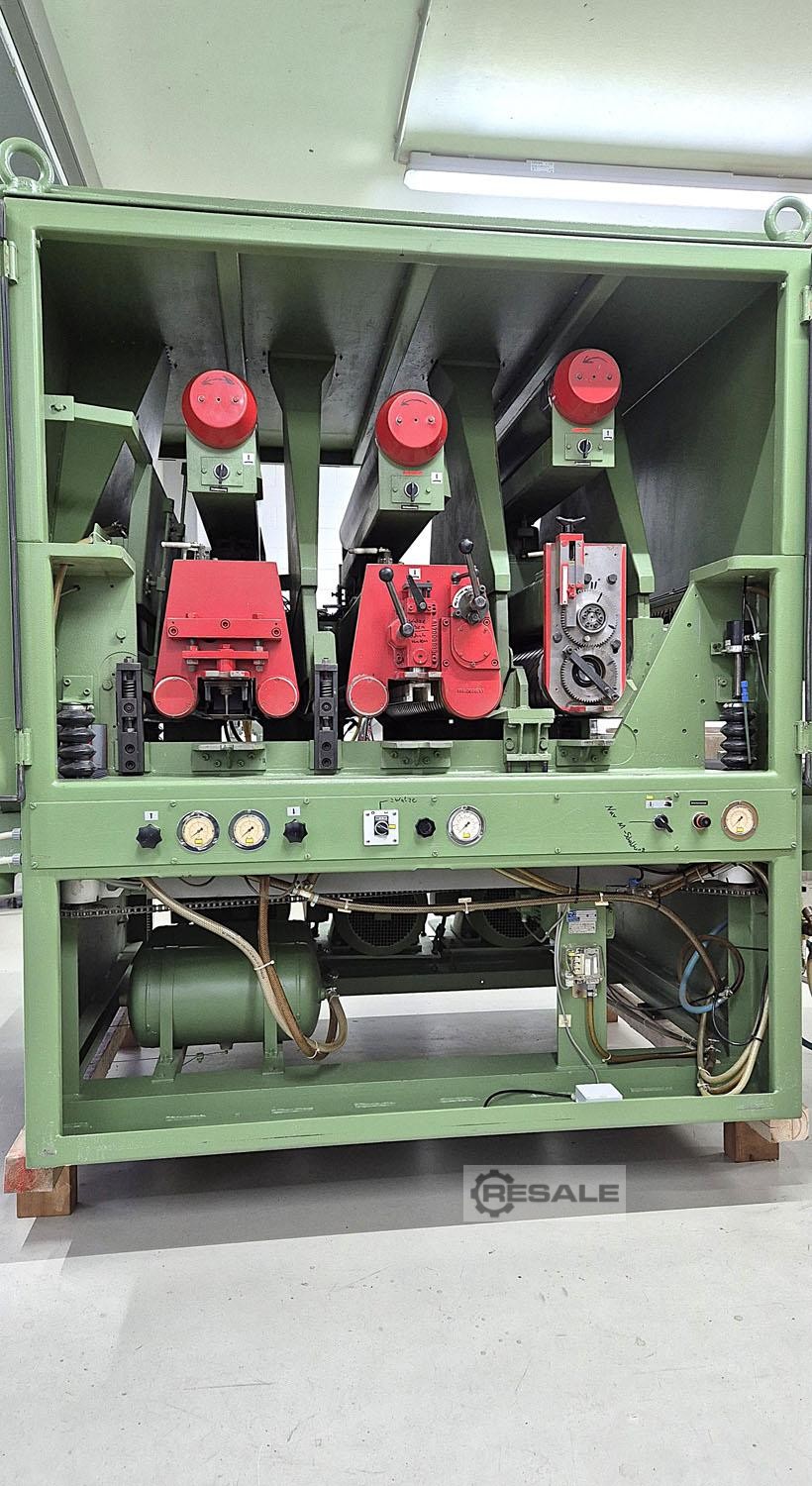

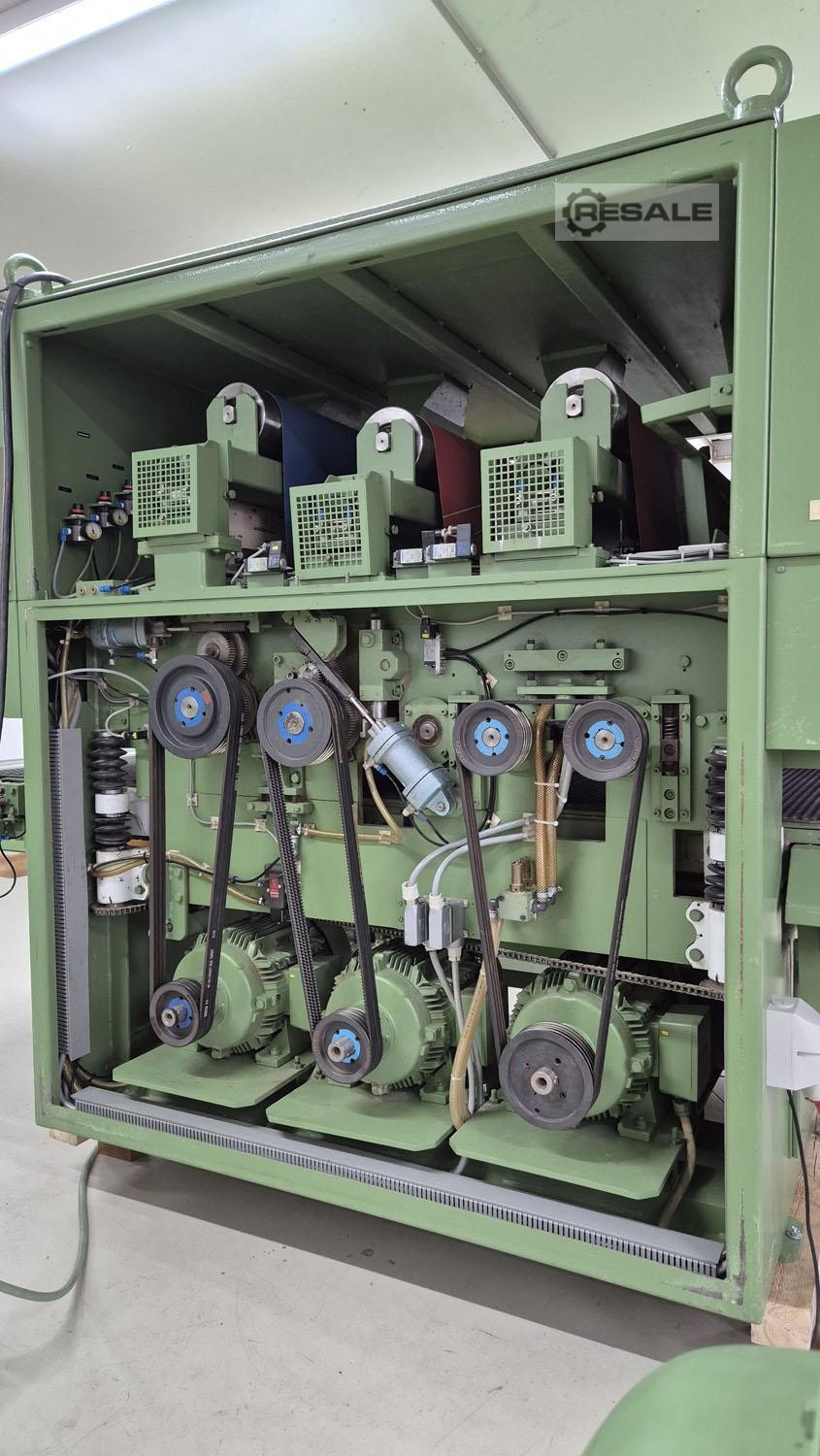

1. Grinding unit
Profiled steel contact roller D=200 mm
Motor power 15 KW
2. Grinding unit
Combined contact rolling - grinding shoe unit
Profiled rubberized contact roller, D=150 mm
Air cushion sanding shoe
Motor power 11 kW
3. Grinding unit
Grinding shoe unit, electronically controlled link pressure beam
Element width 30 mm
Synchronization / counter-rotation

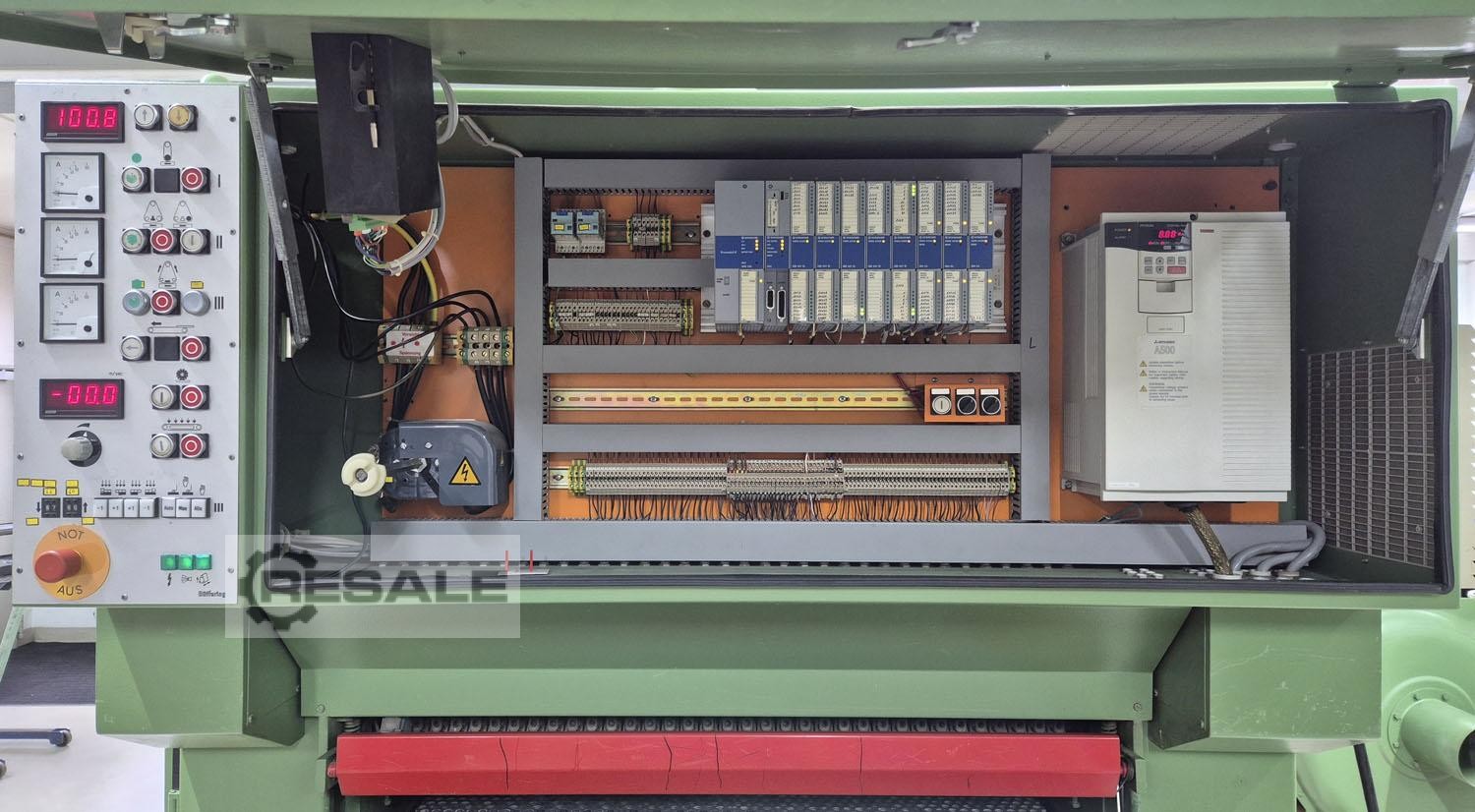

Infinitely variable sanding belt speed (frequency converter)
Digital display of the sanding belt speed
Motor power 11 kW

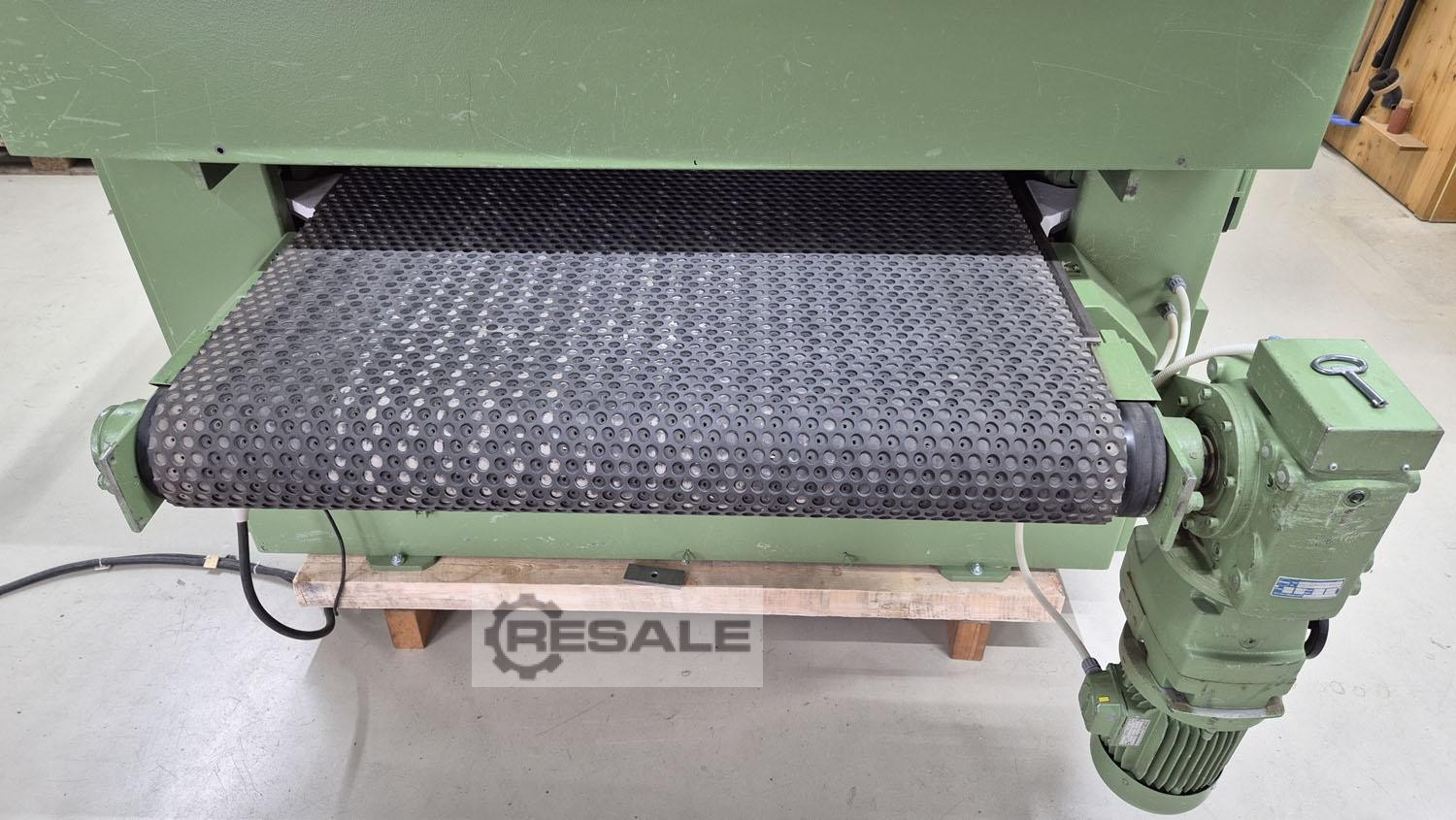

- Transport carpet with stepless belt feed 3 - 15 m/min.
- Vacuum table / vacuum clamping device 11 kW
- Rotating cleaning brush 0.75 kW
- Digital display of the grinding height
- Roller table in the infeed
MACHINE DIMENSIONS
Overall length: 3,200 mm
Overall width: 1,850 mm
Total height: 1900 + 175 mm (suction nozzle)
Total weight: 4,100 kg
Condition: Used, functional in condition as shown in pictures /
video.
Delivery time: at short notice by arrangement
Delivery: EXW
Payment: Before Delivery
A viewing is possible at any time by arrangement.
