모델
(생산자: TRACTO)
사용
- Manufacturer: Tracto - Model: Grundodrill 15XPT T5 TD73 - Year of Manufacture: 2022 - Operating Hours: 915 - Engine: Cummins EU Stage V, 119 kW for travel and drilling - Pulling and Pushing Force: 160 kN - Torque: 6,500 Nm - Drill Rods: TD73, 3 m length each - Undercarriage: Rubber track with support shield - Remote Control: Radio remote control - Cab: Spacious cab with comfort seat, joysticks, and touchscreen panel PC - Drilling Mode: Automatic drilling - Rod Box: Fully galvanised - Rod Changing System: Semi-automatic - Clamping and Release: Semi-automatic - Anchoring System: With bentonite collection tray - Bentonite Pump: High-performance HD pump onboard the carriage - Data Transfer: Drill data recording and transmission - High Pressure Cleaner: Onboard — Measuring Technology DigiTrak Falcon F5+ System with AF8 Display, DigiTrak Sender FT2, V2 15 inch (F2/F5), Lithium battery. ...

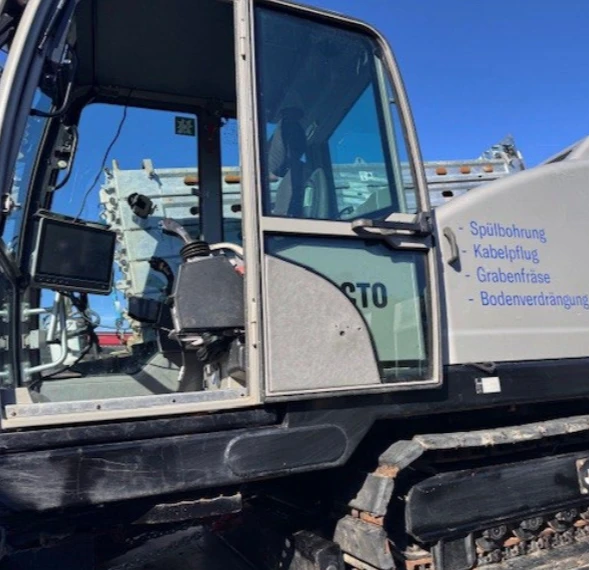

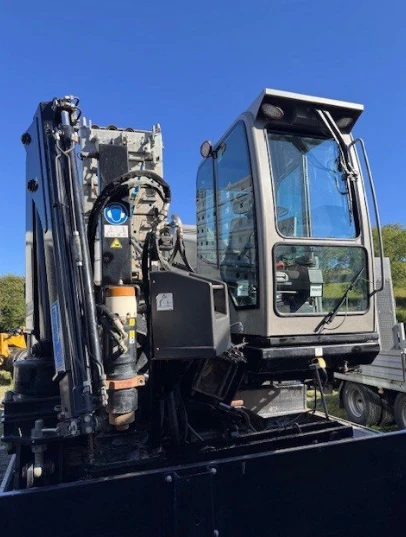

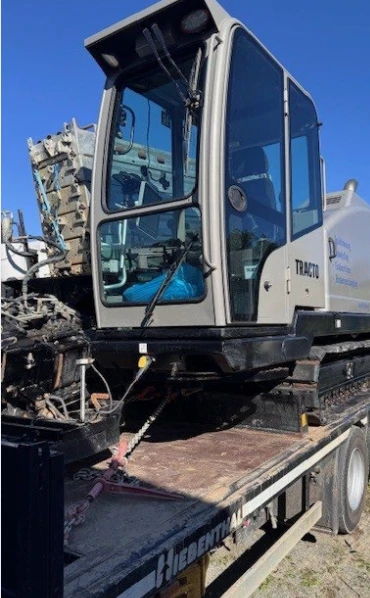

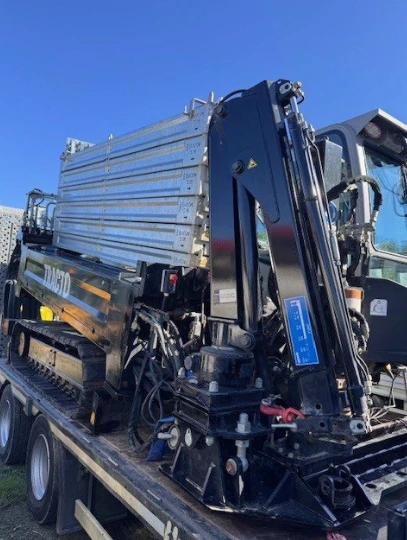

Package Overview Manufacturer: Tracto Models: Grundodrill 18ACS and Grundodrill 15XPT T5 TD73 Year of Manufacture: 2022 Unit 1 — Grundodrill 18ACS - Year of Manufacture: 2022 - Operating Hours: 1,484 - Engine: 123 kW Stage 5 drive motor for travel and drilling - Pulling and Pushing Force: 180 kN - Torque: 7,500 Nm - Undercarriage: Rubber-padded steel track - Cab: Full cab, swivelling, with heating, radio, and air conditioning - Drilling Data: Onboard documentation to DVGW GW 321 - Drilling Mode: Fully automatic - Remote Control: Radio remote control for travel operation - Bentonite Pump: 320 l/min onboard HD pump - Telemetry: Drill data transmission - Anchoring System: With bentonite collection tray - Rod Changing System: Hydraulic clamping and release unit Unit 1 — Measuring Technology - DigiTrak Falcon F5+ System with AF8 Display, DigiTrak Sender FT2, V2 15 inch (F2/F5), Lit ...
사양: - 굽힘 성능 - 스틸 튜브 20 - 60 x 4 mm - - 스테인레스 스틸 튜브 20 - 50 x 3 mm - 저항 토크 6.2 cm - 굽힘각 180 - 반경 125 mm - 굽힘 속도 8 초 - 400 V / 3 kW 구동 - 대략적인 공간 요구 사항. L 2400 x H 1600 x D 1000 mm - 대략 무게. 1400 킬로그램 - 함께: - 디지털 디스플레이가있는 전위차계를 통한 굽힘 각도 제어 - 6 배 굽힘 각도 사전 선택 - 실내 + 실외 원시 트레일러 - 굽힘 도구 Rx2, 5D 38; 50 , 65 ;
