Transnorm 1000-700-600 ленточный конвейер

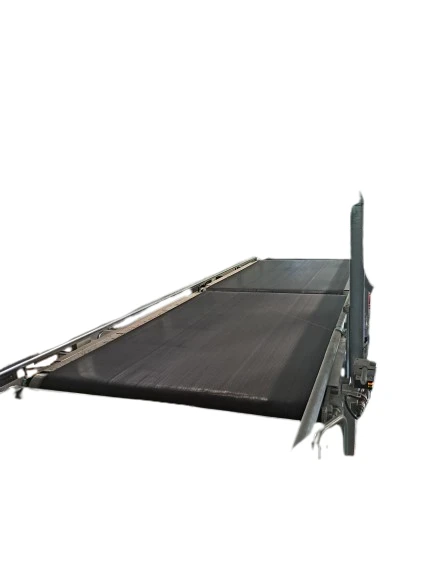

Transnorm conveyor belt GF 1000-700-600
RA2058
Technical data:
Conveyor length (NL): 1000 mm
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0,75
Drive: SEW gear motor, R17 DRS71S4/MM05/LN
Electrical data: 50Hz V380-500, kW 0,55 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm
Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)
Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany
Features:
Construction year: 2014
condition: good (used)
Conveying length in mm: 1000
Nominal / outside width in mm: 700
Belt width in mm: 600
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 0,55/S1
Conveyor speed m / s: 0,75
scope of delivery: without supports and side guides
