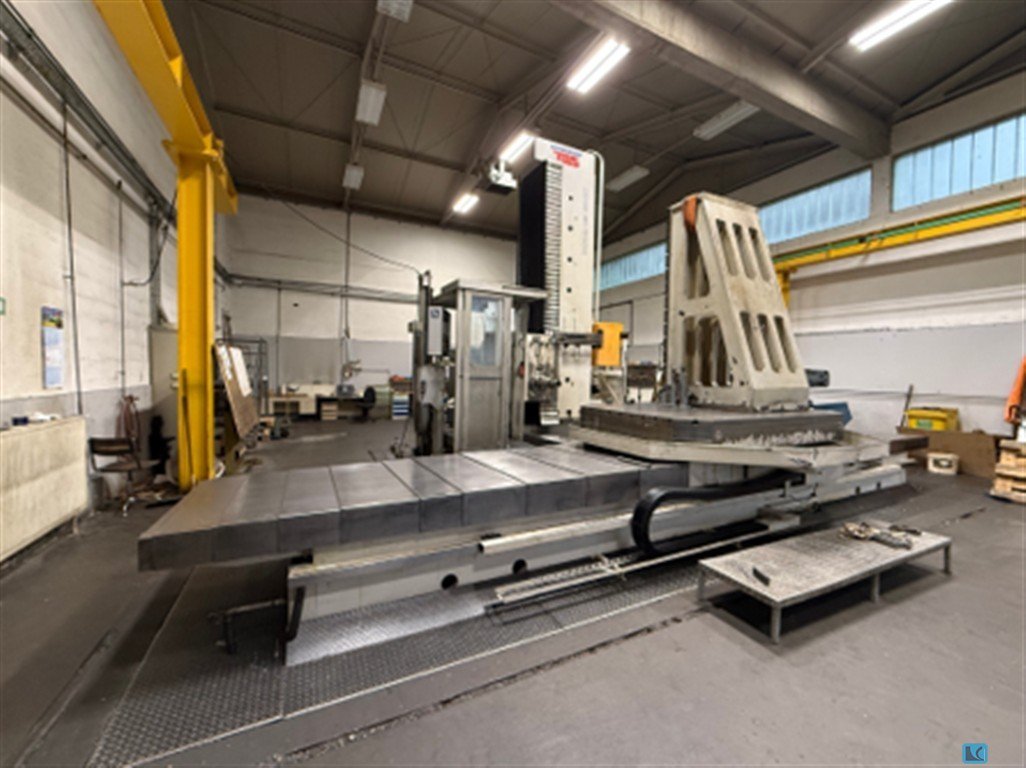

TOS VARNSDORF WHQ13 Table Type Boring and Milling Machine

spindle diameter:130 mm
x-travel:5000 mm
y-travel:3000 mm
z-travel:2000 mm
The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries.
With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes.
The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various machining angles can be carried out. The automatic tool changer with 40 positions enables the cost-effective machining of complex workpieces using multiple tools.
Technical data
X-axis travel: 5,000 mm
Y-axis travel: 3,000 mm
Z-axis travel: 2,000 mm
Maximum spindle speed: 3,000 rpm
Table size: 2,500 × 1,800 mm
Maximum table load: 20,000 kg
Tool changer: 40 positions
Equipment: Milling head
