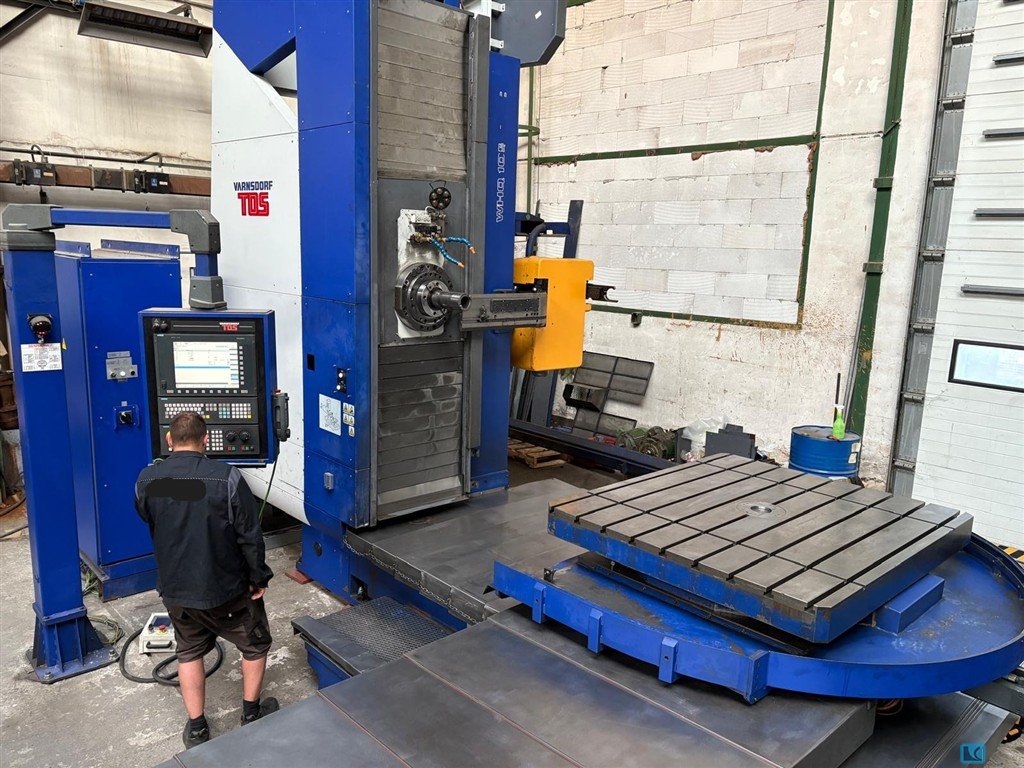

TOS VARNSDORF WHQ 105 Table Type Boring and Milling Machine

bore capacity in steel (diameter):- mm
throat:- mm
bore stroke:- mm
x-axis:1.800 mm
y-axis:1.600 mm
z-axis:1.250 mm
w-axis:630 mm
max. table load:5.000 kg
table length:1.400 mm
table width:1.600 mm
spindle diameter:105 mm
spindle turning speed range:3.300 U/min
numbers of positions in the tool changer:40
internal coolant system feed:40 bar
Splash guard around rotary table
Chip Conveyor
Oil cooling unit (chiller)
Touch probe Renishaw RMP60
Upgrades in 2024 and 2025
Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ
New linear scales Heidenhain in X and Z axis including cabling
retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis
new TOS Varnsdorf parts for tool clamping and automatic tool changer arm
Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)
New Siemens hand wheel
