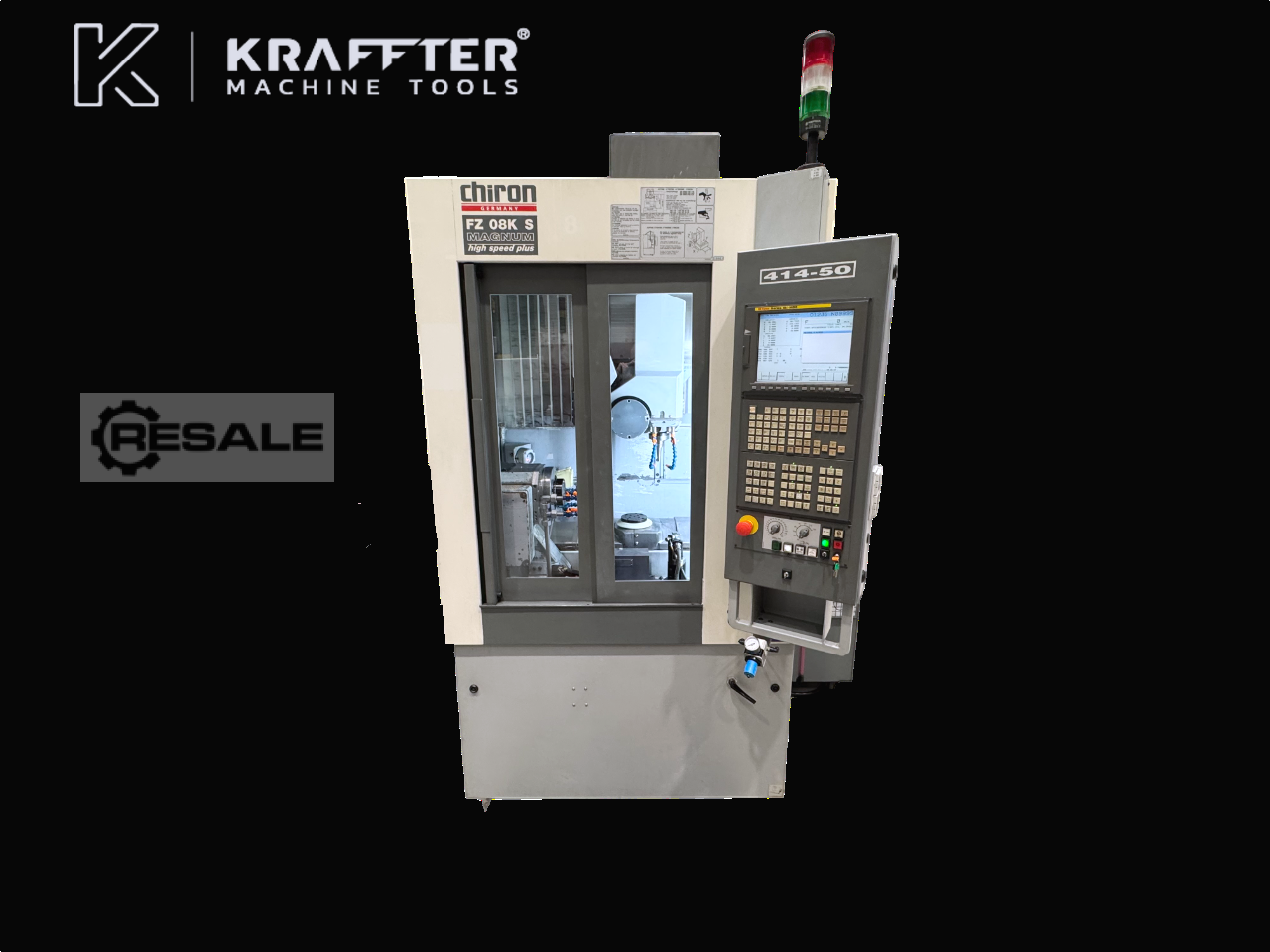

Высокоскоростные обрабатывающие центры CHIRON FZ 08K S Magnum HSP

CHIRON FZ08 KS Magnum High Speed Plus (HSP) High-Speed Machining Center (HSP)

TECHNICAL FEATURES:

Year: 2007
NC Type: FANUC 18i-MB5
Number of axes: 7
X-axis travel: 450 [mm]
Y-axis travel: 270 [mm]
Z-axis travel: 310 [mm]
X, Y and Z fast travel speed: 75000 [mm/min]
Maximum diameter in bar turning spindle: 32 [mm]
Maximum speed Turning spindle: 8000 [rpm]
Maximum power turning spindle: 12 [kW]
A-axis angular travel: 360 [°]
A-axis indexing accuracy: 0.001 [°]
B-axis angular travel: -20° / +115 [°]
B-axis indexing accuracy: 0.001 [°]
Pin Attachment: HSK40
Maximum speed K6149644 Spindle: 30000 K6149644 [rpm]
Number of tool magazine stations: 40
Turning part by robot (6th side machining): Yes
RS232 Port: Yes
Installed power: 17 [kVA]
Supply voltage: 400 [V]
Dimensions: 1500 x 2600 x 2300 [mm]
Weight: 3400 [Kg]

More information on request.
seller offer No. resale 90153
