Autowrapper / SIG / Rotzinger Lot 38 - Chocolate Biscuit Packaging Department

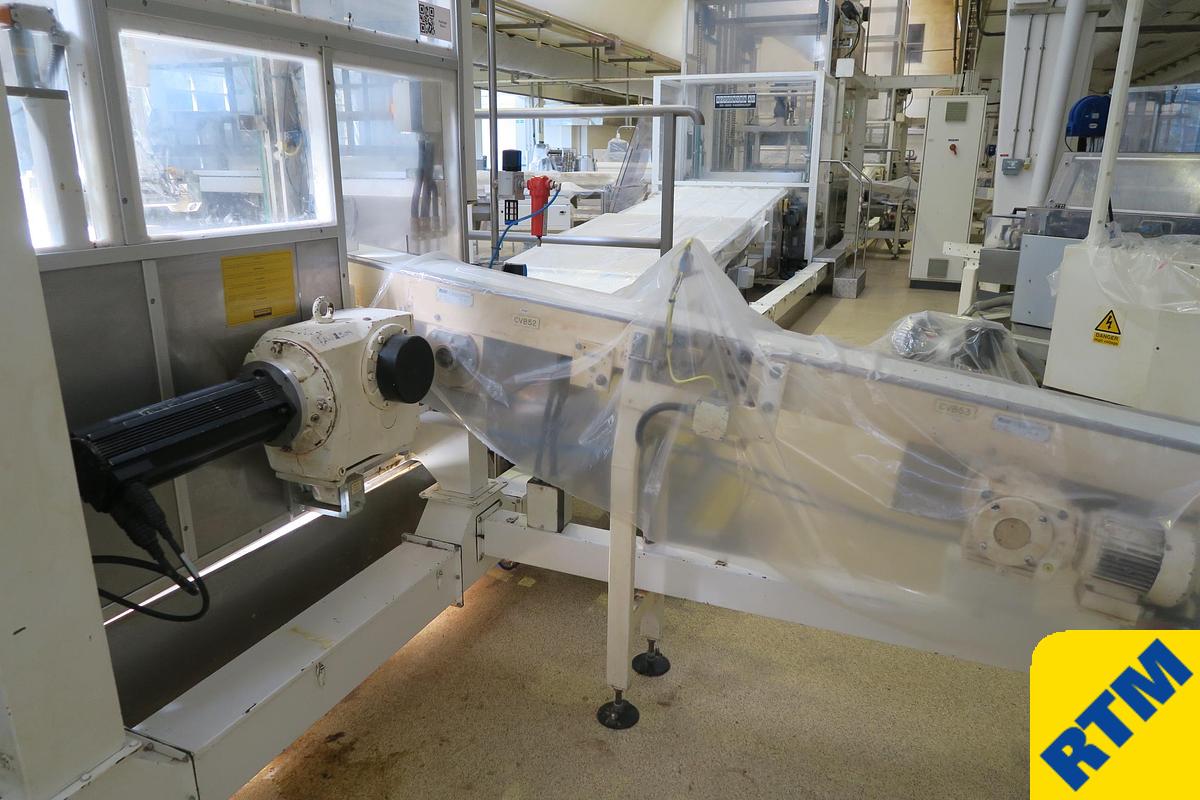

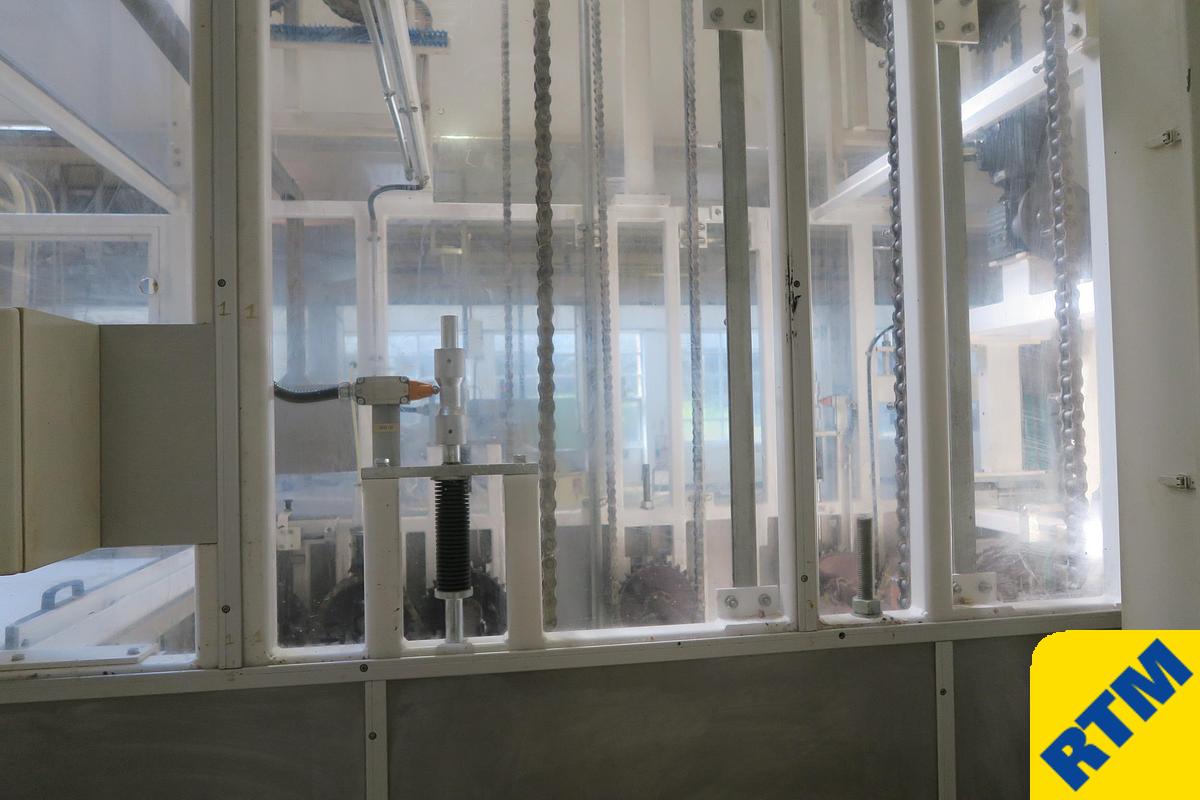

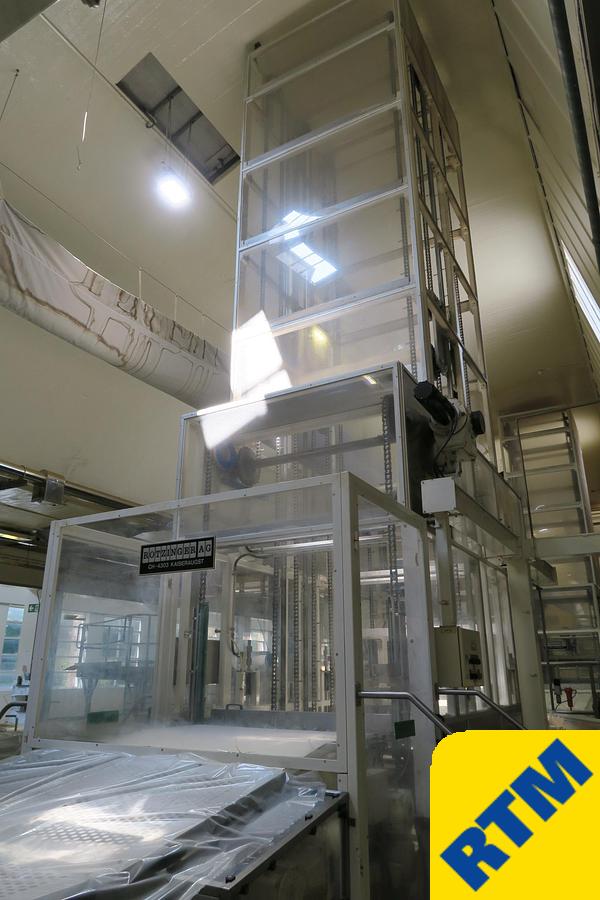

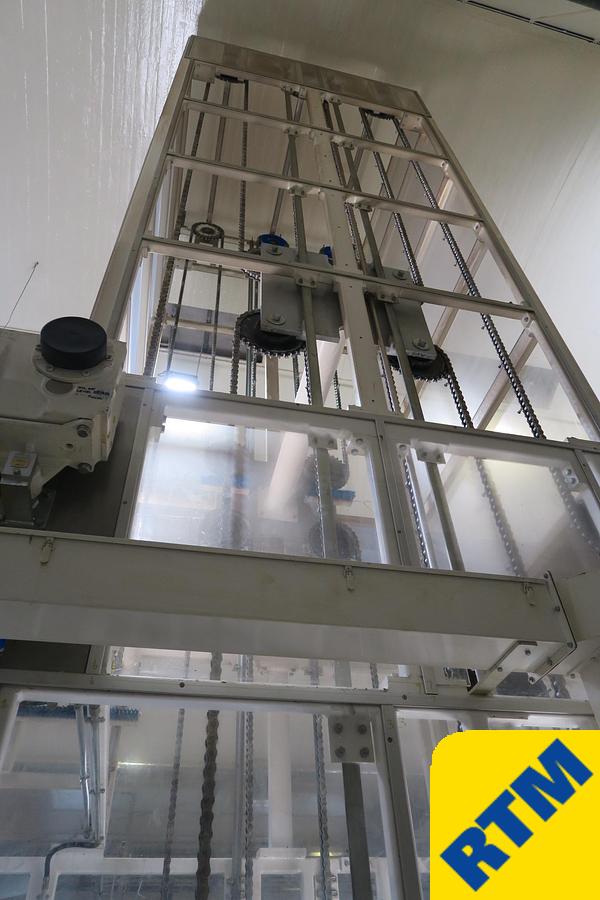

Description PACKAGING MACHINERY FOR "BREAKAWAY" Biscuits (moulding line Lot 37) Exit conveyor from moulding line into ROTZINGER product storage buffer. Three of these buffers in total and each one feeds to two flowpack lines. The flowpacks are setup with one single wrap machine feeding into a multipack machine. Therefore 6 flowpack lines in total. Last in production December 2023 including 3 x Autowrappers Flowtronic 410 Machines Single wrap flow wrap. Previously wrapped Breakaway biscuit and tablet style bars at speeds of up to 400/min (315/min nominal) Fed into multipack machine or can feed out onto hand packing conveyor. Serial numbers of machines: 6261L94, 6180L93, 6086L93 Year of manufacture/install: 1993/1994 Control - Allen Bradley 3 phase 415v 50hz Dimensions - L5430mm x W2830mm (including infeed belts) Length of infeed belts 1680mm. Current max cut width 100mm Some change parts available for tablet bars (larger pitch chain etc. for longer bar). 2 x Autowrappers Flowtronic 120SE multipack machines Serial Numbers: 6892, 6890 Year of manufacture: 2002 Control system Allen Bradley Previously ran pack formats - 5,6,7,8,9,12,16,22 single and double layer with Nestle biscuit product (approx 30mm width per bar). These machines are capable of triple layer although never ran with this. Cutter width - 155mm Machine - L6490mm x w1300mm 415v 3 phase 50hz up to 53 packs per minute. Speed governed by single flow wrap output. No change parts, machine adjustable. 3 x Autowrapper Flowtronic 120 single flow wrap machines Serial numbers: 6795, 6796, 6794 Year 2000 3 phase 415v 50hz Control: Allen Bradley Ran speeds up to 400/min Cutter width 155mm Packed single biscuit style bar and tablet. Feeding to multipack machine. One of the three machines has the facility to bypass the multipack to hand pack. No change parts. To run longer tablet new infeed chain would be required with larger pitch between pushers. Machine dimensions (approx) L5350mm x W1250mm + infeed belt feeding on at 90 degrees L2050 x W1000mm (belt width 200mm.) 4 x SIG SB Multipack Machines Serial Numbers: 514.216.006, 514.216.009, 514.006.010, 514.006.007 Year: Unknown Control: Allen Bradley 3 phase 415v 50hz Formats capable of doing: 5 pack, 6 pack, 7 pack, 8 pack, 9 pack - All 4 machines. Machines 007 and 010 have double layer capability although not used. Some change parts available to change pack formats. Machine Dimensions L6010mm including transfer from singles x W1400mm 1 x hand fed multipack machine with Kora Packmat infeed cassette No info available. Machine was purchased brand new for a project but rarely used. Dimensions (approx)L5090mm x W1400mm Allen Bradley control with Markem Smart Date 5 coding unit
